Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Aug 21, 2006 Accepting 3-24 V input signals, 2 MHz Model TPS28225 controls MOSFET gates from 4.5-8.8 V, with highest power efficiency between 7 and 8 V for 40 A per phase. Unit drives N-channel MOSFETs in synchronous buck, boost, or bridge configurations. It features 14 nsec adaptive dead-time control and 14 nsec propagation delays, as well as 2 A source and 4 A sink drive capability. Driver's 0.4 W impedance holds gate of power MOSFET below threshold level.

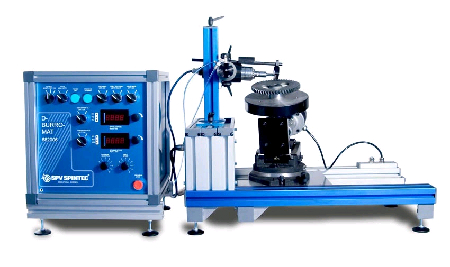

SPV SPINTEC AB    Eskilstuna S-631 04  Sweden
Aug 21, 2006 Suitable for incorporation into robot cells, bench-top Model 68 2006 deburs gear wheels and contoured profiles on round and oval workpieces such as rings, hubs, and discs. It can be supplied with several spindles running at 2 different speeds. Cutting pressure is adjustable from 10-300 g, and initial tool contact is dampened via adjustable shock absorber. Pivoting suspension device on spindle provides free movement vertically when working to ensure equal machining.

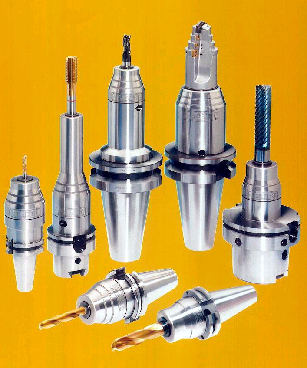

Albrecht, Inc    Hauppauge, NY 11788
Aug 21, 2006 Available in short, extended, and slim-line configurations, key-operated APC Tool Holder combines precision worm gear and slow collet taper angle to achieve high holding power. Accuracy is guaranteed at 0.00012 in. TIR at 2.5 x D, and all chucks are dynamically balanced to G2.5 at 20,000 rpm for high-speed operation. Additional features include central thru-coolant passage, sealed construction, and surface coating that facilitates collet changes.

duMONT Co., LLC., The    Greenfield, MA 01302
Aug 21, 2006 Suited for cutting 1/8, 3/16, ¼, and 3/8 in. keyways, Minute Man No. 10-10A Combination Set includes 4 broaches, shims, and 18 bushings with diameters increasing in 1/16 in. increments from ½ to 1 9/16 in. Supplied in varnished hardwood box, broaches are high-speed steel, push-type units that can be used with any hydraulic press with adequate throat depth.

ROMI Machine Tools, Ltd.    Erlanger, KY 41018
Aug 21, 2006 Offering 2 spindle options to match speed and size to production needs, M33 Series is equipped with belt-driven, cartridge-style, gearless headstock featuring 50 hp AC GE Fanuc P-type spindle motor with variable speed drive. With 203 x 96 in. footprint, Model M33 x 80 features swing of 33.46 in. and distance between centers of 80 in. GE Fanuc 21i-T CNC includes built-in machining cycles for profiling, grooving, threading, drilling, boring, and rigid tapping.

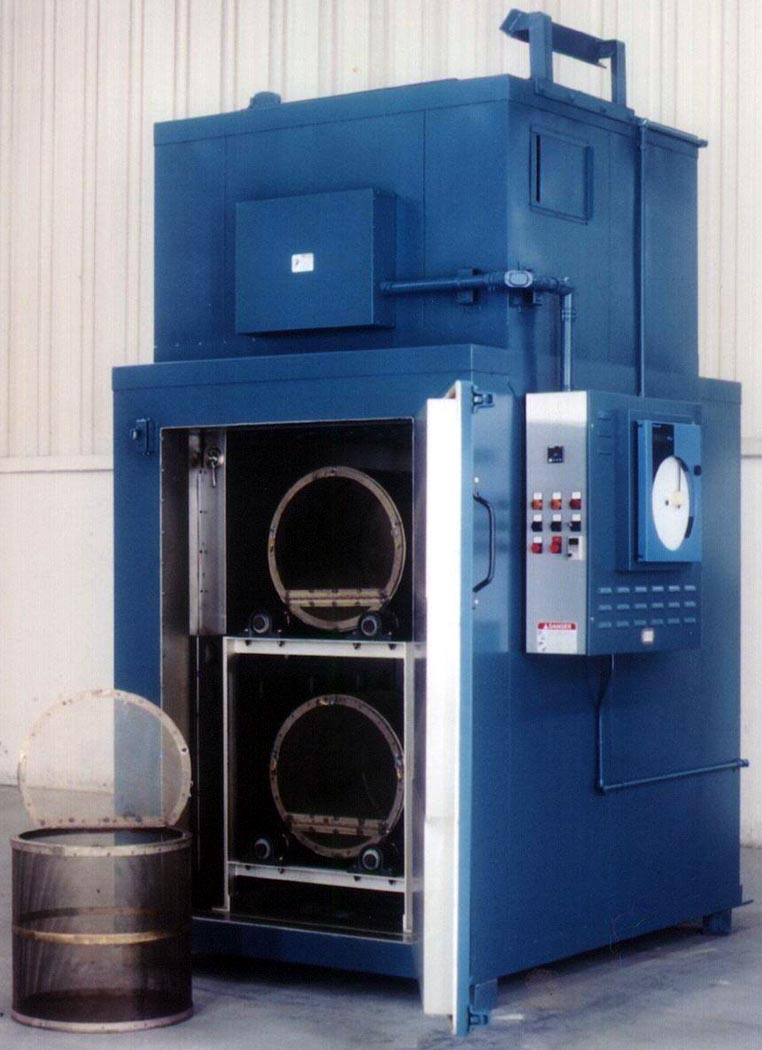

Grieve Corporation, The    Round Lake, IL 60073-2898
Aug 21, 2006 Featuring 36 x 60 x 60 in. workspace, No. 973 has 40 kW installed in Incoloy sheathed tubular elements and integrates 4,200 cfm recirculating blower that provides combination horizontal/vertical airflow to workload. Onboard, motorized roller rack has 2 levels of 4 in. dia rollers, each supported by metallized carbon bearings and driven by sprockets and roller chain. Each level of rollers holds two 20 in. dia stainless steel perforated drums, rotating at 6 rpm, which carry workload.

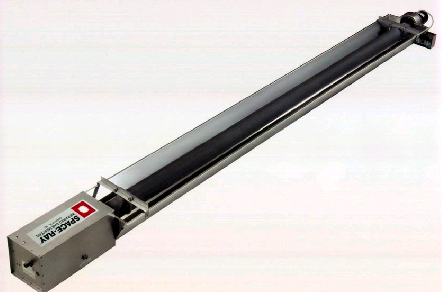

Space-Ray    Charlotte, NC 28236
Aug 21, 2006 Available in natural and propane gas with tube lengths from 15-80 ft, LTS Series straight tube infrared heaters come in 19 models and in more than 100 different configurations. Corner reflectors and 90° elbows allow mounting near walls, doors, or corners. Certified for horizontal and vertical venting, heaters can be horizontally mounted for max 75 ft sidewall venting. They are also certified for incline mounting on up to 2 ½ pitch roof surface.

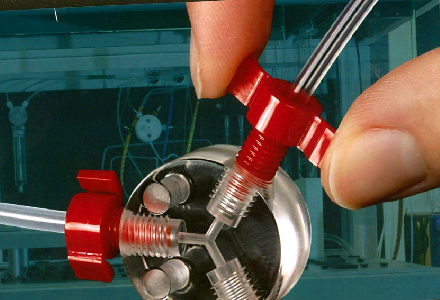

Diba Industries    Danbury, CT 06810
Aug 21, 2006 For leak-free processing, Torque Right(TM) Fittings provide objective feedback that desired torque has been achieved. Units are designed with tabs on either side, scored to fold in when fitting is seated with right amount of torque. Visual indicator allows installers to hand tighten fittings without tools, torque specification, or guesswork. Available with standard ¼-28 thread size, fittings come in 9 colors for connection coding and identification.

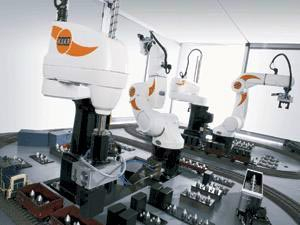

KUKA Robotics Corp.    Clinton Township, MI 48036
Aug 21, 2006 Available in 650 and 850 mm reach models, KR5 Sixx family of robots is designed for assembly or material handling applications that require 6-axis functionality for long reach tasks. When combined with company's PC-based control platform, compact robots provide users with pick and place automation solution.

Atheros Communications, Inc.    Santa Clara, CA 95054
Aug 21, 2006 Supplied as single-chip solutions, AR6101G for 802.11g and AR6101X for 802.11a/g enable complete VoIP handset for mobile IP experience. They integrate multiple complex functions onto single chip: computing, DSP, memory, power management, keypad, audio and display interfaces, mixed-signal, and RF. Radio-on-Chip for Mobile (ROCm(TM)) embedded solutions provide integrated, wireless Internet Protocol (IP) platform; each handset is actual node on Internet with its own unique Web address.

Atmel Corp.    San Jose, CA 95131
Aug 21, 2006 Designed for wireless applications, AVR® Remote Access Control (RAC) solution combines ATtiny45 microcontroller with T575x PLL transmitter. It includes RAC software with Advanced Encryption Standard (AES) encryption that provides security via 128-, 192-, and 256-bit AES key strength support. Using T575x PLL transmitters and ATA5743 RF receiver, the RAC solution enables operation in license-free ISM (Industrial, Scientific, Medical) band at 315 or 434 MHz.

Phoenix-Xray    Camarillo, CA 93012
Aug 21, 2006 Optimized for manual and semi-automated solder joint inspection of BGA, CSP, MLF, and QFP components, the microme|x incorporates 2 Megapixel camera, open 160 or 180 kV submicron X-ray tube, and detail detectability under 1 µm. It offers total magnification of up to 13.300x and is suited for process control and failure analysis processes. Along with precise manipulation through 360° rotation axis, unit has 18 x 14 in. scanning area that handles samples up to 26.75 x 25 in.

One Stop Systems    Escondido, CA 92029
Aug 21, 2006 Rack-mount RAID storage system lets any PC with PCI Express slot support up to 6 TB of data and access that data at speeds to 40 Gbps. Featuring 12 hot-swappable SATA II/SAS drives, system operates from host PC on PCI Express x4 or x8 cable when PCIe adapter card is inserted into host PC's PCIe x4, x8, or x16 slot. It supports RAID levels 0, 1, 5, 6, 10, and JBOD, while intelligent multiple logical drive architecture allows combination of different RAID levels on one set of disks.

BMC Software, Inc.    Houston, TX 77042-2827
Aug 21, 2006 Delivering set of ITIL-based extensions for virtualization management and optimization, Data Center Optimization solution integrates and automates entire planning-to-implementation lifecycle for data center consolidation and virtualization projects. It ensures each configuration change is executed successfully and optimizes IT infrastructure resources to support business growth. Included BMC Discovery discovers VMware virtual machines and their configurations.

CEVA, Inc.    San Jose, CA 95110-3710
Aug 21, 2006 Based on SystemC high-level design language, Processor Support Packages (PSPs) allow designers to perform early architectural exploration and trade-off analysis before committing CEVA-based design to silicon. They support use of CEVA-TeakLite(TM) and CEVA-TeakLite-II(TM) digital signal processor (DSP) cores within CoWare electronic system-level design environment. PSPs can be configured within CoWare environment to create and analyze various platforms based on CEVA cores.

Ticona Engineering Polymers    Florence, KY 41042
Aug 21, 2006 Vectra® V140 and Vectra® V143XL are liquid crystal polymer-polyphenylene sulfide (LCP-PPS) alloy blends that meet needs of electrical, electronic, and industrial components such as connectors, bobbins, housings, switches, breakers, and sensors. Nearly eliminating flash to promote flow at lower injection pressures, products lend strength to thin walls and have mold temperatures of 80-120°C. They are compatible with lead-free solder and retain physical and mechanical properties of LCP and PPS.

Cingular Wireless    Atlanta, GA 30342
Aug 21, 2006 Featuring ultra-thin clamshell design, Model LG CU500 give customers access to Cingular Wireless data services at broadband speeds. It offers music player, external music keys, and optional Bluetooth Stereo headset for wireless music listening. With Cingular Video, customers can watch clips from their favorite shows, news, sports, and movie trailers. Phone includes 1.3 megapixel camera with rotating lens and video record, as well as preloaded Instant Messenger.

Arcosoft Inc.    Ontario L4S 0A1  Canada
Aug 21, 2006 Designed to work with any VoIP phone system based on open SIP standard, VONaLink SoloRecord records phone calls and provides screen pops. Call is recorded as stereo WAV or MP3, and inaudible watermark can be added to recording for later verification that file has not been changed. Using caller ID of incoming call, SoloRecord searches for caller in Microsoft Outlook contacts, or launches custom applications to search web or company database.

Kerio Technologies Inc.    Santa Clara, CA 95054
Aug 21, 2006 With Kerio MailServer v6.2 for Mac OS X v10.4, Mac users can use Apple Mail, iCal, Address Book, or AJAX-based Kerio WebMail to view, manage, and share contacts, calendars, and email folders, and have all changes immediately synchronized with server. Plug-in for Clam Antivirus provides minimum level of virus protection, scanning all email messages as they pass through mail server. ClamAV can also be used alongside optional built-in McAfee Anti-Virus for dual antivirus control.

Columbus Instruments    Columbus, OH 43204
Aug 21, 2006 Room Environment Monitor allows user to keep track of room temperature, barometric pressure, and relative humidity in 4 locations. It can also be used to monitor humidity and temperature in sample gas streams. Audible alarms alerts user about undesirable changes in environment. Monitor interfaces to PC by way of RS232, and supports direct Ethernet connection via built-in web server hardware, making it suitable for experiments where room conditions may impact results.
