Pixus Technologies    Waterloo, ON N2V 1C5
Jul 18, 2012 Measuring 16HP wide x 6.5U or 6U high, power interface board features 2 cPCI hot-pluggable slots using standard 47-pin connectors. Sense and current share signals, also included, optimize power regulation and distribution. Board is designed for AC or DC power to be supplied and offers accommodations for rear power entry modules for 48 V requirements. Wire harnesses are available, providing +3.3 V, +5 V, ±12 V, GND, and control signals between backplanes.

Esco Tool    Medfield, MA 02052
Jul 18, 2012 Permitting 3.5 in. of travel for safely positioning heavy/bulky tools, MILLHOG® ET-800 has top and bottom steel plate, 2 drawbar springs rated 610 lb each, and 48 in. long safety chain that prevents springs from bottoming out, wearing excessively, and breaking. Tamper-proof safety chain, rated at 4,500 lb, cannot be detached, is shorter than travel of drawbar springs, and features links secured into milled slots on plates and retained by welded covers.

Deposition Sciences, Inc.    Santa Rosa, CA 95403
Jul 18, 2012 Combining individually coated multispectral filter substrates into array assembly, Multispectral Optical Filter Assemblies range from 2- to 8-filter stacks, or more. Assemblies may be customized using variety of substrate sizes, and DSI can incorporate stops and apertures on part surface by utilizing advanced patterned coating technology. MOFAs are used in linear and planar-array CMOS detectors, medical instrumentation, commercial, government, and aerospace applications.

Emerson Process Management    Austin, TX 78754
Jul 18, 2012 Featuring ¾ in. aluminum camera head, with 4 adjustable LEDs, and one-handed pistol grip, micro CA-25 camera is attached to fixed 3 ft cable, allowing it to fit behind walls and ceilings and inside mechanical devices and plumbing fixtures. Device includes 2.4 in. color LCD, with 480 x 234 resolution, that provides 180° digital rotation. Powered by 4 AA batteries, 1.3 lb unit has television output and 3 ft RCA cable to transmit video. Hook, magnet, and mirror are also included.

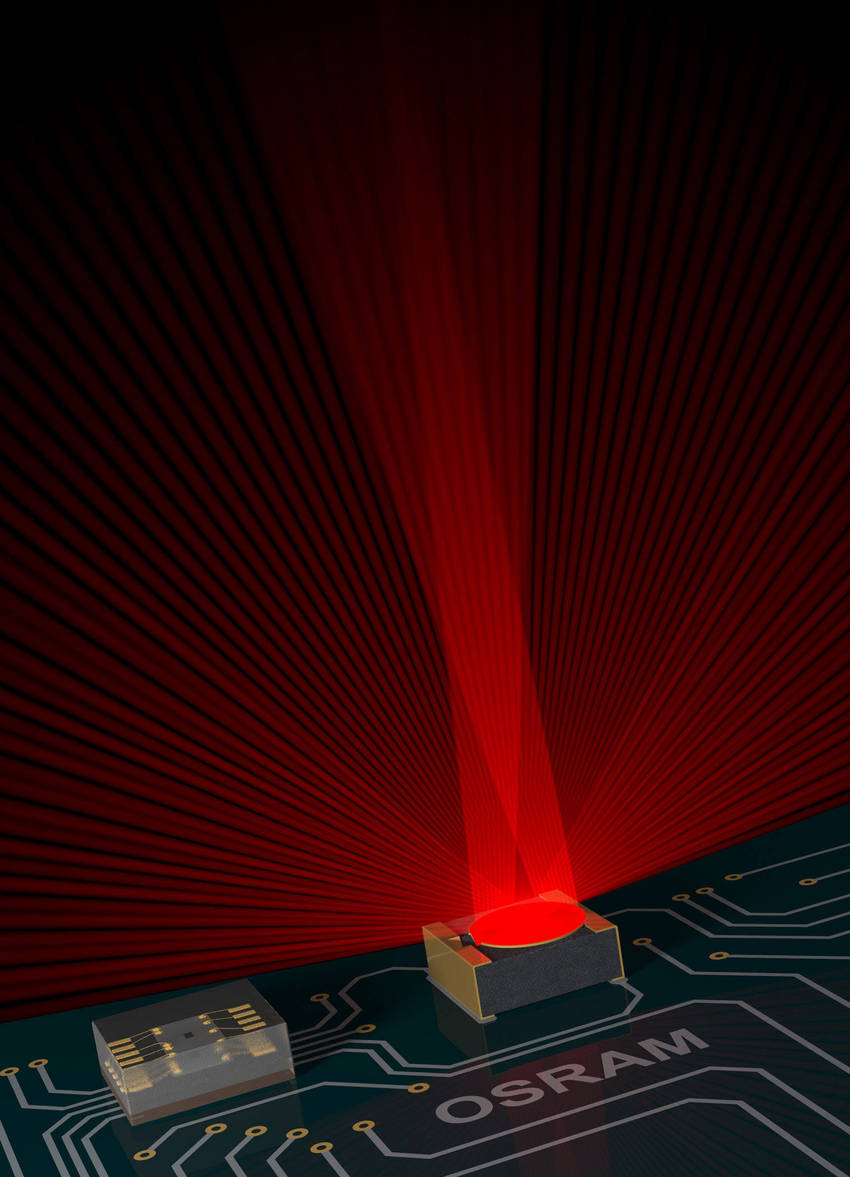

OSRAM Opto Semiconductor    San Jose, CA 95134
Jul 18, 2012 Mini Midled features half-angle of ±17°, producing narrow, intense light beam by focusing it with integrated metallized reflector. Surface-mountable emitter produces wavelength of 850 nm. Measuring 2.3 x 1.95 x 0.9 mm in size, unit requires no shielding and has dark-colored non-metallized surfaces for inconspicuous mounting behind smart phone cover. It is also suitable for proximity sensors, light barriers, and optical touchscreens.

E Instruments International LLC    Langhorne, PA 19047
Jul 18, 2012 Intended for HVAC professionals, Model 7899 Gas Sniffer comes with sensitive tip to pinpoint small leaks (0-10,000 ppm) of combustible gases and hydrocarbons from piping/appliances. Rugged tool, optimized for usability, provides 11 in., flexible probe for access to hard-to-reach places. Able to display readings in PPM, %vol, and %LEL, instrument features LCD and bar graph display, auto zero drift adjustment, audio alarm, and Hold function.

E Instruments International LLC    Langhorne, PA 19047
Jul 18, 2012 Able to verify and calibrate sensors, thermometers, and process transmitters, TCS 650 has temperature range of 35 to 650°C, exhibits stability of ±0.03°C @ 650°C, and offers radial uniformity of ±0.02°C. Speed for heating (50 to 600°C) and cooling (600 to 150°C) is 30 min, and stabilization time is 10 min. Along with 6 hole 140 mm deep metal block insert, calibrator is offered with optional Black Body insert to calibrate IR pyrometers.

Midwest Motion Products    Watertown, MN 55388
Jul 18, 2012 Accepting any 12 Vdc source, including battery power, Model MMP-D33-455A-12V GP81-03.7 develops 18 lb-in. continuous torque at 1,097 rpm and 354 lb-in. peak. Reversible gearmotor measures 3.2 in. dia x 8.4 in. L with 19 mm dia x 40 mm L keyed output shaft. Mounting is accomplished with 4 face mount M6 threaded holes, equally spaced on 65 mm dia B.C. Requiring 28.6 A at 12 Vdc to generate full-load torque, motor is suited for solar trackers, robotics, and automation applications.

Wilden Pump & Engineering Co.    Grand Terrace, CA 92313
Jul 18, 2012 Accommodating applications that require transfer of viscous, solid-laden slurries at discharge pressures to 250 psig, HX400S features bolted construction, lube-free operation, and DIN or 300-pound ANSI flanged connections; 1 ½ in. inlet and discharge connections are also available. One liquid chambers is used as amplification chamber, allowing pump to generate 2:1 ratio of discharge fluid pressure to air inlet pressure. This eliminates reliance on external boosters or amplifiers.

APW-Thermal Management/McLean    Champlin, MN 55316
Jul 18, 2012 Used for cooling electronics in outdoor applications, McLean® brand Direct Air Cooling System (DACS) comes in 4 standard models with sizes from 29-56 in. high as well as Hydrophobic GORE(TM) and MERV 12 filtration styles. Controller adjusts fan speed based on temperature, and power input options include 24, 48, 115, and 230 V. Built to meet application requirements, system is constructed to withstand harsh conditions and features replaceable filters and variable-speed blowers.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jul 18, 2012 Available in stock cable assemblies as well as customer configurable models, 030 Series is designed for use with miniature charge and ICP® piezoelectric accelerometers. Smooth, extruded FEP outer jacket and stranded center conductor increase flexibility of cable assemblies while maintaining low noise characteristics. This construction also decreases likelihood of kinking when cable assemblies are bent during equipment setup, promoting extended working life.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Jul 18, 2012 Clippar Pneumatic Brass Silencing Mufflers feature porous sintered bronze air mesh to reduce air exhaust noises from valves, cylinders, and other pneumatic products. Units help to meet OSHA requirements by maintaining safe workplace sound levels below 90 dBA, while minimizing flow restriction. Also including 40 micron filter, mufflers are available with #10-32, 1/8, ¼, 3/8, and ½ in. pipe threads.

SPARQ Systems Inc.    Ontario K7L 3N6  Canada
Jul 18, 2012 Smart Grid-ready microinverter, compatible with 50 and 60 Hz power frequencies, is auto-configurable to any jurisdiction worldwide. Unit can be reconfigured and customized via software. Providing ability to control reactive power, it also helps minimize brown-outs and eliminates need for electrolytic capacitors and optical isolators.

UrbanCode    Cleveland, OH 44115
Jul 18, 2012 Terraform(TM) supports one-click provisioning of virtual environments, automating operations so these can be created in minutes. Users can define virtual machines, startup scripting, and networking rules in XML template, while test environments can be created one at time or in parallel. Software works on top of Amazon EC2 and VMWare vSphere. Configuration management is via integrations with Puppet and Chef applications and IT teams can make network changes similar to changing code.

Websense    San Diego, CA 92121
Jul 18, 2012 Websense TRITON(TM) v7.7 unifies key components of threat defense and data theft prevention into cohesive content security system. Advanced Classification Engine offers 10 defenses, such as detecting criminal encrypted uploads; advanced malware payloads and command-and-control recognition; and drip DLP detection. In addition to spear phishing protection with cloud sandboxing, program includes Advanced Malware Threat dashboard, which profiles security incidents and provides in-depth forensics.

DEGERenergie GmbH    Horb am Neckar   Germany
Jul 18, 2012 Designed for module area up to 570 sq ft, DEGERtraker 6000NT can be used under all environmental conditions, including high snow loads and strong wind conditions. Tracking takes place on basis of Maximum Light Detection technology using DEGERconecter control module and sensor. Dual-axis system, available with mast lengths from 11-16 ft, features max kWp of approximately 7.5, depending on module type used.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Jul 18, 2012 Designed specifically for TS-900 Test System, Reid-Ashman OM1069 manipulator allows precise positioning and flexibility for interfacing to automated probers and device handlers used for production testing of semiconductor devices. Spring-loaded design enables alignment and docking to handlers, eliminating need for complex receiver interface. In addition, TS-900 features handler compatible receiver, which offers flexibility to interface to virtually any device handler.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jul 18, 2012 Housed in 5 x 5 mm package, 14-bit Model AD9645 consumes 122 mW/channel at 125 MSPS and features SFDR performance of 91 dBc at 70 MHz. Converter delivers serial 1.8 V LVDS digital output with 2 lanes per channel. With IF sampling range up to 200 MHz, device is designed for use in multi-mode digital receiver architectures. Pin-compatible dual 12-bit version, Model AD9635, is also available, enabling migration between 12-bit and 14-bit converters with sampling rates from 20-125 MSPS.

Caltron Industries, Inc.    Fremont, CA 94538
Jul 18, 2012 Constructed for protection against harsh environments that may have high volumes of dust or liquid in proximity to unit or enclosure, 19 in. IPR-1904O resistive touch LCD and 19 in. IPS-1904O SAW touch LCD are UL compliant and front sealed. These industrial touch monitors, accommodating any application that requires monitor with bezel, are designed to facilitate integration into any application and feature standard VESA mount in back.

InduSoft    Hilton Head Island, SC 29928
Jul 18, 2012 Offering revision control and project management, InduSoft Web Studio v7.1 provides Studio Mobile Access client that works with any HTML.5 web browser to display alarms, trends, and critical tag values. Widgets let user monitor and interact with tags on any current browser, and alarms and other information can be sent via multimedia formats to email account, printer, or smartphone in real-time or as historical data. Software connects to SQL databases, ERP/MES systems, and PC-based programs.
