Thomas & Betts Corp.    Memphis, TN 38125

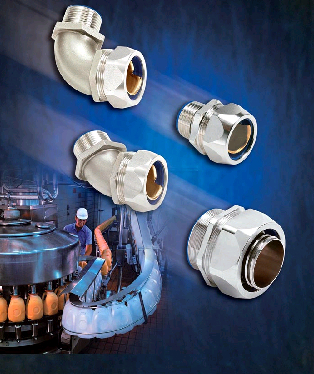

Aug 23, 2006 Designed to connect metallic-cored liquidtight conduit to box or enclosure, Stainless Steel Liquidtight Conduit Connectors are available in straight, 45°, and 90° configurations in sizes to fit conduit from 3/8-2 in. Connectors in sizes 3/8-1 in. offer steel ground cone with Dura-Plate® finish, while connectors in sizes 1¼-2 in. offer brass ground cone plated with nickel. UL® Listed Ratings include 3, 3R, 4, and 4X.

Sterling Instrument    New Hyde Park, NY 11042-5416
Aug 23, 2006 Made of clear anodized aluminum alloy, 3mm Pitch HTD® Series A 6D23 (inch) and Series A 6D23M (metric) are available in 10-44 grooves with bore sizes from .125-.250 in. and 3-6 mm. Outer diameters range from .346-1.624 in. and 8.8-41.4 mm. Fairloc® integral hub fastening design eliminates need for separate hub clamp devices and offers benefits of frequent position adjustment, while adding positive metal-to-metal fastening strength along entire hub surface.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Aug 23, 2006 Suited for 1/8-3/8 in. and 3-12 mm dia shafts, Series S50FP9 has max torque range of 120-300 oz-in. Couplings accommodate max angular misalignment of 5-6° and parallel offset of .015 in. Featuring phosphor bronze bellows, brass hubs, and tin plate finish, units absorb end play in shafts and dampen vibration and noise levels. Fairloc® hub fastening system eliminates marred shafts while adding positive metal-to-metal fastening strength along both hub sections.

Vaisala, Inc.    Woburn, MA 01801 1008
Aug 23, 2006 Suitable for field use, SPECTRACAP® Oxygen Transmitter OMT355 determines oxygen concentration optically by measuring absorption of light from tunable diode laser. Unit can be flange-mounted directly into process without sampling or sample conditioning equipment, providing real-time measurement. Stainless steel probe tolerates aggressive chemicals and excessive amounts of moisture, while stainless steel mesh filter protects probe optics from dust and dirt.

Saelig Co., Inc.    Pittsford, NY 14534

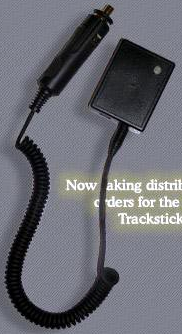

Aug 23, 2006 TrackStickPro(TM) uses GPS technology to track vehicle travel and position, displaying routes and speeds when downloaded to PC. Supplied with cigarette lighter plug and 3 ft USB cable, product features 4 MB memory and comes with 2D movement plotting and annotation software. With visual mapping and satellite imaging, logger can record its own location, speed, direction, and other information at preset intervals. Tamper alarm ensures precise verification of driving routes and habits.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

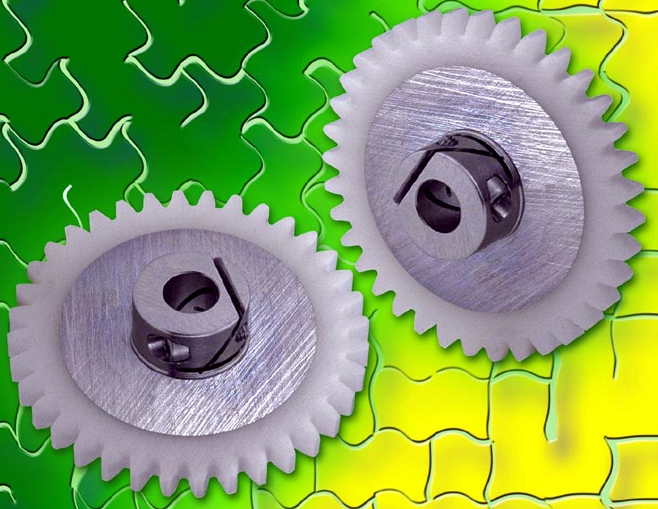

Aug 23, 2006 Comprised of 84 models, S1268Z -...M Series combine noise reduction benefits of acetal rim gear teeth with strength of 2024 aluminum core assembled onto stainless steel hub. These 20° pressure angle, AGMA Q10 and ISO Class 7 gears incorporate Fairloc® integral hub fastening system, which eliminates marred shafts. Offered in sizes with 21-210 teeth and ODs from .958-4.083 in., self-contained gears mate with hubs that accept shaft diameters from .0900-.2498 in.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502

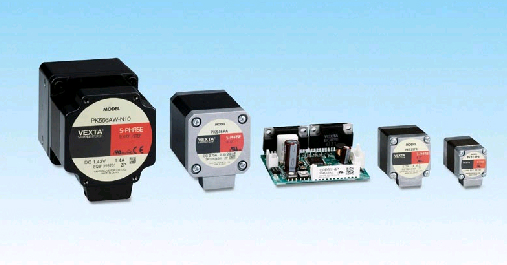

Aug 23, 2006 RoHS-compliant Series CRK-M consists of 5-phase step motor and driver models, 8 with single shaft extension and 8 with double shaft extension. Basic step angle can be adjusted to achieve any 2-phase step motor step angles. Direct switchover from 2-phase microstep mode can be performed without having to change input pulses. Available frame sizes range from 1.10 in. with holding torque of 5.9 oz-in., to 2.36 in. with holding torque of 320 oz-in.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

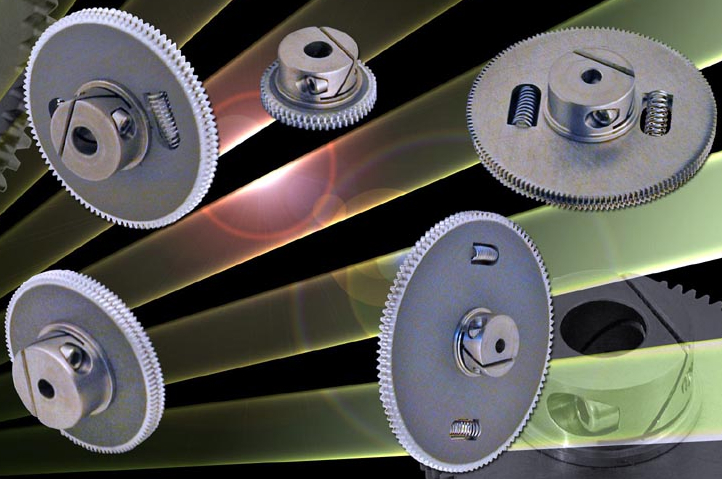

Aug 23, 2006 Self-contained S1A5 and S1M5 Series feature built-in springs that force gear halves to turn in opposing directions relative to one another until tooth space between inner and mating outer gear is entirely filled. This provides automatic compensation for wear and thermal dimensional changes during life of gear train. Available in 303 stainless steel and 2024 aluminum, these 20° pressure angle AGMA QIO gears fit shafts from 1/8-¼ in. dia and comes in sizes with 40-360 teeth.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Aug 23, 2006 Comprised of 148 inch and metric hub (spur) gears, S1VS Series are supplied with 48, 32 and 24 Diametral Pitch and face widths from .197-.313 in. Self-contained, 20° pressure angle, AGMA QIO (ISO 7) Class gears are made from 303 stainless steel and fit shaft diameters from 1/8-3/8 in. Suggested clearance between bore and shaft is .0001/.0008 in., and sizes range from l4-120 teeth with ODs from .375-4.250 in.

Packnet Ltd.    Eagan, MN 55121
Aug 23, 2006 Made from 7/16 in. grade OSB sheet material, Slot Lock Container requires no nails, screws, or staples for assembly. It can be reused many times or used as one-way shipper. Users may load from side with only 2 or 3 panels secure, eliminating lifting over side to load pallet boxes or crates. Applying steel or plastic/nylon banding around container when loaded will lock panels together as one container. Standard and custom sizes are available.

Kinetic Systems, Inc.    Boston, MA 02131

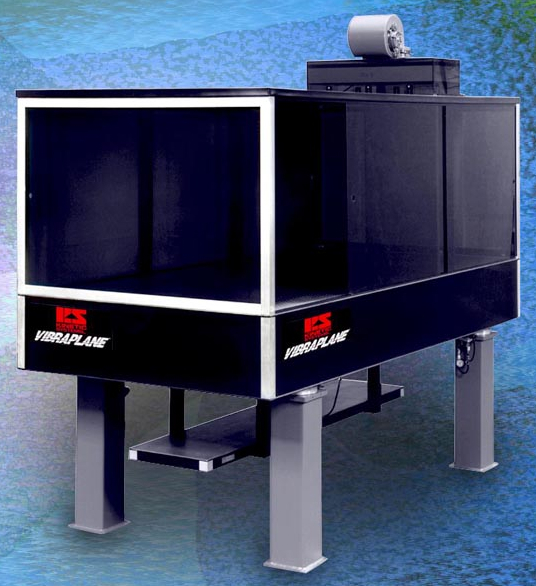

Aug 23, 2006 Used in applications where workspace or work being performed requires environmentally controlled atmosphere, tabletop enclosures are constructed with aluminum framework, acrylic sides, and composite roof. Optional blower with HEPA-filter can be mounted on top to create positive air pressure, ensuring clean environment even when open. In addition to 4 color choices, enclosures come in sizes from 48 x 72 x 32 in. to 60 x 144 x 32 in. Side panels slide to facilitate access to tabletop.

Belden CDT Electronics    Richmond, ID 47375

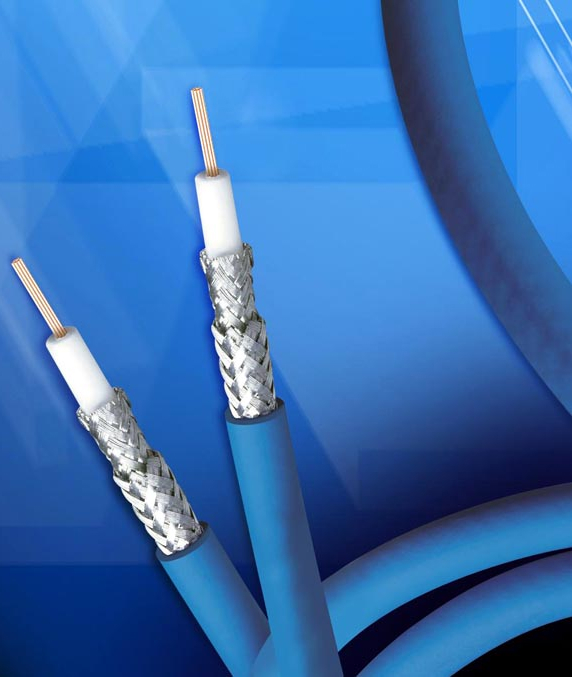

Aug 23, 2006 Able to handle analog and digital signal transmissions, Brilliance 1694F RG-6/U Type cable is designed for patching applications. Its CM rating allows for routing through building walls and conduit, while double tinned copper braid shield construction offers 100 dB shield isolation. Construction includes abrasion-resistant PVC jacket, flexible 19 AWG bare copper (compacted) stranded center conductor, and gas injected foam polyethylene insulation.

Caterpillar, Inc.    Peoria, IL 61629
Aug 23, 2006 Comprised of 7 models, M-Series are powered by emissions-compliant Cat® C-Series engines with ACERT(TM) Technology. Interior design promotes lines of sight to drawbar, circle, and moldboard (DCM) as well as snow wing area. Along with all-wheel-drive option, graders feature electro-hydraulic control system, variable horsepower, and direct-drive countershaft transmission. Models range in power from 125-500 hp and feature blade lengths from 12-24 ft.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Aug 23, 2006 Suited for automotive safety testing applications, piezoresistive 7264D provides extended flat frequency range and resonant frequency over 40,000 Hz. It obtains true picture of input signal without inducing signal phase shifts that can interfere with data and result in hidden inaccuracies. Along with undamped, J211-compliant design, product features true ratiometric operation over excitation voltage range, optional connectors, multiple ID chip configurations.

Kardex Remstar LLC    Westbrook, ME 04092

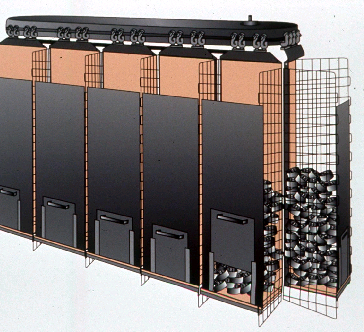

Aug 23, 2006 Providing flexibility in warehousing applications, Horizontal Carousel Hopper Bins are loaded from top and feature access door on bottom front that slides up and down for items to be retrieved. Bins can be installed in wide range of widths and depths for storage of bulk items and small consumable items. Carriers designed to hold materials ranging from 600-2,500 lb per bin are available.

Pelican Products, Inc.    Torrance, CA 90505
Aug 23, 2006 Featuring heat- and chemical-resistant composite shell, HardBack(TM) Model 1080 is crush-proof and suitable for protecting Apple®, Dell®, and Sony® laptops. For additional impact protection, case features shock-absorbing, plush foam-molded liner that won't scratch laptop's finish. Tongue-and-groove lid and polymer O-ring create watertight seal, while anodized aluminum latch with stainless steel pins keeps laptop and case secure when drops and hard knocks happen.

Plastic Safety Systems, Inc.    Cleveland, OH 44104 2505

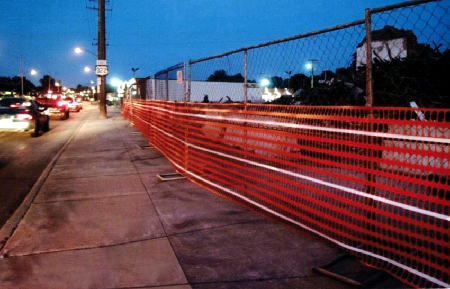

Aug 23, 2006 Made of UV-protected, polyethylene plastic, NITE LITE II(TM) can be used to delineate fixed objects close to traffic, construction projects near roads, dangerous pedestrian walkways, and crowd control barricades. Available in standard roll size of 4 x 50 ft, lightweight fence features international orange reflective stripes for daytime and evening visibility.

TURCK, Inc.    Plymouth, MN 55441

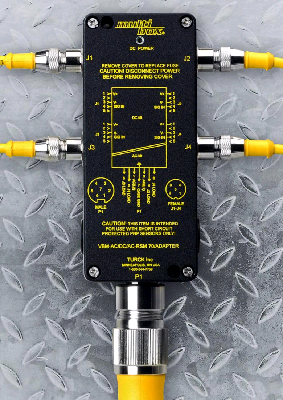

Aug 23, 2006 Allowing use of DC sensors in AC applications, 4-port M12 eurofast® AC/DC Junction Box simulates 2-wire AC sensor, providing alternative to installing separate power supply and relays. Box offers 85-132 Vac input, 100 mA output per port, and 24 Vdc output to PNP short-circuit protected sensors only. Made of die cast aluminum alloy, encapsulated housing offers IP67 protection when all ports are connected or are covered with closure caps.

Coto Technology    Providence, RI 02907 3105

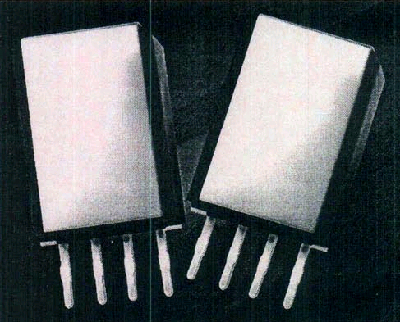

Aug 23, 2006 Housed in 0.270 x 0.150 x 0.385 in. package, 1A Series 9117 Reed Relays incorporate external magnetic shield to minimize interaction of relays when mounted in close proximity to each other. Raised height allows for reduction in width, producing smaller footprint with pins on 0.06 in. pitch grid. Series 9117 is available in 5 V coils with standard external magnetic shield and optional diode.

Fixtureworks    Fraser, MI 48026

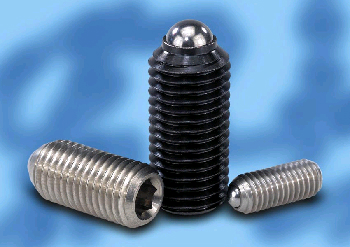

Aug 23, 2006 Available in threaded and press fit types, Kipp® Spring Plungers are suited for fixturing applications where pressure is required for accurate positioning and indexing of components. Offered in inch and metric sizes, units come with ball and pin type plungers, and in steel with black oxide finish or stainless steel. Insertion methods include slotted drive, hex socket, and top slot style for use in blind hole applications. Light, standard, and heavy end force selections are available.
