Dymax Corp.    Torrington, CT 06790
Aug 29, 2006 Used to validate and monitor UV curing process, ACCU-CAL(TM) 50 performs repeatable measurements in UVA spectrum (320-395 nm) from 1 mW/cm² to 40.0 W/cm². It can also confirm that UV curing process complies with ACGIH safety guidelines for UV exposure. Featuring 12 month calibration period and photo-sensor assembly that protects against high temperatures, unit measures UV intensity as well as peak intensity and dose.

Dymax Corp.    Torrington, CT 06790
Aug 29, 2006 Designed for UV curing of adhesives, coatings, and encapsulants, BlueWave(TM) 50 AS emits over 3,000 mW/cm² of primarily UVA and blue visible light (300-450 nm). Bulbs are rated for 2,000 hr, but can last as long as 4,000 hr. Integral Cool Blue(TM) Filter minimizes shortwave UV and IR transmission, protecting liquid-filled lightguides and producing cooler cures. Other features include solid-state power supply and foot pedal- or PLC-actuated integral shutter and timer.

Dymax Corp.    Torrington, CT 06790
Aug 29, 2006 Available in gel, brush-on, or spray-on formulations, SpeedMask® UV Curable Masking Resin provides surface protection from contamination caused by acids, alkalines, plating solutions, and ambient debris from air plasma spray, HVOF, grinding, peening, and grit blasting. Single-component, temporary masking resin is solvent-free, non-flammable, urethane-based, and water-soluble, and easily peels, dissolves in water, or burns off once the surface treatment process is completed.

Dymax Corp.    Torrington, CT 06790
Aug 29, 2006 Available with 18 or 25 in. wide UV curing lamps, WIDECURE(TM) conveyors can be outfitted with longwave or shortwave bulb. Lamp height can be adjusted to accept parts from 5-12 in. high, and tightly controlled line speeds are adjustable in 0.1 fpm increments from 1-50 fpm; faster conveyors are also available. Integral shielding eliminates stray UV light that might otherwise reach operator. Uses include UV sealing, curing, and bonding applications.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Aug 29, 2006 Featuring extruded aluminum frame with T-slot construction, 2200 Series is offered in lengths from 2-24 ft, widths from 1.75 in. to 2 ft, and frame heights as low as 1.87 in. V-guided and non-V-guided belt compatible construction also includes sealed ball bearings as well as rack and pinion belt tensioning. All models are end and center drive-compatible. Operating at speeds to 264 fpm, conveyors hold parts moving on inclines/declines and can also be used for upside-down applications.

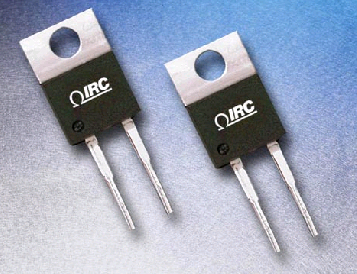

IRC    Corpus Christi, TX 78411
Aug 29, 2006 Housed in TO-220 style package, MHP Series features high stability film resistance elements, which are isolated from copper mounting tab by alumina ceramic layer that provides dielectric withstanding voltage of 2,000 Vdc. Resistance range is from 0.01-220 W, with standard tolerances of ±1% and ±5%, and TCRs from 50-250 ppm/°C. Suited for circuit and power supply applications, resistors feature thermal resistance of 2.3°C/W and max operating voltage of 500 V.

Castrol Industrial North America Inc.    Downers Grove, IL 60515
Aug 29, 2006 Suited for large industrial environments, Castrol SystemRT is capable of monitoring fluid concentration, pH, conductivity, temperature, and real-time biologic activity in water-based metalworking fluids. Data generated from unit is charted automatically, permitting user to monitor fluid trends and tighten control of fluid parameters. Unit self-calibrates, verifies with internal diagnostics, reports errors, and has Internet capabilities.

Advantech Automation Corp.    Cincinnati, OH 45240

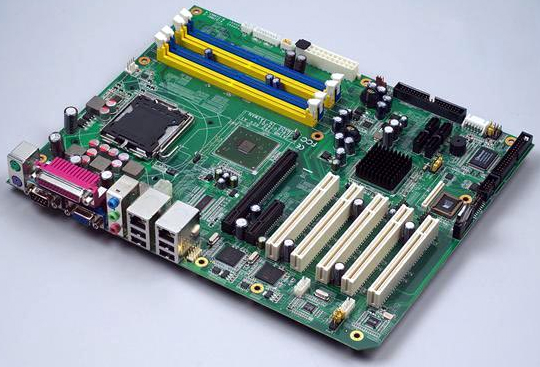

Aug 29, 2006 Built on Intel 945G chipset, AIMB-762 supports Intel dual-core Pentium® D, Pentium 4, and Celeron® D processors in LGA775 socket. It delivers computing speeds of over 3.8 GHz with FSB up to 533/800 MHz and provides multiple I/O expansion options: one PCI-Express x16, one PCI-Express x4 interface, and five 32-bit/33 MHz PCI slots. With 10.7 GBps bandwidth and 4 GBps memory, dual DDRII 533/667 SDRAM offers computing capability and memory performance for optimal system responsiveness.

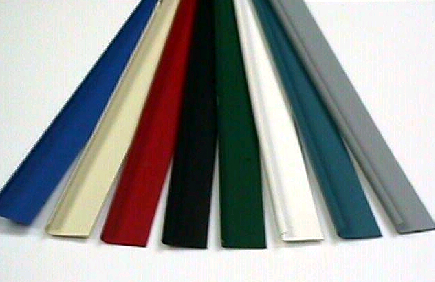

Walls & Forms Inc.    Dallas, TX 75374
Aug 29, 2006 Designed to meet changing retail environments, J-strip Decorative Groove Treatments can be inserted into groove at front of panels, allowing panels to be changed after they have been installed or incorporated into fixture. Units come in standard length of 96 in. in teal, grey, almond, red, white, blue, and black. Custom colors and lengths are available.

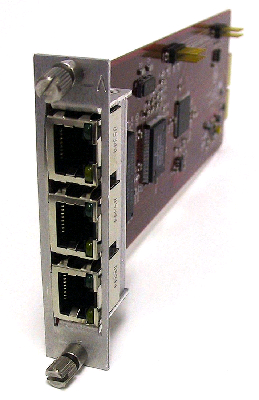

GE Security Industrial    Tualatin, OR 97062
Aug 29, 2006 Providing Ethernet connectivity to Phoenix Fiber Optic Transport System, Model A8911ETH is suited for transporting IP data and IP video traffic between Phoenix nodes. Module has three RJ-45 ports designed to insert or extract full-duplex 10/100Base-T Ethernet data onto Phoenix network. Allowing for auto-negotiation and automatic MDI/MDI-X selection, module includes integrated Ethernet switch with line-rate switching between 3 ports and 50 Mbps throughput between Phoenix nodes.

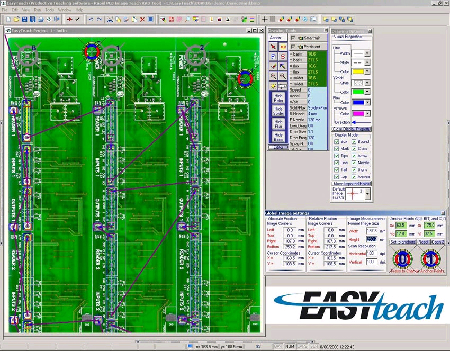

Vitronics Corp.    Stratham, NH 03885
Aug 29, 2006 Part of mySelective 6745 modular selective soldering system, Easyteach software enables operator to use JPEG or flat scan to program soldering sequence for any assembly in minutes. User selects fluxing and soldering points on image, mouse clicks to mark points, and program automatically sets up fluxing and soldering sequence. With Easyteach, sets of sequences can be copied or duplicated for multiple boards, and all recipes can be stored and recalled.

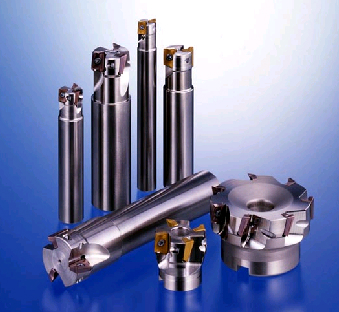

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Aug 29, 2006 Consisting of heat- and wear-resistant nanotechnology coated grades, WEX indexable insert endmills and shoulder milling cutters feature wave-shaped cutting edges that generate low cutting forces. CVD and PVD insert grades are available to offer extended tool life in steel and cast iron applications. WEX Series comes in Super ZX coated ACP100, ACP200, and ACP300 for steels and ACK100, ACK200, and ACK300 for cast irons.

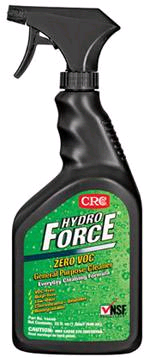

CRC Industries, Inc.    Warminster, PA 18974
Aug 29, 2006 HydroForce® Zero VOC General Purpose Cleaner consists of industrial-strength, aqueous, non-aerosol cleaner best used for applications that will not allow butyl. It can be used full strength or diluted with water in pressure washers. Containing no phosphates, ammonia, or bleach, product is non-flammable, non-ozone depleting, and safe on most plastics. It is NSF A1 registered for use in federally inspected meat and poultry plants.

CRC Industries, Inc.    Warminster, PA 18974
Aug 29, 2006 Formulated from blend of silicones, cross linkers, and oils, Chute Lube(TM) lubricates package handling equipment, food processing equipment, chutes, guides, and rail conveyors. Colorless, odorless product will not stain or cause packages to become greasy and is harmless to most rubbers and plastics. Available in 20 oz aerosol cans, Chute Lube(TM) is effective in wide range of temperatures and is NSF H2 registered for use in meal and poultry plants.

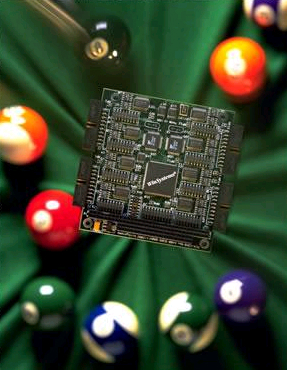

WinSystems, Inc.    Arlington, TX 76011
Aug 29, 2006 Operating from -40 to +85°C, RoHS-compliant Model PCM-COM8-G is suited for embedded applications requiring large number of serial I/O ports. Each channel supports RS-232, RS-485, and RS-422 electrical levels to interface with variety of serial communications devices such as modems, data collection equipment, and distributed I/O terminals. Serving as serial communication controller, 16C854 UART has ESD rating of 15 kV and will support data rates up to 115,200 bps.

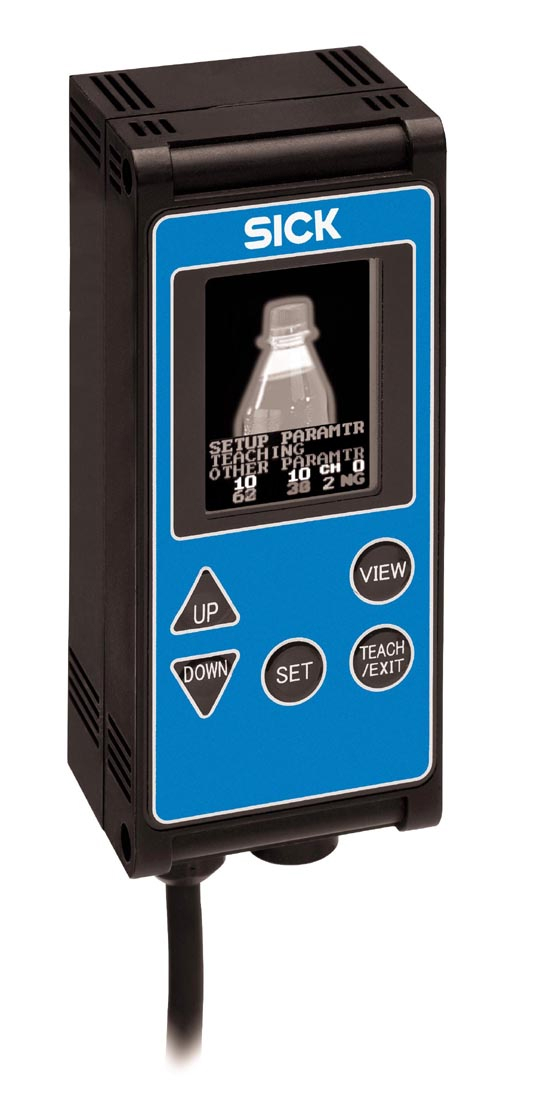

SICK, Inc.    Minneapolis, MN 55438
Aug 29, 2006 CVS color-based vision sensors are usable for measuring area of learned color, presence/absence detection, and color matching. CVS1 Easy distinguishes between up to 8 colors, while CVS2 detects and sorts between 15 and features RS232 interface and 2 switching output connections. Designed for shape checking applications, CVS3 searches field of view for shape or contour. CVS4 OCR sensor can read 60 characters on 6 lines, and provides detection and verification of date and lot codes.

SICK, Inc.    Minneapolis, MN 55438
Aug 29, 2006 Featuring integrated LED illumination, 1.3 megapixel CMOS Model ICR840 provides 45 x 35 mm² field of view, sufficient for resolving small DataMatrix codes with 0.2 mm cell sizes. Resolution can be adjusted to increase image repeat rate above 25 Hz. Whether reading ink jet or dot peening, Model ICR840 offers solution for direct part marking identification. Software assistants support users during mechanical adjustment, teach-in of code to be detected, and Ethernet connection.

Advance Div. of Philips Electronics North America    Rosemont, IL 60018
Aug 29, 2006 Measuring 4.7 x 3.6 x 1.5 in., e-Vision® electronic HID ballast features all-metallic enclosure and 90°C maximum case temperature rating. Ballast includes IntelliVolt® multiple-voltage technology, which facilitates ordering and reduces stocking and SKU requirements, as well as lamp wattage regulation to optimize lamp color quality over life. Safety features include automatic lamp power control and lamp end-of-life detection. Device is suited for recessed and accent lighting applications.

TRUMPF Power Tools    Farmington, CT 06032
Aug 29, 2006 Designed as mobile tabletop workstation, VectorMark Workstation 150 provides permanent marks on wide range of work piece shapes and materials. Workspace is accessible from 3 sides and can label 4.72 x 4.72 in. area. Monitored safety door guarantees class 1 laser protection when laser is in use. Integrated optical focus adjustment of ±0.28 in. and manual support area height adjustment of up to 5.91 in. ensure consistent quality when labeling differently sized work pieces.

Bosch Security Systems    Fairport, NY 14450 9199
Aug 29, 2006 Offering log-on access rights as well as privacy masking and sector blanking, Access Easy Controller (AEC) comes in 4- or 8-door systems that can expand to cover 16 doors. Each AEC has options for up to 32 input points and 32 output relays that can be software-configured. Combining Web server features and access control system functionality, scalable system allows any client computer in network to access it to manage database, monitor activity, or control devices.
