Advanced Drainage Systems, Inc.    Hilliard, OH 43026
Sep 28, 2006 Designed for low head irrigation projects such as ditch enclosures and pipe replacement, Model N-12 Low Head Pipe is available in 30-60 in. diameters. Long bells and spigots on pipe joint enable watertight performance. Pipe is extruded with pressure-rated resin in liner portion to allow continuous pressure of up to 5 psi. Resistant to soils or effluents with pH ranges of 1.5-14, pipe can support H-25 live loads with minimum of 12 in. of cover.

Neopost    Hayward, CA 94544

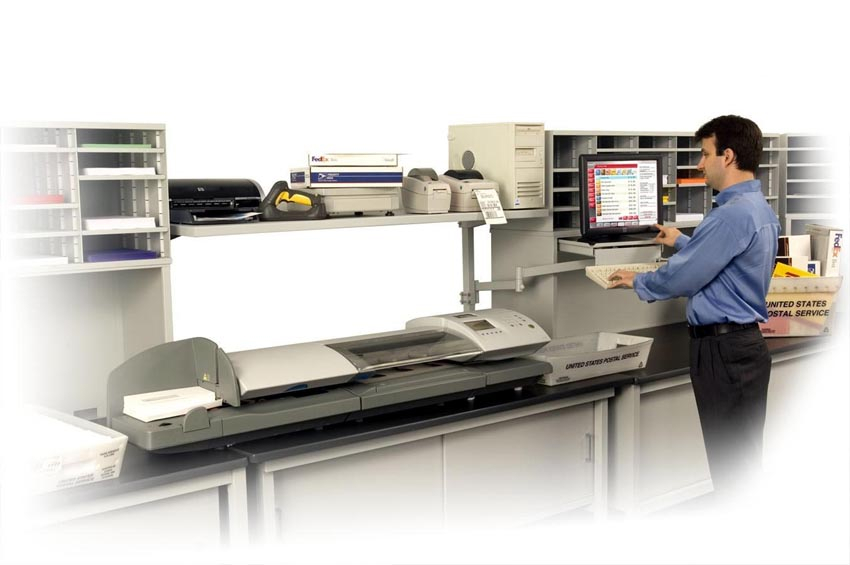

Sep 28, 2006 With easy-to-read menus and touch screen functionality, friendShip® Navigator multi-carrier shipping automation and accounting system is suited for shipping small parcels and overnight documents. Validating addresses prior to shipment, software eliminates lost packages and wrong address carrier fees. It collects, reports, and summarizes carrier shipping and coding information before automatically exporting data into spreadsheet or internal accounting system.

Mahr Federal Inc.    Providence, RI 02905
Sep 28, 2006 Including data connection cables, 7-port industrial model USB hub, and MarCom data transmission software, MarConnect USB Interface Kits enable universal assembly of multiple measuring systems for data transmission. With additional hubs, up to 100 measuring devices can be connected using USB interface, and software can transfer measure values directly Excel spreadsheets or text files. Measuring sequences can be activated either at gauge, on PC, or via a foot switch.

Optek Technology, Inc.    Carrollton, TX 75006-6905

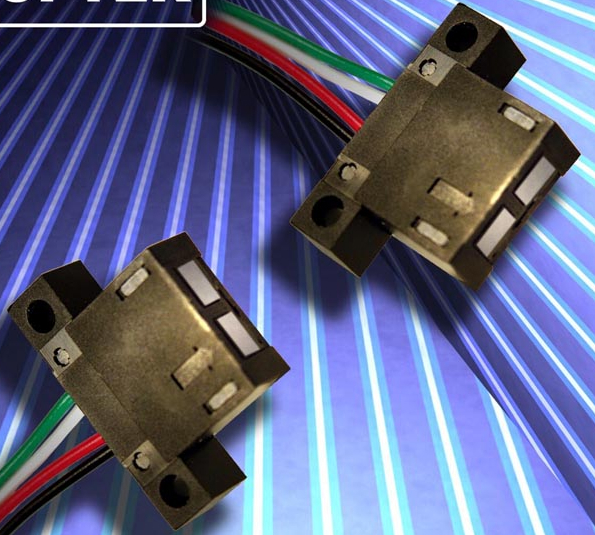

Sep 28, 2006 Suited for dusty or contaminated environments, Series OPB732 long distance reflective switch includes infrared LED and phototransistor, and uses opaque housing to reduce sensor's ambient light sensitivity. LED offers 850 nm wavelength and 100 mW power dissipation. Maximum forward current is 50 mA, maximum forward voltage is 1.8 V, reverse dc voltage is 3 V, and reverse current is 100 µA. Operating temperature range is -40 to +85°C.

Point Source    Southampton SO31 4RF  United Kingdom

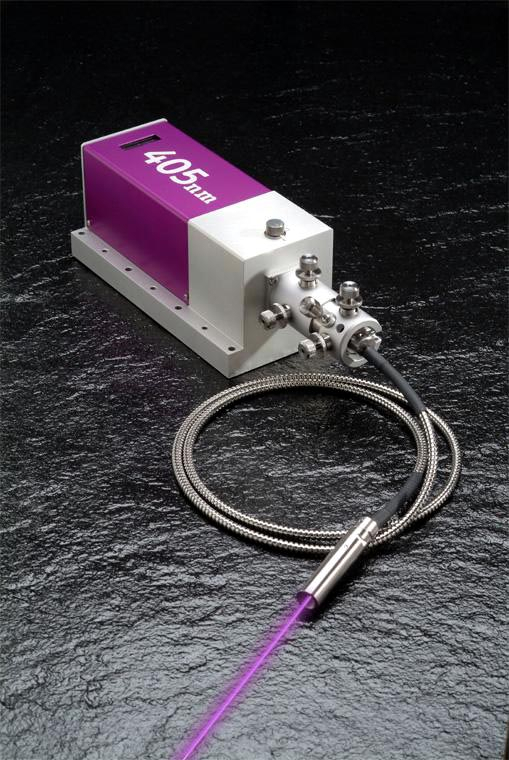

Sep 28, 2006 Model iFLEX2000(TM) fiber-coupled laser delivers 30 mW at 405 nm with TEM00 Gaussian beam. Laser uses forward closed loop power control that is immune to optical feedback and offers long-term stable output and low short-term amplitude noise. Laser beam conditioning is performed using singlemode fiber that acts as spatial filter while also providing means of flexible beam delivery.

Point Source    Southampton SO31 4RF  United Kingdom
Sep 28, 2006 Designed for singlemode fiber beam delivery, fiber beam combiner uses infused fiber technology as an integrated laser beam delivery system and beam combiner for blue solid-state lasers and red diode lasers. Singlemode fiber acts as spatial filter for higher order laser modes and produces TEM₀₀ true Gaussian profile for combined and co-linear output beams.

SGL Carbon Technic, LLC    Strongsville, OH 44149
Sep 28, 2006 Allowing operation in countercurrent flow regime, Model RM Multi-Tube Bundle Exchanger handles applications with close temperature approaches or temperature crosses. Bundle modules can be removed for cleaning, inspection, or replacement. Impervious graphite exchangers are used for heating and cooling corrosive chemicals such as hydrochloric acid, sulfuric acid, and phosphoric acid.

KORENIX Technologies    Taipei 231  Taiwan

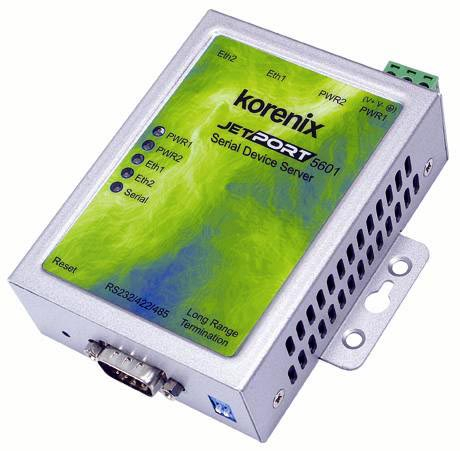

Sep 28, 2006 With built-in dual Ethernet ports, JetPort 5601 Ethernet device server provides redundant back-up link in less than 200 ms when master link breaks, assuring non-stop data communications. It supports maximum 5 simultaneous connections for virtual com, TCP server, TCP client, UDP, and serial tunnel modes. JetPort Commander utility software is utilized for management, monitoring, and control functions, and device supports transmission speeds to 460.8 Kbps.

Zwick USA    Kennesaw, GA 30152
Sep 28, 2006 Model videoXtens extensometer is capable of simultaneously measuring longitudinal and transverse strain and is used for measurement of r and n values to ISO 10113 and ISO 10275, respectively, on sheet steel. It is utilized in materials testing applications where contact with specimen is impractical and includes software to record real-time video stream of test. Extensometer complies with Class 1 of ISO 9513 and B2 of ASTM E83.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

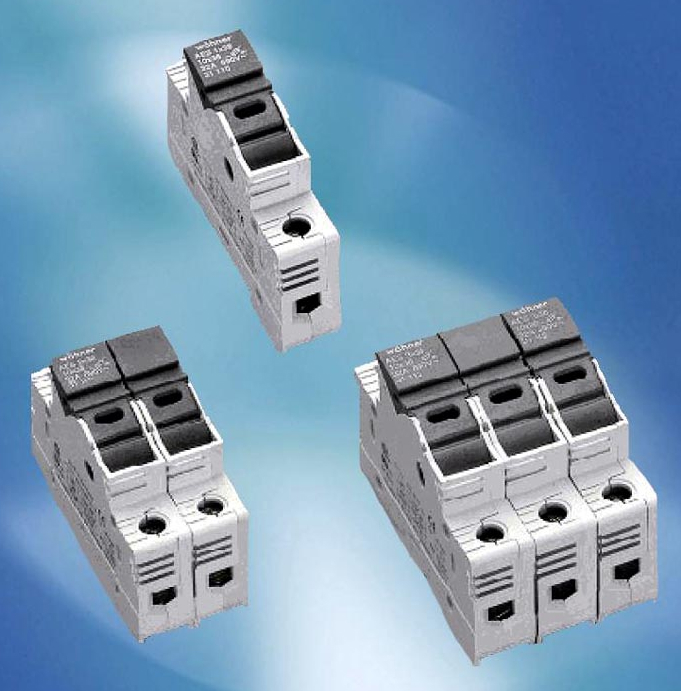

Sep 28, 2006 Available in single, double, and triple pole versions, UL approved modular fuse holders feature touch-proof housing design, screw clamp box connections to facilitate installation, and allow fuse to be completely removed from circuit during replacement. Available with or without LED blown fuse indication, holders provide up to 30 A at 600 V.

Emseal Joint Systems, Ltd.    Westborough, MA 01581
Sep 28, 2006 BACKERSEAL high-performance secondary sealant is designed for panelized wall systems, as well as concrete, brick, and stone structures. It consists of acrylic-impregnated cellular foam combined with laminations of closed-cell EVA foam. Non-staining sealant is compatible with wide range of caulking and substrate materials, and comes pre-compressed to smaller-than-joint-size with mounting adhesive on one face.

Optotherm, Inc.    Sewickley, PA 15143

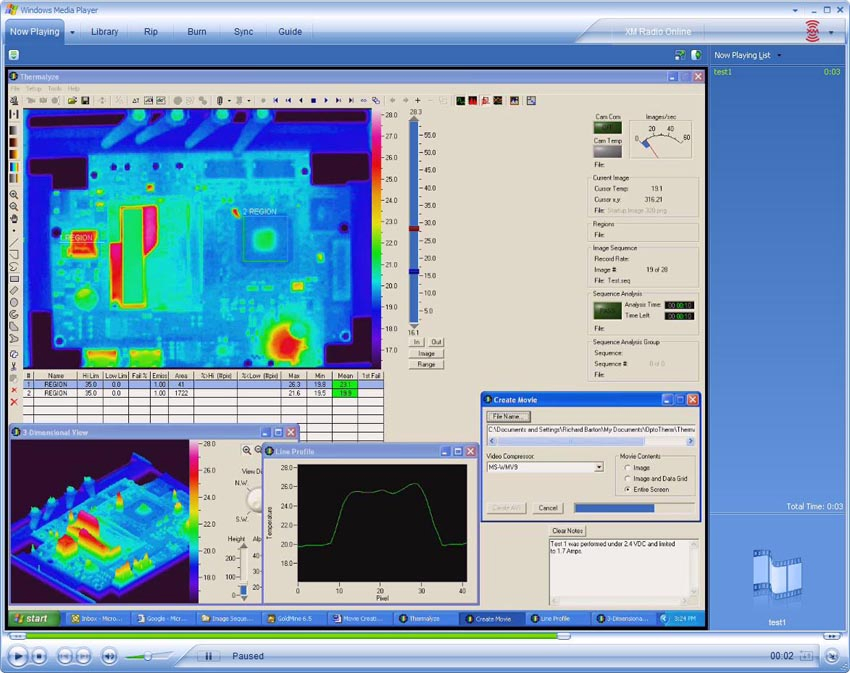

Sep 28, 2006 Thermalyze v4.5 creates videos that can display thermal images, 3D thermal images, strip charts, line profiles, histograms, and temperature statistical data from images. Videos can be emailed, incorporated into reports, and used for training and marketing. Thermal imaging analysis software enables users to locate position of thermal anomalies with respect to reference point.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607

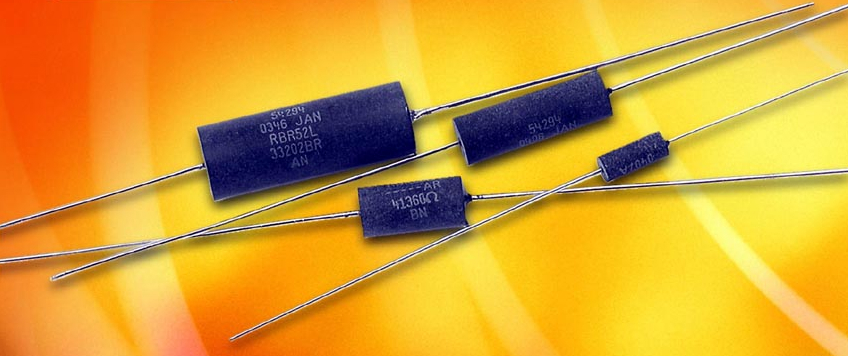

Sep 28, 2006 Designed for military and avionics systems, RB/RBR Series axial lead precision wirewound resistors are suited for applications where accurate measurement of voltage or current is required. Available in axial and radial terminal configurations, resistors operate from -65 to 145°C and feature power ratings from 0.125-0.5 W and tolerances ranging from ±0.01 to ±1.0%.

Danaher Motion    Wood Dale, IL 60191-1073

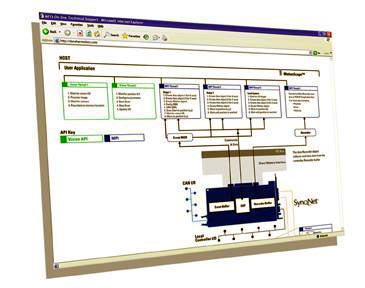

Sep 28, 2006 Enabling 64-bit position resolution, Motion Programming Interface (MPI) v3.04 includes C library that facilitates integration of real-time motion with vision or high-speed I/O. Software provides low latency command-to-motion execution, network master with node self-enumeration, redundant fault tolerance, and event management. SynqNet HotReplace(TM) feature helps engineers increase machinery throughput by servicing machinery modules offline without process interruption.

GEUTEBRUCK GmbH    Windhagen D-53578  Germany

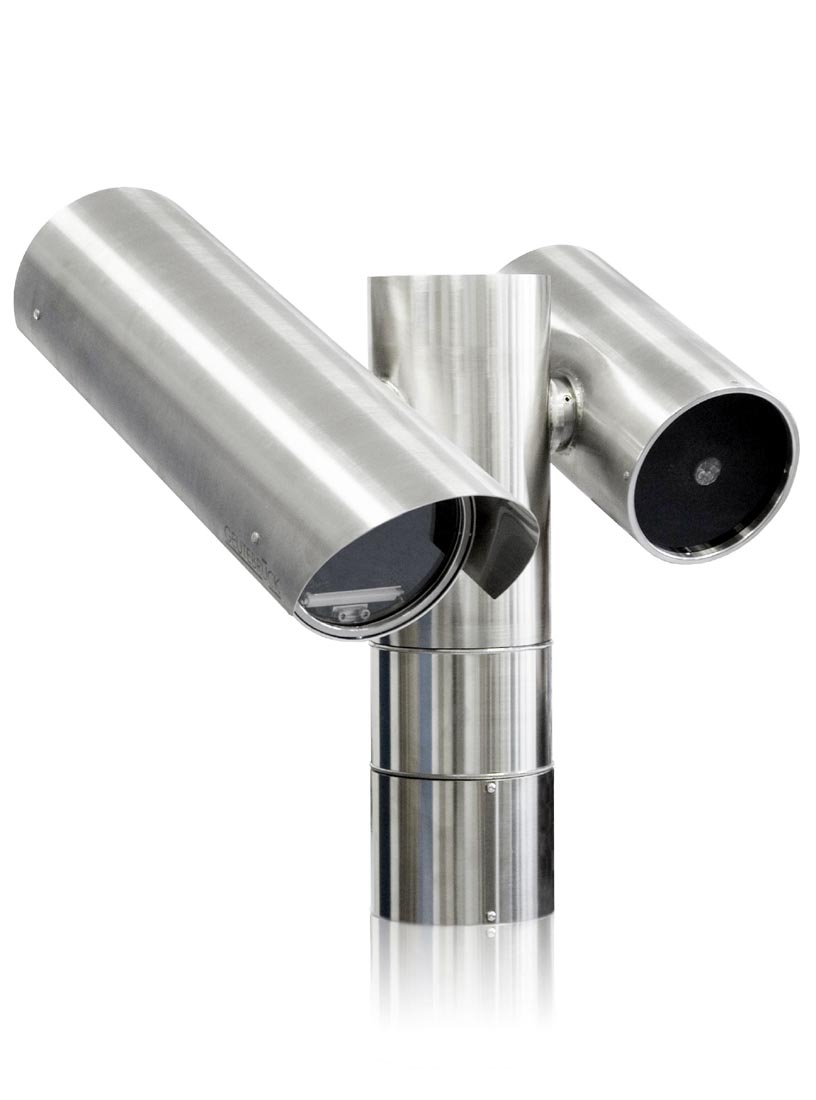

Sep 28, 2006 ARGUS high speed pan and tilt system can be equipped with optional infrared spotlight with long-life LEDs and choice of IR beam angles that enables system to provide precision in dark situations for ranges of up to 70 m. IP66/V4A weather and corrosion-proof housings enable use of IR spotlight in inaccessible places such as tunnels, or in marine and industrial environments.

Physik Instrumente (PI)    Auburn, MA 01501

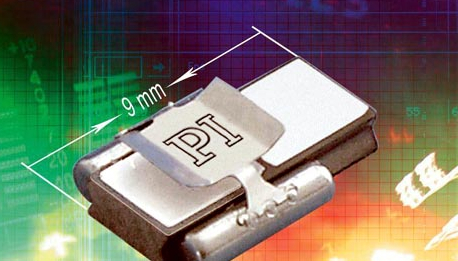

Sep 28, 2006 With stroke of 3.2 mm and velocities of up to 80 mm/sec, Model P-652 piezoelectric, linear-motor driven, translation stage offers sub-micron resolution and holding force of 20 g. Backlash-free unit contains ultrasonic piezoelectric resonator and 2 lateral sliders pressed against it by spring that doubles as moving carriage. Operating voltage of driver electronics is 2.8-3.2 V, operating current is 55 mA, and ultrasonic motor design requires zero power consumption at rest.

Advantech Automation Corp.    Cincinnati, OH 45240

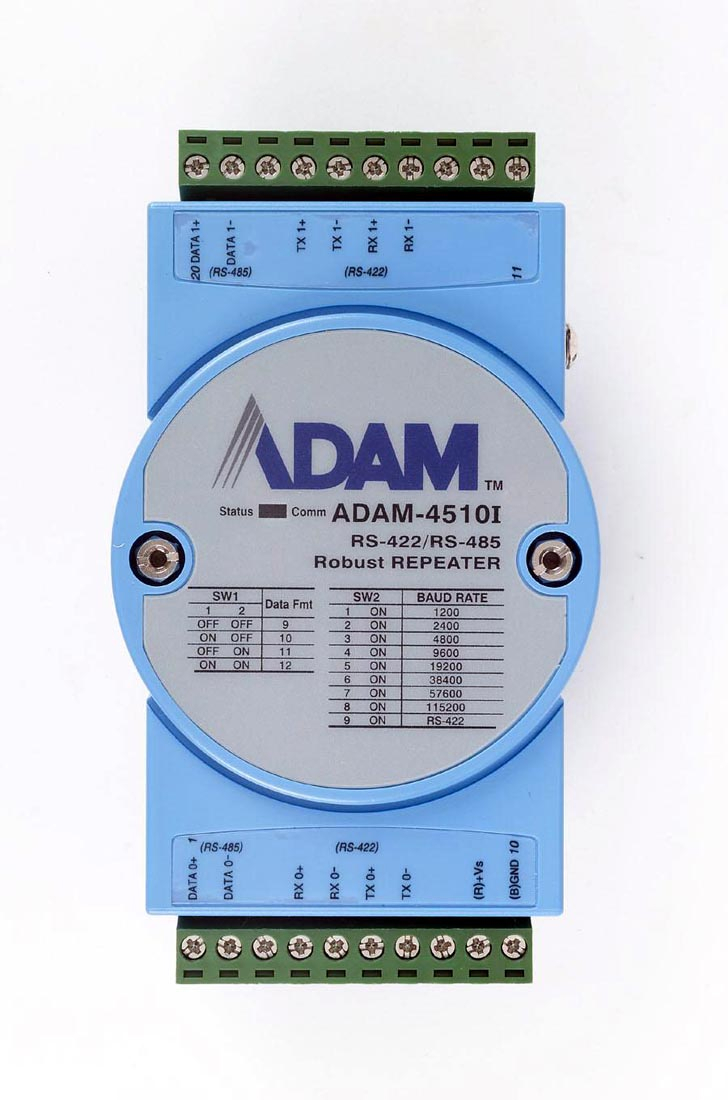

Sep 28, 2006 With operating temperature range of -40 to 85°C, ADAM-4510I isolated RS-422/485 repeater and ADAM-4520I isolated RS-232 to RS-422/485 converter feature automatic RS-485 data flow control, 3,000 Vdc isolation protection, surge protection RS-485 data line, transmission speed up to 115.2 Kbps, and networking up to 1,200 m. Mountable on DIN-rail, panel, or piggyback, they have space for termination resistors and power and data flow indicator for troubleshooting.

Thompson Scale Co.    Houston, TX 77055

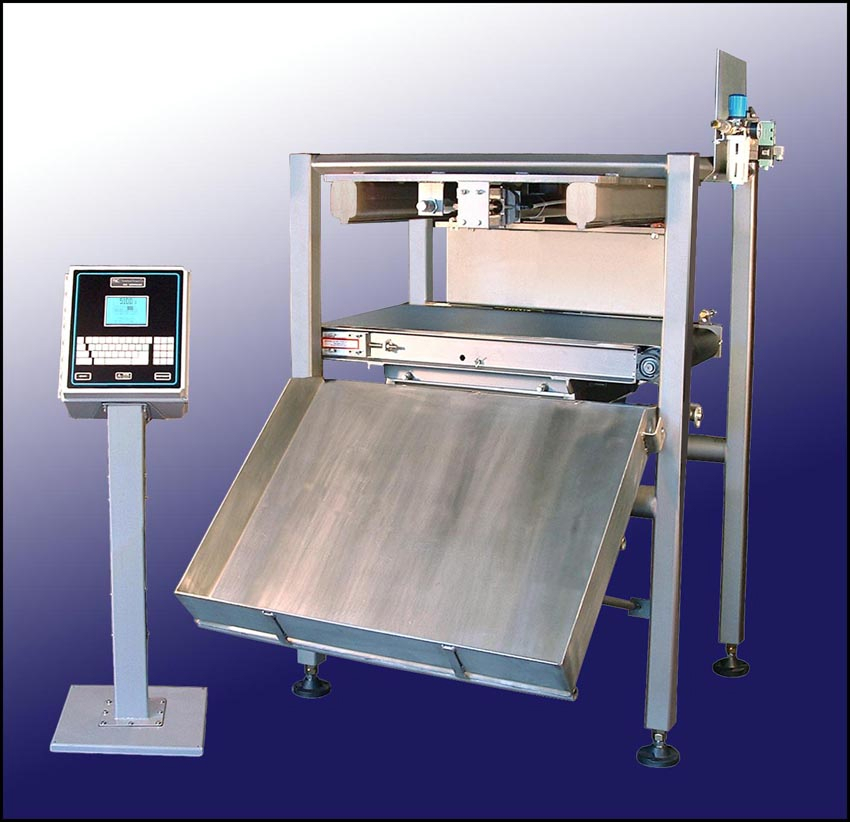

Sep 28, 2006 Designed for industrial and institutional packaging applications, Model 4693-R Heavy-Duty Checkweigher features pneumatically operated heavy-duty reject ram that is located directly off side of weigh station conveyor to reject off-spec packages. Weigh station conveyors are 4-5 ft long and run at speeds up to 100 ft/min. System offers production rate of up to 30 units/min and handles weight ranges from 1-110 lb.

RKC Instrument    South Bend, IN 46628

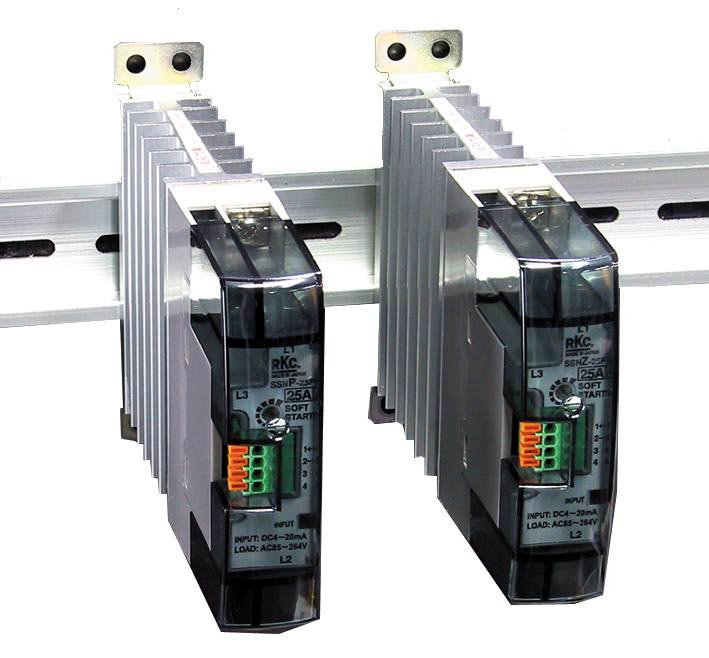

Sep 28, 2006 SSNP single-phase control type and SSNZ series for zero-cross control are narrow 21.5 mm to allow for close DIN rail or screw mounting, either vertically or horizontally. Response to changing input setting is one cycle or less. Functions include ramp-up/ramp-down (soft start), auto-detecting power frequency that selects power supply of 50Hz or 60Hz, and manual control.

JBC Tools USA, Inc.    Cary, IL 60013
Sep 28, 2006 With nominal power of 145 W and peak power of 270 W, Model HD 4700 soldering station is designed to solder intensively on multiple layer boards and on parts requiring high amount of heat. It offers temperature range of 90-500°C and features sleep system and hibernation mode that reduce tip oxidation when iron is not in use. Other features include password protection, temperature limits, and usage counters.
