Lyon Workspace Products    Aurora, IL 60507

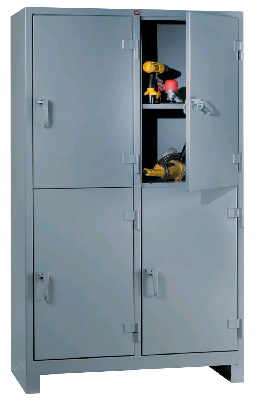

Sep 08, 2006 Shipped set-up with 4 in. legs welded on and shelves bolted in place, Storage Cabinets feature die-cast handles with 3/8 in. thick padlock hasps, welded hinges, and 3-point locking system with 3/8 in. latch rods and 3/16 in. latch plates. Four-door model creates secure storage for 4 people or 4 departments in single cabinet, while clear view model uses Plexiglas® door inserts to allows user to check contents or monitor inventory without opening doors.

Extreme CCTV Surveillance Systems    Burnaby V5A 3C2  Canada

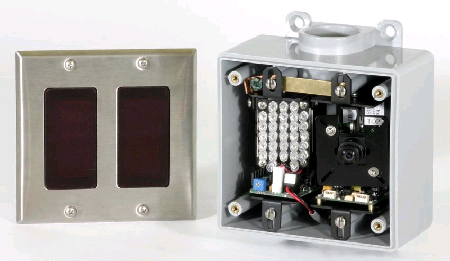

Sep 08, 2006 Providing identification at critical access points, FR Series delivers evidentiary video from under cover of decor plate. Units install directly into light switch electrical boxes, enabling them to deliver facial images with clarity and resolution. Discreet and inconspicuous, cameras allow optimal function of facial recognition software and can be combined with FR Series IR Illuminators for operation under any lighting condition.

Stanley Vidmar    Allentown, PA 18105 1151

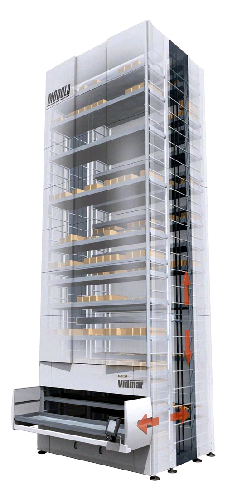

Sep 08, 2006 Equipped with steel core timing belt, VSS II holds stack of shelves, drawers, or trays in as many as 240 storage locations. When operator summons individual shelf, extractor platform rises up vertical shaft inside tower, pulls shelf out of storage location, and delivers it to picking station at base. System comes in heights up to 45 ft and can store up to 132,000 lb. Workers control machine and manage inventory using touch screen computer running Windows XP® software.

K-Sun    Somerset, WI 54025
Sep 08, 2006 MaxiSoft® MaxiSigns® v2 Safety Sign, Label, and Tag making software allows users to users to design and print professional OSHA mandated, ANSI/ISO compliant, and Homeland Security safety signs and tags with any PC compatible desktop printer. Each sign can be translated into Spanish or Canadian French, and software provides consistency in colors, pictographs, applications, and layouts. Regulation summaries help safety professional understand and comply with specific requirements.

Smith Flow Control    Erlanger, KY 41018
Sep 08, 2006 Integrated with any size ball, plug, gate, butterfly, or globe valve, QL and GL Mechanical Valve Interlocks ensure potentially hazardous valve operations are performed in correct sequence, eliminating possibility of operator error or deliberate sabotage. Units are 316 SS for long-term operation in harsh onshore and offshore conditions. Operation is by cast stainless steel coded card keys, which push in and pull out of weather-sealed apertures in lock body.

Valspar Corp., The    Wheeling, IL 60090

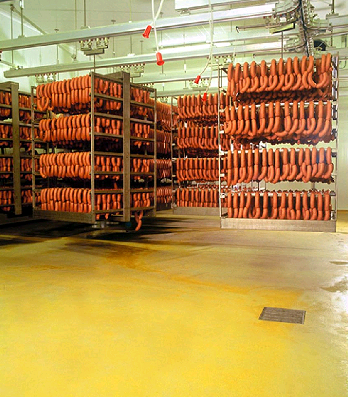

Sep 08, 2006 Designed for operations requiring cleanliness and durability, Flowfresh hygienic polyurethane concrete flooring resists impact, abrasion, and aggressive chemicals. It also withstands thermal shock produced from steam or high-temperature cleaning that floors are subjected to in dairy, beverage, food, and pharmaceutical applications. Flooring features slip-resistant texture as well as continually regenerating antimicrobial that inhibits growth of mold, mildew, bacteria, and fungi.

Keystone Group    Princeton, NJ 08540
Sep 08, 2006 Powered by 2 AA batteries for up to 20 hr, FlareAlert(TM) utilizes 12 high-output LEDs to produce flashing light visible for miles from ground and air. Electronic emergency beacon, built to withstand being run over by most civilian vehicles, will not ignite spilled gasoline, cause brush fires, or contaminate groundwater. Offered as alternative to strike flares, non-toxic product is available in red and yellow.

A.C.E Production Technologies    Wilder, KY 41076
Sep 08, 2006 Suited for assembly, prototyping, and rework applications, KISS 103 Stretch features 26 x 19 in. work area designed to handle larger PCBs and panelized boards. User can place multiple boards in work area, and then utilize Step-and-Repeat feature of system's operating program. Along with swappable lead-free compatible solder pots, system offers 3 in. wave that enables conversion from leaded soldering process to no-lead solder process.

Acrosser Technology    Cypress, CA 90630

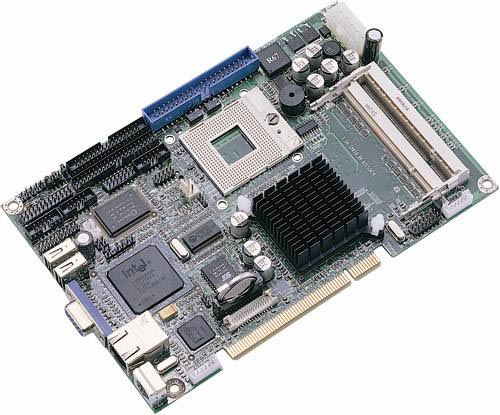

Sep 08, 2006 Lead (Pb)-free AR-B1841CM600ZC features software-programmable Watch Dog timer and half-size, 600 MHz Celeron M embedded board. For I/O connectivity and high-speed bus communication, RoHS-compliant single board computer (SBC) offers 4 RS-232 and 6 USB 2.0 ports. It can be used as stand-alone product or with PCI backplane for additional I/O expansion.

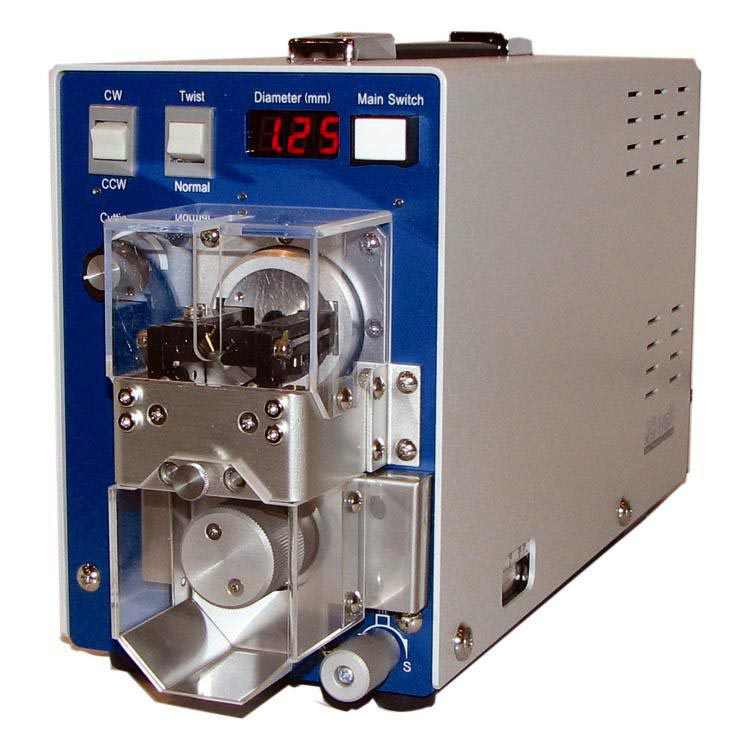

Komax Corp.    Buffalo Grove, IL 60089
Sep 08, 2006 Stripping wire sizes from 36-10 AWG, Cosmic 927R wire stripper features micrometer dial for choosing stripping diameter in 0.01 mm increments, and shows selection via digital display. Portable device operates on 100 Vac, 60 VA. Rotating 4 blade stripper allows selection of full or partial pull-off lengths from 1-25 mm. Stripping head rotation and twist (or non-twist) direction is changeable from clockwise to counterclockwise. Foot switch and air blow-out kit options are available.

BIAS Power Technology Inc.    Palatine, IL 60067

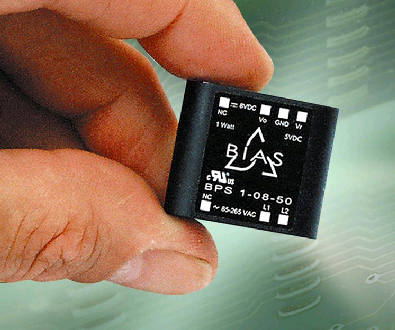

Sep 08, 2006 Measuring 1 x 7/8 x ½ in., micro-size BPS Series operates with 75% nominal efficiency and is designed for standby mode and green power applications. Circuit design eliminates line EMI, so that no input filtering is required. It also regulates output voltages, even over 85-265 Vac. With no-load power consumption of less than 30 mW, units are available with outputs of 8, 14, and 8 and 5 Vdc. Applications include processors, IR remote receivers, membrane keypads, and LED panel lighting.

Thermadyne Industries, Inc.    St. Louis, MO 63017
Sep 08, 2006 MIG gun front end conversion kits, available for Miller®, Bernard®, OXO®, ESAB®, Tregaskiss®, and other makes, enable welders with non-Tweco guns to use Genuine Tweco consumable parts. Each kit contains assortment of consumables to complete conversion: 2 diffusers, 3 extended life contact tips, and one heavy duty brass nozzle. Also included, insert card has tip diagram as well as contact tip, nozzle, and diffuser part numbers.

AST Bearings    Montville, NJ 07045 9299

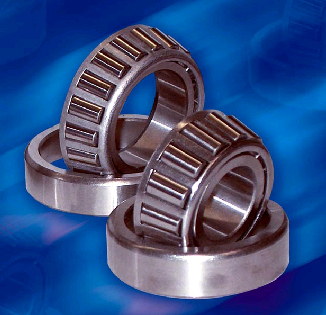

Sep 08, 2006 Suited for heavy-duty machinery industry, High Carbon Chromium Steel Tapered Roller Bearings are comprised of inner ring, outer ring, tapered rollers, and roller retainer. Through-hardened units feature consistent hardness throughout component, while case-hardened models have surface hardening combined with flexible core. Standard sizes range from 15-240 mm or .59-9.45 in. ID and 35-40 mm or 1.38-15.75 in. OD.

Kurt Manufacturing    Minneapolis, MN 55421
Sep 08, 2006 Providing up to 40 kN clamping force, Model VB 5 AX 100 allows high speed, continuous 5-axis cutting motion of sculptured surfaces, pockets, and other 3D features in single clamping setup. System eliminates jaw deflection and/or part misalignment during machining operations. Features include clamping width of 2-236 mm, clamping depth of 8 mm, and height above machine table of 175 mm with extended height options to 200 and 225 mm.

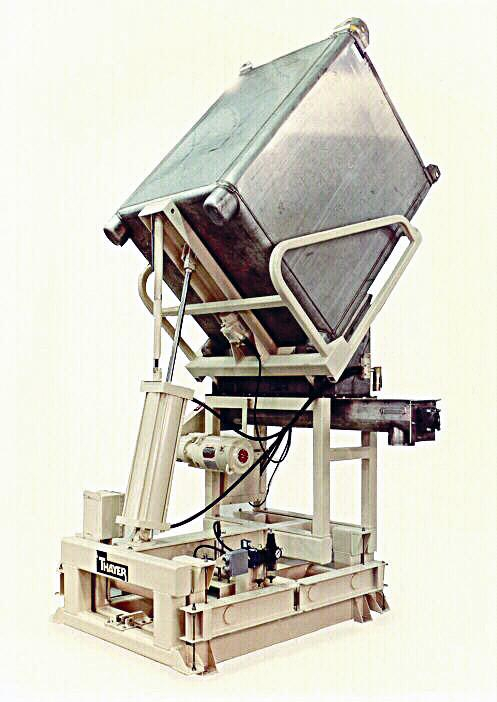

Thayer Scale-Hyer Industries, Inc.    Pembroke, MA 02359
Sep 08, 2006 Loss-In-Weight Portable Bin Unloaders allow accurate discharging and metering of material stored and transported in side or bottom discharge portable bins. Weighing is done through low deflection, non-wearing Force Measurement Suspension System (FMSS)flexure scale which measures vertical loading and can take high load directed overloads. FMSS scale design uses counterweights to negate tare weight of support structure, feeder, and bin.

Varioptic SA    LYON 69007  France
Sep 08, 2006 Measuring 7.75 mm deep by 1.6 mm high, SMIA-compliant ARCTIC 416 variable focus lenses are designed for slim camera phones. They feature optical format of ¼ in., focus range from 6 cm to infinity, time to focus of 300 ms, and maximum power consumption of 200 µA.

Sony Electronics Inc.    Park Ridge, NJ 07656
Sep 08, 2006 Adding geographic context to digital images, Model GPS-CS1 12-channel GPS unit enables photographers to pinpoint exactly where they've been. Users can arrange pictures geographically by importing logged data from GPS device by downloading digital images to computer. GPS Image Tracker software synchronizes images on camera with latitude, longitude, and time readings from GPS-CS1. Unit weighs 2 oz, is 3½ in. long, and comes with carabineer to attach to backpack or belt loop.

Cole-Parmer Instrument Co.    Vernon Hills, IL 60061
Sep 08, 2006 IP67-rated Oakton® 600 Series waterproof meters feature accuracies to ±0.002 pH and are expandable to 0.001 resolution. Units store up to 500 data sets through automatic, manual, or timed collection. Calibration abilities include up to 6 calibration points, user-settable calibration-due alarm, and up to 15 buffer options with auto buffer recognition of USA, NIST, DIN, and PWB standards. Infrared IrDA wireless technology enables printing and PC downloading.

Hydro Tek Systems, Inc.    Redlands, CA 92374

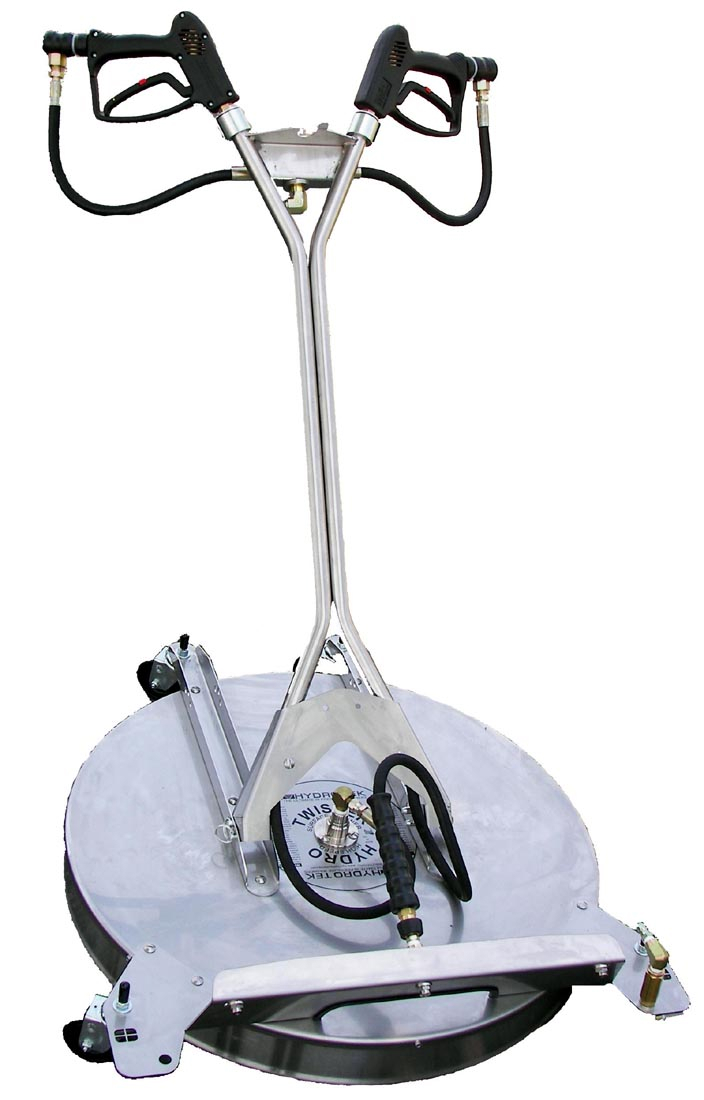

Sep 08, 2006 Model ANT3C Contractor Hydro Twister® Surface Cleaner features corrosion resistant stainless steel construction, heavy duty swivel, and 3 permanently lubricated sealed bearings. Two nozzles rotate at up to 2,000 rpm, while SIX-SHOOTER gum/spot nozzle, which can be mounted on either right or left side with zero tolerance offset, blasts stubborn spots or embedded gum. Integrated water broom eliminates need to disconnect/reconnect tools.

PowerPhone, Inc.    Madison, CT 06443
Sep 08, 2006 As part of Total Response® Computer Aided Call Handling(TM), Cell Photo Delivery (CPD) enables delivery of cell phone photos from 911 callers to call handlers. Once caller reports emergency or suspicious activity, call handler sends email to cell phone. Caller replies to message with photo attached, and CPD integrates photos directly into 911 call record. Process ensures photos are linked with appropriate records, and software stores photo in incident record for reference.
