Super Micro Computer, Inc.    San Jose, CA 95131
Jun 28, 2012 Supporting up to 135 W processors, FatTwin(TM) eliminates need for air-conditioning and cooling methods. Airflow-optimized design integrates up to 8 dual-processor nodes in 4U rackmount server and operates from 0 to +47°C. Twin architecture integrates independent systems side-by-side in one chassis, multiplying compute density while sharing resources such as chassis, fans, power supplies, and cabling. Storage options include 8 hot-swap 3.5 in. HDDs per 1U or 6 hot-swap 2.5 in. HDDs per ½U.

Pelco by Schneider Electric    Orangeburg, NY 10962
Jun 28, 2012 Designed for no-light and low-light applications, BU Series bullet cameras offer options for long- and short-range IR illumination from 15-40 m. FD Series offers fixed dome camera models equipped with supplemental IR illumination for difficult lighting conditions. Select models of BU, FD, and C20 Series box cameras include technologies such as DSP, backlight compensation, digital noise reduction, privacy zones, motion detection, and adaptive tone reproduction.

ABB Robotics, Inc.    Auburn Hills, MI 48326
Jun 28, 2012 Able to complete 1 kg picking cycle of 25 x 300 x 25 in 0.52 sec, IRB 120T offers 180° axis 6 reorientation and meets needs of assembly and pick and place applications. Standard payload is 6.6 lb, vertical wrist payload is 8.8 lb, reach is 580 mm, and stroke is 411 mm. Offering repeatability of pose (RP) of 0.01 mm, 55 lb robot can reach 112 mm below its base, can be mounted at any angle, and integrates into new/existing lines. Compact version of IRC5 controller facilitates control.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 28, 2012 Along with side-by-side finite element method electromagnetic simulation of different technologies, Advanced Design System 2012 provides model support for artificial neural network-based Agilent NeuroFET model as extracted by Agilent EEsof's IC-CAP device modeling software. Solution integrates with Electromagnetic Professional software and also offers beta ADS electro-thermal simulator. ADS Load Pull DesignGuide and Amplifier DesignGuide features are also standard.

Corbin Russwin Arch Hardware    Berlin, CT 06037
Jun 28, 2012 Compatible with decorative door levers in Corbin Russwin Muséo® Collection, Inspire(TM) roseless trim enhances door opening aesthetics. Lever and roseless collar blend into door for minimal visual intrusion. Smaller than rosette, trim is available in 13 architectural finishes, including MicroShield® antimicrobial coating, and is compatible with Corbin Russwin TL3700 tubular lock, ML2000 mortise lock, and Access 600(TM) RNE1 mortise access control lock.

GOEPEL electronics LLC    Austin, TX 78759
Jun 28, 2012 Dedicated model libraries for Freescale QorIQ® processors of series 10xx, 20xx, and 30xx are available to support emulation technology VarioTAP®. Described as VarioTAP® models, libraries are structured modularly as intelligent IP as to enable complete fusion of Boundary Scan test and JTAG emulation. This technology enables users to verify and test hardware without specific firmware as well as program Flash memories. IP models are supported as standard beginning with SYSTEM CASCON(TM) v4.6.

Rockwell Automation, Inc.    Milwaukee, WI 53204
Jun 28, 2012 Expanding PlantPAx communication capabilities, Allen-Bradley 1788-EN2FFR and 1788-CN2FFR provide direct link from EtherNet/IP or ControlNet networks to FOUNDATION Fieldbus H1 device-level network. Both support up to 16 field devices on single H1 segment and feature multiple redundancy configurations, including redundant linking devices, H1 media, ControlNet media, and EtherNet/IP Device-Level Ring. Add-On-Profile offers detailed field device configuration and built-in diagnostics for troubleshooting.

MacDermid Autotype, Inc    Schaumburg, IL 60173
Jun 28, 2012 Providing fine flat matte surface with soft tactile finish, Autotex® Softouch offers resistance to surface wear, abrasion, and wide range of chemicals and solvents. Product is suited for surface applications such as nameplates or membrane switches, wherever tactile experience may be required. Available in roll or sheet format and thicknesses of 150 or 200 microns, film can be embossed, creating domed switches that can withstand over 5 million actuations.

MacDermid Autotype, Inc    Schaumburg, IL 60173
Jun 28, 2012 For use as graphics overlay material in keyboards, fascias, and instrument panels, Autotex Steel has ink receptive layer on reverse surface and hardcoated outer layer that is chemically bonded and UV cured. Hardcoat layer has textured finish which, when film is printed on reverse with standard metallic or newly developed mirror inks, creates appearance of brushed stainless steel panel. Outer surface resists abrasion, surface impact, and chemicals/solvents and will not show fingerprints.

Neopost USA, Inc.    Milford, CT 06461
Jun 27, 2012 As fully customizable solution, Neopost DS-63 and Hasler M3300 desktop folding and inserting system processes mail management services and applications at speeds demanded by mail room operations. Integrated flexFeed® technology allows all document sizes, as well as stapled and unstapled mail, to be processed, while graphical touchscreen facilitates access to stored applications via wizard. System also automates variable page document preparation.

Stackpole Electronics Inc.    Raleigh, NC 27604

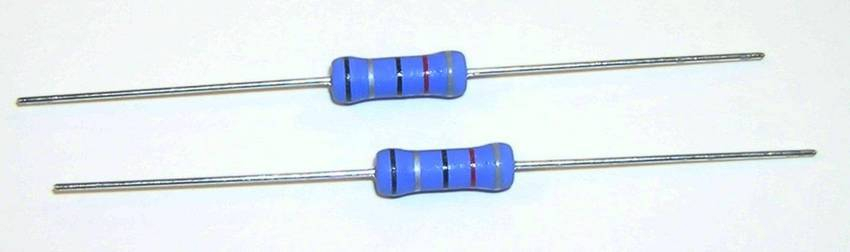

Jun 27, 2012 Rated for 2 W continuous power, ASRM2 has working voltage rating of 4 KV and overload voltage rating of 5 KV. RoHS-compliant ASR series is designed to handle voltage pulses up to 10 KV, depending on size and resistance value, for thousands of pulse events and features flameproof coating per UL94 V-0. Applications include power supplies, displays, small motor controls, security systems, industrial automation and controls, snubbers, and LED lighting.

WIN Enterprises    North Andover, MA 01845
Jun 27, 2012 Intended for network service applications, rackmount PL-80700 is built with Intel® Embedded IA components, supports Intel Atom(TM) D2550/N2600 low-voltage processors (Cedarview), and integrates ICH10R I/O controller. Appliance also supports DDR3 SODIMM slot with memory to 4 GB and is available with one 3.5 or 2.5 in. SATA HDD and CompactFlash(TM). Optional onboard Cavium Nitrox Lite CN505 is offered to provide hardware-level cryptographic acceleration. Multiple I/O options are standard.

Tingue Brown & Co.    Saddle Brook, NJ 07663
Jun 27, 2012 Featuring abrasive mesh strip design, Continuous Belt Cleaner accesses difficult-to-reach areas directly under ironer rolls to remove dirt, lint, wax, and other contaminants that have accumulated. Unit includes adjustable, Velcro-based attachment system that allows length of ironer cleaning cloth to be extended or shortened based on roll diameter and number of ironer rolls. Available in 36 and 72 in. widths, cleaner is used with common metal cleaning agents.

Touchstone Semiconductor    Milpitas, CA 95035
Jun 27, 2012 Operating down to 0.65 V, Models TS12011 and TS12012 combine 0.6 V reference, 20 µs analog comparator, and unity-gain stable op amp in 4 mm² package. Model TS12011 has push-pull output, while Model TS12012 has open-drain output. Both analog comparator and op amp feature rail-to-rail input stages, and analog comparator has ±7.5 µs of internal hysteresis for chatter-free output switching. Applications include local-area alarms/detectors, safety sensors, and IR receivers for remote controls.

DLI, Inc.    Houston, TX 77041
Jun 27, 2012 Powered by Intel® Atom 1.5 GHz X86 processor, DLI 7200 enables retailers to deploy same POS applications that reside on fixed station terminals. IP54-rated unit includes 4.3 in. indoor/outdoor LCD projective capacitive touchscreen, 2 MP CMOS camera with flash, and 1D/2D CMOS imager barcode scanner. Built on standard PC architecture, DLI 7200 features optional OPOS/JPOS compliant 2-in-1 Payment Module; equipped to take magstripe and contactless payment through integrated RFID reader.

Saint-Gobain Abrasives, Inc.    Stafford ST16 1EA  United Kingdom

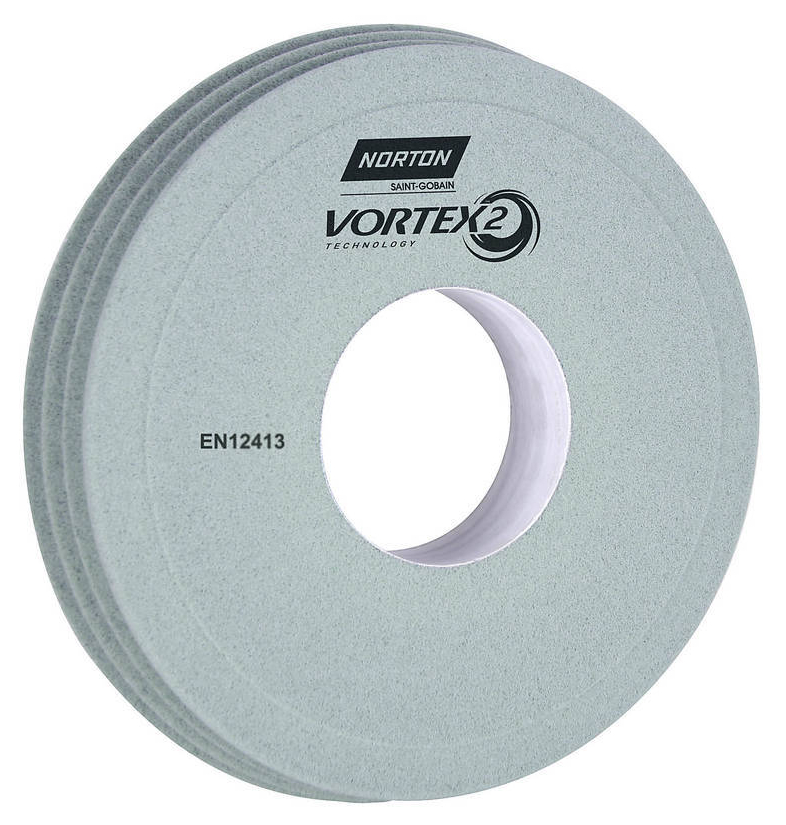

Jun 27, 2012 Maximizing coolant diffusion in grinding zone, VORTEX(TM) 2 Technology produces naturally occurring porosity and are approved by oSa. Formula for bonding fused alumina grain at optimal spacing in matrix improves chip clearance and reduces friction. Product optimizes productivity and wheel life while minimizing risk of unwanted metallurgical changes and residual stresses in workpiece. Green-colored wheels come in 5 grit sizes from 46-120, 4 hardness grades, and 4 structures.

Klein Tools, Inc.    Lincolnshire, IL 60069
Jun 27, 2012 Designed for access to confined places, Stubby features 1 ¼ in. shaft and cushion-grip handle. Driver shaft holds 4 universal tips and converts to 2 nut driver sizes. Driver is made of tempered steel with torque-proof anchor in handle, and tips are manufactured with square edges to fit screw opening securely. Tips resist slippage and provide positive turning action, while nut driver function improves bit-holding power.

Saelig Co., Inc.    Pittsford, NY 14534
Jun 27, 2012 Providing record length per channel of 10 MSa when sampling at up to 800 MSa/s and 10 KSa when sampling at 3.2 GSa/s, Model SDS9302 allows for zooming in on fast, intermittent pulses or glitches. Autoscale feature automatically adjusts vertical gain, or horizontal time base, or both together. Equipped with 8 in. color TFT LCD, oscilloscope provides external video-capable trigger, auto-measurements, external monitor/projector output, USB output, waveform storage, and pass/fail output.

Qosmedix Div., Qosina Corp.    Edgewood, NY 11717 8329
Jun 27, 2012 Natural Tubes with Matte Black Caps let companies create distinguishable line of makeup products for sampling or retail. Products include 3 ml (Part No. 74213) tube with screw cap and 15 ml (Part No. 74214) tube with flip top cap as well as 8 ml tube, with roller ball, that features pressure-sensitive design that delivers product in controlled manner. Also available: 8 ml natural dispensing tube with choice of mascara wand or doe foot applicator tip affixed to cap.

ESS Technologies, Inc.    Blacksburg, VA 24060
Jun 27, 2012 Incorporating mechanical mechanisms for drive, filling, and capping, MB 60M is used for filling and capping liquids/creams at up to 60 bottles/min. Product can be used with vibratory feeding systems, and containers may be fed by timing infeed screw or placed directly into starwheel. Mechanical volumetric filling system has ±0.5% max accuracy. Automatic cap feeding and placement, Allen Bradley PLC and PanelView Plus 600 HMI controls, and Category 3 polycarbonate safety guarding are standard.
