Quality Bearings & Components    New Hyde Park, NY 11042
Sep 22, 2006 Available in inch and metric sizes for precision and commercial tolerance applications, Spherical Bearings have spherically shaped inner ring and cylindrical bore for shaft mounting. Units consist of 2- and 4-piece types including self-lubricating models. With outer diameters from .4687-4.000 in. and from 5-25 mm, bearings fit shafts ranging from .165-1.875 in. and from 5-25 mm in diameter.

Quality Bearings & Components    New Hyde Park, NY 11042
Sep 22, 2006 Suited for precision and commercial tolerance applications, bearings come in male and female configurations with optional lubricator fittings. They have spherically shaped inner ring and cylindrical bore for shaft mounting, while outer surface of outer ring facilitates installation into any housing. Able to accommodate moderate shaft misalignments, bearing construction consists of 2- and 4-piece types that fit shaft diameters from .1900-1.0000 in. and 3-12 mm.

Ammeraal Beltech Modular (Uni-Chains)    Reading, PA 19611
Sep 22, 2006 With 1.5 in. pitch, Flex ONE side-flexing, plastic modular belt offers tight turning radii as low as 1.42 x belt width. Snap Link(TM) modules snap together for maintenance, and openings are minimized for maximum safety. Because there are no pin holes, all surfaces on belt are exposed for cleaning.

Schunk    Morrisville, NC 27560

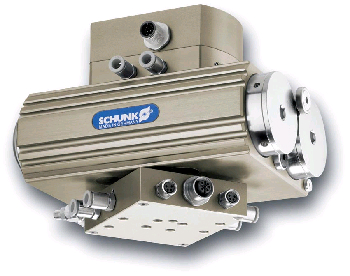

Sep 22, 2006 Used with SRU rotary actuator, Electric Feed-Through Unit enables digital signals to be conveyed to sensors and power to be supplied to digitally operated actuators. Using jumper, EDF-SRU can be reconfigured to Bus operation by routing power supply and Bus signal via feed-through. Input and output ends are equipped with housing connectors or sockets. For output end, users can choose between M12, M8, or miniature M5 connector.

Schunk    Morrisville, NC 27560

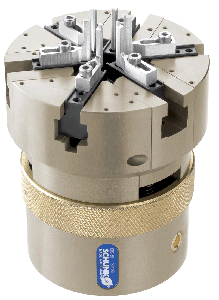

Sep 22, 2006 Designed to fit O-rings not only to shafts, but also in holes, 6-finger Model ORG 85 features integral stroke and triple jaw sets that move independently from one another. O-ring is first released from first 3 fingers, and then released from last 3 fingers in controlled manner. Clamping width of diameter to be fitted ranges from 5-150 mm. Stroke of 2 sets of triple jaws range from 0-21 mm for triple jaw A and from 0-15 mm for triple jaw B.

Schunk    Morrisville, NC 27560

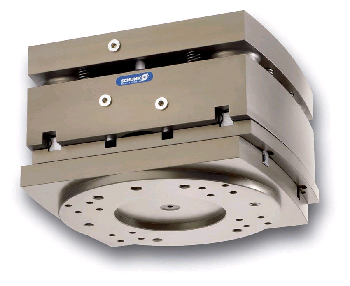

Sep 22, 2006 With compensation ranges of ±12 mm in X- and Y-direction and ±14 mm in Z-direction, Model AGE-S guarantees compensation beyond positioning accuracy of robot for medium and heavy load applications. It resists bending moments and complies to workpiece positions, minimizing assembly and unloading forces, and protecting robot and assembly line. With payloads from 12-220 lb, unit may be fixed rigidly via integrated pneumatic locking device during handling operation.

Schunk    Morrisville, NC 27560

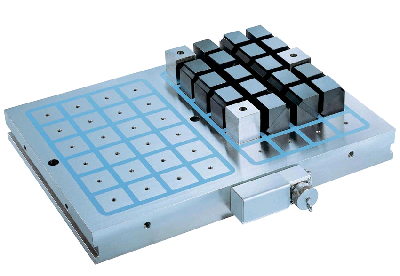

Sep 22, 2006 With MAGNOS Clamping System, 5-sided machining is possible at high holding forces, without any interfering contours of clamping device. Pole extensions that act as workpiece support allow user to position different workpieces rapidly and precisely. Uniform clamping force is possible due to poles' quadratic geometry. Pole sizes of 50, 75, and 100 mm are available, enabling holding forces to be tailored to individual requirements.

Schunk    Morrisville, NC 27560
Sep 22, 2006 With chuck bore large enough to cover diameters of common raw materials, ROTA NCFplus features integrated centrifugal force compensation and modular center sleeve system that promotes chuck flexibility. Standard sleeve can be replaced from front with workpiece stop, central coolant, or ejector. Available for all CNC lathes in 185, 215, 260 and 315 mm sizes, chuck has hardened, weight-optimized body and integrates multiple-tooth guide in base jaws.

Schunk    Morrisville, NC 27560

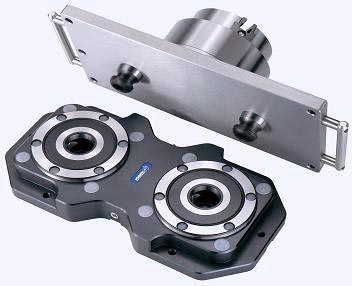

Sep 22, 2006 With 0.005 mm repeatability, UNILOCK provides accurate set-ups of workholding fixtures for production run machining and grinding operations. Through its clamping system, workpieces can be set and moved through multiple machining operations with minimal resetting. Product consists of stationary modules, installed individually or in multiples, directly on machine's worktable or tombstone. Existing workholding devices mount on UNILOCK clamping plates that mate precisely to modules.

Schunk    Morrisville, NC 27560

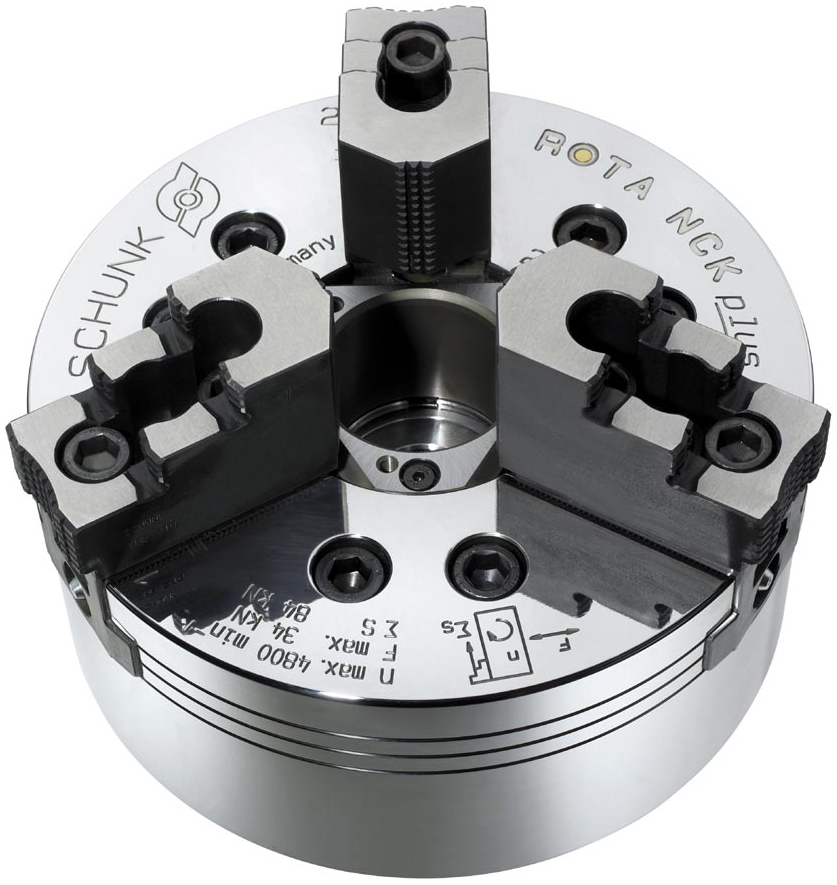

Sep 22, 2006 Compatible with various machining centers, ROTA NCK plus features one-piece chuck body for optimal rigidity. Precision piston guide and support minimize wear while promoting continuous clamping accuracy and tool life. Available in 2 versions, jaw interface is offered with 1.5 mm x 60° fine serration or 1/16 x 90° serration. Product is suited for 165, 210, 250, and 315 CNC lathe sizes with clamping forces from 57-144 kN and max speeds to 6,000 rpm.

Schunk    Morrisville, NC 27560

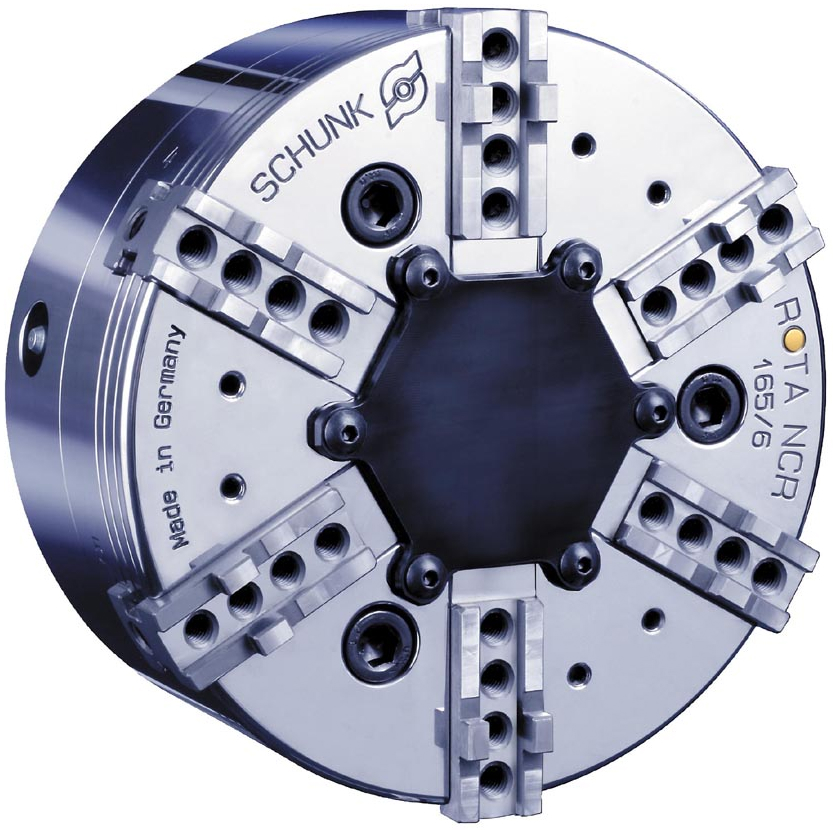

Sep 22, 2006 Available in 165, 210, 250 and 315 mm sizes, ROTA NCR 6-jaw power chuck is designed for use when machining thin-walled and easily deformed workpieces. It consists of central chuck piston with master jaws oscillating in pairs for concentric clamping. Pendulum is connected to each set of 2 base jaws, centering workpiece between 6 points of contact in which members of each pair lie opposite one another. For certain applications pendulums can be clamped in center position.

Schunk    Morrisville, NC 27560

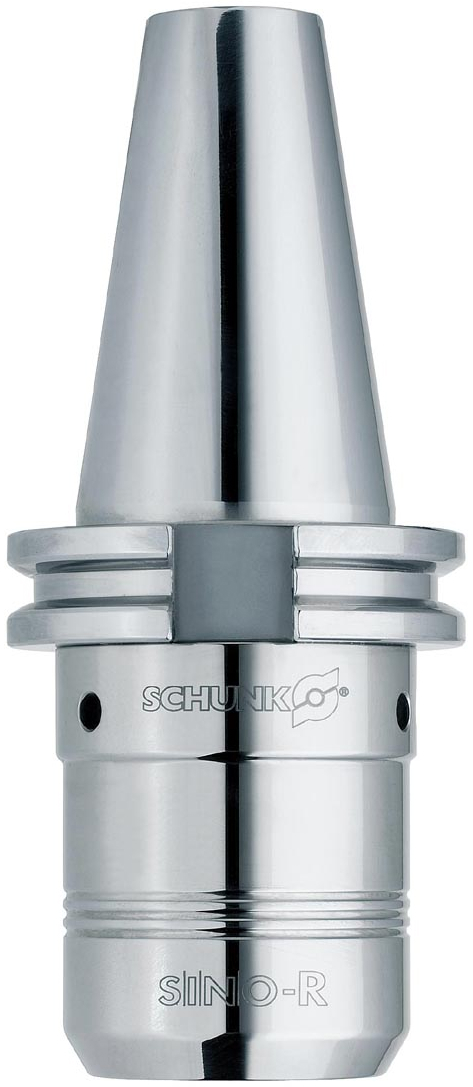

Sep 22, 2006 Utilizing clamping principle based on expansion technology with solid body as pressure medium, Total Tooling SINO-R Universal Toolholders exhibit radial stiffness and vibration dampening characteristics that lend to workpiece surface quality and reduction of machining noise. It is available with spindle interfaces CAT 40 and HSK-A 63 in metric and inch versions. Torque wrenches are not necessary, user just tightens actuation cap to dead-stop position.

Schunk    Morrisville, NC 27560

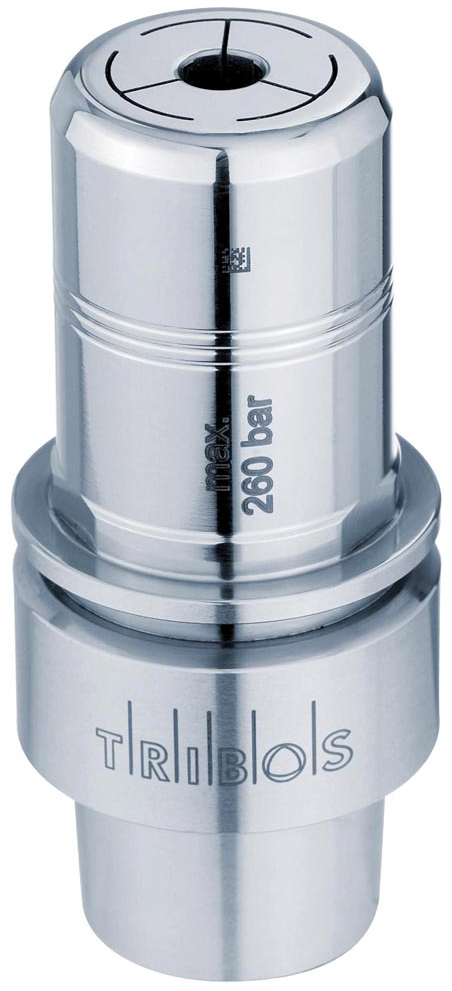

Sep 22, 2006 Offering run-out accuracy of less than 3 microns and feed rate up to 20 m/min, TRIBOS-RM is designed for cutting speeds up to 50,000 rpm in applications that require low interference. Clamping process, which uses elastic forces of material to clamp tool shank, can be done within 30 sec via SVP-2 (manual) or SVP-3 (automatic) clamping device together with corresponding reduction inserts. Due to rotational symmetric design, basic counter balance of less than 4 g/mm is ensured.

Shockwatch    Dallas, TX 75247

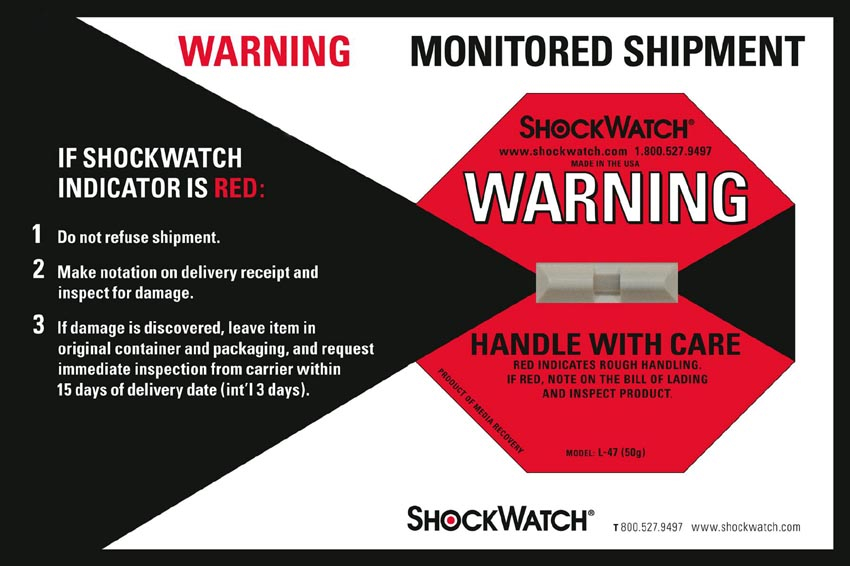

Sep 22, 2006 Featuring graphics designed to enhance visibility and readability, ShockWatch labels affix to corners of shipping cartons and incorporate fluid-filled miniature glass tubes in center. Appearance of tubes' bright red liquid immediately signals that container in question has been mishandled or sustained significant impact, alerting recipient to check contents for possible damage. Companion labels, alert stickers, and yellow caution tape further promote awareness of ShockWatch label.

Baseline Industries Inc.    Lyons, CO 80540

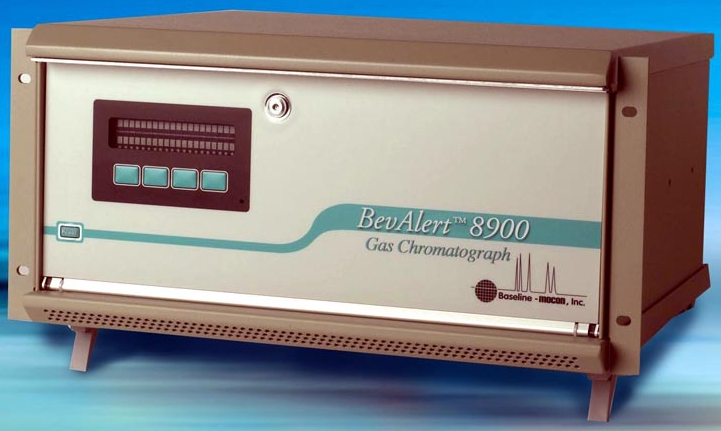

Sep 22, 2006 Utilizing photoionization detector (PID) as sensing element, BevAlert(TM) Model 8900 tests carbon dioxide (CO2) for presence of acetaldehyde and benzene, toluene, ethyl benzene, and xylene (BETX) VOCs. Gas chromatograph features hinged front panel that promotes access to PID detector for service and maintenance. It can be used by food and beverage industry as well as specialty gas manufacturers to monitor and eliminate trace VOCs in CO2 used in bottling beverages.

ERICO    Solon, OH 44139-2631
Sep 22, 2006 Available with hinged/removable screw-retaining transparent covers that allow visual inspection of wire and confirmation of connection, single-pole ERIFLEX® distribution blocks have more than 95% fill ratio. Tinned copper blocks clip onto DIN Rail or mount to panels with screws. By keeping only one input, blocks can be supplied in parallel using jumper wire. They can be ganged for unlimited number of phases or voltages while maintaining rigid block.

Leica Microsystems, Inc.    Buffalo Grove, IL 60089
Sep 22, 2006 Compatible with upright and inverted microscopes, Leica AF6000 multi-dimensional acquisition system features ability to overlay multi-channel images and acquire 3D and time lapse data for image documentation, quantification, enhancement, and analysis. Suited for applications from calcium ratio and FRET analysis to colocalization and motion analyses, AF6000 provides integrated interface to deconvolution algorithms and separate 3D visualization module.

Liekki Oy    Lohja FIN-08500  Finland
Sep 22, 2006 Designed for amplification of pulses with durations ranging from nanoseconds to femtoseconds, Model Yb1200-20/125DC-PM ytterbium-doped optical fiber is used in materials processing and laser ranging applications. Polarization maintaining fiber features highly doped, 20 µm dia core and 125 µm cladding dia. Cladding pump absorption of 7.1 dB/m at 920 nm that rises to 30 dB/m for absorption near peak at around 976 nm enables use of short active fiber lengths.

Zontec Inc.    Cincinnati, OH 45240

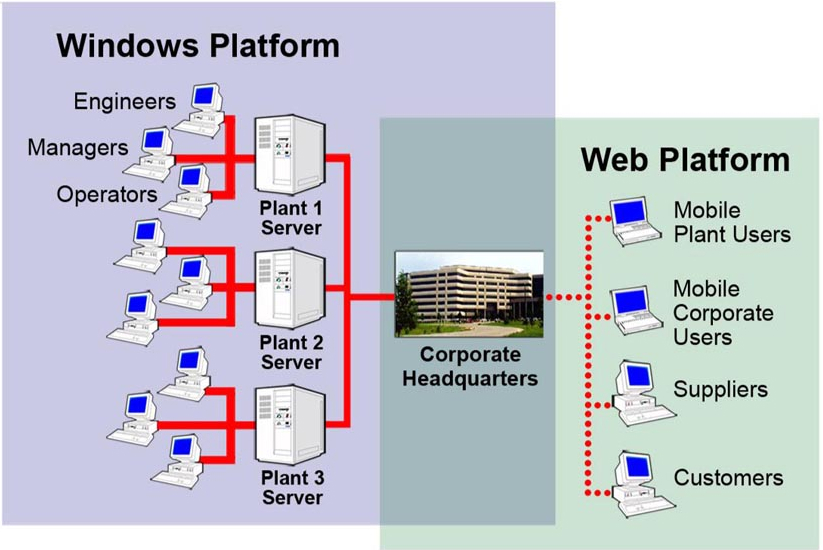

Sep 22, 2006 Synergy 3000(TM) Statistical Process Control (SPC) software enables mobile quality personnel to observe process control status in real time, solve problems, and analyze data at multiple facilities remotely. Software is equipped with analytical and decision-support tools such as Six Sigma capability chart and histograms. Accepting data manually or automatically from plant information systems, product provides feedback to users via color-coded alarms and pop-up warnings.

EFD Inc.    East Providence, RI 02914-1342
Sep 22, 2006 Using precisely timed air pulse to determine amount of material to be dispensed, Model Ultra® 2415 Workstation is designed to deposit identical amount of adhesive on every assembly. Cyanoacrylate or super glue is dispensed from syringe barrel that can be hand-held or mounted on optional arm. Features include 0-15 psi pressure regulator, microprocessor-based digital timer, and simultaneous digital display of all dispensing parameters.
