Scotchman Industries, Inc.    Philip, SD 57567
Oct 05, 2006 Enabling accurate setting of material length, CPO 350 Scotchman® Advanced Measuring System allows feeding of material in 4-24 ft lengths from left to right or right to left. Loc Stop and Multi-Loc systems are manufactured using stainless steel investment casting, and do not slip.

Aries Electronics, Inc.    Bristol, PA 19007-6810

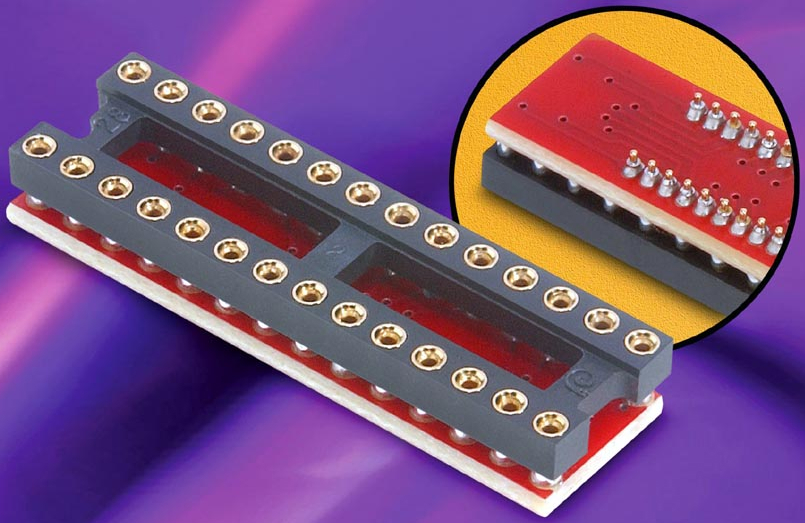

Oct 05, 2006 RoHS-compliant DIP to SOIC Correct-A-Chip(TM) adapter converts DIP style packaging to SOIC PCB layouts. Top is available in DIP pin counts from 8-28 pins, and bottom solders down on standard SOIC footprints. Featuring operating temperature of 221°F and continuous use temperature of 338°F, product has socket body of black, glass-filled 4/6 nylon and is rated UL 94V-0. PCB measures .062 in. thick and is flame resistant 4 (FR-4).

Fox Electronics    Fort Myers, FL 33905 5022

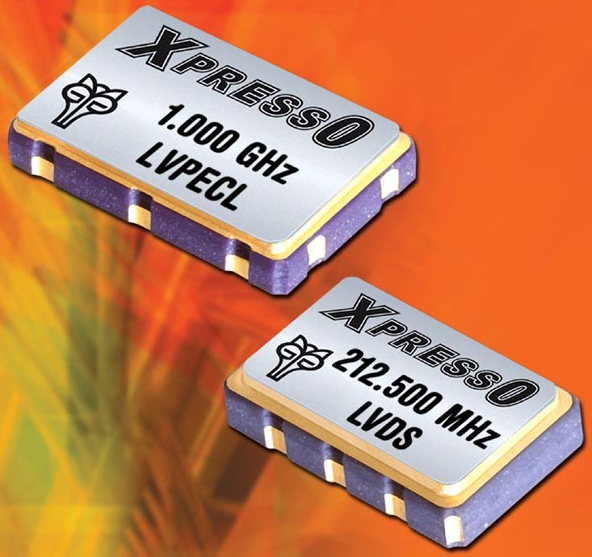

Oct 05, 2006 Offered in LVDS and LVPECL versions for XO packages, XpressO(TM) silicon-based oscillators utilize noise-reducing DSM technology and low-noise architecture to decrease jitter and phase noise. They come in 7.5 x 5.0 mm and 5.0 x 3.2 mm ceramic packages and feature frequency range of 1.0 MHz to 1.1 GHz, with stabilities as tight as ±20 ppm. Ordering possibilities depend on required output, frequency, and stability needed.

Frontier Silicon Ltd.    Watford WD24 4WH  United Kingdom

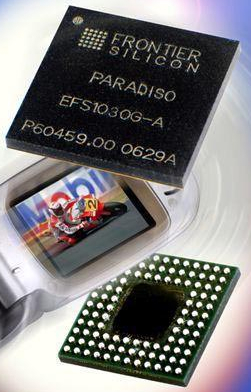

Oct 05, 2006 Supporting DVB-H, DVB-T, T-DMB, DAB-IP, and enhanced packet mode DAB, Paradiso FS1030 addresses mobile TV handset receiver standards resulting from differing regional deployment and spectrum regulation plans. Programmable baseband receiver IC allows for receiving mobile TV, video, audio, and data services and has open RF interface as well as integrated 2 MB MPE-FEC memory. Along with DSP-based software architecture, peripherals set includes SPI, SDIO, and USB interfaces.

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615

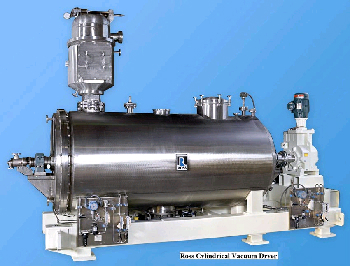

Oct 05, 2006 Providing full vacuum and internal pressure operation, Cylindrical Vacuum Dryers range from 1 to over 500 cu-ft, and can be constructed from variety of materials such as hastelloy and stainless steel. Units feature dimpled and baffled jackets on trough sides and endplates rated to 200 psig. Internal agitation consists of paddle design, set at opposing angles, to insure material being dried is continuously exposed to jacketed surface area of trough and endplates.

TURCK, Inc.    Plymouth, MN 55441
Oct 05, 2006 Comprised of base and power modules available in direct online and reversing versions with and without trip indication, BL20 xStart motor starters allow 3-phase motor control to be connected to same rack as standard I/O. They mount directly next to other BL20 modules and are controlled by same gateway, allowing motors to be controlled via DeviceNet(TM), PROFIBUS®-DP, or CANopen fieldbus protocols. Modules enable connection of motors up to 7 hp at rated operational voltage of 480 Vac.

EFD Inc.    East Providence, RI 02914-1342
Oct 05, 2006 Ultra® PP dispense tips, featuring flexible polypropylene shafts, are suited for working with scratch-prone substrates. Used with air-powered benchtop dispensers or automated dispense valves, products ensure trouble-free application of adhesives, lubricants, and other assembly fluids. Available in ½ or 1½ in. lengths, tip come with IDs from .054-.010 in. Color-coded hubs feature SafetyLok(TM) threads for secure attachment to syringe barrels or dispense valves.

Delcam USA    Salt Lake City, UT 84111

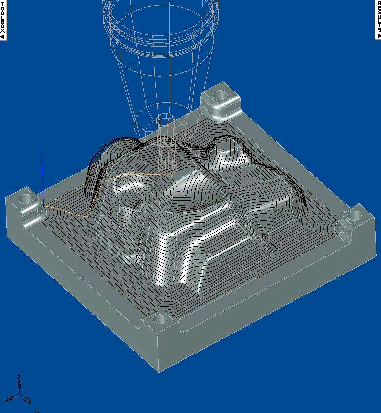

Oct 05, 2006 FeatureCAM 2007 enables users to create or edit roughing and finishing toolpaths independent of part features, as well as specify custom hole dimensions, key geometric features, special-purpose tools, and exact machining parameters. Machining strategies in FeatureMILL3D maximize calculation speeds for 3D toolpaths and optimize surface finish that can be achieved. With Race Line Machining strategy, roughing passes are progressively smoothed out as toolpaths move further from main form.

Interstate Specialty Products    Sutton, MA 01590

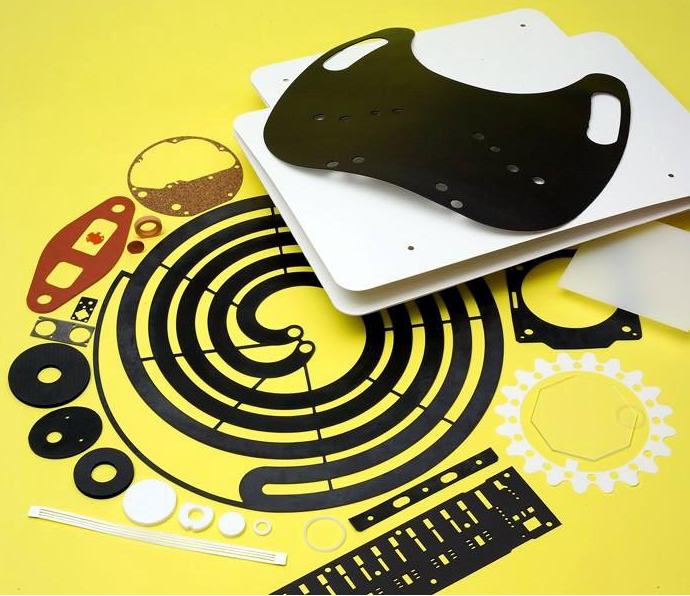

Oct 05, 2006 Digital, die-less cutting service is available for creating parts that range from miniatures of less than 1 in. to those up to 60 x 120 in. It works with any non-metallic material, including specialty composites and user-supplied proprietary materials, creating parts with tolerances of ±.005 for dimensionally stable materials under 5 in., ±.010 for those in 5-12 in. range, and ±.015 for materials 12 in. and larger.

Kolver USA    Westford, MA 01886
Oct 05, 2006 Included in MULTI-torque series, model Dual Torque DT1 is plug and play compatible with EDU1AE/C controller. Screwdriver incorporates non-wearing optical sensor that switches torque setting when emitted light beam is broken by swipe of operator's finger. Dual color indicator relays current torque setting. Tool can sit on top of controller or be placed in more convenient location on work surface.

Liekki Oy    Lohja FIN-08500  Finland

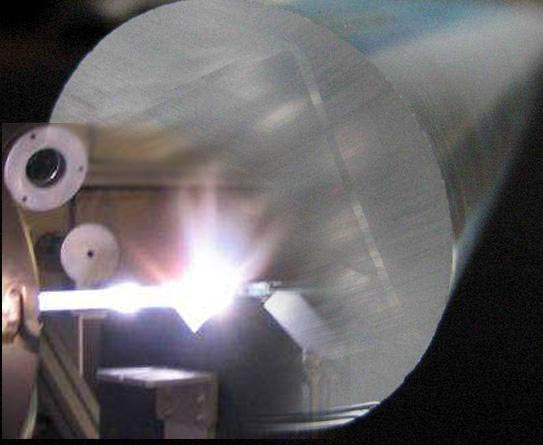

Oct 05, 2006 Square and rectangular optical fibers utilizing Direct Nanoparticle Deposition (DND) technology are available in various combinations, such as rectangular core with round cladding or rectangular core with rectangular cladding. Square or rectangular geometries facilitate matching fibers to optical sources, enhance beam control and propagation, and allow for routing of fibers in unique footprints. Applications range from illumination and signs to ordinance detonation.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Oct 05, 2006 Operating from ICP® Sensor Power, ½ in. Model 426A11 provides automotive and aerospace noise source identification and in-cabin testing. It allows user to select 0 or +20 dB of gain and either 20 Hz high pass filter or A-weighted filter output response. A-weight filter attenuates signals less responsive to human ear, normally below 1 kHz and above 4 kHz, while high pass filter eliminates low frequencies that consume dynamic range and overload output signals.

IBASE Technology Inc.    Taipei   Taiwan

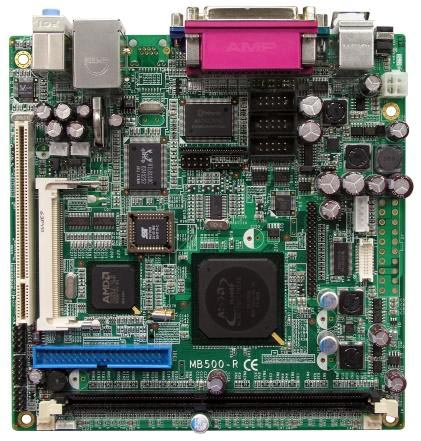

Oct 05, 2006 Within 170 x 170 mm footprint, MB500 provides internal power management capabilities, up to 1 GB DDR SDRAM support, and one or 2 Realtek 10/100 Ethernet controllers for LAN connectivity. It supports AMD Geode CS5536 companion device, which is optimized to work with 433 or 500 MHz AMD Geode LX processors, and includes VGA controller that supports graphics interfaces for CRT, TFT, and LVDS LCDs. Connectivity is provided via USB 2.0, COM, PCI, Mini PCI, and CompactFlash interfaces.

PCB Piezotronics Inc.    Depew, NY 14043 2495

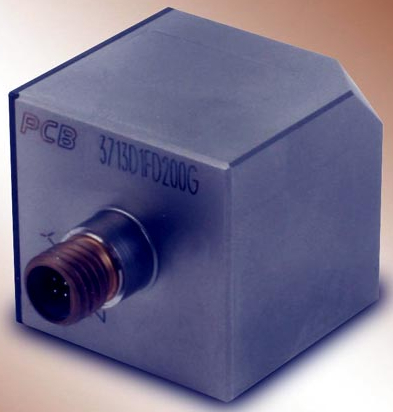

Oct 05, 2006 Supplied in 1 in.³ welded titanium case with hermetic connector or integral cable, gas-damped Series 3713 provides micro g resolution and ±5,000 g pk shock survivability. Sensor incorporates built-in conditioning electronics, and full-scale acceleration ranges cover 3-200 g range with frequency response from DC-1,500 Hz, ±10%. This MEMS DC (steady state) response accelerometer also features temperature compensated output.

ADMET    Norwood, MA 02062
Oct 05, 2006 Single-column, tabletop eXpert 5601QP is equipped with actuator that accurately tests products at rates up to 180 ipm. Digital controller controls crosshead rates and calculates peak load, peak stress, average load, and minimum load, as well as deflection and stiffness values. Up to 200 test results can be stored in controller and/or exported to Windows-based computer via RS232 port.

Panduit Corp.    Tinley Park, IL 60477 3091
Oct 05, 2006 PANVIEW(TM) v4.0 software and hardware products control, map, and monitor physical layer and related network resources in real-time to promote infrastructure management and problem resolution. Along with work order support, software offers security features and integration modules that tie into higher-level enterprise management tools and frameworks. System also helps automate maintenance procedures as well as physical layer reporting and documentation generation.

Linear Technology Corp.    Milpitas, CA 95035
Oct 05, 2006 Operating on 5 V supplies, LTC2856/LTC2857/LTC2858 transceivers control high-frequency emission from equipment and data cables. ESD protection allows ICs to withstand ±15 kV without latchup or damage, and receiver fail-safe feature ensures high output state under conditions of floating or shorted inputs. Receivers have 1/8 unit load, supporting up to 256 devices on bus, while drivers maintain output impedance over entire common mode range when disabled or when supply is removed.

Columbia Marking Tools, Inc.    Chesterfield, MI 48047

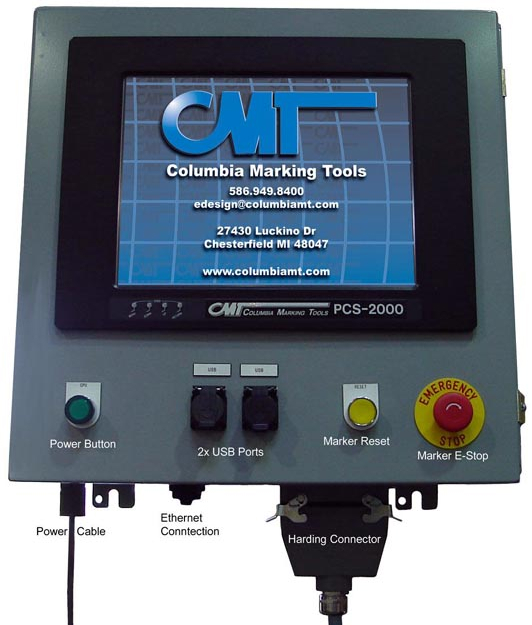

Oct 05, 2006 With features and remote troubleshooting capabilities specific to part marking and vision reading applications, PCS-2000 works with dot-peen, laser, and scribe marking machines. On-screen video programming, displayed on 15 in. LCD monitor with 1,024 x 768 pixel resolution and touchscreen keyboard, shows operators how to input or change marking information. Product is preloaded with Windows® XP Professional and additional software designed for specific marking applications.

Puritan Magnetics, Inc.    Oxford, MI 48371
Oct 05, 2006 Belt Free Magnetic Conveyors convey stamping scrap, knockouts, or chips and turnings from metal working machinery. Design eliminates possibility of belt jamming, tearing, and premature wear. Products incorporate internal magnetic assemblies, attached to heavy-duty roller chain, that travel around inside of conveyor body to attract parts or scrap to conveyor surface. Ferrous objects are conveyed externally along stainless steel slider bed until discharged.

Jergens, Inc.    Cleveland, OH 44110
Oct 05, 2006 Providing up to 4,700 lb clamping capacity, hydraulic production vises come in 3 base styles. Ball Lock(TM) Mounting System features interlocking jigsaw pattern that permits multiple vises to closely nest together; universal base style mounts directly to machine tables; and narrow base style is designed for stand-alone fixture plate mounting. Vises include machinable, reversible jaws; hardened and ground steel rails; flow-through base; and fully sealed lead screw assembly.
