SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Oct 11, 2006 Designed for use on ungrooved shafts, bosses, tubes, and studs, S73NW2 Series exerts frictional hold against axial displacement from either direction. Units offer resistance to relative rotation between ring and retained parts, and are reusable while not marring shaft surface during assembly or disassembly. Made of PH 15-7 Mo stainless steel, rings are designed for shaft diameters from 3/32-¾ in. diameter and offer clearance ranges from .26-1.32 in.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

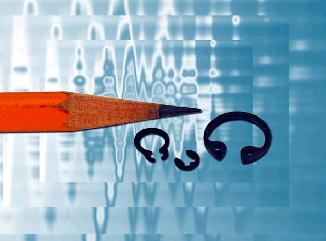

Oct 11, 2006 Made of carbon spring steel, Metric Retaining Rings provide tensile strength of 3,164 kg/cm² and are oil-dipped for added protection. Featuring constant circularity and groove pressure, external Series MD0471M is stocked for 3-120 mm shafts and conforms to DIN 471. Internal Series MD0472M have housing bores from 8-25 mm and meet DIN 472. Identified as Series MD6799M, E-rings are available for 1-13 mm shafts and conform to DIN 6799.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

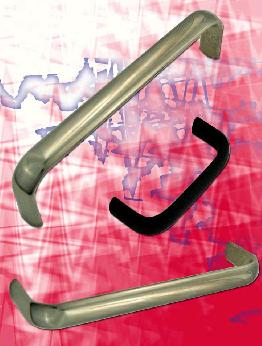

Oct 11, 2006 Featuring ½ in. corner radius, Series A 9A45 and A9B45 are 5/8 in. wide with lengths from 3-9 in. and heights from 1 9/32 to 1¾ in. Aluminum handles are black anodized and mounted with No. 10-24 threaded fastener, while brass handles are nickel-plated and mounted with No. 10-32 threaded fastener.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Oct 11, 2006 Incorporating hardened planet gears machined to AGMA 12 tolerances, Series S9117T-, S9123T-, S9134T-, and S9142T- provide torque multiplication, speed reduction, and inertial matching for dc servo, stepper, and brushless servomotors. Each unit is available with low backlash single- and double-stage reductions with gear ratios ranging from 3:1 to 100:1. Offered in shaft diameters from .250-.625 in., all have anodized aluminum housing and sealed ball bearings.

Dynamic Business Solutions    Mission Viejo, CA 92692
Oct 11, 2006 While helping managers optimize and streamline resources, Creative Management v3.4 provides team members with tools needed to perform individual and collective job responsibilities. Interface promotes organizational capabilities with functionality for contact and lead management, project estimate creation, and quote request. Along with Create Project Order function, interface also helps deal with project deadlines, reports, and time card organization.

M/A-COM, Inc.    Lowell, MA 01853

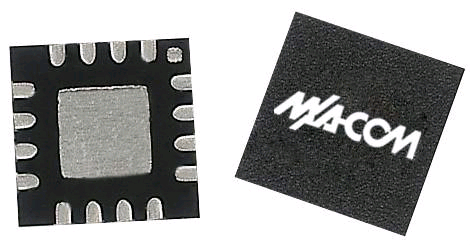

Oct 11, 2006 Housed in lead-free PQFN package, RoHS-compliant Model MASW-007813 is designed to maintain linearity up to 3.0 GHz, with P0.1 dB of 38 dBm, typical insertion loss of 0.6 dB, and IIP3 of 57 dBm. Switch is fabricated through 0.5 micron gate-length GaAs pHEMT process, with full passivation added. It is suited for multi-switching systems that operate on single antenna, including GSM communication handsets.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056

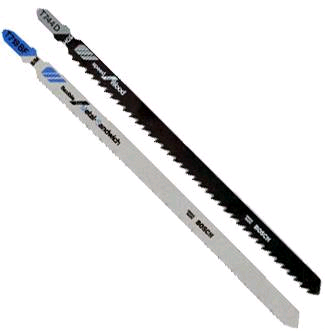

Oct 11, 2006 Suited for cutting material sandwiched between metal, 7 in. T718BF3 bimetal T-shank blade features 14 teeth/in. and provides 4¾ in. cut depth. It handles medium density fiberboard, structural insulated panels, and oriented strand board. Designed for making fast cuts in wood, 7 in. T744D3 T-shank blade is made of high carbon steel with 6 teeth/in. and cut depth of 5 5/16 in. Blade is suitable for cutting 4 x 4 and 4 x 6 lumber, engineered wood beams, and laminated veneer lumber.

Spirax Sarco, Inc.    Blythewood, SC 29016

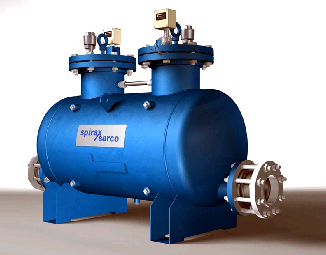

Oct 11, 2006 Intended for large commercial and industrial facilities, Pivotrol® PTF4 High-Capacity Pressure Powered Condensate Pump is capable of pumping up to 40,000 lb/hr in rapid-cycling process environments and under elevated pressure and temperature. Pressure balancing body ensures both mechanisms share pumping load equally. Vent assist valves release pressure in pump body during exhaust stroke.

Gowanda Electronics Corp.    Gowanda, NY 14070

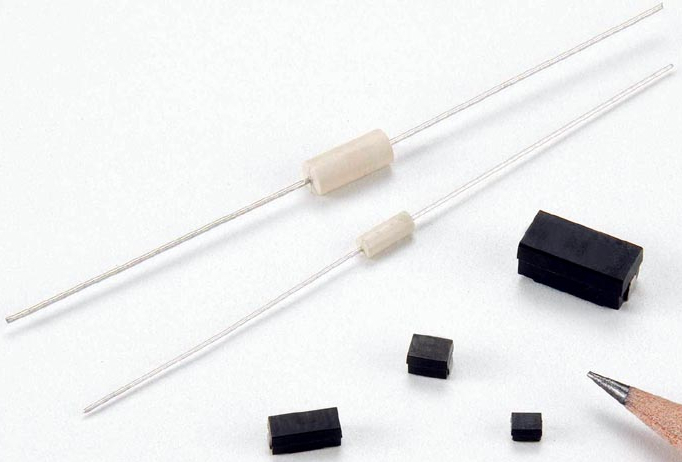

Oct 11, 2006 Suited for medical industry and other applications where magnetic materials and characteristics must be avoided, MG inductor series act as filter to block certain frequencies that could compromise device performance. Through-hole leaded and surface mount versions, along with RoHS-compliant version, are available. Products are offered with 0.01-4.7 µH inductance options, 260-3,835 mA dc current ratings, and 90-1,800+ MHz self resonant frequencies.

Wanner Engineering, Inc.    Minneapolis, MN 55403
Oct 11, 2006 Available in 4 sizes, Hydra-Cell Pulsation Dampeners protect pipes, valves, fittings, meters, and in-line instrumentation of Hydra-Cell series positive displacement pumps by producing steady, continuous fluid flow up to 99% free of pulsation and vibration. Bodies are chemical-resistant, and pressure ranges are available up to 4,000 psi. By reducing agitation, foaming, splashing, and degradation, products enable uniform application of material in spraying and coating systems.

NKK Switches    Scottsdale, AZ 85260-3420
Oct 11, 2006 Offered in single, bicolor, and RGB versions, SmartSwitch(TM) incorporates 36 x 24 pixel resolution LCD with 13.9 x 10.6 mm viewing area. Integral diffuser promotes even distribution of illumination. Able to be programmed to display infinite variety of text, graphics, or moving images, product is suited for ues in systems where size is of issue and user interface is required. Typical forward current is 15 mA, and typical power dissipation is 130 mW.

Phihong USA    Fremont, CA 94539

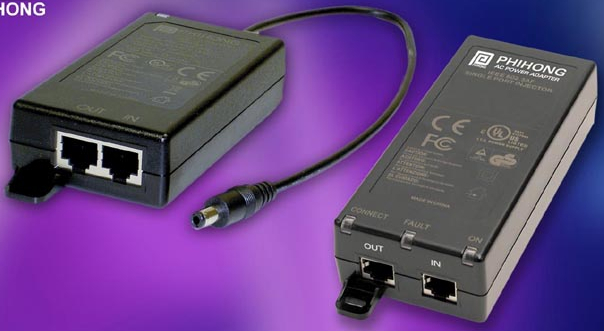

Oct 11, 2006 Comprised of PSD14 splitter and POE20U midspan, Power-over-Ethernet (PoE) package adds power to Ethernet cables and separates power and data at camera. Midspan provides up to 20 W of power, and PSD14 splitter offers up to 14 W of dc power to camera at end of 100 m cable. Both are compliant with IEEE 802.3af standards and feature LED indicators. Available in 5 and 12 V versions, PSD14 comes in non-vented case with 10/100/1000BASE-T data rates.

Optima Electronic Packaging Systems    Lawrenceville, GA 30043
Oct 11, 2006 Optima EPS S-series cabinet enclosures utilize gaskets with soft foam cores and mesh nickel-plated nylon exteriors. Tin-plated copper gasketing tapes for doors contacts with foam gaskets in frames, and spring and sawtooth gaskets are used around external seams. Soft gasketing helps create tight seal to achieve attenuation levels of 60 dB at 500 MHz. Available in range of standard sizes, modular cabinets offer choices of top, bottom, side panel, base, door, and color options.

DeWalt Industrial Tool Co.    Hampstead, MD 21074

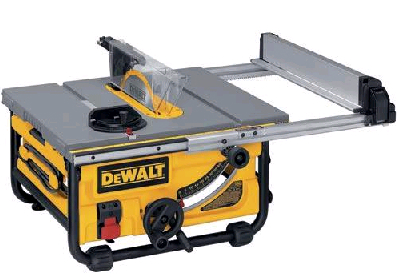

Oct 11, 2006 Designed to cut heavy hardwood materials, 10 in. Model DW744X is equipped with 15 A, 2,600 MWO motor and electronic module that helps maintain blade speed and cutting torque. Rack and Pinion® fence system maintains accuracy of cut within 1/64 in. Fence includes telescoping feature that provides 24 in. of rip capacity to right of blade, allowing user to split for 4 x 8 ft sheet goods. Panel perforations on front panel of saw facilitate cooling and airflow to motor.

TDK-Lambda Americas Inc.    San Diego, CA 92154

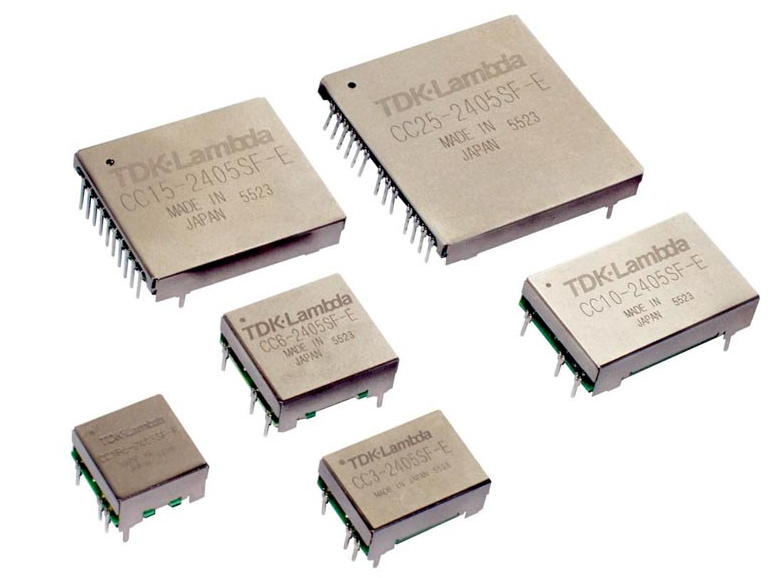

Oct 11, 2006 Designed for process control and communications equipment, CC-E Series comprises 68 models with power ratings of 1.5, 3, 6, 10, 15, and 25 W. Units with power rating of 10 W or less can be supplied with choice of 5, 12, 24, and 48 V nominal input and output voltages of 3.3, 5, 12, 15, ±12, and ±15 V. Models rated at 15 and 25 W are offered with 24 V input and output voltages of 3.3 and 5 V. All are RoHS-compliant, operate from -40 to +85°C, and have input-to-output isolation of 500 Vac.

Rubber Industries, Inc.    Shakopee, MN 55379

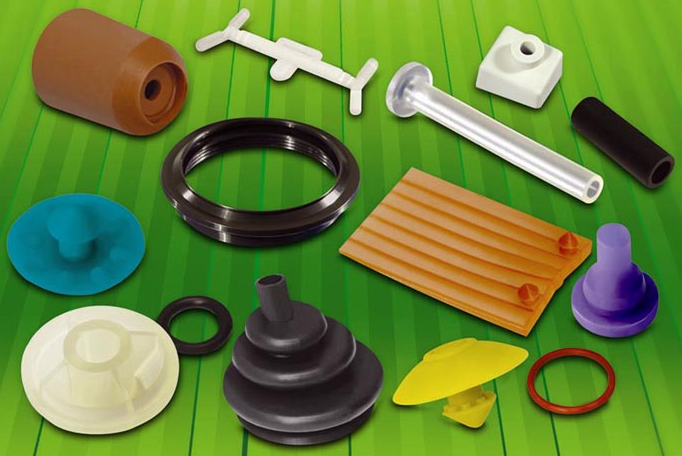

Oct 11, 2006 LIMFAST(TM) Liquid Injection Molding (LIM) service offers material formulation, mold design and manufacture, silicone bonding to metal or plastic, in-house cryogenic de-flashing capabilities, component assembly, and packaging. For extended wear life, liquid silicone rubber material resists damaging effects of light, ozone, moisture, and heat. Various liquid silicone rubber grades, including UL, oil-resistant, and high-strength, are available.

Mate Precision Tooling    Anoka, MN 55303
Oct 11, 2006 Available for most CNC turret presses, Continuous Card Guide Tool includes polished tool steel inserts, steel spring upper and lower stripper mechanism, and interchangeable replacement parts. Designed for fast punching, unit produces initial form; then, during return cycle of punch press, integral stripping springs remove work piece from assembly. Punch press incrementally advances sheet and process is repeated until desired card guide length is formed.

2L inc.    Hudson, MA 01749
Oct 11, 2006 Pallet-Vise may be used as stand-alone solution for machining or in multiple-pallet configuration for larger parts or high-volume production. Alternatively, Vac-Vise may be used as vacuum chuck or pallet system simultaneously to hold various workpiece shapes and sizes. Both allow machining and marking of workpieces without custom fixtures and are designed to facilitate creation of repeatable procedures. Adjustable hex workstops and edge clamps are available to promote flexibility.

Danfoss Flomatic Corporation    Glens Falls, NY 12801-4421
Oct 11, 2006 Direct-acting Model PRV Series C150E regulates high upstream inlet pressure to lower constant downstream outlet pressure within range regardless of water flow. Adjustable, spring-loaded balancing valves are factory set to automatically regulate downstream pressure to 50 psi. Featuring unleaded bronze bodies in sizes ½, ¾, and 1 in., units are supplied with pressure range of 15-75 psi and/or 15-150 psi. All internal parts are corrosion resistant.

Extreme CCTV Surveillance Systems    Burnaby V5A 3C2  Canada
Oct 11, 2006 Featuring machined metal ball design with twin support arms, Moondance Ballistic is vandal-proof, hurricane-proof PTZ speed dome designed for hostile environments. Constructed of 316 SS, Moondance incorporates flat, wiper-equipped UL752 Level 1 ballistic window that optimizes optical performance and protects from gunfire attack. Moondance Ballistic can be surface, wall, ceiling, or pole mounted and captures surveillance images from above and below camera.
