Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Oct 10, 2006 Suited for portable equipment that utilizes barrel jacks for dc power input, PolyZen(TM) polymer-enhanced micro-assembly protects sensitive electronics from damage caused by inductive voltage spikes, voltage transients, incorrect power supplies, and reverse bias. It incorporates stable Zener diode for precise voltage clamping and resistively non-linear, polymer positive temperature coefficient layer. RoHS-compliant device offers power handling of 100 W in 4 mm package.

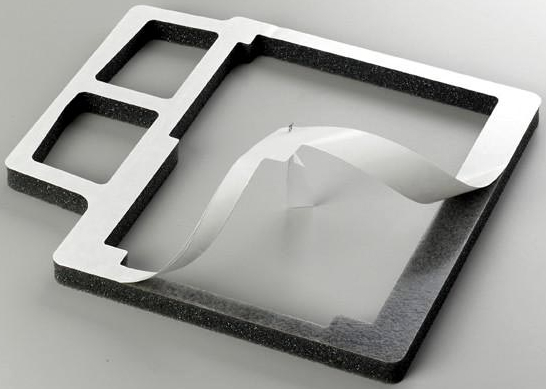

Adchem Corp.    Riverhead, NY 11901
Oct 10, 2006 Multipurpose 4377M and 4380M have rubber-based adhesive coating on liner side and acrylic adhesive coating on exposed side. Design allows exposed side of adhesive to bond to 30+ foam materials, including urethanes, epichlorohydrins, and EPDM blends, while liner side of adhesive bonds to surfaces such as talc-filled polypropylene, mica-filled polypropylene, and mineral-filled nylons. Tapes suit automotive industry applications with strict insulation and sound reduction requirements.

Gough Econ Inc.    Charlotte, NC 28266
Oct 10, 2006 Used in applications requiring lengths in excess of 5 ft and widths over 18 in., twin rotary vibratory feeders/screens are suited for feeding, conveying, screening, and elevating material. Four coil springs, located on frame assembly, minimize vibration transfer and ensure gentle handling of material. Since product weight is typically in suspension, self-propulsion energy promotes optimal efficiency. Material is processed at speeds from 50-3,500 ft³/hr.

Reliance Electric Motors    Greenville, SC 29615
Oct 10, 2006 Totally enclosed, inverter duty Models FL180, FL210, and FL250 feature premium class H insulation, 3 normally closed thermostats, and Corona Free design. Model FL180 incorporates heavy-duty finned aluminum frame, while Models FL210 and FL250 have finned laminated steel frames. Available in NEMA and IEC designs, all motors are suited for IP54 and IP55 washdown applications, and include cast iron brackets with integral feet plus oversized, lubricated-for-life, double-shielded ball bearings.

Heck Industries, Inc.    Hartland, MI 48353
Oct 10, 2006 Suited for weld preparation beveling, Model 9000 Bevel Mill uses standard carbide inserts in milling cutter for beveling most machinable materials including mild steel, aluminum, and stainless steel. Machine is self-supporting on workpiece and is hand fed by operator along edge of plate at up to 6 fpm. Unit offers variable angle adjustments from 15-45°.

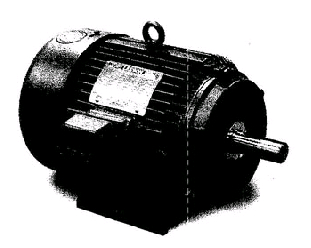

LEESON Electric Corp.    Grafton, WI 53024-0241
Oct 10, 2006 Featuring full cast iron construction and 2-part epoxy paint, Severe Duty Motors provide internal corrosion protection as well as corrosion-resistant hardware. They include Inpro shaft seal on output shaft, Forsheda seal on non-drive end, and normally closed thermostats. Meeting IP55 enclosure protection standards, motors are suited for chemical plants, foundries, pulp and paper mills, waste management facilities, and refineries.

Prab Conveyors    Kalamazoo, MI 49003
Oct 10, 2006 Used as stand-alone processor, Horizontal Screw Press recovers up to 80% of cutting oils and coolants from metal Grinding Swarf and filter cake. It can also be used in combination with Prabs' Pacesetter II(TM) Briquetter to recover up to 95% of fluids and obtain near-solid metal puck.

Vac-U-Max    Belleville, NJ 07109
Oct 10, 2006 Eliminating drum handling, continuous-duty Model MDL850 comes equipped with filter cleaning system that does not require compressed air, and enables filters to be cleaned without shutting vacuum cleaner down. When filters are being cleaned, discharge valve opens and automatically discharges collected product into continuous bagging system. Model MDL850 features heavy-duty frame, and is compact enough to allow up to 3 operators to work in 50 ft area.

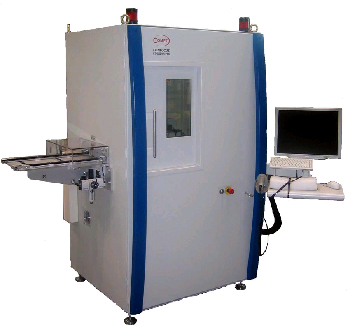

FeinFocus USA, Inc.    Stamford, CT 06902
Oct 10, 2006 Equipped with Automated Defect Recognition, FEINFOCUS COUGAR PRO fits seamlessly into SMT manufacturing lines and provides quantitative analysis of PCB components using modular design. GUI and CNC allow operator to configure automation process. HDX-Ray(TM) 16-bit imaging chain captures real-time digital images with film-like quality, while True X-Ray Intensity control provides immediate and long-term stability of X-ray intensity as well as constant image contrast and brightness.

pinta acoustic Inc.    Minneapolis, MN 55412
Oct 10, 2006 Delivering noise reduction across full range of frequencies, SONEX® NoiseBuster® Earmuffs provide up to 20 dB of electronic noise cancellation and passive Noise Reduction Rating of 26 dB when worn over head. Earmuffs allow critical speech communication to be heard clearly and let users listen to music or radio communication at less damaging volumes. They include on/off switch, power indicator, stereo input audio jack, and adjustable non-conductive headband.

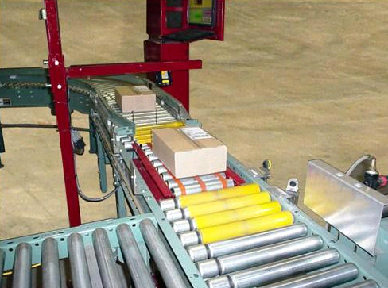

Cornerstone Automation Systems, Inc.    Prosper, TX 75078
Oct 10, 2006 Accommodating products up to 36 x 66 in., Model CASI-841 can be integrated into existing lineshaft transportation conveyor without cutting conveyor and adding motor. System uses Windows XP interface and voice commands in English, Spanish, French, and German. It incorporates reject logic, barcode scanner interface, built-in diagnostics, data logging, and 3-level login system. Applications include in-motion material handling, automated shipping systems, and freight manifesting.

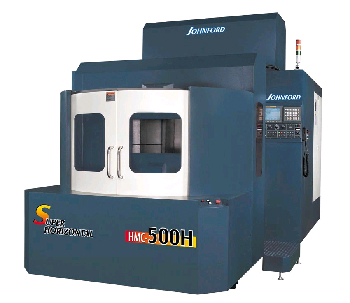

Absolute Machine Tools, Inc.    Lorain, OH 44053
Oct 10, 2006 Providing X, Y, Z travels of 30 x 26 x 26 in., 50 taper Model HMC-500H includes Schneeberger roller type linear ways on all axes and pre-tensioned ball screws that virtually eliminate thermal expansion. Moving saddle design employs box-in-box construction that keeps spindle movement confined inside box-shaped column casting. Directly coupled to Fanuc spindle motor, 3.54 in. dia spindle produces 35 hp and 260 lb-ft of torque at 500 rpm. Rapid traverse rates are 1575 ipm in all axes.

Cincinnati Lamb    Hebron, KY 41048
Oct 10, 2006 Utilizing twin ballscrew-driven axes configuration in X-Y-Z and basic B-axis table, 5-axis Model MEGA5-800 incorporates A-axis tilt-spindle with 180° sweep. Machine accommodates parts up to 1,300 mm diameter and 2,000 mm high while providing X, Y, Z axis travels of 1,425, 1,325, and 1,265 mm. Feed rate is 60 m/min and acceleration/deceleration rate is 1 G. Intended for hard metal applications, XT spindle delivers base speed of 375 rpm and max speed of 6,000 rpm.

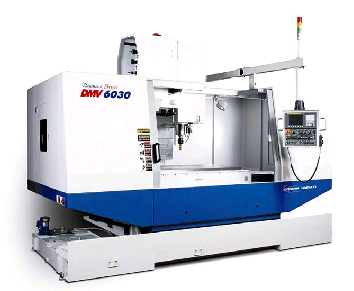

Daewoo Heavy Industries America Corporation    Warrensville Heights, OH 44128
Oct 10, 2006 Featuring 1-piece bed and box-type column constructed from fine-grain Meehanite, DMV 6030 has 29.5 x 63 in. table with 3,300 lb load capacity, and provides X, Y, Z axis travels of 60 x 30 x 24.6 in. Center-mounted, double-pretensioned ball screws are supported on each end by angular contact thrust bearings. Design provides ±0.00020 in. positioning accuracy and ±0.00008 in. repeatability. Spindle is driven by 35 hp ac motor that imparts spindle speeds to 12,000 rpm and 121 lb-ft torque.

DJ Instruments    Billerica, MA 01821
Oct 10, 2006 Suited for in-line installation, Model DF2 thru-FLO(TM) has one-piece sensing element with no internal cavities to eliminate possibility of trapped particles or contaminants and ensure no interruption to system flow. Design is offered in various materials and non-metallic coatings and has integral circuit conditioning, amplification, and temperature compensation. With combined linearity and hysteresis of 0.25% FS, product is available with pressure ranges from 0-500 to 0-15,000 psig.

Class A Products    Bowling Green, OH 43402
Oct 10, 2006 Manufactured from high-impact polymer with minimum of 25% recycled resin, LockerOrganizer(TM) provides built-in trays for pens, pencils, and supplies; holder for personal items such as rings, watches, and valuables; and holders for longer objects such as umbrellas. It features locking lugs for second tier and legs that can be shortened to 6 in.

AutomationDirect.com    Cumming, GA 30040-9905
Oct 10, 2006 Measuring 4.5 x 3.25 in., C-more Micro-Graphic panels feature 3 in. screen, 5 user-programmable function keys with LED indicators, and 5 backlight colors. Touch and non-touch models contain 768 Kb project memory and can display text and bitmap graphics. Along with optional snap-on keypads in 8- or 20-key configurations, products offer data entry, recipe handling, and alarm capabilities.

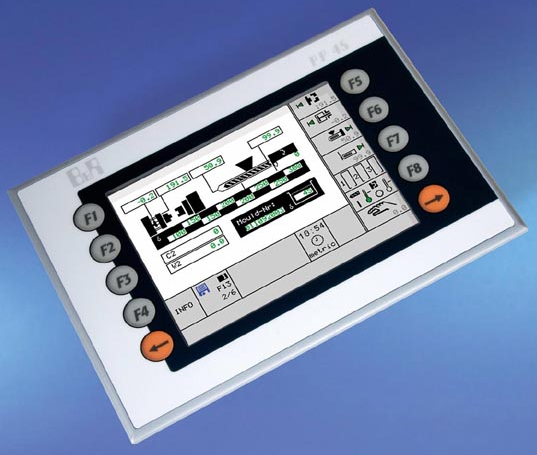

B & R Industrial Automation Corp.    Roswell, GA 30076
Oct 10, 2006 Available with touch-screen interface, Power Panel PP45 provides integrated control, visualization, and I/O interface. All components and 5.7 in. QVGA LCD display are contained within housing with front-side IP65 protection. Along with fan-free operation, product offers Ethernet and X2X Link for communication. Black and white or color displays are available, and unit can be expanded using Ethernet Powerlink, CAN bus, Profibus DP, or RS485/RS232, depending on requirements.

Bonal Technologies, Inc.    Royal Oak, MI 48067
Oct 10, 2006 Meta-Lax Model 2700-CC sub-harmonic stress relief system uses Windows OS and incorporates software that adds 2 manual modes to 2 existing automatic modes. While giving operator control over entire process, manual modes also expand capacity to use vibrations to address applications other than stress relief and weld conditioning. Data entry on certification sheet includes metric conversions to clarify information about workpiece and stress relief certification.

Kurt Manufacturing    Minneapolis, MN 55421
Oct 10, 2006 Intended for smaller machining projects, HDLM4 features 2 clamping stations, provides repeatable clamping to 0.001 in., and delivers up to 6,316 lb of clamping force at 70 lb of torque. It has adjustable pre-load design with rigid 80,000 psi ductile iron body and precision-machined steel components. For flexibility, it is available with quick change machinable aluminum, cast iron, and hard jaws. Holding block allows clamping same- or dissimilar-sized parts.
