Union Etchants International, Inc.    Woburn, MA 01801
Oct 13, 2006 GoldEX KIT(TM): Gold Etch and Recovery Sample and Demonstration Kit provides method for training centers and corporations to evaluate benefits of wet etching as well as recovery of gold. It includes samples of all components needed in both processes. Along with 3 gold-plated metal coupons, kit includes gold-plated Ti:Al substrates, cyanide-free AU1 Gold Conductor Etchant (liquid/powder), biodegradable UnionCleaner(TM), and GOLDOUT(TM) powder.

UGS Corp.    Maryland Heights, MO 63043
Oct 13, 2006 Solid Edge® v19 uses D-Cubed technology to simulate motion of assemblies and mechanisms through Assembly Engineering Manager (AEM). Complementing capabilities to explode, render, and animate designs, motion simulation tools let users animate complete product function utilizing components such as gears, pulleys, and hydraulic cylinders while applying motors to generate movement. Dynamic 3D motion files communicate design ideas and create technical illustrations.

RNR Plastics, Inc.    Raynham, MA 02767
Oct 12, 2006 Fabricated to requirements, RNR Self-Adhesive Vinyl Pockets are made from clear or colored PVC in sizes from ½ x 1 in. to 24 x 36 in. They are available in various thicknesses with permanent, repositionable, and specialty adhesives. Supplied individually cut or on sheets, pockets can include die-cut thumb notches, windows, punched holes, and printing. All products feature 6-gauge PVC back with 90 lb release liner.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

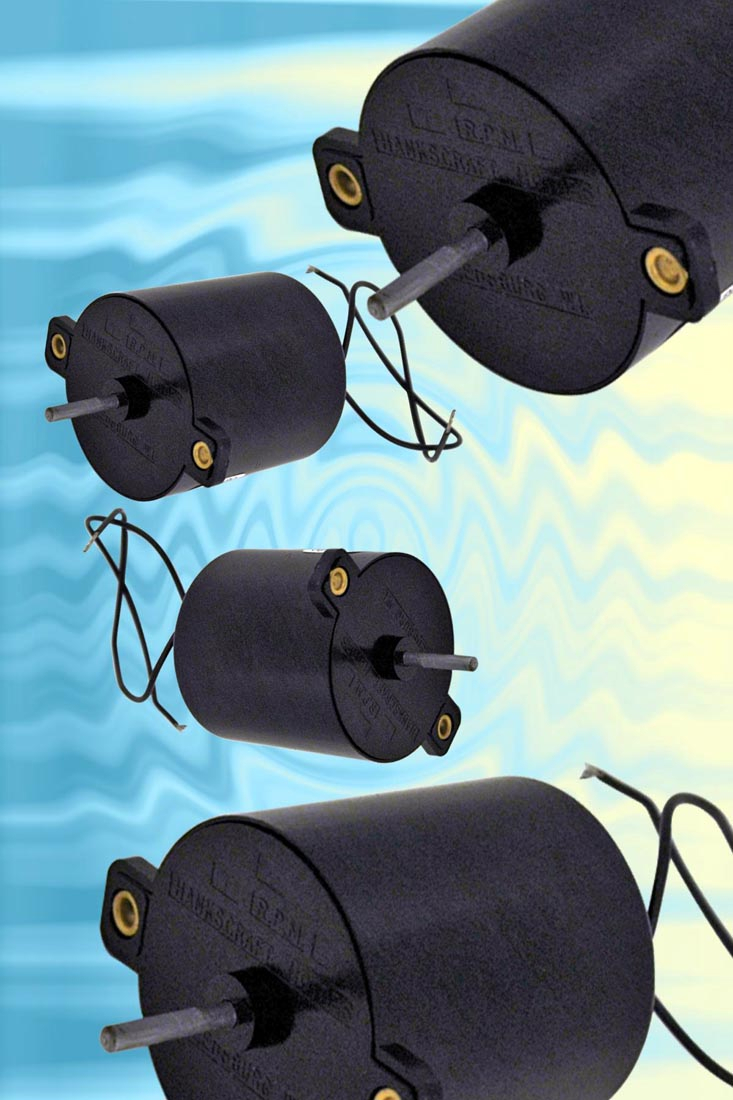

Oct 12, 2006 Suited for low voltage motorized display applications, A 3Z16 Series 36 DC Gearmotors are available in 3, 6, and 12 V versions with no load rpm ranges from .5-115 and gear ratios from 4,300:1-16:1. Reversible gearmotors are enclosed in ABS plastic and feature .125 in. steel shafts; 3 V version is supplied with twist-on clip for 2 D-size batteries. Direction of rotation is clockwise facing shaft, and opposite rotation versions are available.

Videx, Inc.    Corvallis, OR 97330

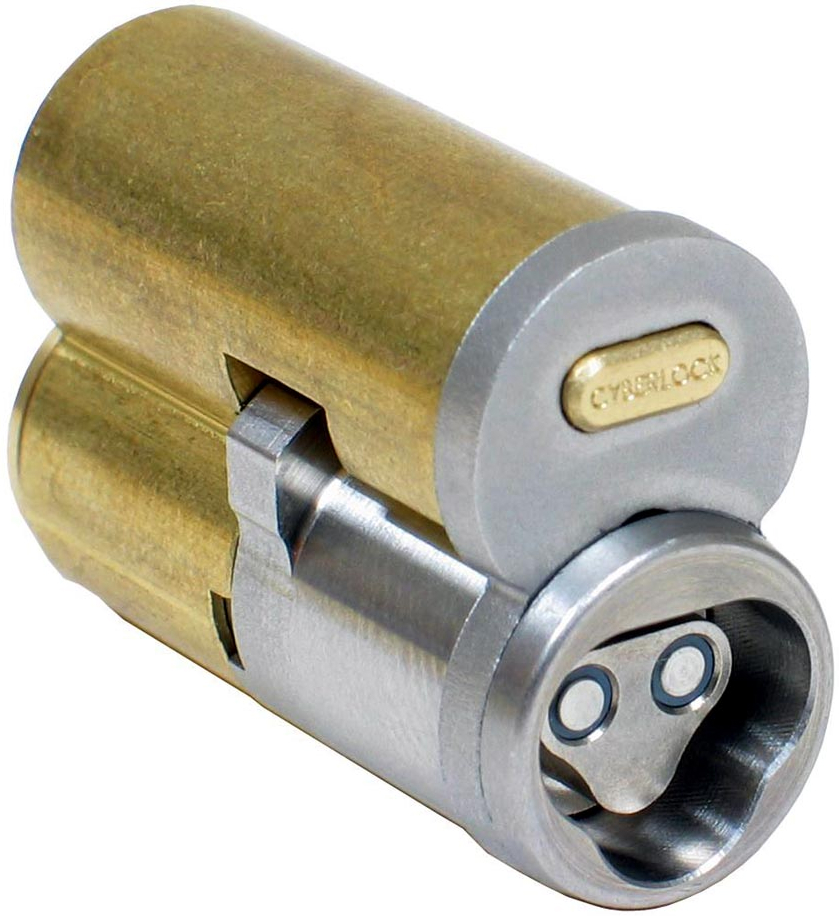

Oct 12, 2006 CyberLock® intelligent lock cylinders are stainless steel interchangeable cores that convert standard lock or padlock into access control system. Designed to exact dimensional standards of existing mechanical cylinders, products do not require any hardwiring or structural changes for installation. Included microprocessor and memory allow each CyberKey to be programmed with its own access privileges. Keys can also be set with operation start and end dates.

Avery Weigh-Tronix    Fairmont, MN 56031

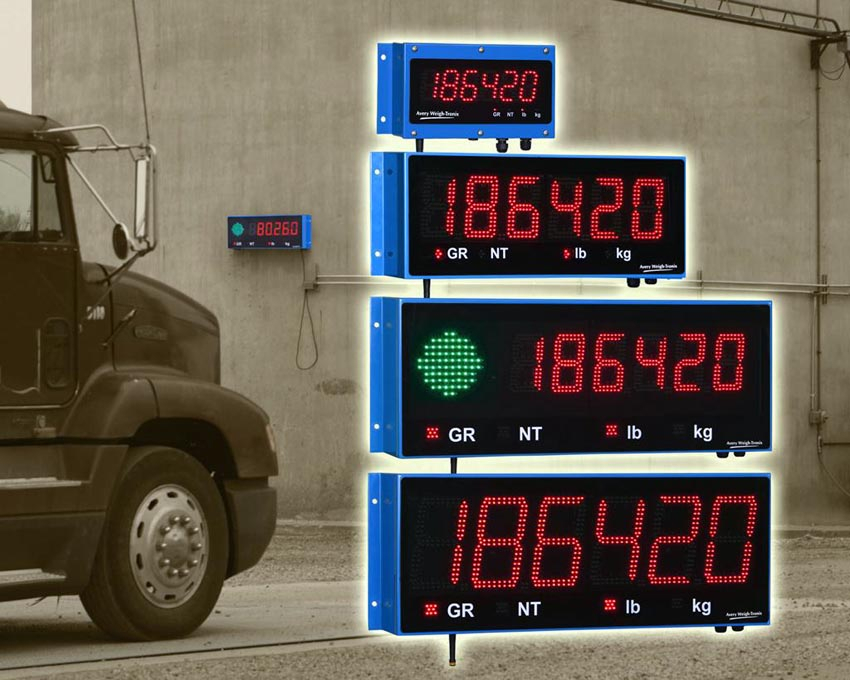

Oct 12, 2006 Available with six 2, 4, or 6.5 in. wide LED digits and non-glare filtered lens, XR Series Remote Displays allow clear visibility in all lighting conditions at distances up to 325 ft. Photo sensor adjusts display intensity to select between 8 brightness levels for day and night operation. Auto-Learn technology helps interpret communication format and data stream of any instrument for plug-and-play operation. All models feature integrated RF socket for wireless communications.

Unidex    Warsaw, NY 14569

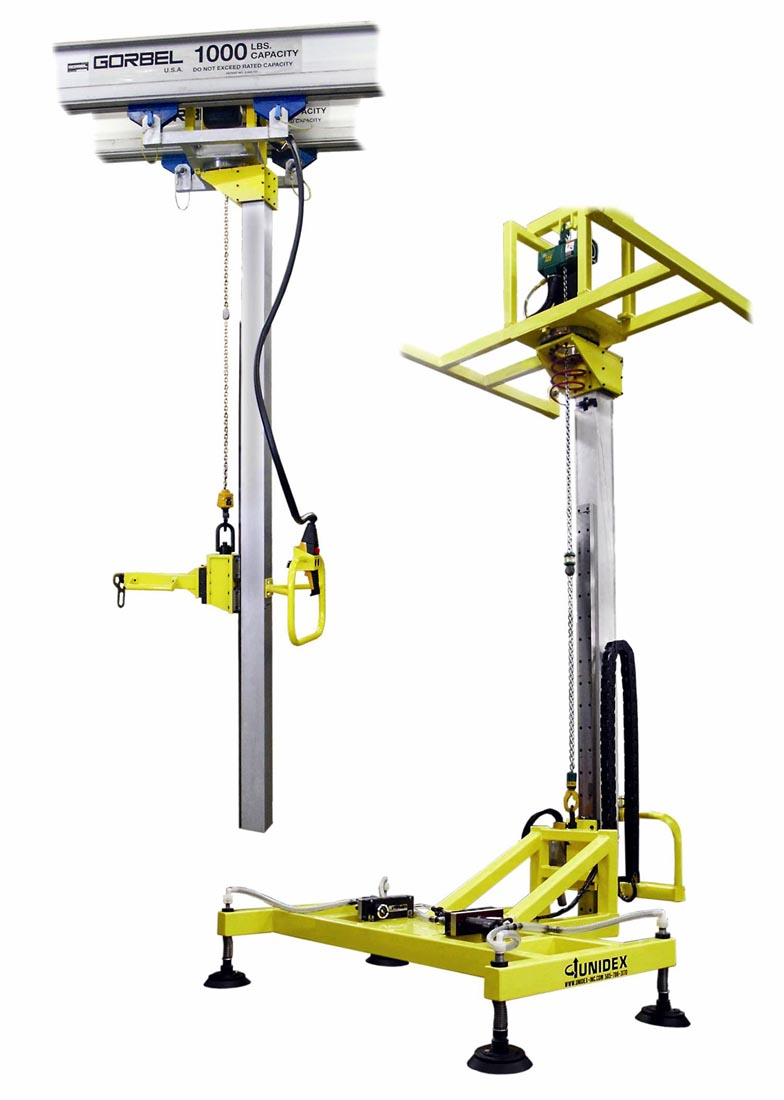

Oct 12, 2006 Suspended from bridge-crane style system, Rigid Column Manipulator offers vertical adjustment along linear rail system with XYZ axis positioning. System has reach up to 96 in. and standard load capacities up to 750 lb, and allows placement and retrieval of parts in ovens, washers, machining centers, and storage racks. Vertical movement is electrically- or pneumatically-powered, with controls placed on column-mounted handles or push button pendant.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Oct 12, 2006 Available in 3 grades, LM4702 has output-power stage design that is scalable over power levels and applications from 50 W AV receivers to 500 W amplifiers. This 200 V stereo driver has integrated power amplifier driver and is designed to drive high-power discrete transistors, or Darlington pairs, in systems delivering 25-300 W per channel. Monolithic, output stage driver has integral thermal protection scheme that activates when die temperature exceeds 150°C.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
Oct 12, 2006 Designed for use with microtitre plates and microcentrifuge tubes, SSM5 Mini Microtitre Shaker features aluminum tray fitted with mat that holds up to 4 wellplates. Shaking times from 1-999 min can be set via digital display, or unit can be set for continuous operation. For samples that need to be mixed under controlled temperature/humidity conditions, SSM5 can be placed inside incubator. Optional tube holders are available for mixing microcentrifuge tubes.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Oct 12, 2006 Targeting food, pharmaceutical, and personal care industries, Series 7600 allow for additional clearance around end of conveyor, making end accessible and creating room for other machinery. Providing tightest transfers, ½ in. nose bar is suited for daily wipe down cleanings. One inch nose bar performs in low-pressure wash downs and handles small product transfers. With largest diameter, 1 7/8 in. unit withstands 1,500 psi wash downs and is suited for meat and poultry applications.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103

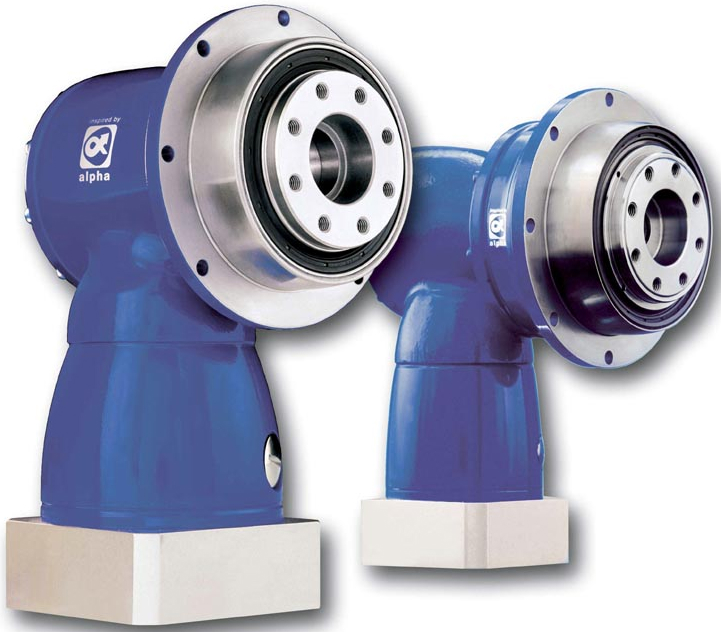

Oct 12, 2006 Two-stage right-angle gearhead, TPK+, is equipped with alpha TP+ planetary gearhead on output side and features helical-toothed planetary gearhead stage mounted at TPK+ output. Hypoid gearset at input (up to i=10 in single stage) enables product to take place of 3-stage bevel-planetary gearhead. Offered with range of reduction ratios, gearhead offers smooth, vibration-free running with torsional and tilting stiffness that lend to precision of dynamic processes.

Analytical Technology, Inc.    Oaks, PA 19426

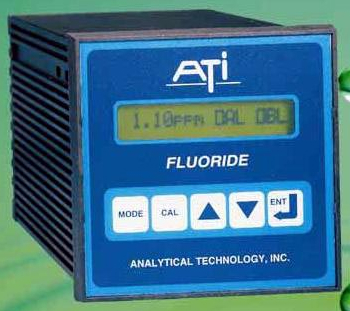

Oct 12, 2006 Employing fluoride-sensitive ion selective electrode (ISE) sensor, A15/82 Fluoride Monitor measures continuous flow of sample and immediately displays fluoride concentrations from 0.1-1,000 ppm at monitor. Chemistry module offers sample conditioning for sensor, and electronics module is equipped with alarm and analog output functions. Based on 1-999 hr, user-defined frequency, system performs automatic calibration routine to correct for electrode zero drift.

EGS ELECTRICAL GROUP ? APPLETON    Rosemont, IL 60018

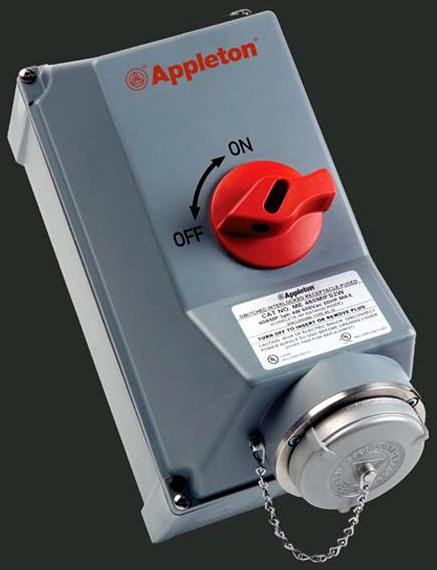

Oct 12, 2006 Available in 30 and 60 A models, NEMA 4X-rated ASR series has compact design with moveable mounting feet that allow for installation on irregular surfaces. Internal mounting tubes are also available for secure mounting in tight spots. Corrosion-resistant Valox® housing can be fitted with removable Class J fuses, and bottom-mounted, internal hinges are hidden to eliminate sanitation concerns. Interlocked switch prohibits plug removal under load and can be padlocked.

BI Technologies Corp.    Fullerton, CA 92835-1051

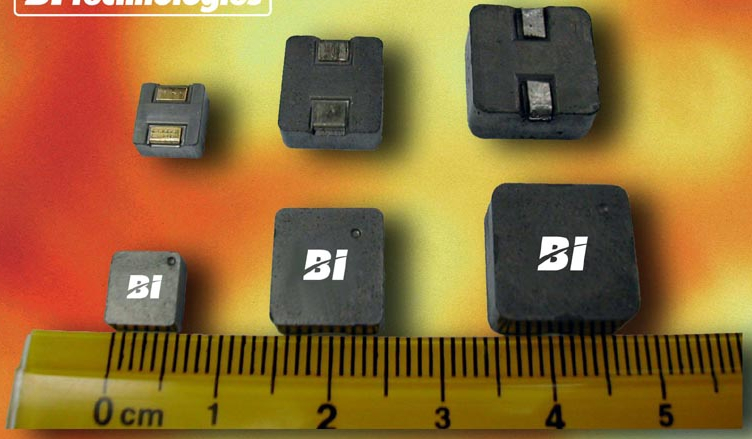

Oct 12, 2006 Molded SMT inductors in HM72A Series offer inductance values from 100 nH to 33 mH with saturation levels to 80 A. These RoHS-compliant powdered iron inductors come in 3 package footprints and 6 height options from 2.5-6.5 mm. Along with power applications such as servers, notebooks, work stations, DC/DC converters, and point-of-load modules, products suit distributed power architectures such as telecom, datacom, industrial, and automotive designs.

Helical Products Co., Inc.    Santa Maria, CA 93456 1069

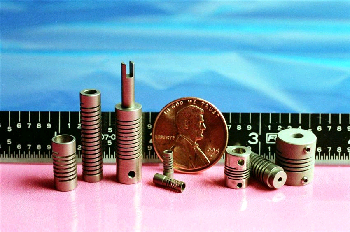

Oct 12, 2006 Offered in sizes as small as ¼ in. diameter for shaft sizes down to 3.32 in., one-piece Flexible Couplings can transmit torque in angular, parallel, and/or skewed modes. Units are available in aluminum, stainless steel, or plastic. They can be used in precision engineering applications and are especially able to accommodate tight or skewed connections.

EAO Switch Corp.    Milford, CT 06460
Oct 12, 2006 Measuring 65 x 65 x 57 mm, RoHS-compliant polycarbonate enclosures are designed as accessories for low-profile Series 84 illuminated 22.5 mm emergency-stop button. Range includes 11 enclosures with options for mounting 1, 2, 3, 4, or six 22.5 mm switches. Additionally, 16 mm version also exists for Series 61 emergency-stops, and 94 x 94 x 81 mm emergency-stop box is suited for applications requiring more prominent button.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

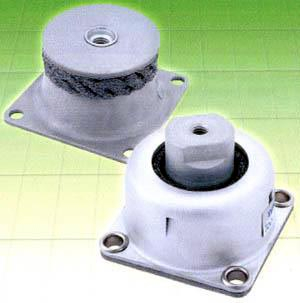

Oct 12, 2006 Suited for mobile applications, light-duty A10Z22 series consists of 10 mounts with static load capacities from 1.55-132.30 lbs and natural frequencies from 7-10 Hz (vertical) and 4.5-6 Hz (transverse). Heavy-duty A10Z28 series, designed for machine tools, motors, generator sets, and pumps operating above 2,500 rpm, includes 6 mounts with static load capacities from 10-1,000 lb and natural frequencies from 13-17 Hz. Both series have stainless steel springs and knitted mesh pads.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

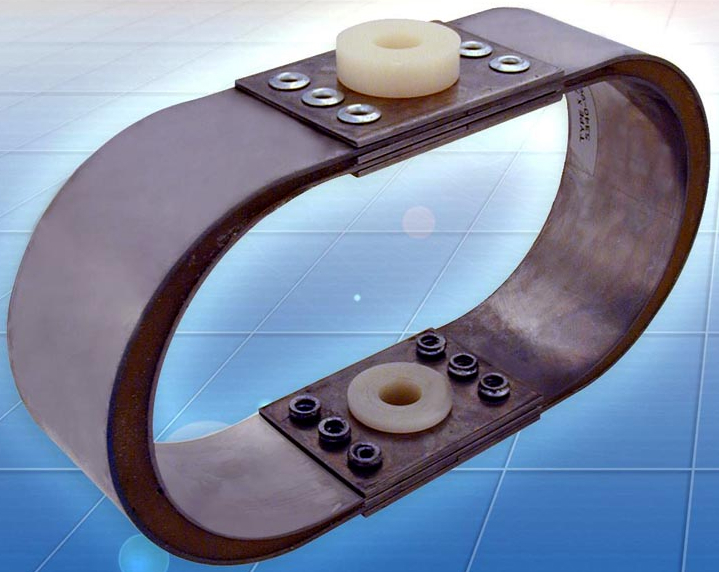

Oct 12, 2006 Designed for use with rotating and/or reciprocating devices, A10Y15 Series stainless steel leaf spring type vibration mounts employ 2 or more stainless steel U-formed leaves that are situated at each end to form elliptical shape when joined together in center portion with face plates. Spaces between U-formed leaves are filled with polymer compound post-cured to permanent condition. Nonmetallic collars backed by stainless steel washers are provided for load attachment.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

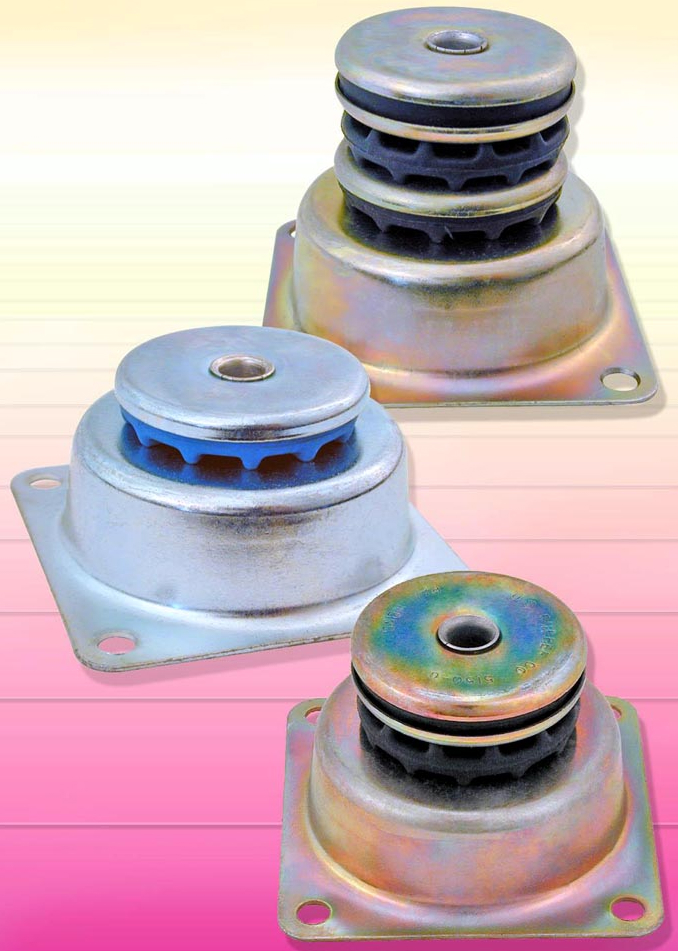

Oct 12, 2006 Comprised of 6 light-duty vibration isolators, A10Z4 Finger-Flex Series cushions shock and isolates low-frequency vibration. Base-mounted units feature natural rubber bushing and ring permanently mounted within zinc-plated steel housing. Offered in 30 and 60 hardness durometers, products exhibit natural frequencies from 6-30 Hz. Load is supported by top surface of 2 3/8 in. square mount, which has 17/64 in. clearance hole to accommodate screw fastener from load member.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

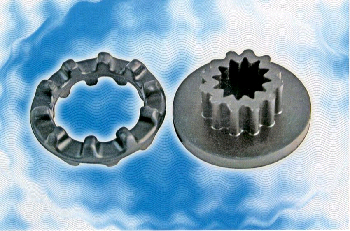

Oct 12, 2006 Providing protection for loads ranging from 4-350 lb, A10R 4- Finger-Flex Series exhibits various natural frequencies depending on size and durometer hardness of isolator, which ranges from 30-60. Sizes include 13/16, 1 11/64, 1 3/8, 1 29/32 and 3 in. diameters with ¼, 3/8, 3/8, 9/16, and 5/8 in. bores, respectively. Units provide noise suppression in typewriters, printers, copiers, and other precision office or lab equipment.
