Newson Gale, Inc.    Lakewood, NJ 08701
Jun 30, 2011 Housed in powder-coated steel, Model VESM02 provides static ground protection for difficult field applications such as tanker trucks, rail cars, IBCs, and mobile tanks or drums. NEMA 4/IP56-rated unit is fitted with 50 ft of Cen-Stat(TM) Static-Dissipative Hytrel(TM) protected cable with adjustable ball stop, which is held under constant tension by spring/auto-locking device. Main cable is pre-terminated by additional 10 ft of 2-conductor cable to facilitate connection to Earth-Rite grounding system.

Nu-Star, Inc.    Shakopee, MN 55379
Jun 30, 2011 Operating up to 3 ft away from target surface, Dual Skydrowasher(TM) cleans high-rise building windows and exterior using high-pressure water. Automated system features 2 high-pressure spray bars and offers 9 ft wide cleaning path. Weighing 400 lb with hoses, system uses turbo nozzles mounted within high-impact plastic shell and does not require electricity. Water pressure-based operation enables cleaning rates to 18,900 ft²/hr or 315 ft²/min.

G Instruments    San Diego, CA 92128
Jun 30, 2011 Housed in 72 x 72 mm DIN enclosure with IP65-rated front panel, Panel Mount Flow Computers are available in variety of models ranging from micro-power with no outputs to micro-power with isolated outputs and universal inputs, to low-power with various isolated outputs and universal pulse or analog input for flow rate or differential pressure. Units support RS485 Modbus RTU communication, batch control, and data logging. All models have 10 or 30 point curve for linearization.

Basler Electric Co.    Highland, IL 62249
Jun 30, 2011 Designed to replace GE-type Models 269, 369, and 469 with no panel changes required, Model BE1-11m provides motor protection, control, and monitoring needed for large and medium motors and critical motor processes. Unit mounts in existing S1 cutouts or other common cutouts with available adapter plates. Featuring ring lug terminals for all relay connections, Model BE1-11m is UL recognized per Standard 508, File E97033; CSA certified per Standard CAN/CSA-C22-2; and CE qualified.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jun 30, 2011 Consisting of fully integrated 4-point Wenner probe, Resipod measures electrical resistivity of concrete in non-destructive test. During operation, current is applied to 2 outer probes and potential difference is measured between 2 inner probes. Current is carried by ions in pore liquid, and calculated resistivity depends on spacing of probes. Packaged in waterproof housing, Resipod operates in demanding site environments.

Spectro Analytical Instruments Inc.    Marlborough, MA 01752
Jun 30, 2011 SPECTROLAB offers photomultiplier detectors relative to single spark evaluation and time-resolved spectroscopy along with flexible line selection and ability to combine analytical and reference lines from charge-coupled device detectors. Optical resolution and 750 nm focal width in both optical segments maximize results for trace analysis of pure metals as well as examination of all conceivable material combinations and alloys. Instrument makes entire spectrum, from 120-780 nm, available.

Liberty Electronics    Denville, NJ 07834
Jun 30, 2011 Designed to mount flat screen televisions flush against wall, Plastic Recessed TV Box(TM) Models TVB712 and TVB713 feature angled outlet boxes that keep plugs behind wall and allow for use of close-clearance TV mounting hardware. Model TVB713 has 2 angled outlet boxes with separate, interchangeable tray that can be used to hide digital converter box behind TV.

Bosch Packaging Technology    New Richmond, WI 54017
Jun 30, 2011 Designed to produce small batches directly in laboratory for R/D or clinical purposes, GKF 702 can fully simulate production parameters required later during production. Mini-Bowl filling station is suited for product batches between 100 and 300 mL, and slide-gate system is available for providing option of filling free-flowing granulates or pellets via powder station. Design includes industrial PC with 17 in. touchscreen as well as various interfaces (LAN, USB) and DVD burner.

Red-Ray Mfg. Co., Inc.    Branchburg, NJ 08876
Jun 30, 2011 Developed around 5 x 12 in. burner, MR-12Ni develops radiant temperatures up to 1,700°F at maximum fire with 2.5:1 turndown ratio and delivers 20,400 BTU per section. Stainless steel frame surrounds edge of porous metallic foam emitter, and plating encases cast iron body in protective layer of corrosion-resistant nickel. Also included, stainless steel hold down mechanism securely locks frame to body.

ILLUMINUP    San Jacinto, CA 92583
Jun 29, 2011 Constructed from 100% recyclable polypropylene, Universal Multi-Purpose Lite Mat incorporates SunStruck LED technology. Mat measures 36.5 x 15.75 in. with 2.5 in. beveled edges all around and dovetail design that holds 96 LEDs in place. Applications range from work light for mechanics to patio lighting and outdoor welcome mat.

CAS DataLoggers, Inc    Chesterland, OH 44026
Jun 29, 2011 Incorporating 2.8 in. TFT color LCD with 240 x 320 pixel touchscreen interface, EL-DataPad lets users configure as well as download data from Lascar EasyLog (EL) USB data loggers and immediately view results. Product enables onsite data collection as well as device reconfiguration without removing logger from environment it is monitoring. Data from up to 100 loggers can be viewed on handheld unit, with data from additional 400 units stored on unit's internal Flash memory.

Dolomite Centre Ltd    Royston SG8 5TW  United Kingdom
Jun 29, 2011 By creating multi-way fluidic connections, Multiflux(TM) connectors and interfaces let users integrate microfluidic devices into new and existing systems. Product range includes Linear and Circular connectors that provide several fluid input and output ports, enabling reliable and leak-free connections to be made in seconds between microfluidic chips and tubing as well as 2 bundles of tubing without disruptions to fluid flow. All components operate over -15 to +150°C range and up to 30 bar.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

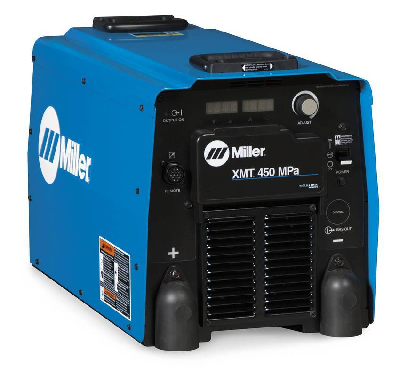

Jun 29, 2011 Rated 450 A at 100% duty cycle, Model XMT® 450 MPa supports Pulsed MIG welding with .052 and 1/16 in. wires. Unit is also optimized for MIG, Stick, TIG, and Flux Cored welding processes. As welder manipulates wire feed speed on gun, system automatically adjusts pulse parameters to match that speed. Hot Start(TM) increases amperage at start of weld to eliminate electrode sticking. With SharpArc(TM) technology, operator has control over puddle and bead characteristics.

Carlo Gavazzi, Inc.    Buffalo Grove, IL 60089
Jun 29, 2011 Featuring M18 housing that meets standards of IP67, IP69K, and ECOLAB certification, PA18 Series can withstand temperatures to 176°F and pressures to 1,450 psi when being cleaned. Sensing ranges are 1 m in diffuse mode, 6.5 m in retro-reflective mode, 5 m in polarized retro-reflective mode, and 20 m in through-beam. Available in cable and plug versions, sensors feature laser markings instead of labels and mounting adapter that allows for smooth flush mounting with 1 jam nut.

AXIOMTEK Co., Ltd.    Taipei   Taiwan
Jun 29, 2011 Incorporating Intel® Q67 Express chipset, Model SHB106 is powered by Intel® Core(TM) i7/i5/i3 processors with LGA1155 socket. Unit supports Intel® Turbo Boost, Hyper-Threading, and QuickPath technologies as well as 8 GB DDR3 1066/1333 memory and PCIe Gen2 running at 5 GT/s. PICMG 1.3 full-size CPU card offers advanced 3D graphics and multiple displays via DisplayPort and VGA. With Intel® Active Management Technology 7.0, administrator can remotely monitor, maintain, and update systems.

Infineon Technologies AG    San Jose, CA 95131
Jun 29, 2011 Respectively intended for automotive body, safety, and powertrain applications, XC2200, XC2300, and XC2700 series are based on C166SV2 CPU with 5-stage pipeline and offer Multiply Accumulate (MAC) unit with DSP functionality for dedicated filter algorithms. Features include optimized peripheral set for applications with up to 2 CAN nodes, up to 4 flexible serial interfaces, and up to 19 ADC channels. Available flash capacities include 32, 64, 96, and 160 KB.

Delcam Plc    Birmingham Hampshir B10 0HJ  United Kingdom
Jun 29, 2011 PowerINSPECT 2011 R2 combines ability to work with all types of inspection devices with comprehensive range of inspection routines for making measurements, inspecting geometric features, and checking complex surfaces. With R2, dimensions can be displayed on CAD view to give clear reporting for distances between features, and point cloud data can be shaded. PowerINSPECT DRO enables users to view XYZ coordinates of measuring device and is useful for marking out or copying coordinates onto part.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Jun 29, 2011 Available with multiple illumination options and various cap sizes and colors, TL1265 Series offers life expectancy of 500,000 cycles, contact rating of 50 mA at 12 Vdc, and initial max contact resistance of 100 mW. Dielectric strength is 500 Vdc for 1 minute and operating temperature is -20 to +70°C. Supporting SPST, Off-(On), and Momentary functions, switch is suited for A/V applications, computer peripherals, consumer electronics, and instrumentation markets.

GOAD COMPANY    Ellisville, MO 63021
Jun 29, 2011 Constructed using N-FUZE® Lining Technology, GOAD Tank Linings feature molded corner inserts and infused machine welds that eliminate gaps from hand welds. Products utilize Koroseal® flexible PVC sheets, RF-welded panels, and TANKeye® leak detection system, which locates leaks electronically without draining tank. Linings can be used on virtually any type of containment, tank, or pit with coatings such as Belzona®, Ceilcote®, Epoxies, Fiberglass, Flakeline®, Heresite®, Plasite®, and rubber.

QRP, Inc. a PEM Co.    Leland, NC 28451
Jun 29, 2011 Manufactured from titanium alloy Ti-6AL-4V Grade 5, Quick Release Pins satisfy standard designs or accommodate custom requirements in military, aerospace, automotive, marine, and industrial markets. Thin oxide surface protects against harsh atmospheric and saltwater conditions as well as variety of chemicals. Available in various sizes with standard diameters as small as 3/16 in., single-acting devices come with 2 detents or 4 ball detents for maximum tensile strength.
