International Rectifier Corp.    El Segundo, CA 90245
Oct 24, 2006 Based on iMOTION(TM) integrated design platform, IRMCT3UF1 enables digital, sensor-free vector control of permanent magnet motors. It can be configured to specific applications using iMOTION ServoDesigner(TM) tool and combines digital controller, external analog interface, memory, gate drivers, and 6 power MOSFETs. Offering Field Oriented Control, integrated high-reliability hybrid motor control module is compatible with various brushless dc and permanent magnet ac motors.

Fisnar Inc.    Wayne, NJ 07470
Oct 24, 2006 Able to handle up to 700 lb of fluid pressure, Model VMS400 has adjustable Suck-Back so that fluid cutoff at end of cycle can be finely adjusted. Unit features minimum shot size of 0.1 cc and can cycle up to 400/min using 4-way valve controller. Wetted materials are separated from pneumatic movement by UHMW-PE seals. Valve is suitable for use with RTV/silicones, solder pastes and masks, sealants, and UV adhesives.

Swagelok Company    Solon, OH 44139-3492
Oct 24, 2006 Suited for OEMs, PBG series monitors vacuum and positive system pressure up to 15,000 psi, 1,000 bar, or 100,000 kPa and fits industry-standard 2 9/16 in. panel hole cutouts. Tube adapter ends provide leak-tight connections and facilitate installation. Welded construction promotes high-integrity fluid system containment, and crimped and tamper-resistant ring permanently seals gauge case to lens. Gauge is liquid-filled as standard for vibration resistance.

Himmelstein, S., & Co.    Hoffman Estates, IL 60195-2011
Oct 24, 2006 Offering full scale ranges from 25-10,000 lbf-in., non-contact MCRT® 48200V Series produces ±10 V or ±5 V analog output and is available with 0.2% Code N or 0.15% Code C accuracy. Units feature alloy steel shaft with 200% torque overload capacity, and provide engineering unit data via com port. In addition to storing calibration values, scaling, and units of measure in non-volatile memory, meters automatically load these values when powered up.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
Oct 24, 2006 Designed to facilitate manual opening of small- to medium-sized bags without creating dusty environment, DELUMPER BAGSTATION unloads, de-agglomerates, and freshens lumpy bagged solids while introducing them into production process. DELUMPER crusher reduces lumps and agglomerates to free flowing state with positive, one pass crushing action. Along with air filtration system, options include slitting knives, variable frequency drive, and explosionproof components.

Pomona Electronics    Pomona, CA 91766 3835
Oct 24, 2006 Speeding test connections, BNC Shielded Test Probe Kit includes shielded test probe, Minigator with 6-32 thread for ground lead, insulated flex boot for Minigator, Minigrabber® test clip with 6-32 thread for ground lead, and replaceable stainless steel dog-leg probe tip. Probe's shield extends to within 1.5 in. of probe tip and is compatible with DMM banana plug inputs when using Pomona 1269 BNC to double banana plug adapter.

Baumer Ltd.    Southington, CT 06489 1534
Oct 24, 2006 Featuring two M12 input and output plugs for wiring-free integration into Profibus-DP systems, MagRes Profibus self-contained encoder monitors and controls position or speed. It offers 13-bit resolution in single-turn version and 16-bit resolution in multi-turn version. LED indicators display status of encoder and network communications. Measuring 58 mm dia and 42 mm deep, sensor requires virtually no maintenance and fits into small automated environments.

Linear Technology Corp.    Milpitas, CA 95035
Oct 24, 2006 Able to generate 2 independent output voltages as low as 0.6 V, Model LTC3836 is composed of 2 synchronous buck regulator controllers, with on-chip high-side and low-side synchronous rectifier drivers to drive N-channel MOSFETs. Unit can operate at 95% duty cycle for low voltage drop out, extending operating time in battery-power systems. Housed in SSOP or QFN package, Model LTC3836 is synchronizable up to 850 kHz with adjustable constant frequency operation from 250-750 kHz.

Engstler Elektrronik Entwicklung GmbH    63868 Grosswallstadt   Germany
Oct 24, 2006 Suited for studio, medical, and military systems, SI6432 keyswitches combine inverse transmissive liquid crystal displays and RGB color control for readability in low-light environments. RGB-backlit LCD switches include extended command set and 100 brightness settings per color channel, with 64 x 32 pixel resolution. Enabling control of LCD bias, refresh, and drive current, switches allow backlighting and/or display to be turned off without losing bitmap data.

Nordock Inc.    Port Hope, ON L1A4A4
Oct 24, 2006 Available in 25,000-50,000 lb capacities, AIRDOCK features reinforced, PVC-coated, single chamber air bag that eliminates friction wear and tear and is suitable for all environments and extreme weather conditions. In stored position, air bag is completely protected from blowing dust, snow, rain, and debris as well as foreign objects in pit area. Auto-Descent(TM) lip extension uses natural weight of deck to activate lip without compromising power from lifting mechanism.

WinSystems, Inc.    Arlington, TX 76011
Oct 24, 2006 Designed for machine-to-machine connectivity, LBC-GX500 provides plethora of wired and wireless connectivity options: 802.11 wireless Ethernet, GSM/GPRS and CDMA cellular modems, ZigBee wireless RF module, 10/100 wired Ethernet port, global-compliant dial-up modem, 6 USB ports, and 6 COM channels. EBX-sized board, based on AMD GX500@1W processor, also includes 48 parallel DIO lines, CRT and digital flat panel video controller and interface, AC 97 audio, and optional 12-bit ADC.

Meyda Tiffany    Yorkville, NY 13495
Oct 24, 2006 Fulton Series of lighting fixtures is included in Craftsman Signature Series of outdoor and indoor lighting. It offers over 50,000 custom lighting options, and includes post mounts, pier mounts, ceiling and tabletop lanterns, table lamps, wall sconces, and ceiling pendants. UL-listed Series is offered in antique, vintage copper, Craftsman brown, and verdigris finishes.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Oct 24, 2006 Supporting requirements of high-speed chip placement, 0201-capable 8 mm Gold dual-lane feeders offer PSV reel detection sensor that enhances traceability for absolute line control. Single lane Black 8 mm and 12 mm electric feeders, designed for medium to low-volume midrange applications, ensure traceability with unique feeder ID. All feeders are compatible with Lightning rotary-motion surface-mount component placement head.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Oct 24, 2006 Pre-balanced to G2.5 at 22,000 rpm, BT 30 ER 20 series Zero-Z short toolholders have clamping capacity of 0.5-13 mm. Symmetrical toolholder suits woodworking and high-speed machines requiring special taper and offer standard and ultra precision levels of protection.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Oct 24, 2006 Designed for manual testing of devices with pitches down to 0.40 mm, CSP test socket provides minimal signal loss for high bandwidth capability via signal path of 1.95 mm. Solderless, pressure-mount compression spring probes allow device to be easily mounted to and removed from test board. Measuring 77.47 x 63.50 x 32.28 mm, sockets have contact forces of 16 g per contact for 0.40 mm pitch and 25 g per contact for 0.50 mm pitches and larger.

AXIOMTEK    Taipei   Taiwan
Oct 24, 2006 Featuring 1U desktop and rack mountable form factor, NA-806 series fanless network application platform is powered by Intel® Celeron® M 1 GHz and zero cache processors with 400 MHz front side bus. Units come with Intel® 852GM chipset, integrated VGA function, 32-bit Mini PCI slot, four 10/100 Mbps Ethernet ports, and built-in PCI Ethernet interfaces. With LAN bypass function, series can be controlled through WDT and GPIO pin definitions without downtime.

Advantech Automation Corp.    Cincinnati, OH 45240

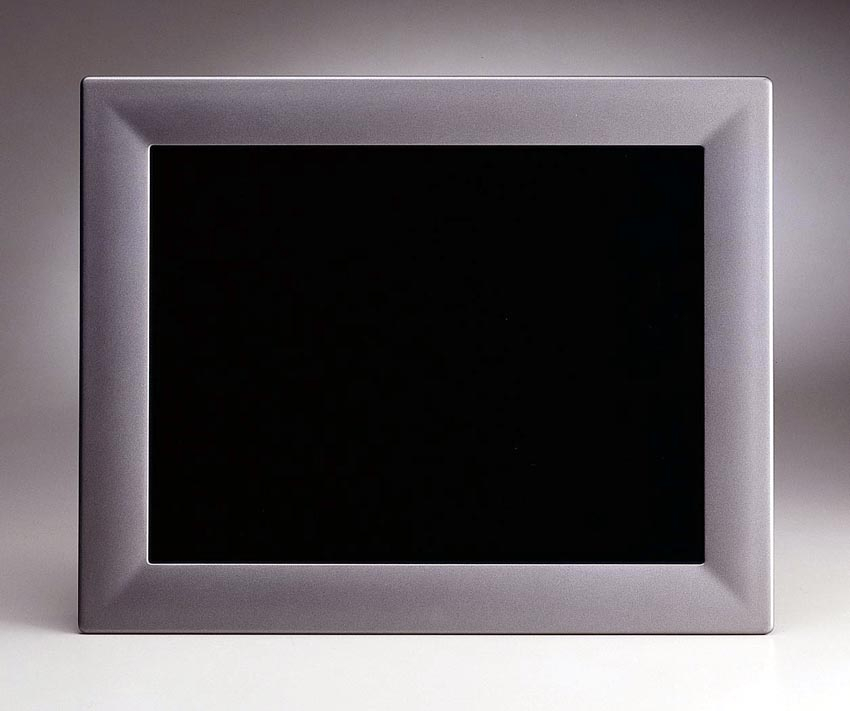

Oct 24, 2006 Featuring AMD GX3 LX800 500 MHz fanless processor, model TPC-1261H provides 100° view angle, 340 cd/m² luminance, and CompactFlash nonrotating storage media with option to add 2.5 in. HDD. Rugged product offers up to 1 GB RAM, one 10/100 Base-T LAN port, 1 parallel and 4 serial ports, with 1 port configurable as RS-232/422/485. Designed for NEMA 4/IP65 environment, RoHS compliant device is offered in desktop, swing arm, or wall mounting options.

C & D Technologies    Mansfield, MA 02048-1151

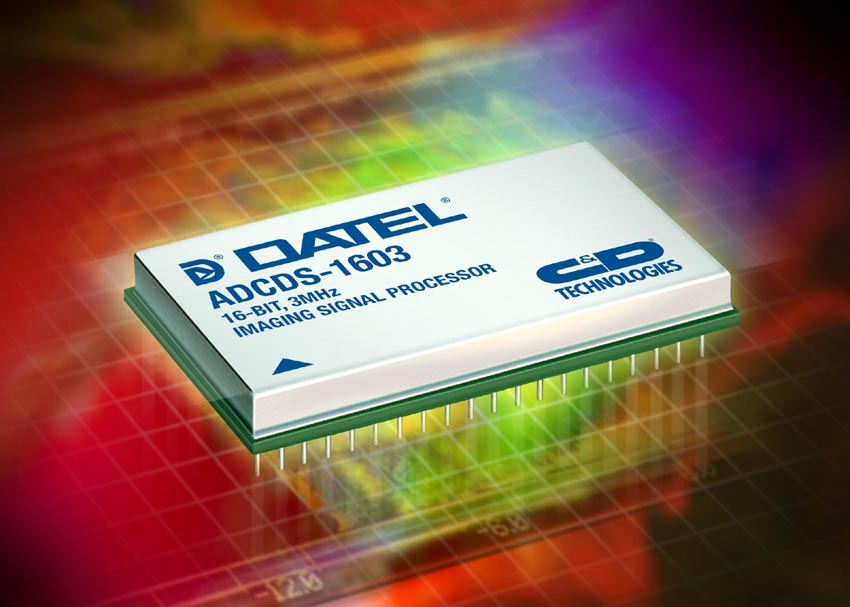

Oct 24, 2006 Suited for electronic imaging applications that use CCDs as photo-detectors, ADCDS-1603 delivers 16-bit resolution and throughput rate of 3 megapixel/sec. Integrated 40-pin TDIP package incorporates user configurable input amplifier, correlated double sampler, and 16-bit sampling ADC. Further features include edge triggering, gain adjust, offset adjust, precision +2.0 V reference, and programmable analog input bandwidth function. Overall power consumption is 500 mW.

Cherry Electrical Products    Pleasant Prairie, WI 53158

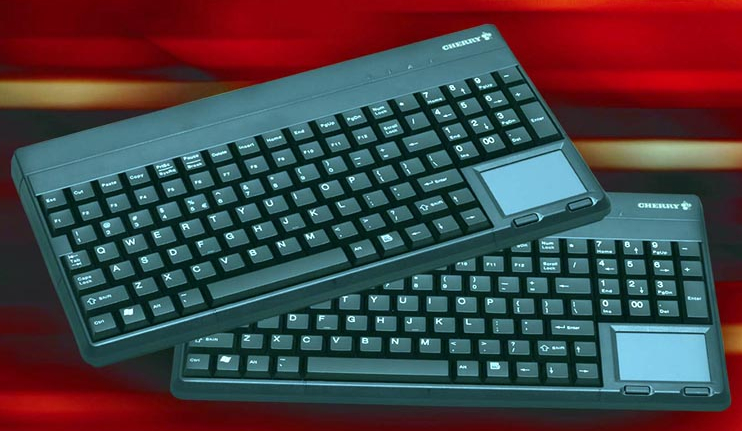

Oct 24, 2006 With integrated touchpad and spill- and dust- resistant key field, Series 6240 keyboards are suitable for use in rack mount systems, test and medical equipment, kiosks, and in automotive service areas. They feature 109-position full QWERTY layout, yellow status LEDs for visibility in artificially lit rooms, double-zero key, as well as copy, paste, cut, and undo keys for function calls in Windows® applications. Keyboards measure 14.17 x 7.80 x 1.50 in. and weigh 3.09 lb.

Dow-Key Microwave Corp.    Ventura, CA 93003
Oct 24, 2006 Compatible with PXI standard chassis and cards, DK-PXI-1001 multifunctional radio frequency (RF) switching module is designed for mobile, desk-top testing stations. It occupies 4 slots of standard 3U PXI chassis with only first left slot requiring electrical connection. With maximum switching speed of 20 ms and operating life of 1 mil cycles, PXI matrix is supplied with software package that includes IVI-compliant driver.
