International Motion Control, Ltd.    West Midlands WV11 3DZ  United Kingdom

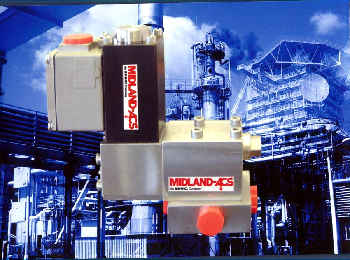

Oct 24, 2006 Manufactured from 316 SS, DN5 Series incorporates cartridge insert technology and metal-to-metal seat that ensures leak-tight shut-off at operating pressures up to 690 bar. Three-port, 2-position units offer nominal flow rates up to 20 l/min and are suitable for mineral oil, as well as synthetic and water glycol-type fluids. O-ring interface enables them to be fitted with 3/8 in. NPT ported subplate. Valves can also be manifold-mounted for use in local control panels.

CONCOA    Virginia Beach, VA 23454
Oct 24, 2006 Designed for high-pressure/liquid cylinder or pipeline use, tamper-proof Gas-Saver regulator lets user remove key after appropriate flow rate is set to control process quality. Non-compensated flowmeter accurately displays gas flow rate, even when coupled regulator is adjusted to as low as 3 or 4 psi. This minimizes static pressure buildup in hose that would otherwise lead to surges, reducing weld defects and minimizing shielding gas usage.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Oct 24, 2006 Featuring 1/20,000 sec reaction time, Mexican Flag helmet does not need on/off switch, eliminating arc flash caused by forgetting to turn it on. Grinding Mode function keeps helmet in #4 light state, providing continuous UV and IR protection, and prevents darkening of lens from grinding sparks. Weighing 18 oz, helmet includes 4 arc sensors, replaceable batteries with solar assist (30,000 hr on MIG), and handles DC Inverter and TIG applications up to 5 A.

American Ballast    Fremont, CA 94538

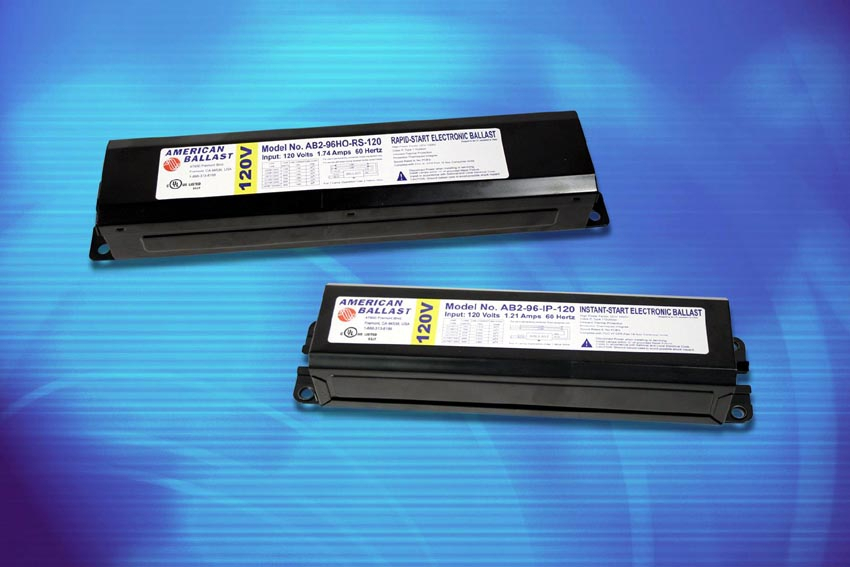

Oct 24, 2006 T12 Slimline and T12 High Output electronic fluorescent ballasts are suited for lighting applications in commercial office, retail, distribution warehouse, and industrial high bay lighting. Slimline version features minimum lamp starting temperature of 0°F and is potted for cooler operation. Ballasts meet FCC rules and regulations, ANSI requirements, and are UL and CuL listed. They are also available with remote mounting capabilities.

WEi    Elk Grove, IL 60007

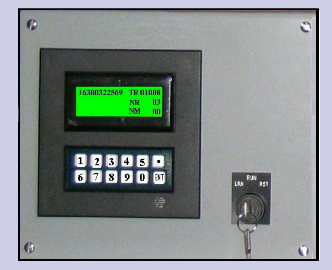

Oct 24, 2006 Pre-configured to work with RS232 bar code readers, Mantis requires no programming or configuration. It can use CCD cameras as well as laser-based bar code scanners to perform go/no-go print quality analysis as well as match code functions for 100% automated bar code verification. As Ethernet client, Mantis logs data regarding start and stop times, errors, production counts, and personnel information.

KOA Speer Electronics Inc.    Bradford, PA 16701

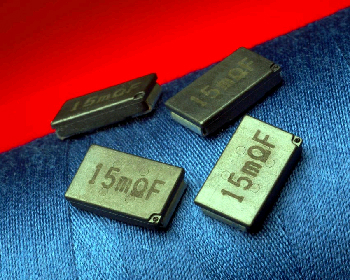

Oct 24, 2006 Rated at 2 W, surface mount SLN2 Series provides resistance range of 5-10 mW with resistance tolerance of +0.5, +1, and +5%. Measuring 0.459 x 0.276 x 0.094 in., units are manufactured with flameproof UL94V0 molded polymer case and are suitable for flow, reflow, and hand soldering. Typical applications include dc-to-dc conversion, power supplies, laptop and mobile PCs, motor controls, and automotive engineering management systems.

Orled    Portland, OR 97223

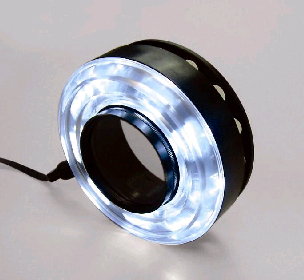

Oct 24, 2006 Suited for inspection microscopes, Model RL-9 comes with polarizing option that diminishes glare from reflective objects. It functions by allowing light from LEDs to pass through polarizing film before illuminating object. Light bounces off object and passes through analyzer before arriving at eye of operator or lens of camera. Rotating ring at center of ring light aligns analyzer with polarizer, resulting in images with minimal glare and more contrast.

International Rectifier Corp.    El Segundo, CA 90245

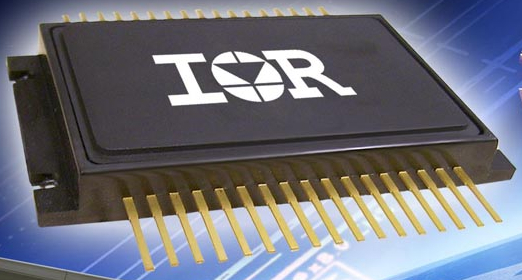

Oct 24, 2006 Based on iMOTION(TM) integrated design platform, IRMCT3UF1 enables digital, sensor-free vector control of permanent magnet motors. It can be configured to specific applications using iMOTION ServoDesigner(TM) tool and combines digital controller, external analog interface, memory, gate drivers, and 6 power MOSFETs. Offering Field Oriented Control, integrated high-reliability hybrid motor control module is compatible with various brushless dc and permanent magnet ac motors.

Fisnar Inc.    Wayne, NJ 07470
Oct 24, 2006 Able to handle up to 700 lb of fluid pressure, Model VMS400 has adjustable Suck-Back so that fluid cutoff at end of cycle can be finely adjusted. Unit features minimum shot size of 0.1 cc and can cycle up to 400/min using 4-way valve controller. Wetted materials are separated from pneumatic movement by UHMW-PE seals. Valve is suitable for use with RTV/silicones, solder pastes and masks, sealants, and UV adhesives.

Swagelok Company    Solon, OH 44139-3492

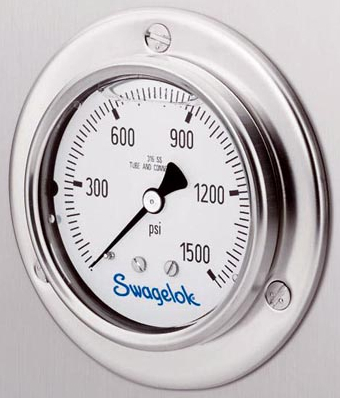

Oct 24, 2006 Suited for OEMs, PBG series monitors vacuum and positive system pressure up to 15,000 psi, 1,000 bar, or 100,000 kPa and fits industry-standard 2 9/16 in. panel hole cutouts. Tube adapter ends provide leak-tight connections and facilitate installation. Welded construction promotes high-integrity fluid system containment, and crimped and tamper-resistant ring permanently seals gauge case to lens. Gauge is liquid-filled as standard for vibration resistance.

Himmelstein, S., & Co.    Hoffman Estates, IL 60195-2011
Oct 24, 2006 Offering full scale ranges from 25-10,000 lbf-in., non-contact MCRT® 48200V Series produces ±10 V or ±5 V analog output and is available with 0.2% Code N or 0.15% Code C accuracy. Units feature alloy steel shaft with 200% torque overload capacity, and provide engineering unit data via com port. In addition to storing calibration values, scaling, and units of measure in non-volatile memory, meters automatically load these values when powered up.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039

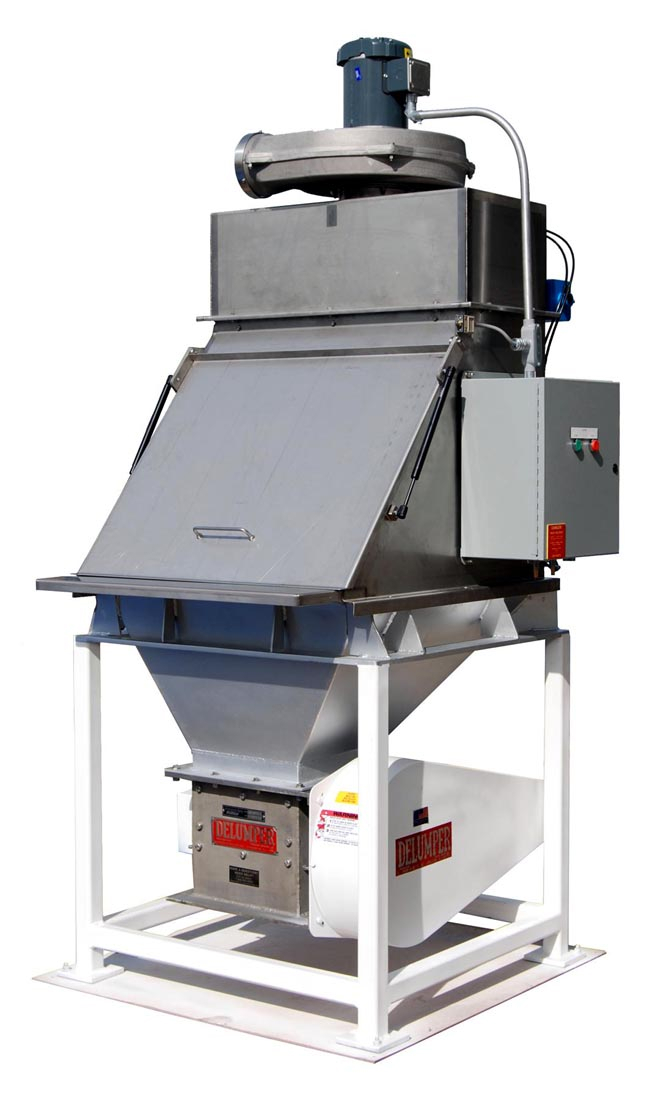

Oct 24, 2006 Designed to facilitate manual opening of small- to medium-sized bags without creating dusty environment, DELUMPER BAGSTATION unloads, de-agglomerates, and freshens lumpy bagged solids while introducing them into production process. DELUMPER crusher reduces lumps and agglomerates to free flowing state with positive, one pass crushing action. Along with air filtration system, options include slitting knives, variable frequency drive, and explosionproof components.

Pomona Electronics    Pomona, CA 91766 3835

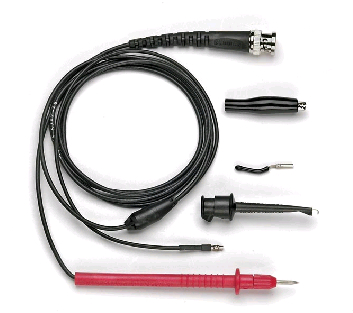

Oct 24, 2006 Speeding test connections, BNC Shielded Test Probe Kit includes shielded test probe, Minigator with 6-32 thread for ground lead, insulated flex boot for Minigator, Minigrabber® test clip with 6-32 thread for ground lead, and replaceable stainless steel dog-leg probe tip. Probe's shield extends to within 1.5 in. of probe tip and is compatible with DMM banana plug inputs when using Pomona 1269 BNC to double banana plug adapter.

Baumer Ltd.    Southington, CT 06489 1534

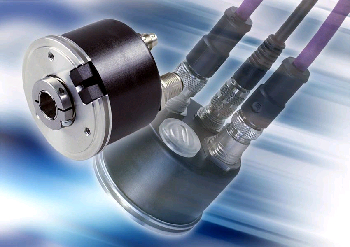

Oct 24, 2006 Featuring two M12 input and output plugs for wiring-free integration into Profibus-DP systems, MagRes Profibus self-contained encoder monitors and controls position or speed. It offers 13-bit resolution in single-turn version and 16-bit resolution in multi-turn version. LED indicators display status of encoder and network communications. Measuring 58 mm dia and 42 mm deep, sensor requires virtually no maintenance and fits into small automated environments.

Linear Technology Corp.    Milpitas, CA 95035
Oct 24, 2006 Able to generate 2 independent output voltages as low as 0.6 V, Model LTC3836 is composed of 2 synchronous buck regulator controllers, with on-chip high-side and low-side synchronous rectifier drivers to drive N-channel MOSFETs. Unit can operate at 95% duty cycle for low voltage drop out, extending operating time in battery-power systems. Housed in SSOP or QFN package, Model LTC3836 is synchronizable up to 850 kHz with adjustable constant frequency operation from 250-750 kHz.

Engstler Elektrronik Entwicklung GmbH    63868 Grosswallstadt   Germany
Oct 24, 2006 Suited for studio, medical, and military systems, SI6432 keyswitches combine inverse transmissive liquid crystal displays and RGB color control for readability in low-light environments. RGB-backlit LCD switches include extended command set and 100 brightness settings per color channel, with 64 x 32 pixel resolution. Enabling control of LCD bias, refresh, and drive current, switches allow backlighting and/or display to be turned off without losing bitmap data.

Nordock Inc.    Port Hope, ON L1A4A4
Oct 24, 2006 Available in 25,000-50,000 lb capacities, AIRDOCK features reinforced, PVC-coated, single chamber air bag that eliminates friction wear and tear and is suitable for all environments and extreme weather conditions. In stored position, air bag is completely protected from blowing dust, snow, rain, and debris as well as foreign objects in pit area. Auto-Descent(TM) lip extension uses natural weight of deck to activate lip without compromising power from lifting mechanism.

WinSystems, Inc.    Arlington, TX 76011

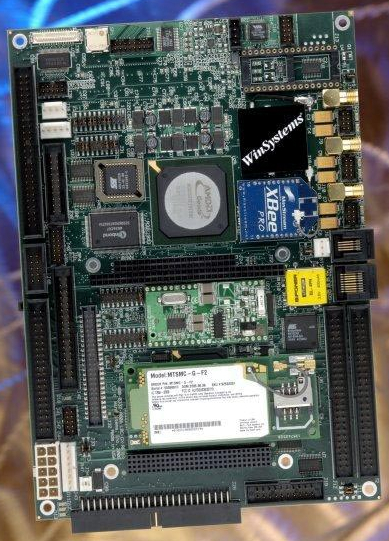

Oct 24, 2006 Designed for machine-to-machine connectivity, LBC-GX500 provides plethora of wired and wireless connectivity options: 802.11 wireless Ethernet, GSM/GPRS and CDMA cellular modems, ZigBee wireless RF module, 10/100 wired Ethernet port, global-compliant dial-up modem, 6 USB ports, and 6 COM channels. EBX-sized board, based on AMD GX500@1W processor, also includes 48 parallel DIO lines, CRT and digital flat panel video controller and interface, AC 97 audio, and optional 12-bit ADC.

Meyda Tiffany    Yorkville, NY 13495

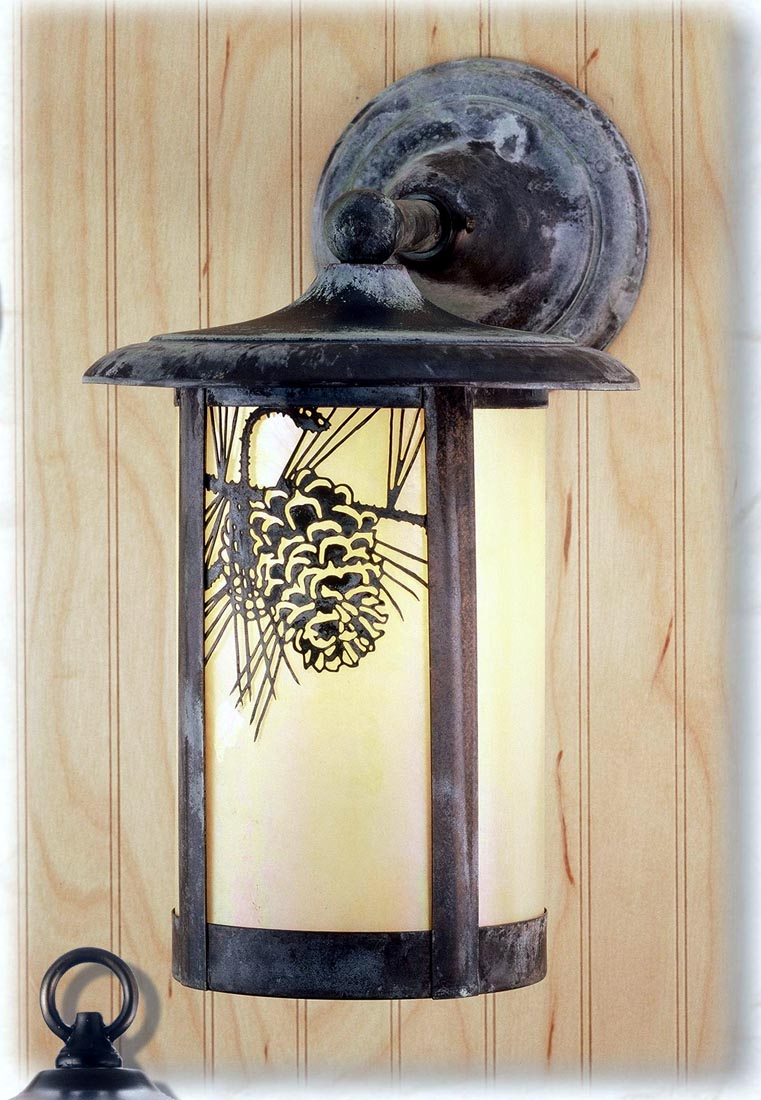

Oct 24, 2006 Fulton Series of lighting fixtures is included in Craftsman Signature Series of outdoor and indoor lighting. It offers over 50,000 custom lighting options, and includes post mounts, pier mounts, ceiling and tabletop lanterns, table lamps, wall sconces, and ceiling pendants. UL-listed Series is offered in antique, vintage copper, Craftsman brown, and verdigris finishes.

Universal Instruments Corp.    Binghamton, NY 13902 0825

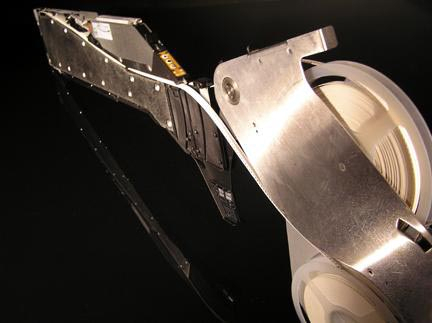

Oct 24, 2006 Supporting requirements of high-speed chip placement, 0201-capable 8 mm Gold dual-lane feeders offer PSV reel detection sensor that enhances traceability for absolute line control. Single lane Black 8 mm and 12 mm electric feeders, designed for medium to low-volume midrange applications, ensure traceability with unique feeder ID. All feeders are compatible with Lightning rotary-motion surface-mount component placement head.
