Thermal Ceramics, Inc.    Augusta, GA 30903

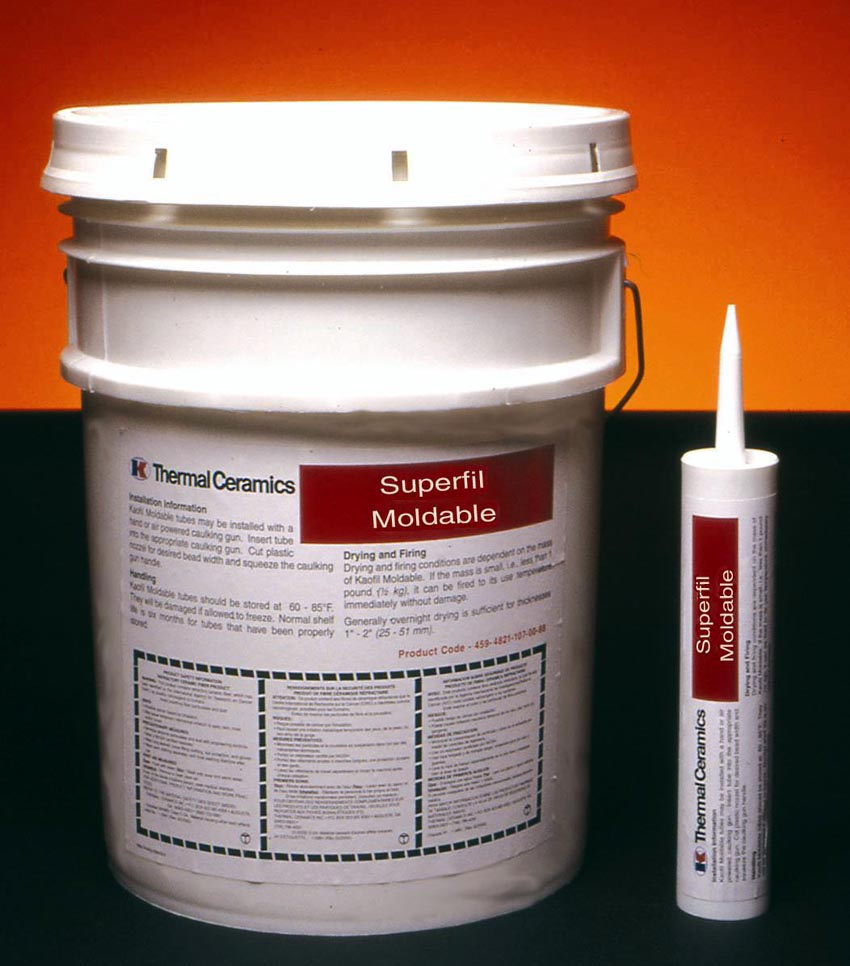

Oct 27, 2006 Superfil 607 Moldable wet mastic material is designed for continuous use up to 2,000ºF, and has smooth, semi-sticky consistency for application to refractory and fibrous surfaces. It is supplied ready-to-use from pail or caulking tube and used for repair and reinsulation of furnace lining cracks as well as for covering metal hardware. Non-wetting to molten aluminum makes it suited for applications in aluminum containing troughs, boxes, and furnaces.

DDP Supply    El Segundo, CA 90245
Oct 27, 2006 Providing 360° of visibility, SL3 Series can be seen from anywhere on factory or office floor. Available in 12 Vac/dc, 24 Vac/dc, and 120 Vac, lamp features shock and vibration resistant design. Shunt resistor minimizes false indication from PLC leakage currents and other circuit protection devices to protect lamp from voltage surges and ESD damage. Featuring 15 mm dia fresnel lens, lamp comes in red, yellow, green, blue, and white with variety of base styles.

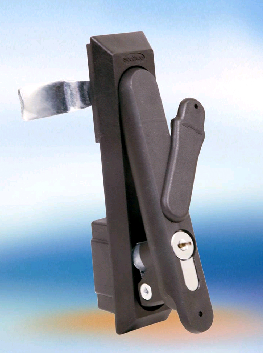

Southco    Concordville, PA 19331 0116
Oct 27, 2006 Designed to fit door panel thicknesses from .06-.125 in., Model H3 can be adapted to single-point or multi-point latching. Housing, handle, and covers are made of glass-filled nylon with corrosion-resistant exterior. From stored position within latch body, handle pops up for use and operates with swinging motion. Cam options satisfy grip dimensions from .18-1.67 in., and built-in lock cylinder accepts Southco PK lockplug, tool-access drivers, or DIN profile locks.

Brennan Industries, Inc.    Cleveland, OH 44139
Oct 27, 2006 Comprised of nut, back ferrule, front ferrule, and body, fittings produce torque-free seals that reduce hazardous leaks at tubing connections. Ferrules are tightly swaged around tube, and lack of initial strain on tubing ensures no tubing wall damage. Axial movement along tube prevents torque transmission from fitting to tubing. Resistant to temperature change, fittings work with variety of tube materials and withstand impulse and vibration in vacuum and pressure systems.

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707

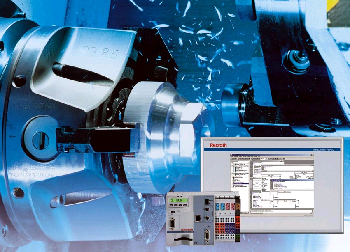

Oct 27, 2006 Suited for high-production machining centers, rack-mounted IndraMotion MTX compact CNC controls up to 8 axes in 2 NC channels with IntraLogic PLC. It can process up to 200 NC blocks per second and has 30-block look-ahead rate. Unit comes with SERCOS drive communication, full Profibus DP master/slave interface, local fast I/O, and 1 Ethernet interface port. Operation and programming are complemented by network communication via Ethernet TCP/IP or standard fieldbuses.

Distech Systems, Inc.    Rochester, NY 14606

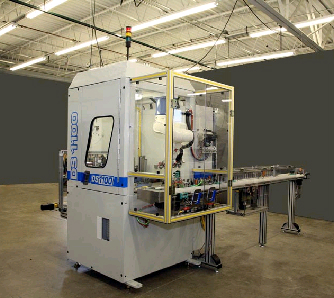

Oct 27, 2006 Designed to eliminate hand loading, Model DS1100 features 6-axis articulating robotic arm that provides dexterity for unloading parts from tray to conveyor and reloading them. Over/under conveyor design delivers parts to machine and takes complete parts or empty trays from machine. In addition to accommodating virtually any tray for any application including clean rooms, machine can be specified as compact machine tool loader.

OSG Tap & Die, Inc.    Glendale Heights, IL 60139
Oct 27, 2006 Available in inch and metric sizes, EXOCARB® Thread Mills are made of sub-micrograin carbide. Multi-layered TiAlN coating promotes tool life and heat resistance, while high-helix construction promotes chip control. With one thread mill, users can produce varying thread diameters of same pitch; right/left-hand threads; or internal/external threads. Also used for blind or through-hole applications, tools work with materials such as Inconel, Titanium, and High Nickel Content Alloys.

Rittal Corporation    Springfield, OH 45504

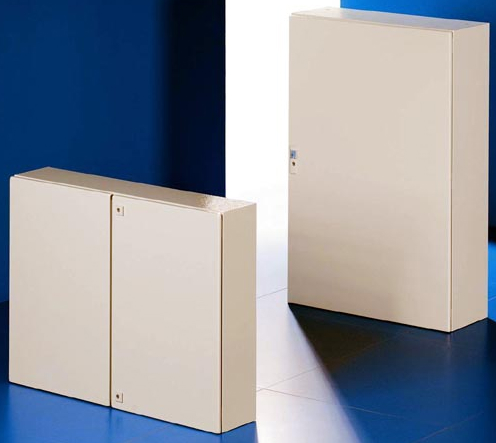

Oct 27, 2006 Offering NEMA 12/3R/4/4X protection, flange and non-flange wallmount enclosures feature mounting panels, left-hand hinged door with screwdriver insert, and pre-installed cable entry panels. Sizes range up to 72 x 60 x 20 in. Offered in sizes up to 16 x 14 x 10 in., junction box enclosures offer NEMA 4/4X protection for electrical and electronic equipment. Knife-edge perimeter prevents entry of dirt and liquids when open. Both products can be constructed of carbon- or stainless-steel.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

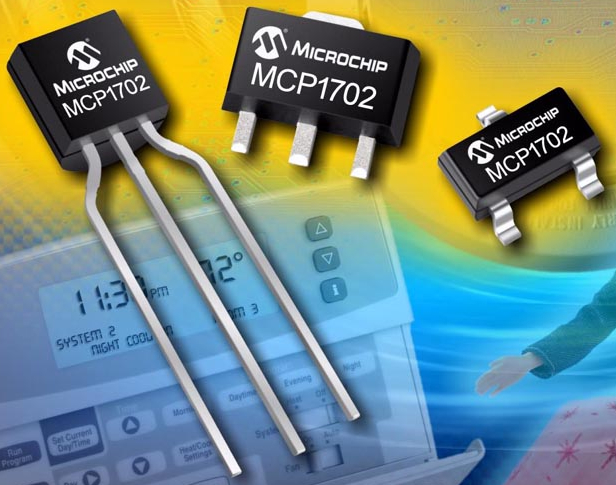

Oct 27, 2006 Offered in 3-pin SOT-89, SOT-23, and TO-92 packages, MCP1702 Low Dropout Regulator (LDO) suits applications requiring extended battery run-times and tolerance for input-voltage variations. It features quiescent current down to 2 µA, input voltage up to 13.2 V, over-voltage protection, and thermal shutdown on single chip. With output-voltage regulation, including ±2% over-temperature accuracy, this 250 mA LDO helps ensure smooth, reliable system operation.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Oct 27, 2006 Suitable for FOUNDATION Fieldbus and Profibus installations, Advanced Diagnostic Module for FieldConnex® Power Hub generates network documentation for each segment and device and controls fieldbus by monitoring physical layer. Built-in oscilloscope can be set to trigger on numerous events, allowing maintenance personnel to pinpoint fault locations from control room utilizing Device Type Manager. During commissioning, ADM makes snapshot of communication quality for trending changes over time.

Harman Corp.    Rochester, MI 48308 0665
Oct 27, 2006 Dip-molding service enables prototypes to be developed for caps, plugs, and handgrip applications, per customer specified materials, lengths, and thicknesses. Flexible PVC materials are offered in range of surface textures including foam, suede, and aggressive texture finishes, while other specialty materials include high and low temp resistance, static dissipative, UV stabilized, and UL 94 V compliant formulas. In addition to 8 standard colors, custom color matching is available.

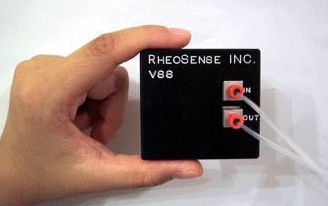

RheoSense, Inc.    San Ramon, CA 94583
Oct 27, 2006 Viscometer-on-a-Chip measures viscosity and temperature as test liquid flows through integrated micro-channel and micro slit rheometer. Non-Newtonian viscosity is extracted by 2D Rabinowitch correction, and measurement data is displayed and analyzed by microcontroller based read-out circuit. Shear rate ranges up to 10⁶ (1/s) can be measured over 10^-2-10⁴ Poise. Chip can also be adjusted to read flow rates for samples with constant viscosity.

Norcross Corp.    Newton, MA 02458 1829

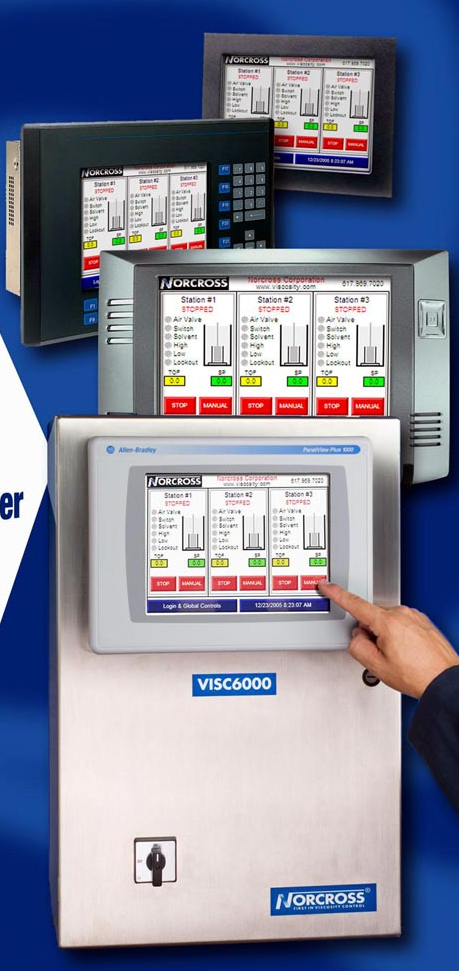

Oct 27, 2006 Norcross Invisible Controller operates with any PLC that has touch-screen interface, and controls up to 10 stations using company's viscosity sensors. Eliminating need for multiple controllers, it provides real-time trend plots for each station, data logging up to 7 days, and permits set-point and other viscosity parameter adjustments on-the-fly. Custom installed and fully integrated into user's system, software simplifies operator interface and creates single report for system.

Saelig Co., Inc.    Pittsford, NY 14534
Oct 27, 2006 Containing specialized processor designed for WiMedia and Certified Wireless USB protocols, UWB Generator 320(TM) produces sequences of arbitrary frames with programmable inter-frame delay, and then waits for any response (frame/event). USB-bus powered device supports up to 480 Mbps and features test error recovery mechanisms, functional validation and stress testing of protocol stacks, UWB multiband OFDM based on WiMedia PHY specification, and 3.1-4.8 GHz frequency band.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866

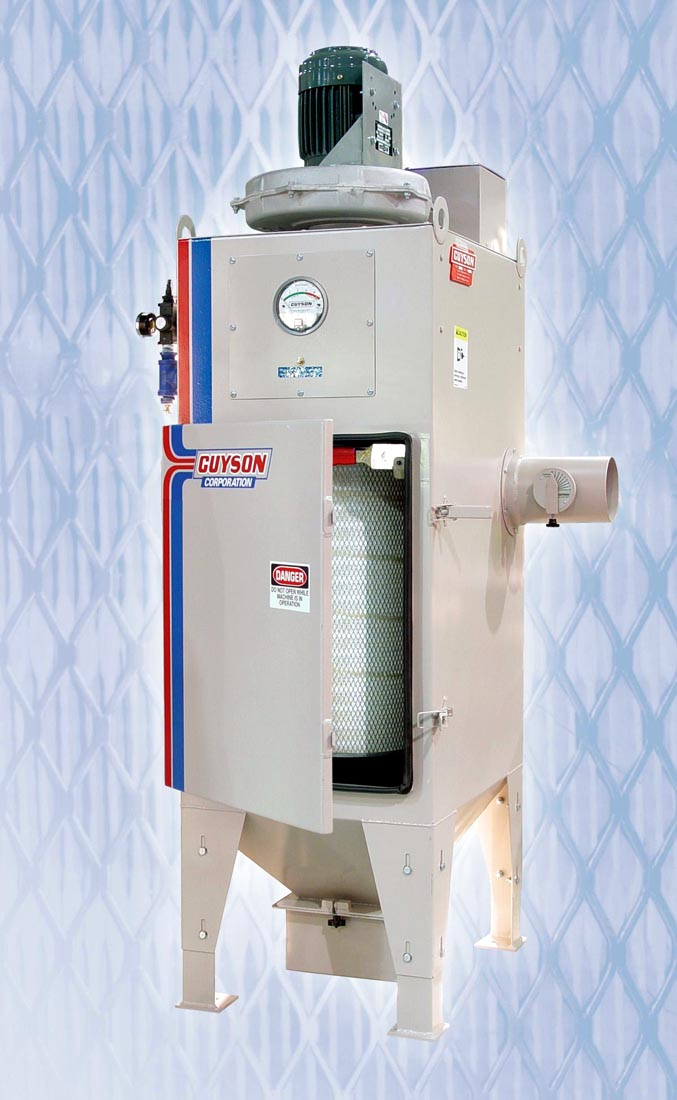

Oct 27, 2006 With nonferrous blower assembly powered by 1.5 hp TEFC motor, Model D500 cartridge-type dust collector generates air extraction of 500 Cfm. Measuring 202 x 58 x 87 cm, unit features flame retardant pleated paper filter cartridge and purges dust by reverse pulse cleaning system. Color-coded manometer gauge displays pressure differential between clean and dusty sides of filter while dial-faced butterfly blast gate adjusts airflow.

Red Lion Controls    York, PA 17406 9428

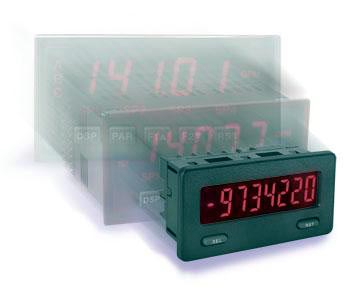

Oct 27, 2006 Offering 0.46 in. digits and user-selectable bright red or green LED backlighting, CUB5 Series operate on 10-28 Vdc power supply. CUB5ID dc current meter offers 4 current ranges and maximum input of 199.99 mA, while CUB5VD dc volt meter has 4 V ranges and maximum input of 199.99 Vdc. CUB5P process meter accepts processing signals and displays them in desired display readout, and CUB5RT and CUB5TC accept inputs from RTD and thermocouple sensors, respectively.

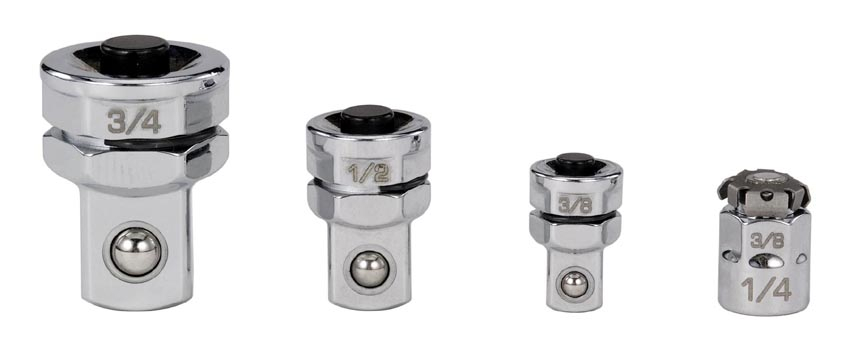

Stanley-Proto Industrial Tools; A Division of The Stanley Works    Conyers, GA 30013
Oct 27, 2006 Designed to fit 3/8, ½, and ¾ in., and 10, 13, and 19 mm ratcheting wrenches, ratchet adapters create low profile ratchets for space-constrained areas found in aircraft and automotive engines. Adapters can be used with ¼, 3/8, and ½ in. drive sockets, either English or Metric, as well as with spline sockets. Products use locking and release system and are available individually or in sets of 4 fractional or 4 metric adapters.

Anderson Power Products    Sterling, MA 01564
Oct 27, 2006 Designed to interconnect 2 perpendicular power bus bars, Rocker Power Clip is used in N+1 rectifier and switching power supply applications. Device accepts solid .125 in. thick nickel or gold plated rectangular bus bar tab, which eliminates need for mating connector. Connector's design enables blind mating in deep racks, while small size facilitates dense power packing. Recognized to UL1977 and CSA standard C22.2, product is rated for up to 300 A continuous service.

Digital Monitoring Products    Springfield, MO 65803
Oct 27, 2006 Used with 1100D series receivers and XRSuper6, XR20, and XR40 control panels, Model 1161 Smoke Detector and Model 1162 Smoke/Heat Detector are available with sounder. Models feature 2-way wireless communications, enabling one person to confirm transmitter communication with receiver. Red Survey LED turns on when transmitter sends data to receiver and turns off when receiver sends acknowledgement. Model 1162 provides built-in fixed and rate-of-rise heat detector.

Bocada Inc.    Kirkland, WA 98033
Oct 27, 2006 Bocada Enterprise 4 addresses FRCP amendments, which require that companies prove they are taking action to protect data, know where it is located, and can produce plan for retrieving that data. Media Reporting functions provide log summarizing contents of backup tapes, and identify type of information, timeframe, and location of data. Audit Reporting generates reports based on corporate business rule that logs successful backups addressing Rule 37(f).
