Hickory Hardware    Portland, TN 00000
Nov 02, 2006 Designed for Faultless 400, 800, and 1400 standard and stainless steel casters, Faultless® Caster Reinforced Thermoplastic Wheel features 65D durometer rating and is resistant to water, chemical absorption, and steam cleaning. Waffle design of blended, reinforced thermoplastic materials allows standard operating temperatures from -20 to +250°F. High-temperature version operates up to +480°F. Delrin bushings, roller bearings, and sealed radial ball bearings are available.

Thomas & Betts Corp.    Memphis, TN 38125
Nov 02, 2006 Used with Steel City® round PVC floor or metal switch box, Steel City 68R covers conceal plugs and receptacles below floor level in concrete, wood sub-floor, and raised floor applications. Products accommodate one duplex or GFCI receptacle and up to 2 communications jacks. When not in use, rotating lid closes securely to fully protect power and communications receptacles from water and debris. To access receptacles, lid is opened and rotated to expose small opening for routing cords.

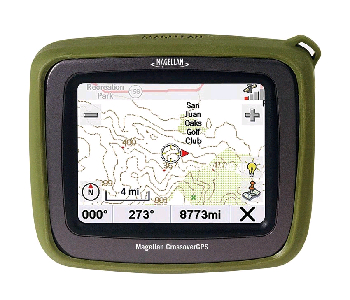

Magellan Systems Corp.    San Dimas, CA 91773
Nov 02, 2006 Preloaded with street maps and topographic contour maps, Magellan® CrossoverGPS(TM) operates as dedicated vehicle navigation system and as outdoor navigation device for areas without roads. For vehicle navigation, unit provides voice- and text-prompted turn-by-turn driving directions. Outdoor mode offers guidance using GPS coordinates for geographical locations, such as latitude and longitude. Measuring 3.4 x 4.3 x 1.1 in., unit has 3.5 in. color touch-screen display and IPX-4 waterproof design.

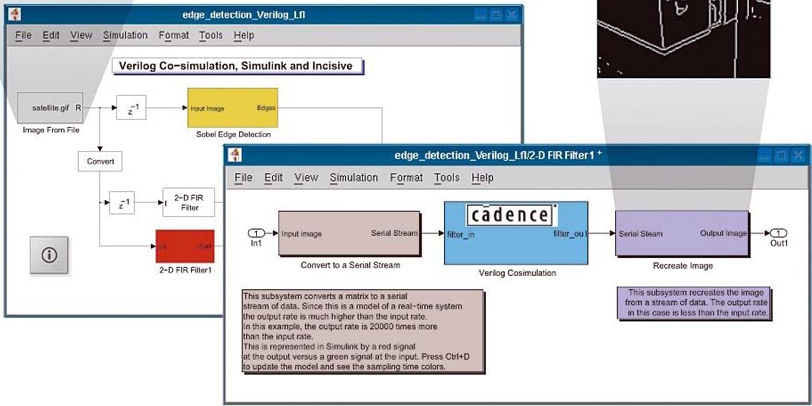

Mathworks, The    Natick, MA 01760
Nov 02, 2006 Link for Cadence Incisive enables verification of hardware description language implementations based on MATLAB® and Simulink® models. Integration of MATLAB and Simulink with Incisive® functional verification platform facilitates and accelerates design and verification of SoC, ASICs, and FPGAs through cosimulation. Solution, which supports 3 workflows that offer full interactive debug capability in client and server, can interface to multiple HDL entities and Incisive simulators.

T. M. Smith Tool International Corp.    Mt. Clemens, MI 48046
Nov 02, 2006 Offered in 31 sizes, Smith Grip(TM) Chuck Line includes chucks with 0.0002 in. runout at 4 in. from holder face. Units offer heavy-duty gripping by hand tightening with 90% contact with tool shank, and ability to handle high-pressure coolant. Available with ID clamping ranges from .380-2.580 in., chucks have 4-6 mounting screws in bolt circle around flange. Four tuning screws mounted around periphery of flange OD provide for zeroing-out of concentricity.

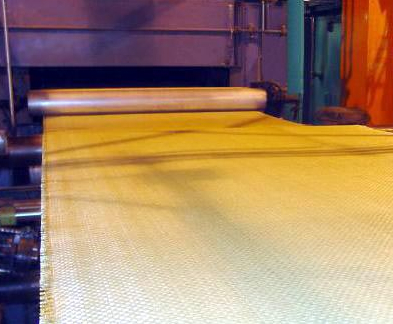

Norplex Micarta    Postville, IA 52162
Nov 02, 2006 Non-adhesive pre-preg thermoset composites (b-stage products) are dry to touch and can be customized to fit range of end-user requirements. Products do not require release film, enhancing storage, handling, and processing rates. Tight resin/substrate ratios ensure consisent reactivity. Available substrates include glass, cotton, paper, carbon fiber, and customer-specific substrates, while choice of resin systems includes phenolic, epoxy, melamine, and specialty materials.

Aerotech, Inc.    Pittsburgh, PA 15238
Nov 02, 2006 Available in 100, 150, 200, 250, and 325 mm aperture sizes, ALAR Rotary Stages provide angular positioning and velocity control with axial load capacity of 300-1,000 lb. Stages are 65-160 mm tall and deliver smooth motion without travel restrictions. They utilize brushless, slotless motors with zero cogging and no torque ripple. Performance is assured with encoder line counts from 31,000-74,000 per rev, resulting in resolutions from 0.02-0.009 arc-sec/count.

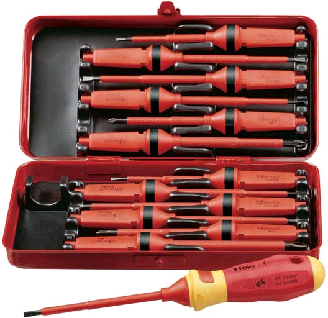

Bondhus Corp.    Monticello, MN 55362 9347
Nov 02, 2006 FELO Brand Smart Tools feature handles that can be used in either screwdriver or T type handle positions, and include wide range of interchangeable blades. Screwdriver blades are machined from European Chrome/Molybdenum/Vanadium steel and heat-treated to highest possible hardness levels to give tool users lifetime of service.

AMETEK Process Instruments    Newark, DE 19702

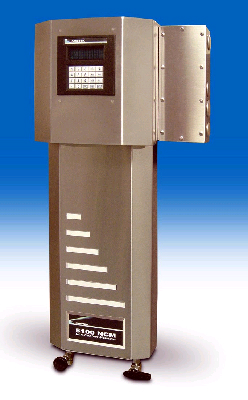

Nov 02, 2006 Utilizing tunable diode laser absorption spectroscopy, Model 5100-NCM measures moisture in natural gas. Unit has an operating range of 5-2,500 ppmv, a 5 ppmv limit of detection, and is accurate to less than 2% of reading or ±4 ppmv, whichever is greater. Analyzer features fully enclosed optics and sample conditioning, on-board moisture verification, and all digital signal processing. Unit is available in IP65 and NEMA 4 enclosure with both Modbus and Ethernet analog and digital connectivity.

FKI Logistex North America    St. Louis, MO 63132
Nov 02, 2006 Freeing workers from paper pick lists and terminals, EASYpick® Voice provides clear voice commands via wireless network. It combines wearable computer with VISE(TM) Voxware Integrated Speech Recognition Engine. Utilizing speaker-dependent technology, each order filler can build custom profile, or voiceprint. Continuous speech recognizer, powered by Voxware®, enables order fillers to communicate with system in natural fashion, while noise-canceling microphones minimize chance of work interruption.

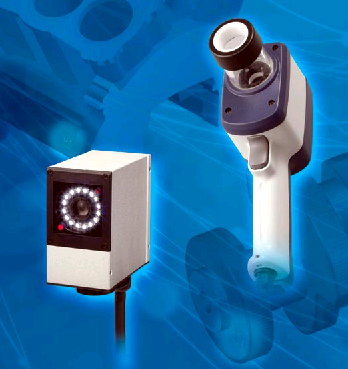

Panasonic Electric Works Corporation of America    New Providence, NJ 07974
Nov 02, 2006 Configured with 3-step software, IP67g-rated Model PD60/65 reads 2D codes from full 360° direction on metal in approximately 30 ms, even if it is stained, chipped, tilted, or reversed. Algorithm with pre-processing functions provides repeatability on Direct Marked codes. Equipped with drop and side lighting for reading on shiny surfaces, handheld Model PD65 incorporates sound and optical acknowledgement system, which is useful on noisy factory floors.

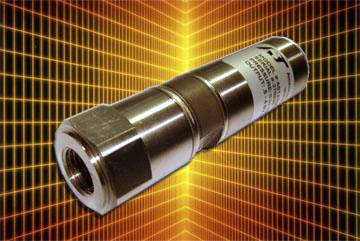

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828
Nov 02, 2006 AST47HP Series Pressure Sensors incorporate 1-piece stainless steel sensing element that is free of silicone oil, welds, and O-rings, eliminating contamination from outside media. Units are rated for over 100 million pressure cycles and have 100 V/m EMI/RFI protection. Operating from -40 to 185°F, sensors are available with 10 mV/V (50 mV), 0-5 V (3 or 4 wire), 0-10 V (3 or 4 wire), 1-5 V, 1-6 V, 1-10 V, or 4-20 mA (loop) outputs for different application requirements.

Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 02, 2006 Designed to mount devices flush in oversized drywall, tile, and panel wall applications, Shim-lock fastens onto screw in mounting slot of electrical wiring device or lighting control strap. Once screw is tightened to desired depth, Shim-lock's tabs lock it in place. Made of steel with heat-treated finish and clear zinc chromate plating, product is 0.31 in. in length with #6 screw opening and provides device adjustment depth from 1/8 to 3/4 in.

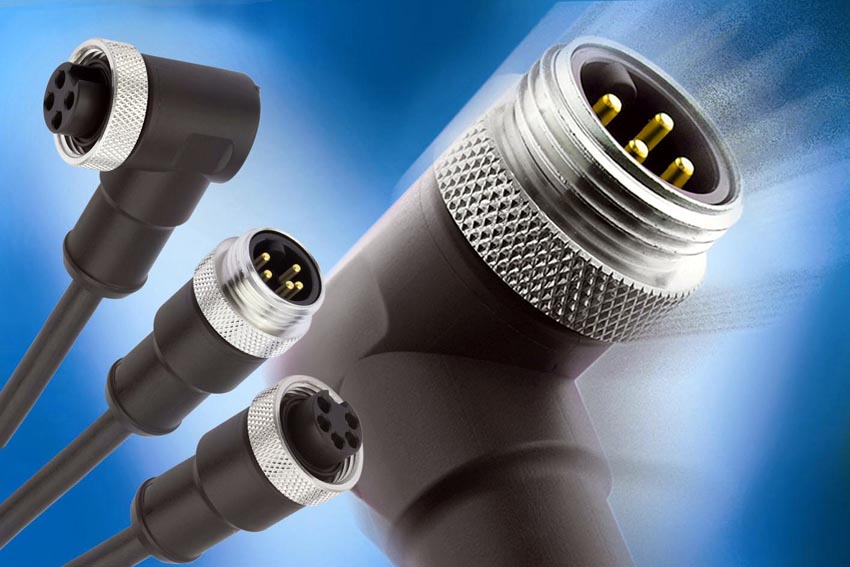

Binder-USA    Camarillo, CA 93012
Nov 02, 2006 Series 870 7/8 in. overmolded threaded connectors come with 3, 4, or 5 gold-plated contacts with current carrying capacity of up to 13 A each. Sealed to IP68, connectors have been tested to survive water submersion to depth of 18 m for up to 24 hr. High degree of sealing is achieved through use of elastic, self-sealing contact carrier made of PUR. Connectors are overmolded to cable lengths of 2-5 m, custom lengths are also available.

Spirax Sarco, Inc.    Blythewood, SC 29016

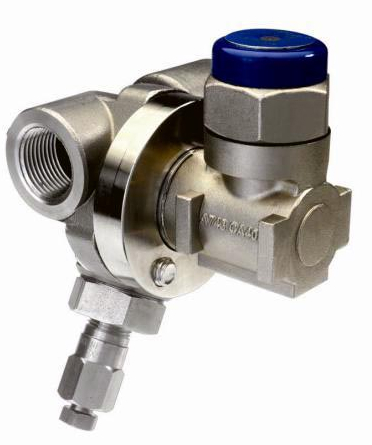

Nov 02, 2006 Cool Blue UTD52S series of Thermo-Dynamic® steam traps is engineered for all-drip and saturated/superheated steam applications with maximum temperature of 750°F and maximum pressure of 450 psig. Small surface of UTD52S cap reduces heat loss and ceramic insulator cover does not touch cap, preventing heat conduction and lengthening cycles. Series includes hardened SS disc and seating surface, electroless nickel-plated cover, and 3-port balanced discharge.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Nov 02, 2006 Providing mechanical and electrical (LED) means for automatic placement and removal of orange warning tags, Tagging Relays feature serial communications capability and are used to optimize automated breaker control schemes in power distribution systems. They allow bidirectional operation and have 2 N/O and 2 N/C contacts per deck. Series 24 relays are offered in 2 positions and up to 10 decks, while Series 31 relays are available in 2 or 3 positions with 8 and 6 decks, respectively.

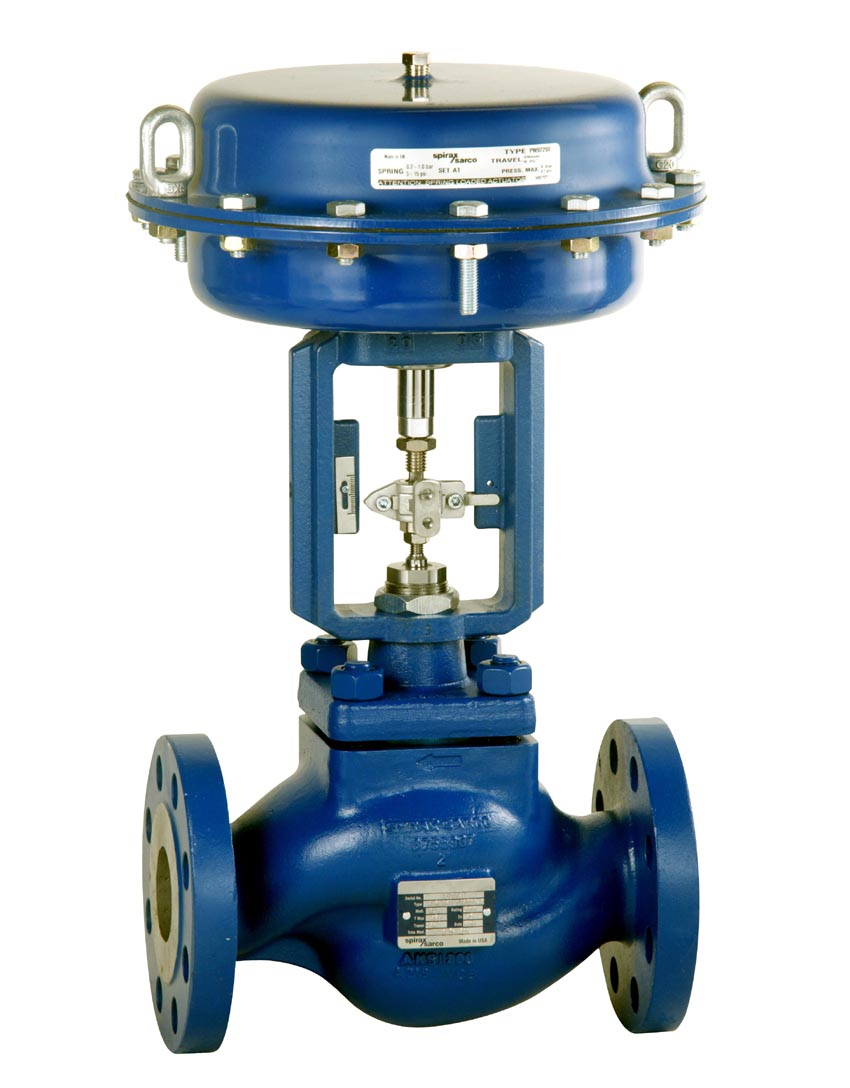

Spirax Sarco, Inc.    Blythewood, SC 29016
Nov 02, 2006 Spira-Trol(TM) general service control valve suits range of applications including food and beverage, pharmaceutical, and electronics manufacturing. Hard trim materials and modular design diffuses discharge from plug and seat while also reducing internal flow velocities. Offered with cast iron, SG iron, carbon steel, stainless steel, or NACE construction, valves come in ½ to 4 in. sizes with standard or custom center face dimensions and ANSI, PN, JIS, KS, NPT, BSP or SW connections.

Men Micro Inc.    Lago Vista, TX 78645-4160
Nov 02, 2006 Designed for 3U Compact PCI systems, Model F209L wireless LAN module operates in -40 to 85ºC industrial temperature range and can be coated with conformal film to protect against humidity and dust. Product supports IEEE 802.11b wireless data transfers up to 11 Mbps, has output power range of 20 dBm, and has outdoor signal range of up to 600 m. Module, based on the Prism 2.5 chipset, includes WEP encryption and operates in open 2.4 GHz frequency range.

Clare Inc.    Beverly, MA 01915
Nov 02, 2006 Models CPC1390/CPC1393 Solid State Relays have 400/600 V load voltage, 140/100 mA current handling, and 22/50 W maximum on-resistance. With 30 W on-resistance, CPC1330 features 350 V maximum load voltage and 120 mA current handling. Isolation barrier OptoMOS® 1-Form-A (Single Pole, Normally Open) 4-pin devices are offered in DIP and surface mount packages.

Valvoline Co. The, Div., Ashland, Inc.    Lexington, KY 40509
Nov 02, 2006 Suited for high-speed 4-stroke cycle diesel engines, Premium Blue® SAE 15W-40 Oil is designed to meet 2007 model on-highway exhaust emissions. Product is formulated to optimize corrosion protection for all engine parts and to provide soot control and shear stability. Oil performs in emissions treatment equipped with sophisticated emissions control hardware, including exhaust gas recirculation, diesel particulate filters, and Caterpillar ACERT® technology.
