Thomas & Betts Corp.    Memphis, TN 38125
Jul 07, 2011 Manufactured as continuously molded strip, Sta-Kon® Plastic Strip-Fed Terminals, rated to 600 V, will not jam equipment or tooling and have consistent surface. Funnel-entry facilitates and accelerates wire insertion, internal barrel serrations promote conductivity and pullout strength, and sleeved barrels prevent separation. UL94V2 flame-rated, nylon insulation withstands operating temperatures of 221°F and is resistant to chemical exposure, impact, and abrasion.

Liberty Pumps    Bergen, NY 14416
Jul 07, 2011 Intended for residential applications, SPAC-Series consists of 18 x 22 in. polyethylene sump pit with fully installed sump pump and 1½ in. schedule 40 PVC discharge. Molded raised platform in bottom of pit minimizes potential for debris to enter pump. System is available in 1/3 and ½ hp models.

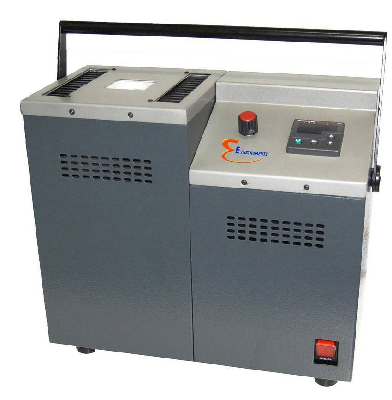

E Instruments International LLC    Langhorne, PA 19047
Jul 07, 2011 With temperature range of -55 to 140°C, Model TCS140 is suitable for calibrating glass thermometers and for short thermocouples and thermoresistors. Dry Block insert can be replaced with Liquid Bath complete with adjustable speed agitator. Unit heats from -30 to 140° in 15 minutes and cools from 140-0°C in 15 minutes with stabilization time of 10 minutes. Optional Black Body insert is available for IR thermometers.

Geometric Technologies    Scottsdale, AZ 85260
Jul 07, 2011 Designed to optimize 2-dimensional packaging, NestLib® 2011 R2 provides high-speed algorithms for fully automated true shape nesting. In addition to saving material while producing parts, software also allows reuse of waste material for future requirements. Release 2 can handle piercing data attached to part while nesting, and offers multi-tool support for cutting different edges in part by incorporating different tool compensation in nested layout.

Kemet Electronics Corp.    Greenville, SC 29606
Jul 07, 2011 Supplied in EIA 0402 case size with C0G dielectric, High Temperature 200°C Series MLCCs feature voltage range of 10-100 Vdc and capacitance of 0.5-1,500 pF. Non-polar devices produce no piezoelectric noise, have no capacitance change with respect to applied rated DC voltage, and no capacitance decay over time. Applications include high temperature environments present in down-hole exploration equipment, aerospace engine compartments, and geophysical probes.

PayCommerce    Piscataway, NJ 08854
Jul 07, 2011 With processor-agnostic PayCommerce PCI DSS Level 1 platform, ISOs can deliver cloud-based, integrated payment services to existing and future customers without changing existing processors. Validated payments platform provides single source for all customer billing and payment activity as well as access to multiple processor and payment types, fraud management, Level 3 data, and mobile payment solutions. Dashboard and reporting features deliver up-to-date payables and receivables insight.

Alkacon Software GmbH    Köln DE-50996  Germany
Jul 07, 2011 Built in Java and XML from open source components, OpenCms v8.0.1 enterprise-ready solution can be deployed on existing IT infrastructure and delivers features suited for medium and large enterprise internet or intranet applications. Advanced Direct Edit (ADE) mode lets users create page content via drag-and-drop functionality and directly modify page properties, while sitemap editor also allows for creation of new pages and rearranging navigation tree via drag-and-drop operations.

Chemir Analytical Services    Maryland Heights, MO 63043
Jul 07, 2011 Proprietary service helps identify unknowns, characterize materials, isolate contaminants, and resolve other analytical challenges via instruments such as Nicolet 6700-FTIR Advanced Gold spectrometer, which is configured to work in NIR and mid-IR and comes with attached Continuum IR microscope. Features facilitate identification of small particles and accelerate contaminant identification and surface analysis of organic and polymeric materials.

Atlas Material Testing Technology LLC    Chicago, IL 60613 1831
Jul 07, 2011 Panel PC-equipped Ci4000 and Ci5000 Weather-Ometers provide suite of data acquisition (DAQ), remote access control, and monitoring tools. With included WXView DAQ software, weathering instruments gain support for remote access via LAN interface, remote functions available in 7 languages, as well as ability to create and apply unique identification/name to each Weather-Ometer. Control system also offers USB connections and UI that promotes efficient transfer of information.

EMI Supply, Inc.    Concord, NC 28027
Jul 07, 2011 Available with 12-47 separate pieces, Williams Compact Case Socket Sets feature chrome vanadium steel tools and sockets with SUPERTORQUE® lobular openings. Williams Rugged Case Tool Sets, offered in 11 sets ranging from 20-95 separate pieces, include shock proof products equipped with heavy-duty metal latches and hinges for professional mechanics and tradesmen. Creeper options include low-profile version, adjustable 2-seat style, and 2-seat style with plastic pan under seat.

EMI Supply, Inc.    Concord, NC 28027
Jul 07, 2011 Originally designed for use in central air systems, on fire and floor restoration jobs, and in sewage facilities, ClenAir Odor Neutralizer Gel Tubs eradicate stubborn odors, even those that have built up over time such as cigarette or pet odor, without lingering antiseptic or perfume smell. Available in variety of sizes from ½-3 lb, tubs are biodegradable and non-toxic. Unscented, cherry scented, and orange scented versions are available.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Jul 07, 2011 Without requiring drilling, bolting, or welding, magnetic tie-downs with Magswitch® technology enable fast, temporary, and portable holding of tarps, signs, and banners to flat or round steel surfaces. Magnets activate by pushing handle slightly down and rotating 180°, and handle can be used as hook or cleat for fastening of object with grommets or ties. Multiple holding strengths are available based on application requirements.

ITW Devcon    Danvers, MA 01923
Jul 06, 2011 DFense Blok(TM) alumina ceramic bead-filled epoxy compound, when used with surface wetting agent, increases drop impact strength over 1 in. ceramic tile as tested using 85 lb weight with 0.25 in.² striking surface. It also withstood abrasion testing via No. 14 silicon carbide blasted at 40 psi and 45° angle. With working time of 25 min, non-sagging compound can be applied by trowel at thicknesses of ¾ in. on vertical surfaces and ½ in. on overhead surfaces. Functional cure occurs in 4-5 hr.

Sensorex    Garden Grove, CA 92841
Jul 06, 2011 Supporting FCL400 Free Chlorine Sensor and CLD400 Chlorine Dioxide Sensor, FCLA 7000 eXact Photometer utilizes 525 nm LED light source to measure free chlorine from 0-11 ppm or chlorine dioxide at 0-6.5 ppm with photometric precision of ±0.1/0.01% T and transmission range of 100-0.00% T. EPA-compliant, battery-powered unit operates from 32-122°F and features 3-digit customized LCD with annunciators, automatically displaying 0.01 or 0.1 resolution.

Bac2 Limited    Southampton SO15 0DJ  United Kingdom
Jul 06, 2011 With CSR Catalysts, users can create formulations suitable for production of storage-stable phenolic and furan-based pre-polymeric mixes. These inherently flame-retardant bulk and sheet molding compounds can be cured rapidly at 120°C or more slowly at temperatures above 50°C. Applications requiring flame-retardant moldings include interior fittings for all forms of transportation, seating for stadia, electrical insulation products, and electronic/electrical systems packaging.

Denso Sales California, Inc.    Long Beach, CA 90810
Jul 06, 2011 WINCAPS III enables robot to be programmed from offline computer and allows remote monitoring of workcell operations via realtime I/O status indicators and detailed control logs. Using included 3D simulation package, users can lay out entire automation workcell in virtual environment. Solution employs robot's native command language and lets users record simulation session and save it as AVI file for later reference. Other features include Easy Teach function and several editing functions.

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 06, 2011 Suited for use in elctronic devices, scalable spring fingers (shield fingers) are available in heights from 1.8-3.4 mm and are swappable upon demand. Preload function optimizes working area and contact force, while dimple on contact enhances reliability. Backward-bended tip prevents product from hooking by removing sharp edge, and pick-and-place area on back supports auto assembly processes. Also, holes at bottom increase soldering strength while reducing solder wicking issues.

Acromag, Inc.    Wixom, MI 48393 7037
Jul 06, 2011 Mounted in DIN Form B sensor heads or on DIN rail, Model ST133 converts sensor input signals from 8 thermocouple types or ±100 mV range and outputs proportional 4-20 mA process control signal. Addition of 1,500 V isolation between input and output circuit shields equipment from high-voltage surges and transient signals and breaks up ground loops. Operating from -40 to 80°C, USB-configured transmitter includes signal linearization, cold-junction compensation, and response time of 30 msec.

UltraVolt Inc.    Ronkonkoma, NY 11779
Jul 06, 2011 AA Series and High Power C Series are available with -I5 and -I10 interface options, which are optimized for connecting to computers and PLCs in process systems and capital equipment. Options include buffered, low output impedance current and voltage monitors and have programming accuracy of ±1%. Also, remote programming for all polarities and all modes is 0 to +5 V (-I5) or 0 to +10 V (-I10). Both options also feature +5 V (-I5) or +10 V (-I10) reference, ±0.05% PPM/°C.

PREMO Group    Barcelona   Spain
Jul 06, 2011 Supplied in package for THT mounting, DSR5 series is designed for single supply voltage of +5 V and integrates primary winding that allows DC, AC, and pulse current measurement on PCBs. This close loop technology component also features external pin that allows access to internal reference (2.5 V) and can be used as output or input signal to be used by MCUs, optimizing offset control at cero current. Series is designed for nominal currents of 6, 15, 25, and 50 A.
