Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910
Nov 14, 2006 Delivering thrusts up to 25 lb, Size 11 Actuators are available in resolutions from 0.000125-0.002 in./step. Optical incremental encoder incorporates lensed LED light source and monolithic photodetector array with signal shaping electronics to produce 2 channel bounceless TTL outputs. Operating from -40 to +100°C, encoder offers resolutions from 200-1,024 cycles/rev or 800-4,096 pulses/rev. Actuators are suited for applications requiring precise positioning and rapid motion.

Mocon    Minneapolis, MN 55428

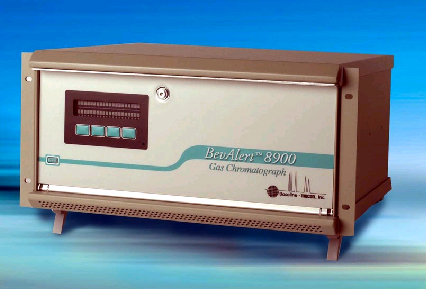

Nov 14, 2006 Based on photoionization detector, BevAlert(TM) Model 8900 eliminates need for multiple instruments by detecting presence of both acetaldehyde and BTEX VOCs. It is suited for variety of beverage applications such as water, carbonated drinks, and beer, as well as quick frozen foods. Customization options are available for indoor or outdoor air quality analysis, oil and gas exploration, and other trace impurities in specialty gases.

Control Co.    Houston, TX 77258 8307

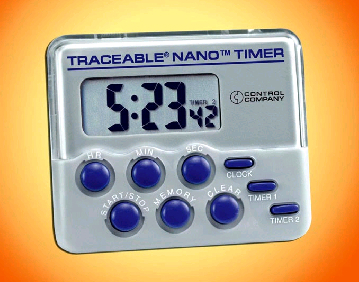

Nov 14, 2006 Measuring 2½ x 2 x 7/8 in., Traceable® Nano(TM) Timer displays countdown alarm timer/stopwatch time, and time of day with press of button. Unit can count down or up to 23 hr, 59 min, 59 sec on 2 timing channels. For repetitive tests, 2-channel memory automatically returns display to original programmed time. Timer features high-decibel alarm that sounds for 1 min and 3/8 in. high digits that may be read from 10 ft. It comes with battery, clip, stand, and magnet on back.

Dampney Co., Inc.    Everett, MA 02149

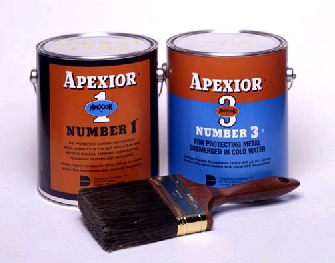

Nov 14, 2006 Developed for waterside corrosion prevention for surface temperatures up to 700°F, Apexior® Coatings are available in VOC-compliant formulations. Single-component Apexior Number 1® consists of air dry coating that prevents pitting corrosion and scale deposits on metal surfaces immersed in hot water at temperatures above 200°F. Apexior® Number 3® protects metal surfaces that are frequently wet, exposed to high humidity, or immersed in water up to 140°F.

NuSil Technology    Carpinteria, CA 93013
Nov 14, 2006 Low outgassing, one-part material EPM-2411-2 glop-top is designed for encapsulation of chip packages in devices where outgassing-related contamination poses problem. Product exhibits low stress and wide operating temperature ranges characteristically associated with silicone-based materials. It is stored and shipped frozen in 3 and 30 cc syringes as well as 3 and 6 oz tubes.

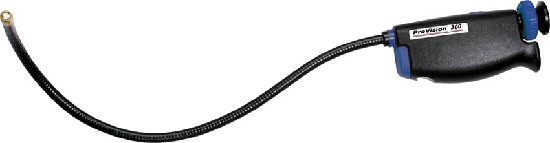

NTE Electronics, Inc.    Bloomfield, NJ 07003
Nov 14, 2006 Allowing users to see into inaccessible places, ProVision(TM) fiber optic scopes are available in 5 cable lengths up to 96 in. Featuring ergonomically designed handle, scope's omni-directional cable will reach deep into walls, drains, vents, and engine blocks. Halogen lamp illuminates dark locations, while integrated focus ring enables smooth, continuous focusing. ProVision scopes are suited for mechanics, electricians, plumbers, HVAC repair, welders, law enforcement, and home inspectors.

Olympus Industrial America, Inc.    Orangeburg, NY 10962
Nov 14, 2006 Suited for research in industrial materials and electronic components, Models SZX 16 and SZX 10 enable crystal-clear 3D observation and inspection down to detailed microstructure. Model SZX 16 offers 900 mm line pair resolution and Super Depth of Focus objectives, virtually eliminating image aberrations. To minimize fatigue, units feature ergonomically designed tilting trinocular observation tubes and optimized focus and zoom control knob location.

Indus-Tool    Chicago, IL 60607

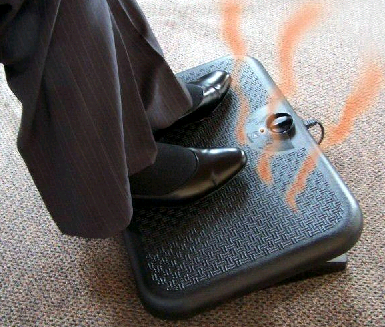

Nov 14, 2006 Measuring 12 x 18 x 5 in., thermostatically controlled Toasty Toes offers 3 positions, including mat, ergonomic footrest, and vertical heat panel. Unit plugs into any 110 V outlet, drawing 90 W and 0.8 A. It produces no space-heater-related hazards such as fires, burns, explosions, indoor air pollution, or carbon monoxide poisoning. Applications include desk, conference room, shipping table, security or ticket booth, repair shops, and production lines.

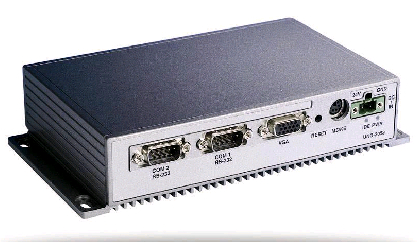

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 14, 2006 Able to fill diverse communication needs, X86-grade UNO-2053E offers dual LAN, dual USB, PC card interface, and two RS-232 communication ports. It is equipped with 400 MHz GX533 CPU, 256 MB DDRRAM, one DB-15 VGA connector, and two 10/100 Base-T RJ-45 ports. Unit can be provided with Windows CE, which is pre-configured and optimized for on-board device drivers. To expand storage capability, UNO-2053E allows for internal 2.5 in. HDD using UNO HDD extension kit.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 14, 2006 Universal MATE-N-LOK connectors are available with plugs, caps, and headers in red, orange, yellow, brown, green, blue, gray, black, or white. Different colors let designers color-code interconnections within device they are designing, meet system color-coding protocols, or promote visibility of wiring harnesses and assemblies. Constructed of UL 94V-0 or UL 94V-2 material, molded plastic products are RoHS-compliant and carry UL recognition, CSA certification, and VDE approvals.

Richco, Inc.    Morton Grove, IL 60680

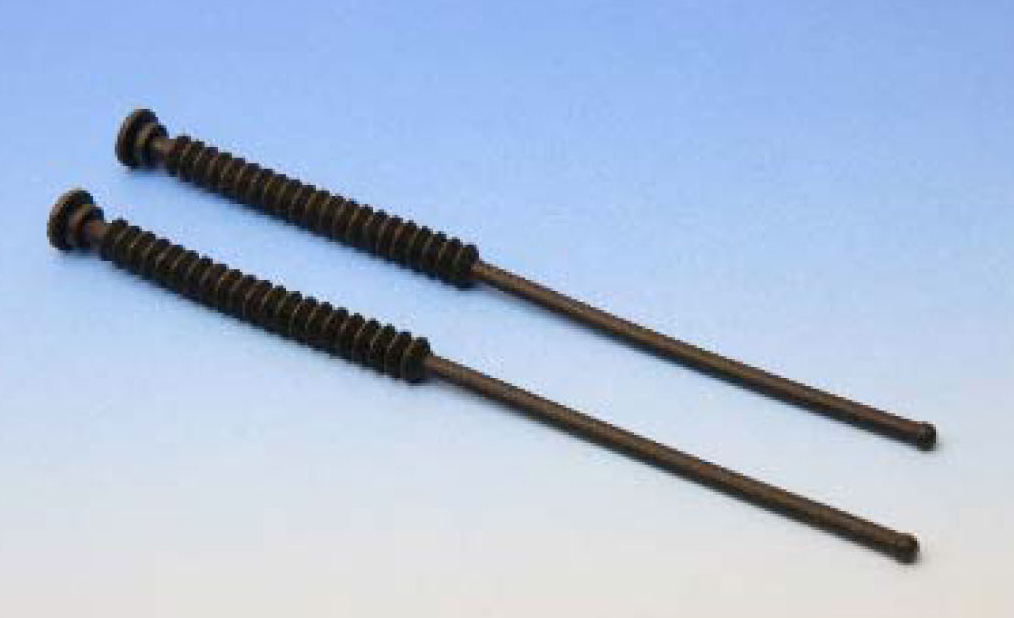

Nov 14, 2006 Featuring one-piece design that fits all industry-standard dc fans from 10-51 mm, FMM series provides shock and vibration protection and facilitates assembly when mounting in restrictive spaces. End can be cut off after mounting for further space conservation.

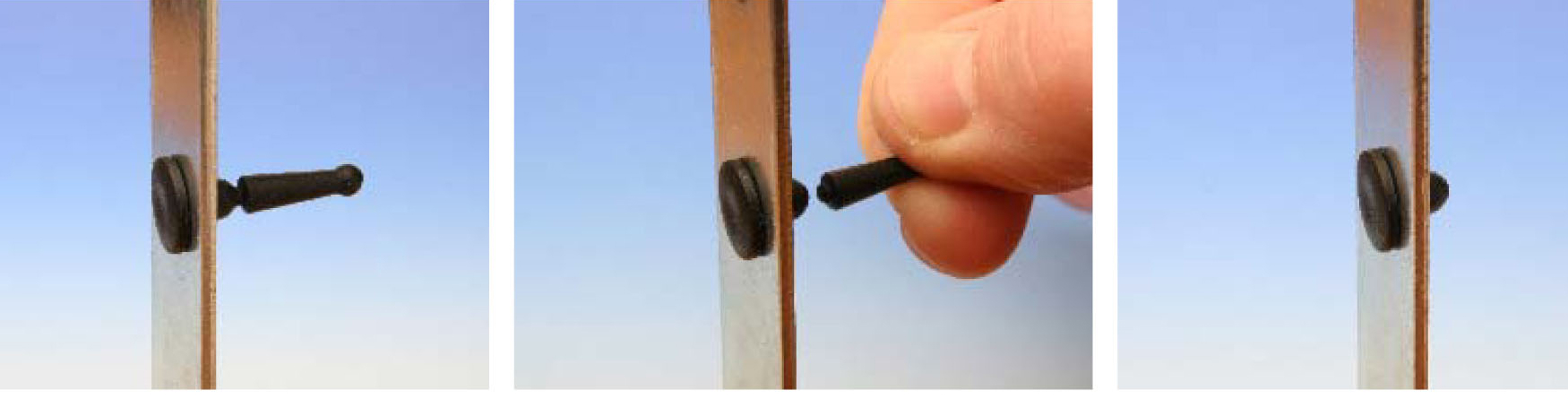

Richco, Inc.    Morton Grove, IL 60680
Nov 14, 2006 Constructed of 35 Shore A, shock-absorbing silicone rubber, BAB series is intended for pull-through manual assembly. Mounting tab on bumper is designed to break away after assembly to conserve space. Bumpers maintain aesthetic appearance on outside of chassis and offer temperature resistance to 482°F. Products exhibit anti-skid and anti-marking properties.

Blaser Swisslube Inc.    Goshen, NY 10924

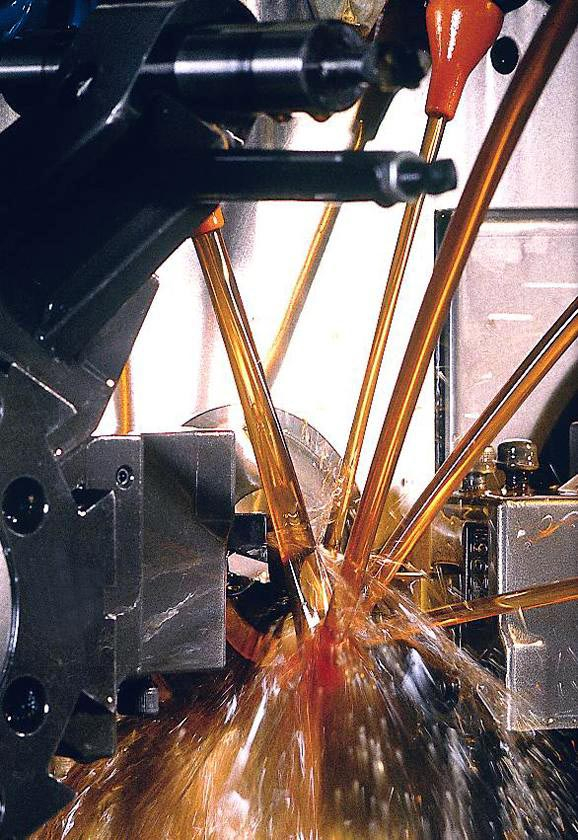

Nov 14, 2006 Suited for high-pressure oil applications, Vascomill 10 features viscosity levels that allow for optimal air escape. This promotes foaming resistance, even in cycles where high pressure is engaged more than 50% of time. Environmentally conscious, vegetable ester-based cutting oil works with stainless steels, titanium, and high-temperature alloys in Swiss-style CNC lathes.

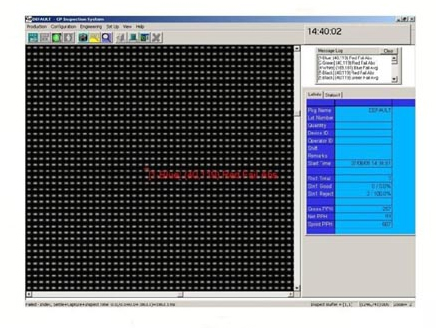

Value Engineering Alliance, The    Cambridge, MA 02139-4772
Nov 14, 2006 Featuring software to support semi-automated inspection of LCDs, PC-based VIDIASYS(TM) has modular architecture that lets functional blocks be combined and exercised as needed to address various tasks. Standard systems detect pixel and line defects as well as problems with luminance or uniformity, and general-purpose core product is tailored to meet manufacturer requirements. System also includes multi-level password protection, data management functions, and diagnostic tools.

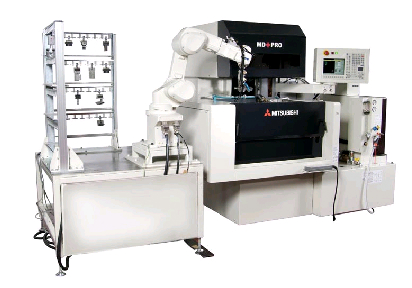

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
Nov 14, 2006 Combining MELFA RV-12S 6-axis robot with MD+PRO wire EDM, MD+CELL minimizes need for operator intervention and maximizes unattended running time. Robot provides 12 kg payload and 64-position magazine. MD+PRO comes with .006-.012 in. wire capable automatic threading and all-axis absolute control, which enables accurate positioning without returning to zero after power failure. Integration of optional B-axis during turn-n-burn applications replaces need for secondary and finishing processes.

J. W. Winco, Inc.    New Berlin, WI 53151

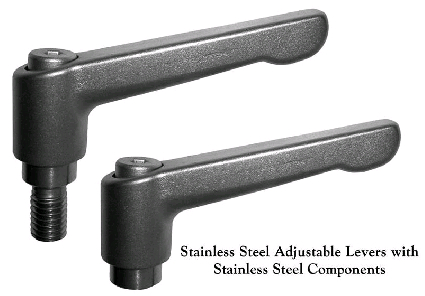

Nov 14, 2006 Featuring solid, all SS handle with sand-blasted satin finish, Adjustable Levers are available in variety of sizes, in tapped, blind bore, and threaded stud types. Inserts, screws, and springs are also SS, making levers suitable for applications in food processing and chemical industries. Special bores, threads, and stud lengths are available upon request.

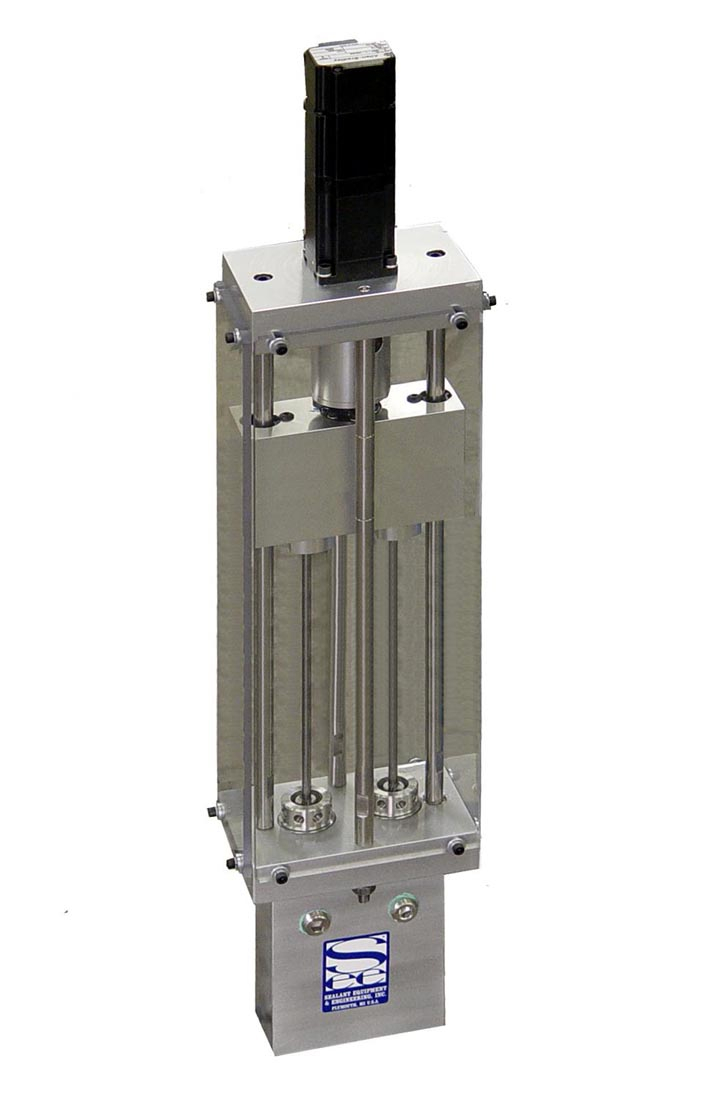

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Nov 14, 2006 Servo-Flo® 801-HV PD, 2-component meter-mix dispensing system features servo-motor design for consistent and repeatable bead profiles and change of flow rate during dispense cycle, providing dispense results from 0.2-18 cc at 1-to-1 ratio. System can be preset to vary flow rate during dispensing in automated, indexing, XYZ-motion, and robotic processes. Disposable No-Flush(TM) mixers dispense virtually all 2-component materials, including epoxies, silicones, polyurethanes, and acrylics.

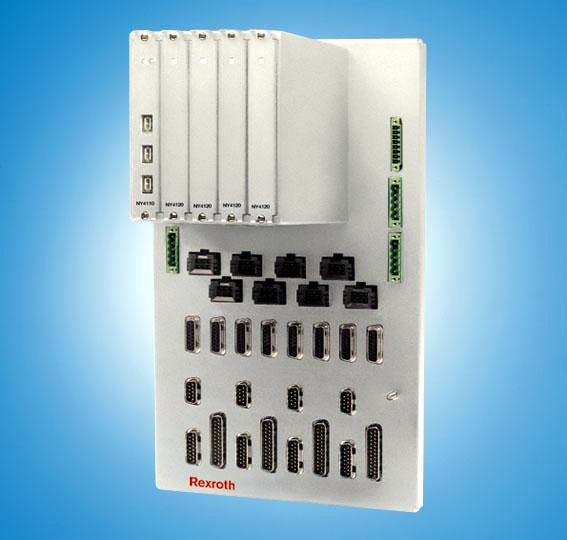

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707
Nov 14, 2006 Able to control up to 10 stepper and servo motors, NYCe4000 Motion Control system integrates complete control and drive hardware in one unit. Compact multi-axis system features up to 120 digital and analog inputs/outputs, as well as open software architecture for automating modules and complete machines with optimal code protection for OEM. Up to 62 controllers can be operated in network using standard PC technology.

Lista International Corp.    Holliston, MA 01746

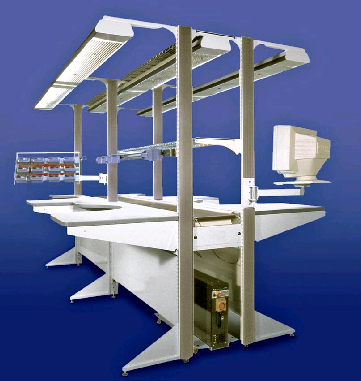

Nov 14, 2006 Offered in 5 widths and 3 heights up to 84 in., Arlink® 8000 Workstations are suitable for assembly, inspection, testing, rework, packaging, and material transfer. Units are available with supplied conveyor or can be integrated with existing conveyor for workflow management. Definite Positioning System(TM) facilitates relocation or adjustment of worksurfaces, storage, shelving, lights, power beams, and footrests. Worksurfaces are available in standard laminate or static dissipative.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 14, 2006 Designed for identifying various pressure applications, Series CC features polyutylene terephthalate housings in red, blue, yellow, and green. Red and yellow cases identify safety conditions, while blue and green gauges identify specific process media. Offering 1% ANSI/ASME B40.1 Grade 1A accuracy, gauges are available with various pressure ranges for applications such as pumps, compressors, hydraulic presses and machinery, pipelines, and oil refineries.
