EMC Corp.    Hopkinton, MA 01748-9103
Nov 16, 2006 Smarts Application Discovery Manager v5.0 helps enterprises to view network and storage resources in context of distributed business applications. Enabling users to detect, log, and report changes in software and hardware configurations, software also provides real-time CMDB database to manage impact of such changes. Software discovers and maps J2EE applications and granular components, supports data aggregation and reconciliation, and summarizes information through CMDB dashboards.

Nextest Systems Corporation    San Jose, CA 95112
Nov 16, 2006 Featuring AITOS ATS1240 illuminator and Semics Opus II wafer probing system, Magnum iCP(TM) enables users to test up to forty 256 megapixel CMOS image sensor devices in parallel, with each device having its own image processor. Integrating logic test capability with optimized image capture and analysis hardware, system captures pixel data at 100 MHz with 14 bits per pixel and store up to 64 image planes in its Image Capture Ram.

XP Power    Sunnyvale, CA 94085
Nov 16, 2006 Offered with Class I and Class II ac inputs, Model AMM120 delivers 120 W of power and provides single output of 12-48 Vdc with 85% efficiency under full load. Product measures 6.3 x 3 x 1.72 in., has power density of 3.69 W/cu in. and operates at full power at up to 40°C, and at least 50% power at 60°C. Unit requires no minimum load, provides more than ±5% total regulation, limits ripple and noise to 2%, and provides overload and short circuit protection.

Taiyo America, Inc.    Carson City, NV 89701
Nov 16, 2006 Used for designs that need laser direct imaging, Model LDI-1000 GA solder mask requires 80 mJ/cm² of exposure energy and provides coatings up to 65 microns in thickness. RoHS compliant product meets low halogen standards and is compatible with final finishes including electroless nickel/immersion gold, silver, and tin. Solder mask is heat resistant and is compatible with lead-free assembly.

Stackpole Electronics Inc.    Raleigh, NC 27604
Nov 16, 2006 Using gold as inner termination material to eliminate effects of sulphur, RMCG series chip resistors have resistance values from 10 W to 10 MW, tolerances of 1%, and TCs of 200 ppm. RoHS compliant units are available in sizes from 0603-1210 and offer zero ohm jumper for each size. Offered on tape or reel, resistors are used in applications including medical electronics, aviation and aerospace, utility meters, and instrumentation.

Recommind, Inc.    San Francisco, CA 94133
Nov 16, 2006 MindServer Expertise(TM) combines directory content with individual work product to provide access to tacit knowledge of organization. Application gives consulting and professional services firms ability to identify individuals within firm who have unique expertise or specialized knowledge, so that they can find and collaborate with those individuals on project work, present full value of firm's knowledge in new business pitches, and match best resources to client engagements.

Advantest America, Inc.    Santa Clara, CA 95054
Nov 16, 2006 Model T5383 is designed for multipurpose memory devices like DRAM, SDRAM, and DDR SDRAM, as well as flash memory and package test of MCP and other devices. With maximum test speed of 286 MHz/572 Mbps in DDR mode, system also offers high speeds and high throughput on KGD and at-speed tests for DRAM wafers. Wafer motherboard incorporates docking mechanism which helps prevent probe card warpage.

Advantest America, Inc.    Santa Clara, CA 95054
Nov 16, 2006 With parallel test capacity of up to 512 devices, Model T5761 features ECC, real-time counter to calculate number of fail bits, and flash memory block management that allows skipping unneeded blocks without testing. Model T5761ES offers up to 16 devices test capacity and simplifies low-volume device evaluation and facilitates development of test programs for high-volume production. Models T5761/T5761ES have maximum speed of 66 MHZ and utilize tester-per-site architecture.

AdventNet, Inc.    Pleasanton,, CA 94588
Nov 16, 2006 ManageEngine Firewall Analyzer v4.0 provides network security by continuously collecting, analyzing, and reporting on firewall traffic logs. Product includes user specific device views, anomaly detection filters for network behavioral analysis, and firewall administration reports for regulatory compliance. Additional features include support for Astaro and SNORT syslog, BlueCoat proxy log, Identiforce Gateway, and Netfilter Linux IPTables.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 15, 2006 Suited for applications where PC needs to communicate with terminals, modems, or other instruments, 8-port PCI-1625U RS-232 Universal PCI Card has 1 MB of SRAM, which can store serial data and reduce host CPU load. ICOM Tools utility program will test PCI card performance by analyzing port status. Menu commands and toolbar buttons of ICOM Tools acts as PC-based data scope that lets user set trigger condition, capture communications data, and monitor signal status.

Hitachi Power Tools    Norcross, GA 30093
Nov 15, 2006 Extending reach of rotary hammer or hammer drill by 12-43 in., Power Reach allows user to drill overhead, down into water, or through 6 ft slab of concrete. Three-piece system consists of adapter, extension rod, and any SDS Max bit. It quickly connects to adapt to different applications, and eliminates any loss of power normally experienced with other extension systems.

Atlas Casters, LLC    Redwood City, CA 94063
Nov 15, 2006 Available in 500 and 1,000 lb models, Leveling Casters allow both caster and precision leveling component to occupy corner of machine for equipment stability. Cold-drawn from pre-tempered SS, units are cleanroom compatible. Leveling component can be adjusted from above or below using standard tools and wrenches. Standard length of travel is 1 in. beyond wheel. Multiple wheel options are available including phenolic and polyurethane with precision bearings.

JATO Precision    Taichung   Taiwan
Nov 15, 2006 Along with front-mounting design, JAP100 Cylinder-Integrated Diaphragm Chuck features changeable jaw pad (full-circle jaw) made of hardened bearing steel and built-in air cylinder. Design minimizes air leakage with its air containing construction and 0.0004 in. clearance between rotary and stationary parts of cylinder. With no sliding parts to wear out, workholding product offers 0.00004 in. repeatability and facilitates setup of precise chucking system.

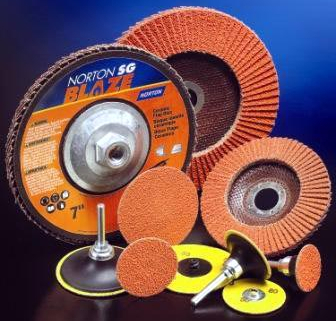

Saint-Gobain Abrasives, Inc.    Worcester, MA 01606
Nov 15, 2006 With blaze orange grain-side color, Norton SG® BLAZE R980 discs cut materials such as stainless steel, cobalt, chrome, inconel, and titanium. Conical shaped Type 29 flap wheels; single- and 3-ply Speed-Lok discs; and Type 27 flat discs feature wear resistant ceramic grain, polyester backing, and grinding aid. Each grain continually fractures in grinding process, along sub-micron faults in crystalline structures, repeatedly exposing new sharp cutting edges.

BriskHeat Products(BH Thermal Corp.)    Columbus, OH 43201
Nov 15, 2006 Ready for use out-of-the-box, HSTAT connects with standard wall outlet to provide plug-and-play flexible heating tape with built-in adjustable temperature control. Thermostat dial can be set to max temperature of 425°F for rapid heat on valves, pipes, bearings, pumps, filter housings, actuators, and other odd shapes. Applications include fixing heat trace cold spots, heating laboratory apparatus, freeze protection, plastic bending, and process temperature control.

EAO Switch Corp.    Milford, CT 06460
Nov 15, 2006 Available with raised as well as RoHS-compliant flush mount lenses, Series 84 pushbuttons and indicators are suited for restricted-space applications. Series, which consists of modular lenses, actuator elements, and switching elements, employs double-blade, slow make switching system. Constructed in aluminum or plastic, IP67-rated products have lens holder raised by 2.0 mm and min back panel depth of 18 mm. Flush mount version is 2.0 mm high at front of panel.

Moxa Inc.    Brea, CA 92823
Nov 15, 2006 Compatible with USB 2.0 and 1.0, single-port UPort 1130 lets engineers manage serial devices from portable workstation or notebook. Users can attach serial peripheral to laptop or workstation USB port and select desired serial interface (RS-422, 2-wire RS-485, or 4-wire RS-485) via software. Plug-and-play tool features full-speed USB 1.1 operation and serial transmission speeds to 921.6 Kbps. Other features include 15 kV ESD protection, LED indicators, and terminal block converter.

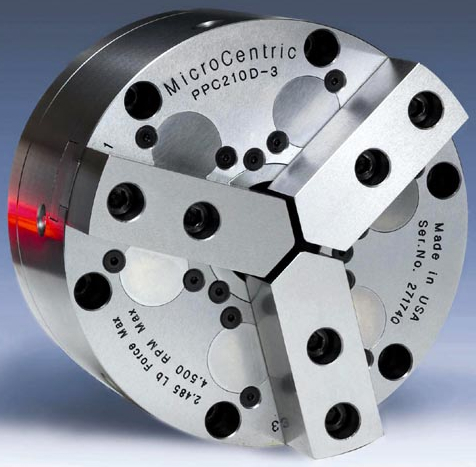

MicroCentric    Plainview, NY 11803-2303
Nov 15, 2006 Offering .0001 in. repeating accuracy, PPC-D chucks utilize dual actuator design for optimizing clamping force and RPM capability as well as rigidity and draw tube forces. QC precision jaw locating system maintains .0002 in. max workpiece runout after jaw change without remachining top jaws. It also enables interchangeability of finished machined jaws between different chucks and maintains max workpiece runout within .0008 in. Dual- and triple-jaw models are available.

Saelig Co., Inc.    Pittsford, NY 14534
Nov 15, 2006 Connected and powered via USB, TS-2100-USB-B reads and auto-discriminates all common barcode symbologies at rates to 100 scans/sec from 2-8 in. away. It utilizes 2,000-pixel CCD with built-in 660 nm LED illumination, and enters data in same manner as keyboard entry, promoting compatibility with QuickBooks and other accounting and stock control software. Housed in a drop-proof ABS housing, unit comes with software for producing inventory-control barcode labels.

Saelig Co., Inc.    Pittsford, NY 14534
Nov 15, 2006 Measuring 28 in. long, eCOV-110 links serial devices to computer network without additional PC or replacing existing devices. It supports TCP/IP, UDP, HTTP, DHCP, TELNET, ICRM, and ARP protocols and provides up to 115 Kbaud RS-232 port compatible with 10/100 Mbps Ethernet hubs. Powered by external wall-mount supply or +5 V on pin 9 of RS-232 port, FCC/CE-marked unit comes with browser-based firmware configuration software and supports Windows, UNIX, and LINUX operating systems.
