B & R Industrial Automation Corp.    Roswell, GA 30076
Dec 06, 2006 Model APC620 and Panel PC industrial PCs feature DVD-RW drive that can read and write all standard DVD formats for recording of production and quality data. Units include integrated floppy-disk drive, CompactFlash slot, and front-side USB 2.0 interface. Drive combination meets all industrial requirements, and mounts in switching cabinet cutout using supplied mounting brackets. Optional cover provides IP65 protection for front.

Russell Finex    Pineville, NC 28134
Dec 06, 2006 Enabling processors to screen and transport material simultaneously, Blow Thru Sieve(TM) eliminates double handling. It allows good product to pass through vibrating mesh screen while removing oversize contamination from powders during dilute phase pneumatic conveying. By combining powder screening and positive pressure conveying, throughputs up to 60,000 lb/hr are achieved. Unit assembles and disassembles with single tool, and is mounted on mobile stand for use at multiple locations.

Mersen    Newburyport, MA 01950
Dec 06, 2006 Fusible Enclosed Disconnect Switches, rated to 400 A, disconnect line and load sides of fuses using 2 double breaking contacts per pole. Designed to meet plant maintenance operator requirements, multiple NEMA type rated enclosures are offered, including Type 4X non-metallic and stainless steel, and all switches use silver tipped contacts. Offering SCCRs up to 200 kA, products utilize Class CC, J, or L fuses and accept 3 padlocks to comply with OSHA lockout/tagout requirements.

Advanced Power Solutions    Pleasanton, CA 94588
Dec 06, 2006 Compliant to CEC/Energy Star requirements, KSAF Series is suited for mobile products and battery charging applications. These switching supplies, which meet IEC 60950-1 international safety approvals, feature universal ac input and regulated dc outputs. They offer continuous output power ranges of 5, 7.5, 10, 25, or 55 W, with output voltages from 3.3-48 Vdc. Radiated/Conducted Emissions are compliant to EN55022 Class B and FCC Level B standards.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Dec 06, 2006 Integrating Remote Control receiver and IrDA transceiver into single, 3-lens, surface-mount package, Model TFDU7100 receives signals with carrier frequencies from 20-60 kHz over minimum distance of 5 m. For IrDA communication, units supports IrDA data rates up to 4 Mbit/s over inherently secure distance of 1 m. When assembled into notebook or multimedia computer, TFDU7100 enables remote control of video or music playback and wireless sharing of photo, MP3, and other file formats.

Linear Technology Corp.    Milpitas, CA 95035
Dec 06, 2006 Supplied in 8-lead ThinSOT(TM) or 3 x 2 mm DFN package, LTC2912 features voltage monitoring inputs with filtering to reject brief glitches and minimize false or noisy triggering. Undervoltage (UV) and overvoltage (OV) trip thresholds, programmed by external resistors, exhibit ±1.5% accuracy and let users tailor IC to specific voltage levels. Offered in 3 output configurations, IC also features adjustable timer to define duration of independently functioning UV/OV reset outputs.

Linear Technology Corp.    Milpitas, CA 95035
Dec 06, 2006 Supplied in 5 x 7 mm QFN package, LTC2499 communicates via I2C-compatible serial interface and features Easy Drive(TM) front-end design that results in zero average differential input current. ADC can be driven directly from bridges, RTDs, thermocouples, and high-impedance sensors, and its rail-to-rail input signals can be directly digitized while maintaining dc accuracy of 2 ppm INL. Internal temperature sensor offers 1/30°C resolution and 2°C absolute accuracy.

ADLINK Technology Inc.    Irvine, CA 92618
Dec 06, 2006 NuPRO-851 Series PICMG 1.0 SBC comes with dual channel DDR2 memory at speeds of 400/533 MHz and Intel® GMA900 graphics core architecture providing up to 2,048 x 1,536 resolution with 8.5 GB/s peak memory bandwidth. Based on Intel® 915GV and ICH6 chipsets, 2 on-board Marvell 88E8052 controllers support dual Gigabit Ethernet ports via PCIe bus. SBC also includes 2 USB 2.0 ports and 4 SATA ports for data transfer rates up to 1.5 Gbps and single LAN NuPRO-851LV and dual LAN NuPRO-851DV.

MKS    Andover, MA 01810 2449
Dec 06, 2006 With integrated temperature controller and insulated silicone heater mat, Series 48 Heaters feature re-settable high temperature safety limit device that meets UL® 1998 and CE 60730 requirements. Units provide dedicated mechanical relay output for high-low temperature alert, no-arc relay for power switching, LEDs for local alarm indication, and field programmable set points for adjustable temperature control.

Advantech Automation Corp.    Cincinnati, OH 45240
Dec 06, 2006 Featuring 12 analog output channels with DB-37 connector, PCI-1727U is capable of outputting ±10 V and 0~20 mA current loops with 14-bit resolution. Analog output PCI card is equipped with 16 TTL DI and 16 TTL DO channels and universal PCI bus compatible with both 3.3 and 5 V signaling. Compatible with ISA card functions, connectors, and Windows DLL drivers, unit allows upgrading from ISA to PCI and uses same software API as ISA cards.

NavSync Ltd.    Aurora, IL 60505

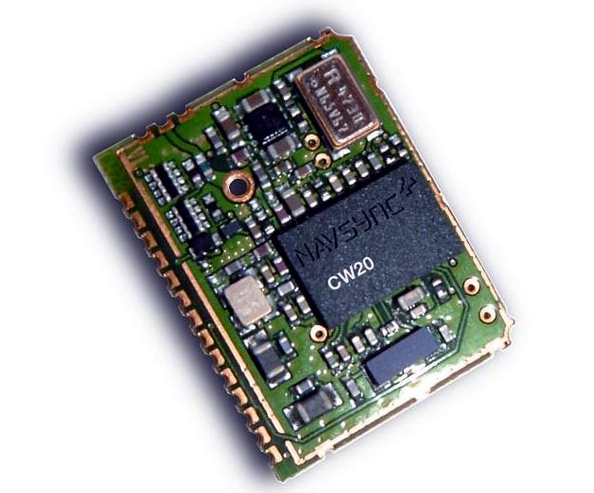

Dec 06, 2006 Model CW20 OEM surface mount GPS module features configurable design that utilizes NMEA standard and NavSync specific commands to communicate with host system. With low power of 17 mA while tracking and measuring 21.0 x 16.4 x 3.5 mm, unit supports rigorous battery-powered applications while storing relevant GPS information in non-volatile memory. It features low signal strength tracking to -150 dBm for urban canyons.

Lesker, Kurt J., Co.    Clairton, PA 15025

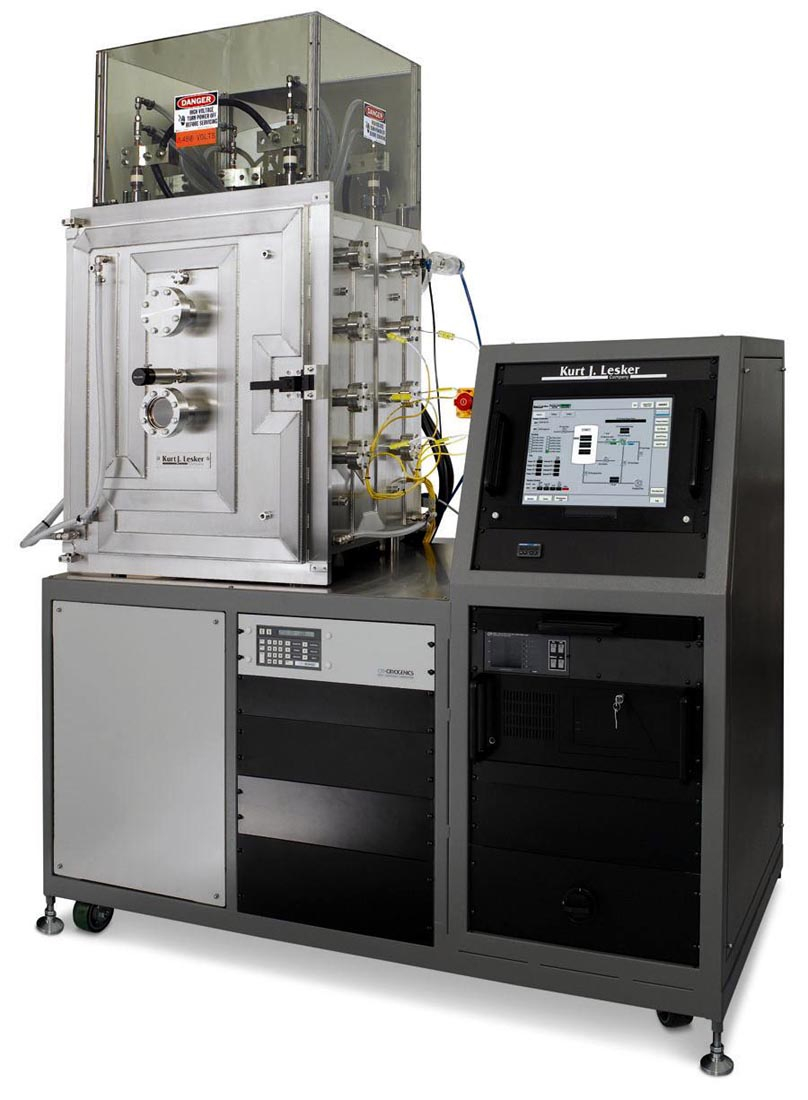

Dec 06, 2006 Model CVF 1000 Ultra High, Clean Vacuum Furnace is designed for degassing and conditioning components that are used inside vacuum environment to reduce outgassing and pumpdown time. It features 24 in. wide x 30 in. high x 24 in. deep SS water cooled chamber with hinged front door, high vacuum cryogenic pumping, molybdenum and inconel hot zone, full computer control with data logging, and recipe-driven procedures with optional chart recording.

Stahlin Enclosures    Belding, MI 48809
Dec 06, 2006 Featuring customized or modified enclosures, 5 Axis CNC machining center cuts all enclosure surfaces in single operation for maximum repeatability. It enables dual table operations, and high speed spindle and auto tool changes for increased speed. With large table for precision modifications of large enclosures, unit can cut angled and 3D contoured openings.

Standard-Knapp, Inc.    Portland, CT 06480

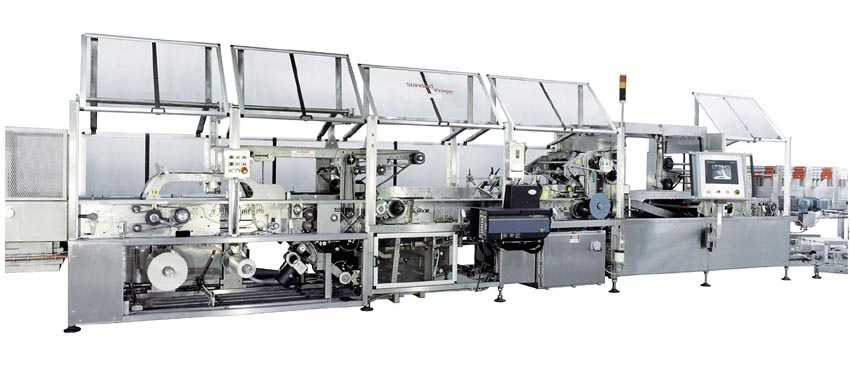

Dec 06, 2006 Providing smooth transition during product/tray merge, Continuum(TM) Integrated Tray/Shrink System features touch screen controls and push-button grouper changeover for ease of use. Customers can choose between freestanding or integrated shrink wrapper, and integrated tray stacker option. Device is suited for both loose containers and multipacks in materials such as glass, PET, HDPE, metal, and fiber cans. Zero-Gap in-feed technology offers balanced, jam-resistant packing lanes.

Saelig Co., Inc.    Pittsford, NY 14534
Dec 06, 2006 Attached to 14-pin OBD interface of vehicle, CANstick Basic self-powered automobile diagnostic tool uses 4 pre-programmed keys to transmit or receive predefined CAN sequences. Product can be used on production floor when programmed with specific options, and in development or test situations as troubleshooter or test station. Internal Flash-programmed microprocessor can be set up from any PC to transmit and receive specific CAN sequences and illuminate LEDs depending on messages received.

Cole Hersee Co.    Boston, MA 02127 2467

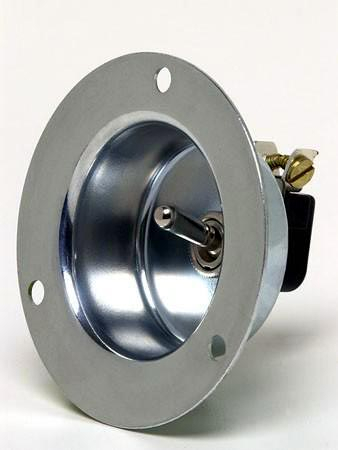

Dec 06, 2006 Comprised of standard toggle switch centered at bottom of plated steel bowl measuring .892 in. deep, Recessed Toggle Switch can be mounted in cab or body to help prevent accidental actuation by personnel loading or unloading cargo. Steel casing fits into 2 in. dia hole and has outer rim dia of 3 3/16 in.

Ethernet Direct    Newburyport, MA 01950
Dec 06, 2006 Model RUS-9510A RS-422/RS-485 isolated high speed repeater and Model RUS-9520A RS-232 to RS-422/RS-485 converter overcome limitations of RS-232 protocol by using different voltage lines for data and control signals. Model RUS-9520A is also equipped with AutoPro function that configures RS-422/485 baud rate without setting external DIP switches. Model RUS-9530 expansion module connects to PC USB port or hub to provides RS-232/RS-422 or RS-485 jumperless serial port.

Sakor Technologies, Inc.    Okemos, MI 48864-3547
Dec 06, 2006 Available in sizes ranging from 5-30 kW, VersaDyne(TM) includes regenerative ac motoring dynamometer for speed and torque control and provides motoring capability for automatic engine starting as well as testing of transient engine loads. Turnkey system tests both horizontal- and vertical-shaft engines. DynoLAB(TM) PT Engine Test Cell Controller provides fully automated test cycle control in Windows®-based environment.

SEAWARD ELECTRONIC LTD    County Durham SR8 2SW  United Kingdom
Dec 06, 2006 Designed to test in accordance with EN60204.1 and EN60439.1 requirements, SEN 60204 tester for electrical machinery equipment allows test data to be stored in tester's memory, enabling results to be downloaded either to printer or to results recording software. It can also execute differential earth leakage measurements for resolving multiple earths to machine under test.

Solid Applied Technologys    Tel-Aviv 65201  Israel
Dec 06, 2006 SmartScan® Multi-Sensor 4-wire device supports 3 x 4-20 mA outputs (that reflect first sensor, second sensor, and difference or average of both sensors), RS-232/485, and HART protocol. Two-part unit includes 6 SPDT relays that can each be assigned to different outputs, and LCD enabling device configuration as well as data display and toggling. Sensor design is IP 67/NEMA 6, and device is suited for remote, hazardous, and explosive environments.
