Industrial Test Systems, Inc.    Rock Hill, SC 29730
Jul 11, 2011 Suited for detecting environmental/industrial contamination, DX-2b detects gamma, beta, and X-rays. Its military-grade GM tube detects all gamma and beta isotopes released by nuclear power plants, such as iodide and cesium. Offering one-button operation to facilitate use by nontechnical persons, meter uses 200 Vdc, Geiger Müller tube detector and provides visual and audible warnings. This 3¼ x 6¾ x 1½ in. unit is powered by 9 V battery, which lasts 50 hr at normal background levels.

Mettler Toledo, Inc.    Columbus, OH 43240
Jul 11, 2011 Free of edges that could trap moisture and product matter, IND890 allows operators to obtain complex, multi-step weigh results via touchscreen interface. Self-explanatory icons and optimized operator guidance promote usability, and software can be customized to desired application. Along with ergonomic design and programmable softkeys, system offers ability to simultaneously display of up to 4 scales plus sum for comparison and subsequent correction of amounts and values.

Strippit Inc.    Akron, NY 14001-1321
Jul 08, 2011 Smart Crowning, available for PPEB-H Series and Easy-Form® Series press brakes, provides additional independent crowning axis on top of conventional V-axis to automatically compensate for asymmetric variations in material thickness and material properties. Ensuring bending accuracy over entire length of a work piece, this programmable crowning V-axis system uses Smart Segments and Smart Actuators that operate individually to provide independent asymmetric compensation.

FRABA Inc.    Hamilton, NJ 08609-2020
Jul 08, 2011 OPTOCODE encoders are available with combined interface that enables simultaneous communication of both absolute and incremental rotary position data. Designed to provide point-to-point communications between encoders and PLCs, interface reports absolute rotary position data to PLC using synchronous serial interface (SSI) standard, operating over RS-422/485 communication link. Simultaneously, encoder can transmit series of electronic pulses as shaft rotates (up to 16,384 ppr).

J. W. Winco, Inc.    New Berlin, WI 53151
Jul 08, 2011 Designed for clamping knobs or screws, Series AN 5672 is available in nickel-plated brass or stainless steel, European Standard No. 1.4301. RoHS-compliant clamping heads are used in conveyor systems to affix adjusting rods. They are typically mounted to side bracket, but can be assembled where needed on conveyor.

KEP Co. - Kessler-Ellis Products Co.    Eatontown, NJ 07724
Jul 08, 2011 With KEPM GB Dual Touch Glass Bridge Displays, boaters can zoom in/out and skew displayed images with 2 fingers. Sunlight readable units accept composite, S-Video, DVI, VGA, UXGA, and SXVGA inputs. Featuring color TFT Active Matrix LCD, 15, 17, and 19 in. models have max resolution of 1,280 x 1,024, while 22 in. widescreen model has 1,680 x 1,050 max resolution. Additional features include backlighting that is dimmable to complete black for night viewing and 3-stage Picture in Picture capabilities.

McCrometer, Inc.    Hemet, CA 92545
Jul 08, 2011 Providing wireless data collection, RemoteCONNECT(TM) RC45 delivers information via Internet from installed flow meters, pumps, and other agricultural water management sensors operating remotely in field. Web-based GUI notifies operators of any changes in irrigation system or other sensors via Internet, email, mobile phone, texting, or pager. Equipped with 2 digital inputs, 2 analog inputs, and 1 analog output, mast-mounted system offers choice of 300 mA solar or 110 Vac power supply.

Vigitron Inc.    San Diego, CA 92129
Jul 08, 2011 Designed to pinpoint problems or prevent problems before they occur, ViewMate(TM) Vi0020 PoE Camera Setup Tool works with both CCTV and IT systems compliant with 802.3 af/at PoE standards. Unit features 2-digit PoE voltmeter, providing accurate measurement of actual voltage delivered to camera. When connected, ViewMate(TM) passes power from PoE Midspan at control room to remote IP camera and provides direct network connection from remote IP camera to local laptop to complete installation.

Cyber Sciences    Murfreesboro, TN 37129
Jul 08, 2011 With 32 digital inputs, CyTime(TM) SER-3200 Sequence of Events Recorder monitors status of key power system elements, such as breaker and switch status, generator operation, UPS and battery readiness, and relay alarms. Version 1.10 update adds automatic time sync with NTP network time server. Web server presents status of all monitored equipment, as well as detailed record of all events time-stamped to 1 ms resolution - all over Ethernet network using standard web browser.

Supertex Inc.    Sunnyvale, CA 94619
Jul 08, 2011 Providing protection from faulty LED strings, HV9957 combines switch-mode boost converter and 6 low dropout, linear current regulators to deliver efficiency and precise current control. Temperature-triggered fault protection and outlier approach are used to identify faulty strings, which are turned off only when absolutely necessary. Remaining strings continue normal operation. RoHS-compliant IC can drive up to 6 strings of LEDs at 30 mA each.

Joraco, Inc., Toggle-Aire Div.    Smithfield, RI 02917
Jul 08, 2011 Weighing ~60 lb, DIRECT-AIRE Mini features straight pneumatic cylinder for applications requiring full force over the entire stroke. EZ-Dial pressure regulator, adjustable dwell timer, adjustable shut height, and 2-hand anti-tie down Actuator are all standard features. Suitable for manual and semi-automatic assembly operations, press provides 50-300 lb of constant force and is offered with optional custom stroke and/or open heights.

Boge American, Inc.    Powder Springs, GA 30127
Jul 08, 2011 With standard pressure dew point of 37°F, RA Series offers efficient method of drying compressed air. Aluminum heat exchanger features vertical profile that allows force of gravity to result in maximum droplet separation and self-cleaning. Varioflow hot gas bypass valve, which utilizes gas charged capsule that operates independently of power or electronic support, provides user with 100% stable dew point, no maintenance, and zero freeze-ups.

Wichita Clutch Div. Warner Electric    South Beloit, IL 61080
Jul 08, 2011 Able to withstand sea spray and direct seawater splash prevalent in marine deck areas, AquaMaKKs LI-SSI Series provides accurate torque control for constant tensioning in heavy-duty, continuous slip tension applications. Each low inertia, air-cooled, spring-set, air tube release, high-torque brake utilizes basic brake housing but has special alloy stainless steel torque (center) plates and friction material. Standards sizes are 19, 25, and 36 in.

Manncorp    Willow Grove, PA 19090
Jul 08, 2011 Compatible with delicate SMD packages, BR810 has adjustable PCB holder that accepts PCBs up to 18.5 x 13.8 in. as well as split-vision optics with 22x electronic zoom and focus controls and LED lighting. Additional features include profile settings for independent and programmable top and bottom heating, 5 separate thermocouple inputs, control software, and LCD touchscreen display. Capable of micrometer adjustments, system offers automated Z-axis motion with vertical height sensing.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Jul 08, 2011 Offered in 17 sizes with 18-75 grooves, metric A 6A18M... Series is designed for 3 and 6 mm wide belts. Standardized 1 mm pitch, clear anodized, aluminum alloy pulleys are offered with double flange and no flange options, pitch diameters from 5.73-23.87 mm, and bore sizes from 2-5 mm. While models with 18-45 grooves have one set screw, others have 2 at 90°. Products suit those attempting to miniaturize product designs for prototype or production application.

Witte Co., Inc., The    Washington, NJ 07882
Jul 08, 2011 Suited for joining steel and aluminum process equipment covers and ports with up to 750 lb of clamping force, quick release mounting clamp helps OEMs boost access to machinery internals. It mounts permanently on process equipment and features yoke and pin assembly that enables tension release without any unscrewing or dismounting. When returned to closed position, retractable clamp design automatically restores amount of tension applied prior to release.

QBC - Quality Bearings    Garden City Park, NY 11040
Jul 08, 2011 BBPBLD Series standard-duty 4-bolt flange mounting blocks have polyester housing, removable acetal bearing insert, and 316 stainless steel ball bearings. Designed to fit shafts ranging from ½ to 1¼ in. in diameter they can contribute to making machinery efficient, functional, and safe. Two-bolt flange mounting blocks with insert ball bearings are also available.

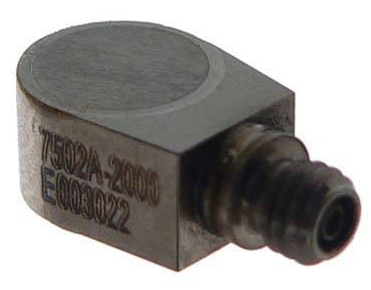

Measurement Specialties, Inc.    Hampton, VA 23666
Jul 08, 2011 Operating in shear mode and free of internal performance-limiting adhesives, Model 7502A exhibits stable thermal performance from -73 to +260°C. Unit is used for high-temperature vibration and shock measurements and features nominal charge output of 1.8 pC/g. Constructed of titanium, hermetically sealed device weighs less than 1 g and has ±5,000 g dynamic range, ±10,000 g shock limit, and non-linearity of ±1% per 1,000 g.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810
Jul 08, 2011 Measuring 13.2 x 26 x 39 mm, Model KNF NMS010 is designed to transfer, evacuate, or compress gases for portable monitors, medical, and other gas-sampling instrument applications. Unit delivers flow rates up to 0.75 lpm, vacuum up to 12 in. Hg, and pressures to 7.5 psig. Oval-shaped diaphragm utilizes space over motor to maximize size of pumping chamber. Oil-less operation enables uncontaminated flow of pumped medium and contributes to safe and virtually maintenance-free pump operation.

Kaivac, Inc.    Hamilton, OH 45011
Jul 08, 2011 Combining trolley-bucket with wet/dry vacuum, OmniFlex(TM) Dispense-and-Vac System lets user dispense fresh cleaning solution on floors to loosen grease, soils, and other buildup, and then vacuum soils and solution. Self-dispensing solution tank ensures that custodians use only fresh cleaning solution, minimizing possibility of spreading soils and contamination. With 50 ft long hose, system is suited for large cleaning tasks.
