Serco Dock Equipment    Carrollton, TX 75006

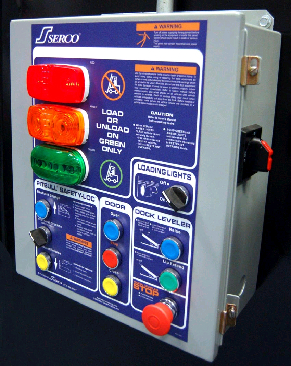

Dec 18, 2006 Eliminating multiple power requirements and wire conduits at each dock, Serco® Master Control Panels integrate operations for dock levelers, vehicle restraints, inflatable dock shelters, overhead doors, and other dock equipment into single control box. Controls can be interlocked so that each piece of dock equipment can be activated in predetermined sequence. All panels come with LED lights and are available with optional 15 A convenience outlet.

MH&W International Corporation    Mahwah, NJ 07430

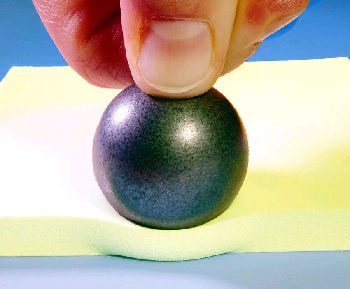

Dec 18, 2006 With 10 Shore 00 hardness, Softtherm® 86/200 can blanket over multiple components of differing height, contours, and planarity. It features elastic, structurally secure silicone filled with ceramic particles. Product retains its memory after compression, enabling it to be reused. Thermal resistance is 1.50 K/W, and thermal conductivity is 1.0 W/mK. Available in die-cut shapes and in sheet form from 0.5-5.0 mm thick, filler is suited for heat pipes, spreader bars, and heat sinks.

OTEK Corp.    Tucson, AZ 85714
Dec 18, 2006 Automatic Tricolor Bargraph, Model HI-Q101 features 4-digit display as well as RS232, 485, and USB ports. Firmware gives customer ability to control all parameters and upgrade system to SCADA, DCS, or Ethernet without changing existing panels or wiring. Model HI-Q101 is available in V, mA, DC, and AC power with 4-20 mA current loops, and custom inputs.

Elmo USA Corp.    Plainview, NY 11803

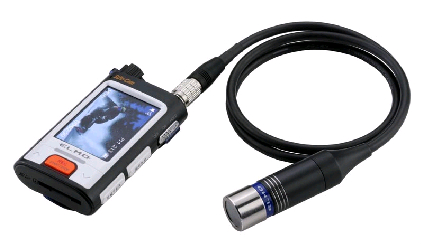

Dec 18, 2006 Pocket-portable SUV-Cam allows investigators, security, and law enforcement professionals to record anywhere without cameras, lights, and cables. It consists of waterproof micro camera head measuring 3.3 in. long x 0.7 in. dia and MPEG4 DVR with 2.2 in. LCD monitor attached by 2.6 or 4.9 ft cable. System delivers more than 1 hr of video and audio recording on optional 2 GB SD card. With 1-button recording, SUV-Cam can be hand-held, worn on clothing, or attached to vehicle.

Baumer Ltd.    Southington, CT 06489 1534

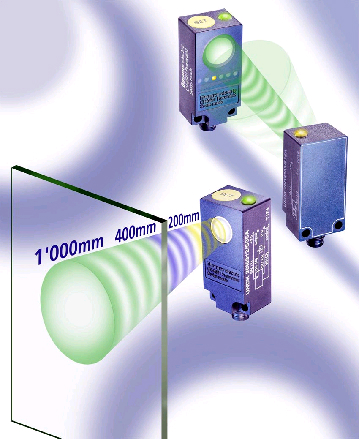

Dec 18, 2006 When mounted up to 1 m from target, miniature Series 20 delivers precise non-contact proximity, position, and distance sensing on sound reflective substrates including clear, glossy, and opaque materials, regardless of color. Integrated teach-in button allows user to customize settings, while lock-out feature prevents unwanted output programming changes. With IP67-rated polyester housing measuring 20 x 42 x 15 mm, sensors are suited for space-restricted applications.

PIAB Vacuum Products    Hingham, MA 02043

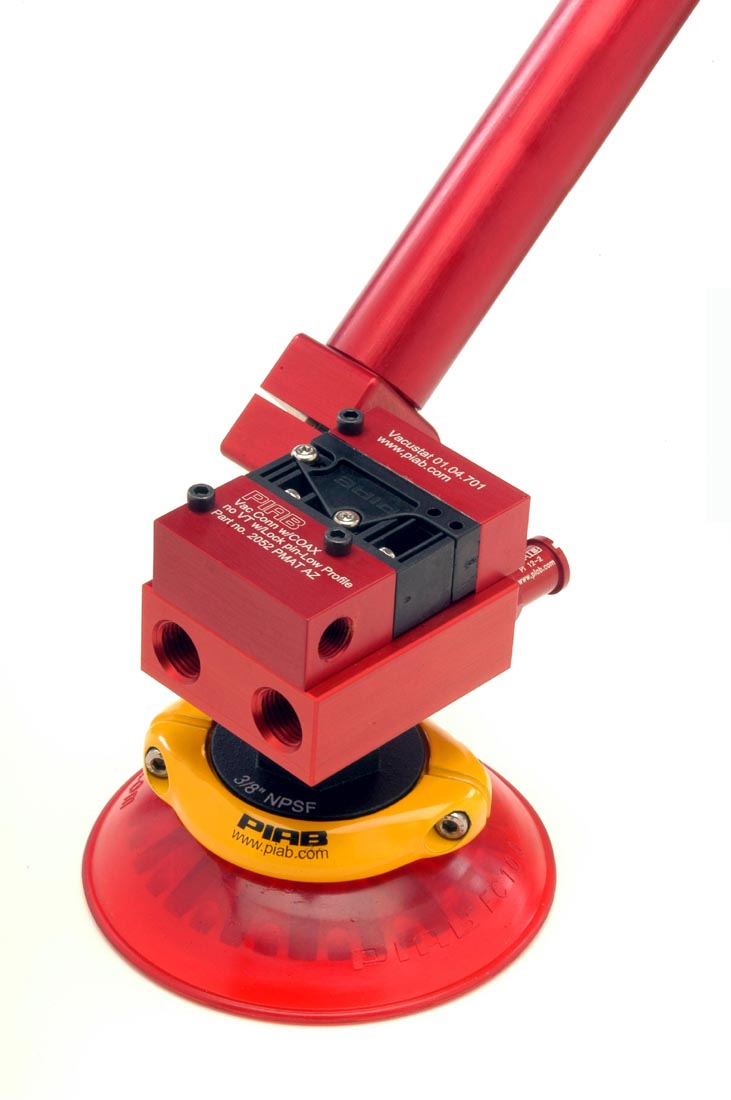

Dec 18, 2006 Vacustat-COAX® vacuum pump uses suction cups with decentralized vacuum power directly at point for efficient, secure material handling. Pump features integrated pneumatic ES function, built-in check valve on blow-off port, and Mini Pi12-2 COAX® cartridge with non-return valve. Available with lock pin, apple core, and ball-joint mounting options, Vacustat-COAX fits automotive industry standards for robot end-of-arm tooling and lifts sheet metal, glass, and plastic parts.

Fluke Corp.    Everett, WA 98203

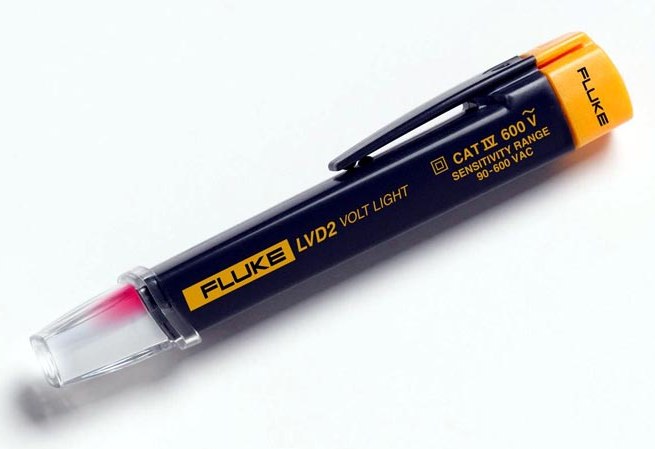

Dec 18, 2006 Used for both industrial and commercial applications, Fluke LVD2 Volt Light combines non-contact voltage detection from 90-600 Vac with white LED flashlight in compact, pen-style tool. Pocket-sized device is CAT IV 600 V rated, glows blue within 5 in. of ac voltage source, and red when within 1 in. of source. Detector features operating temperature of 0-50°C, LED with 100,000 hr lifetime, and AAA battery.

CyberResearch, Inc.    Branford, CT 06405 2932

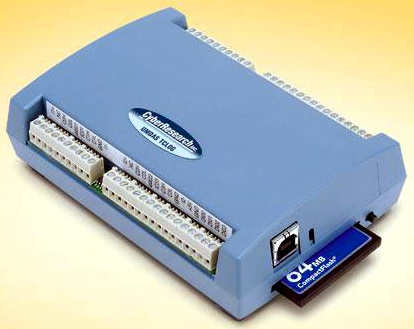

Dec 18, 2006 Reading direct input from 8 thermocouple types, UMDAS TCLOG automatically records time stamp, temperature/voltage, DIO states, and CJC readings. It covers -346 to +3,308°F temperature range, depending on what thermocouples are attached, and on-board microprocessor linearizes data with NIST coefficients. Data is stored on included 64 Mb CompactFlash card (upgradeable to 2 Gb). Also available, UMDAS THLOG reads same 8 thermocouples as well as RTDs, thermistors, and semiconductors.

Vicor Corp.    Andover, MA 01810 5424

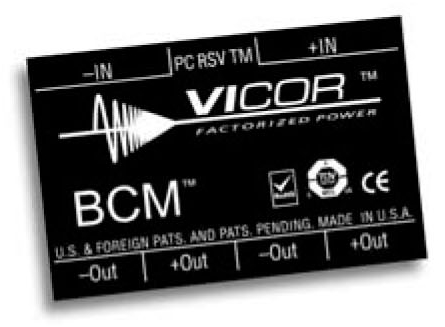

Dec 18, 2006 Featuring power density greater than 1,000 W/in.³, B352F110T30 is 300 W dc-dc converter for HV Distribution Systems, ac-dc SMPS, and RF amplifiers. This Sine Amplitude Converter(TM) (SAC) offers efficiencies over 95% and operates from 330-365 Vdc primary bus to deliver isolated 10.3-11.4 V secondary. Used individually or in multiples with paralleled outputs, Telecom-grade BCM(TM) module measures 1.28 x 0.87 x 0.26 in. and offers junction-to-case and junction-to-board thermal resistance.

Capital Safety Group (Australia) Pty Ltd    Silverwater NSW 2128   Australia
Dec 18, 2006 Designed for industrial rescue and work positioning applications, Model 480M-0336 ExoFit(TM) XP climbing harness suits rope access, abseiling, and tower work where user is typically required to hang for extended periods. With attachment of optional suspension seat, multipurpose unit converts into full work positioning harness. Users can attach suspension seat and clip it up with integral storage clips to climb unhindered to required work location.

Weidmuller, Inc.    Richmond, VA 23236
Dec 18, 2006 Offered in epoxy sealed PBT housing with flammability rating of UL 94 V0, JACKPAC® is designed to address signal conditioning in industrial environments. Device uses M12 connector to integrate in sensor actuator cabling, and helps introduce interface device into circuit without need for enclosure/control panel. Product is available in configurations like form C relay output, pulse stretching module, over-voltage protection module, and signal isolator.

Clear Shape Technologies, Inc.    Santa Clara, CA 95054
Dec 18, 2006 InShape(TM) predicts accurate silicon shapes, enabling designers to perform DFM hotspot detection of catastrophic failures. This model-based Design Manufacturability Checker utilizes nonlinear optical transformation algorithm to detect potential manufacturing failures during physical design. Compact models encapsulate all necessary RET, OPC, mask, etch, and lithography effects on both device and interconnect, predicting accurate contours for entire chip from drawn layout within hours.

Security With Advanced Technology, Inc.    Loveland, CO 80537
Dec 18, 2006 Suited for Public Transit sector, ShiftWatch® TVS 300 combines redundant recording, viewing, networking, and management capabilities. Included back end video management system lets users clip, categorize, annotate, manage, and archive thousands of hours of captured video, while self-monitoring diagnostic system provides proactive feedback for optimal system uptime. Embedded database technology promotes video searching capability based on synchronized events and GPS data.

Kontron    Poway, CA 92064
Dec 18, 2006 Utilizing Intel® Core(TM) Duo processors, NotePAC ultra-rugged modular notebook combines magnesium case with shock-mounted components to withstand 3 ft drop. Fanless computer includes Intel 945GM chipset and offers up to 2 GB DDR-RAM, space for 3 batteries, and wireless communication over UMTS, GSM, GPRS, GPS, WLAN, and BlueTooth. SATA hard drive is mounted in shock absorbing, sealed cartridge, with heater enabling operating temperatures down to -20°C.

NeoPath Networks    Mountain View,, CA 94043
Dec 18, 2006 Windows-based Fileyzer(TM) allows storage administrators to analyze data on file servers and NAS devices using graphical, on-demand presentation. Program also lets users monitor and perform actionable storage optimization analysis to maximize storage utilization. Users can perform what-if file migration analyses so they can see what their storage environment would look like if potential migrations were carried out.

Siemens AG    Munich D-80333  Germany
Dec 18, 2006 Equipped with Intel Core2 Duo processors and Intel 945GM Express chipset, Simatic Rack PC 847B can rapidly process large amounts of data in measuring system, test bay, or industrial image processing applications. It is available with 8 or 11 PCI/PCI-Express slots, SATA II, 6 USB 2.0 ports, and up to 4 GB DDR2 main memory. Housing is resistant to dirt and protected against ingress of dust by pressurized cooling system with temperature-controlled fans and exchangeable filters.

ADMET    Norwood, MA 02062
Dec 18, 2006 Micro EP palm-sized universal testing machines are suited for determining mechanical properties of miniature specimens in tension, compression, or flexure. Each stage can be used as standalone tester or be installed in optical or atomic microscope to compare macroscopic stress-strain states with microscopic changes in material. Available in 450 N and 5 kN capacities, machines are equipped with load and displacement transducers as well as MTESTWindows Materials Testing System.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Dec 18, 2006 Oscilloscope measurement system, DSA80000B DSA, comes with tools for designing, debugging, and validating designs that include high-data-rate serial buses. Built around Infiniium DSO80000B Series oscilloscope and InfiniiMax probing system, it enables engineers to gather accurate data about low-voltage differential signals in their designs. System capabilities are augmented with inclusion of high-speed serial data analysis and EZJIT Plus jitter-analysis software.

GFI Software Ltd UK    Hampton Wick, Kingston upon Thames, Surrey KT1 4AN  United Kingdom
Dec 18, 2006 GFI MailArchiver v4 enables any sized company to archive all internal and external email to single/multiple MS SQL Server databases or directly to NTFS disk. While offering controlled, centralized access to past email via web-based search interface, software ensures email archiving is done in accordance with compliance and legal requirements. Solution leverages journaling feature of Exchange Server 2000/2003 and offers capabilities to search various attachment types.

Beckhoff Automation LLC    Minneapolis, MN 55337
Dec 18, 2006 TwinCAT Remote Synchronization provides function block software library with which users can synchronize several multi-axis machines featuring TwinCAT control systems. With centralized control architecture suitable for handling applications with 60 or more axes of motion, library allows for general time synchronization of information. It also includes techniques for synchronizing NC axes and electronic gearing of axes on separate controllers.
