BLM Group USA    Wixom, MI 48393
Jul 15, 2011 LT FIBER employs 2 kW IPG fiber laser source that enables system to efficiently process highly reflective materials. It also promotes productivity when working with galvanized steel and thin-walled tubes. Depending on chosen configuration, system accommodates tubes up to 6 in. dia with max raw tube lengths of 256-335 in. Automated changeover to different size tubes occurs in as little as 3 min, and entire process is driven by Artube programming software package.

Two Fold Software Limited    London EC1V 4PY  United Kingdom
Jul 15, 2011 With web reporting capability, Qualoupe LIMS enables laboratory users and their customers to generate on-demand reports derived from laboratory data. Internal reports can be run from within each Qualoupe application. For example, within Sample Manager module, reports would be predominately sample centric. With secure access interface, customers can restrict downloading of reports to authorized people. In addition, external organizations can access reports for auditing or compliance requirements.

Piher International Corp.    Libertyville, IL 60048
Jul 15, 2011 Combining through-shaft design with 360° absolute position feedback, PST-360 Through-Hole Position Sensor incorporates ring magnet with fully sealed Hall ASIC as sensor element. Design is truly non-contacting and does not rely on gears or other interfacing parts. Measuring 9.8 mm thick with body diameter of 37 mm and 50.0 mm mounting hole spacing, standard model features rotor with 14.05 mm ID shaft design. Sensor can be programmed with full scale output with angles as narrow as 20°.

Comco, Inc.    Burbank, CA 91504 3344
Jul 15, 2011 Comprised of freestanding workstation and dust collection unit with HEPA filter, ProCenter Plus utilizes advanced downdraft technology and is compatible with any Comco micro-abrasive blaster. Spent abrasive is swiftly evacuated from chamber to keep work area clean. To eliminate need for frequent cleanings, system can handle ample amounts of spent abrasive in its storage hopper without affecting performance. ESD control and magnifier are optional.

National Instruments Corp.    Austin, TX 78759-3504
Jul 15, 2011 DIAdem 2011 optimizes efficiency for engineers and scientists locating, inspecting, analyzing, and reporting on measurement data. Along with engineering-specific analysis tools, software gives engineers data-loading method for access to large data sets, DataPlugin Wizard for MS Excel to migrate to DIAdem, and dynamic report and script creation capabilities. Flexible loading options let engineers choose to delay loading bulk data from TDM and TDM Streaming files until absolutely necessary.

Lesker, Kurt J., Co.    Clairton, PA 15025
Jul 15, 2011 Rated up to 2 million cycles and available with 200-3,000 mm openings, bellows-sealed Rectangular Gate Valves feature L-Motion link assembly and dual shafts without springs in actuator to enable smooth actuation with minimal vibration. Dust Seal on vacuum side of bonnet flange virtually eliminates process particulate from entering bellows. At end of blade travel during valve closure, valves lock into position, and upon loss of operating air pressure, valves remain closed.

KOA Speer Electronics Inc.    Bradford, PA 16701
Jul 15, 2011 Featuring power rating of 0.125 W, 0402-size Models SG73P and SG73S provide pulse and surge handling, respectively, with resistance range from 1 W to 10 MW. Current resistors also feature T.C.R of ±100 ppm/K, with tolerances of ±0.5%, ±1%, ±2%, and ±5%. Also available in sizes from 0603-1210, devices are suited for power supplies, telecommunications, motor controls, and circuit protection devices.

Sonoscan, Inc.    Elk Grove Village, IL 60007
Jul 15, 2011 Featuring inertially balanced linear motor scanner, Gen6(TM) C-SAM® system lets operator select most useful resolution from under 1 MP to 268 MP. It employs 500 MHz pulser and heated water and supports automatic as well as simultaneous imaging of sample at up to 200 different gates (horizontal slices). System also supports Virtual Rescanning Mode (VRM), Digital Image Analysis (DIA), Frequency Domain Imaging (FDI), and Time Domain Imaging (TDI).

Ramsey Winch, Inc.    Tulsa, OK 74116
Jul 15, 2011 Patriot 9500 UT and Profile 9500 UT, when used with Ramsey wireless remote, can be engaged and operated from up to 50 ft away. Along with 9500 lb rated line pull (single line) and gear reduction ratio of 138:1, these 93 lb products feature sealed, 5.5 hp wound motor that delivers no-load line speed of 33 fpm. Other features include sealed drum, sealed gear assembly, and 105 ft of 5/16 in. galvanized aircraft cable with replaceable clevis hook with safety latch.

Ramsey Winch, Inc.    Tulsa, OK 74116
Jul 15, 2011 Available on RCH Hoist Series, ECM Electronic Crane Management System monitors status of hoist cable and provides feedback to operator that drum is turning, when hoist has reached last layer, and when there are only 3 wraps of cable left on drum. System includes home and full drum position indicator light as well as analog and digital output circuit. Green-yellow-red LED light indicating top, middle, and last layer of cable is optional.

Tamko Roofing Products Inc.    Joplin, MO 64801
Jul 15, 2011 Supplied in 48 in. x 125 ft 5-square or 48 in. x 250 ft 10-square roll, Tam-Shield provides skid and tear resistance. Product is printed with lay lines and guides, which indicate where to install cap nails and nail guides for high wind installation. For cooler working surface during installation, Tam-Shield comes in light gray color as opposed to traditional black felt. Underlayment is unaffected by UV rays for up to 180 days, but should not be used as primary roof covering.

Igus, Inc.    East Providence, RI 02914 0349
Jul 15, 2011 Suited for automation applications, Robolink multi-axis joint modules feature actuators and control module, decoupled from tools, that minimize dynamic forces. Corrosion-resistant joints, made from tribologically optimized plastics, are driven by cables and can rotate and swivel freely. Along with central drive option, mechanical accessories are available for attaching robot joints and routing cables. Drive units featuring 4 drive motors and one housing are also available.

Tamko Roofing Products Inc.    Joplin, MO 64801
Jul 15, 2011 Triple-layer Tam-Rail railing, offered in grey, taupe, and white, offers variety of pieces for versatility and aesthetics. These include bracket covers that completely hide installation screws; 45° and 22.5° fixed-angle bracket adapters that eliminate hand cutting angled pieces to fit; and stair kits available from 30° to 41° angles. Tested in concrete, wood deck, and composite systems, post mount system is engineered for durability. Height options of 36 and 42 in. are available.

Sealed Air Corp., Engineered Products Div.    Danbury, CT 06810
Jul 15, 2011 With barcode scanning interface, SpeedyPacker Insight® let customers utilize existing unique product identification barcode to automatically initiate pre-programmed package design and cushion sequence. Automated process minimizes potential for both under packaging and over packaging. To program system, companies input design and sequence information into spreadsheet, which is then uploaded onto SpeedyPacker via USB drive. Single USB drive can be used to download information to multiple systems.

Datron Dynamics, Inc.    Milford, NH 03055

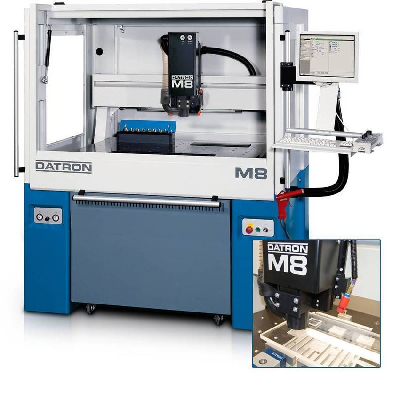

Jul 14, 2011 Equipped with polymer-concrete machining table that provides 40 x 30 in. work area, DATRON M8 PlasticMill utilizes 2 kW, water-chilled, 60,000 rpm spindle for feed rates up to 20 m/min. Chip extractor surrounding spindle is plumbed to exterior of machine with conductive and grounded hosing that eliminates static. Powered by industrial Ruwac vacuum, chip extractor removes slugs as they are milled from workpiece. In addition, 2 integrated static-eliminating deionizers manage plastic dust.

Duo-Fast Construction    Schaumburg, IL 60173
Jul 14, 2011 Firing staples and plastic button caps in one operation, DF150-CS aids installation of roofing felt, plastic sheathing, and house wrap materials. Inline magazine keeps tool compact and balanced for consistent and precise drives, while integral spool system enables stapler to offer 240 cap capacity that complements 110 staple capacity. In addition to 3 firing modes: bump, sequential, and staple-only, maneuverable tool offers adjustable depth of drive and adjustable exhaust cap.

EV Group Inc.    Tempe, AZ 85284
Jul 14, 2011 Designed to support and facilitate industry transition to 450 mm wafers from 300 mm standard, EVG850SOI/450 mm provides fully automated tool for production-level fabrication of silicon-on-insulator (SOI) wafers. System can process both wafer sizes and consists of 2 process modules: one for cleaning and pre-conditioning of wafers before wafer bonding, and for SOI pre-bonding. Tool is equipped with 450 mm load ports and front opening unified pods.

Dwyer Instruments, Inc.    Michigan City, IN 46361

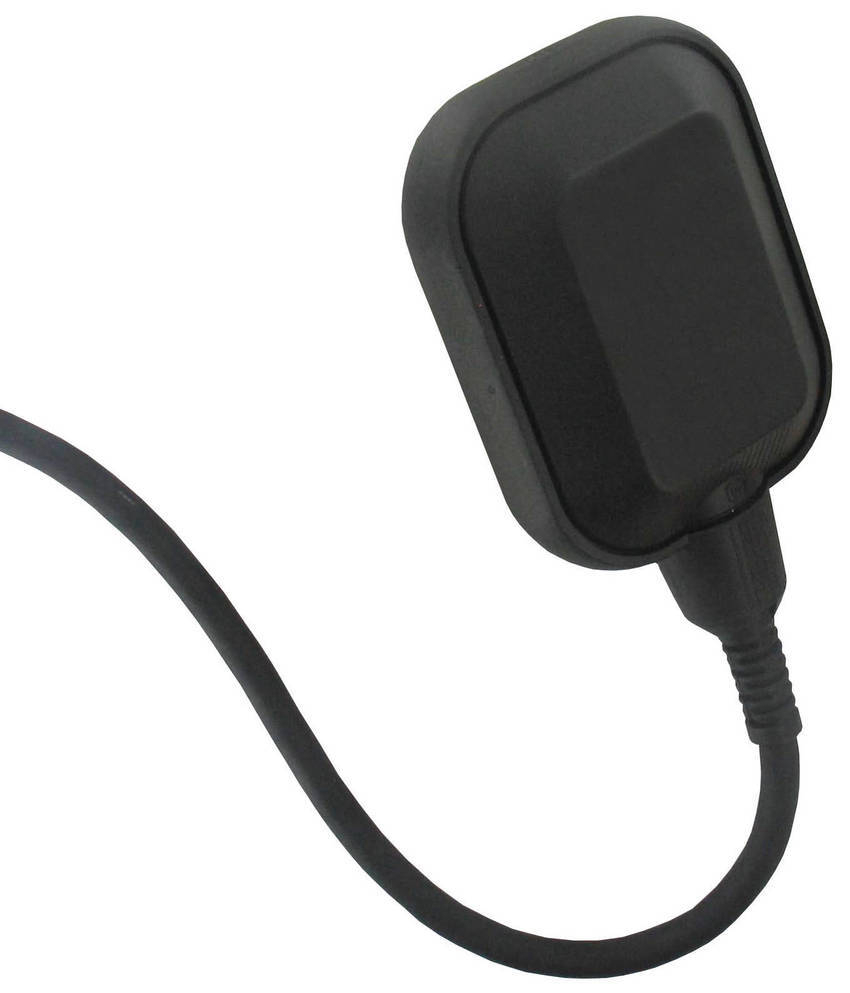

Jul 14, 2011 Supplied as mercury-free microswitch housed in waterproof, polypropylene casing, mechanically actuated Series CFS2 is intended to activate electrical components, usually pumps, to start and stop automatically. Counterweights and cable hangers are available to suit different mounting applications, and optional cables include those with UL/CSA approval, higher chemical compatibility, high temperature durability, oil resistance, and drinking water suitability.

Edmund Optics    Barrington, NJ 08007

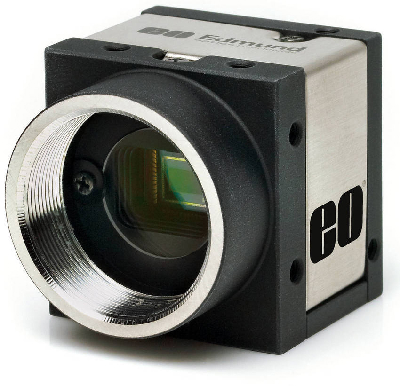

Jul 14, 2011 Providing sharp images from Visible to NIR, High Dynamic Range Cameras feature dynamic range of 120 dB, which allows for vast array of lighting levels. Units are suited for applications with bright backlight portions and rapidly changing light levels, as well as on reflective parts that produce hot spots that can bloom camera sensor. For convenience, cameras are available with USB and GigE interface options.

TDK-Lambda Americas Inc.    San Diego, CA 92154

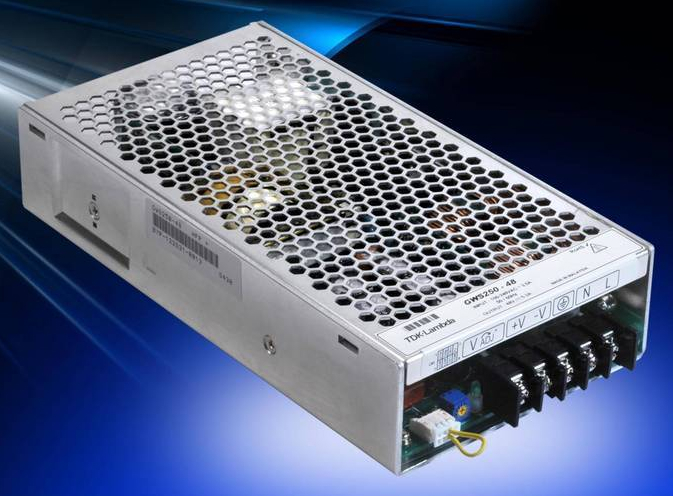

Jul 14, 2011 Compliant with European ErP (Energy related Products) Directive, convection-cooled GWS250 series is comprised of 4 models that are rated at 250 W and offer user-adjustable (up to 20%) nominal outputs of 12, 24, 36, and 48 V. Models with 24 and 36 V outputs have peak power rating of 300 W, but all models measure 4.1 x 7.8 x 1.61 in. Consuming less than 0.5 W (no load) in standby, series can be operated at full load from -25 to +50°C ambient and up to +70°C with suitable derating.
