Bryant Electric    Milford, CT 06460 2465
Jan 30, 2007 Designed to satisfy electrical power or low voltage data/communications applications, Metal Surface Raceways consist of PlugTrak multi-outlet pre-wired system with 15 A receptacles. UL classified transition fittings allow transition from metal raceway to Wiremold® metal raceway, while open system architecture is possible through use of cover plates and bezels.

Linear Technology Corp.    Milpitas, CA 95035
Jan 30, 2007 Optimized for 850-965 MHz GSM, CDMA2000, ISM, and RFID modulator applications, Model LT5571 comprises 2 matched mixers, 50 W LO input buffer, 0/90° LO phase shifter, and on-chip RF output transformer operating within 620-1,100 MHz band. Device accepts I and Q baseband signals and modulates directly to RF. It features OIP3 of 21.7 dBm and OIP2 of 63.8 dBm at 900 MHz while drawing 97 mA quiescent current at 5 V supply.

OSG Tap & Die, Inc.    Glendale Heights, IL 60139
Jan 30, 2007 EXOCARB® MAX-OIL-AL drill incorporates double margin design for optimal stability, enabling production of consistent, concentric holes from entry to exit at up to 30x diameter. Double margin design also has burnishing effect on material, promoting optimal surface finish quality. While flute design creates small, manageable chips, coolant-through center facilitates chip evacuation. Polished flutes promote lubricity, further aiding in chip evacuation.

NYLOK Corp.    Macomb, MI 48042 4007
Jan 30, 2007 Applied to threaded fasteners, NYCOTE® nonconductive WHITE® TEFLON® PFA powder coating provides complete thread masking and protection against contamination from electrodeposited paints and primers as well as adhesion of weld spatter. Product also adds lubricity to fasteners and reduces torque vs. tension scatter. While process eliminates need to manually apply and remove caps, tape, or plugs, there is also no need for slave bolts and retapping.

BEI - Duncan Electronics    Irvine, CA 92618

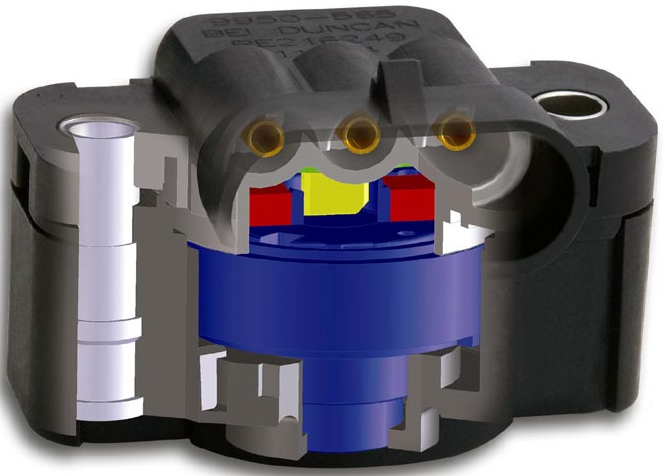

Jan 30, 2007 Specified over -40 to +257°F range, 9950 sensor features integrated Hall effect chip enclosed in liquid-tight, fully sealed, 50 x 37.5 x 34.1 mm plastic package that meets IP67 requirements. EMI-resistant product has one analog output and can withstand 10 G vibration, 20-2,000 Hz; 50 G shock; and half sine pulse of 5 msec duration. Over its life expectancy of up to 35 million cycles, sensor exhibits electrical angle of up to 120°, ±2.0% standard linearity, and accuracy of ±3.0% FS.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Jan 30, 2007 CoroTurn TR® features T-rail interface that promotes performance in profile machining via clamping stability and security. With long insert screws and horizontal and vertical rails, design offers strong support while minimizing movement in tool holder. Optimized geometries facilitate chip evacuation levels necessary to achieve continuous, uninterrupted machining. Areas of use include turning operations, medium to finishing applications, and multi-task machining.

Metabo Corp.    West Chester, PA 19380 4243
Jan 30, 2007 With input rating of 1,010 W, Model SBE1010 Plus offers max tightening torque of 248 lb-in., no-load speed of 0-900 or 0-2,600 rpm, and 0-50,000 no-load bpm. It provides capacity of ¾ in. in concrete, 5/8 in. in mild steel, and 1½ in. in soft wood. Under extreme conditions, Vario Tach Constamatic speed stabilization increases efficiency by working at nearly 100% of no-load speed up to full rated amp load of 8 A. Ergonomic handle can be rotated 360°.

RNR Plastics, Inc.    Raynham, MA 02767

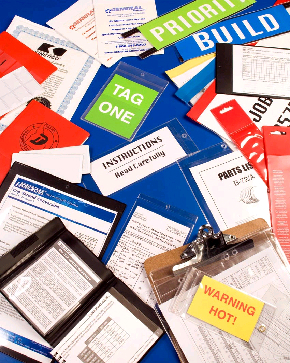

Jan 30, 2007 Available in sizes from 2 x 2 to 24 x 36 in., Custom Vinyl Pouches can include pressure-sensitive or magnetic mounts, 2-sided tape, or metal fasteners to keep them attached to machinery or equipment. Made of 6-30 gauge clear or colored PVC, they can be die-cut or punched. Pouches can also have overlays, press and seal strips, or watertight closures. They are suitable for holding booklets, instruction manuals, charts, maintenance logs, warnings, and advertising documents.

KORENIX Technologies    Taipei 231  Taiwan

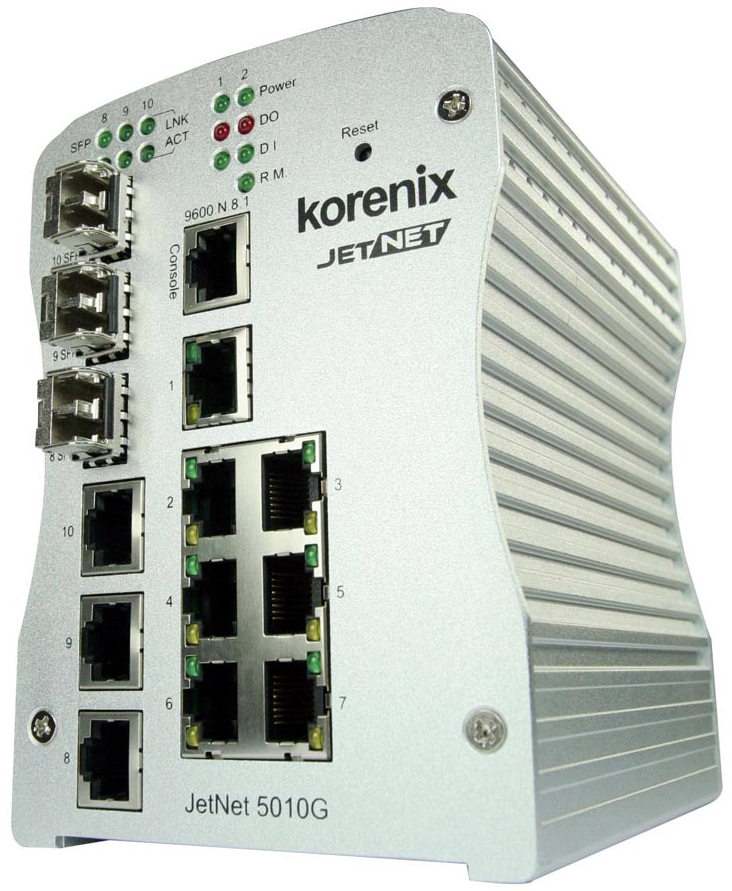

Jan 30, 2007 Offering secured management via HTTPS and SSH, JetNet 5010G features 3 combo Gigabit ports plus 7-port 10/100 Fast Ethernet and can be configured by SNMP, console CLI, or web browser. It supports Rapid Super Ring technology, and dual-homing technology facilitates connection with core managed switch via standard Rapid Spanning Tree Protocol. To promote link availability and capacity, switch implements IEEE 802.3ad LACP and features built-in watchdog timer.

Konstant Products, Inc.    Skokie, IL 60077

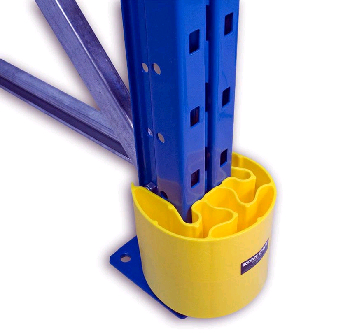

Jan 30, 2007 Designed to attach to column without additional fasteners, Protect-it(TM) devices minimize damage caused to pallet racking in event of forklift impact. They consist of outer wall that is integrally molded to series of curved spring-like energy absorbers at front and sides. Spring clips enable devices to securely grip column and automatically adjust width to suit variety of sizes. Available in recognized safety colors, protectors are effective down to -40°C/F.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Jan 30, 2007 DV-I Prime Viscometer includes keypad with timed option and print buttons, tabular and graphical display, and printer output connection for sending data directly to printer or file. It allows users to collect, analyze, and record test data within application or export data files to Excel. RS-232 PC interface enables use with optional Wingather Software, and devices with temperature sensing option have temperature offset capability to ±1°C.

AMETEK Commercial Motors    Kent, OH 44240
Jan 30, 2007 Microjammer® variable-speed, brushless dc blowers provide output pressures up to 51 in. H₂O and flows up to 26 cfm. Low voltage, 12/24 Vdc blowers feature bearing system and rear-balancing disk standard on 5.1 in. model. Microjammer 3.0, 3.3, and 4.5 in. blowers integrate ½ wave electronic controller into motor to enable compact, 2-wire operation. Optional 8-wire configuration for connection to external, full wave electronic controllers can also be ordered.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jan 30, 2007 Equipped with 1.3 megapixel dual-field image collection engine, 400 MHz AMD Alchemy 1100 CPU, and 4 MB non-volatile memory, MAH300 reads large linear and high-density matrix symbols with Dynamic Optimization Technology. DOT continuously adapts resolution, illumination, and image field for symbology identification and decoding over range of symbology types, sizes, recording surfaces, and ambient lighting. MAH300 has range of 300 ft and operates on Li-Ion battery.

Edmund Optics    Barrington, NJ 08007
Jan 30, 2007 Manufactured from aluminum-based coating on laser-quality substrate, Deep UV Enhanced Mirrors steer beams of light from commercially available sources at wavelengths through UV, visible, and IR. Products feature low polarization sensitivity at 0° angle of incidence, and substrate has wavefront distortion of 1/10 wave (@ 633 nm). Mirrors offer greater than 85% reflectance through wavelength range of 170 nm in deep UV through 11 mm in IR.

Intelligent Motion Systems, Inc.    Marlborough, CT 06447-1334
Jan 30, 2007 Meauring 5 in.³, MForce MicroDrive accepts input voltages from 12-48 Vdc and is available in choice of versions, including microstepping, motion control with intelligent programmable motion controller, speed control with built-in programmable velocity control, and CANopen communication protocol. Drive accepts up to 20 resolution settings from full to 256 microsteps/full step and operates from -40 to +85°C. With 2 A/phase output current, unit can control motors from size 8-34.

Rockwell Automation    Milwaukee, WI 53204
Jan 30, 2007 Suited for small packaging applications, Allen Bradley Kinetix 2000 servo drives feature modular design and SERCOS Interface with one digital fiber-optic link. Products integrate with Allen-Bradley Logix controllers, servo motors, and actuators to promote flexibility in machine design as well as energy efficiency in manufacturing control systems. Drives are scalable for handling applications from 300 W to 3 kW, and one power rail serves as mounting and connecting system.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 30, 2007 Along with support for Intel Core 2 Duo, Core Duo, and Core Solo processors with 400/533/667 MHz FSB, AIMB-554 features Intel 945GM Express chipset with remote asset management capabilities, Intel 945GM Graphic Memory Controller Hub, and I/O Controller. Integrated VGA controller and GMA950 promote graphics capabilities via PCI-Express x16 port, LVDS, and TV-out connector, with dual display support. In addition to multiple I/O, RoHS-compliant board includes communications options.

CGTECH    Irvine, CA 92618
Jan 30, 2007 CNC machine simulation and verification software, VERICUT v6.1, lets users eliminate process of manually proving-out NC programs. Capable of simulating all types of CNC machine tools, standalone product can also be integrated with various CAM systems. NC Program Review is integrated in main desktop, and logger display shows messages in scrolling list organized by category. AUTO-DIFF Constant Gouge Check can optionally check for min amount of excess material relative to design model.

Harting KGaA      Germany
Jan 30, 2007 Suited for industrial applications, eCon and mCon 9000 Ethernet Switches accommodate up to 7 Ethernet clients via M12 sockets on front, while further Ethernet connections can be made over backplane inside 19 in. rack. Units include LEDs for network diagnosis, as well as potential-free relay contact, which can be connected via DIN cable connector. Models in eCon 9000 family are plug-and-play, and mCon 9000 units can be managed over SNMP interface.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403
Jan 30, 2007 Featuring shafts of 416 stainless steel and heavy-duty sealed bearings that support both ends of shaft, 8-roller Roundup® Ready 8800 Diamond Series(TM) Pumps offer max flow output of 24.0 gpm at 1,000 rpm and handle fluid temperatures to 140ºF. Rotors are resistant to corrosion, and Buna-N ring provides positive seal between end plate and pump body. Standard rotation is counterclockwise, and available options include PTO adapters and reverse rotation.
