Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Mar 06, 2007 VBA series I/O modules for AS-Interface specification 3.0 support extended addressing with 4 inputs and 4 outputs for up to 62 nodes per network. Along with combined transaction functionality, series offers dedicated high-speed communications profile that updates analog data at full speed of network. It is also possible to define configuration channel between I/O devices and gateway, allowing complex devices to be configured and used on AS-Interface.

Molex Inc.    Lisle, IL 60532-1682
Mar 06, 2007 Available in fixed and pluggable styles with 4 pitches from .138-.197 in., Eurostyle(TM) ESE Terminal Blocks are rated at 300 V and 8.0-15.0 A and support up to 12 AWG wire. RoHS-compliant units offer vertical, horizontal, and 45° wire angles to meet board requirements. Units include high-temperature housings, gold contact plating, and imprinting. Surface Mount Compatible headers withstand reflow soldering temperatures and eliminate need for secondary wave-soldering.

Thermo Fisher Scientific    Waltham, MA 02454
Mar 06, 2007 Designed for regulated laboratories, life science, QA/QC, and general research laboratories, UV-visible Evolution(TM) 60 features built-in biochemical tests and single-cell Peltier temperature control accessory. For users with limited sample volumes, nanoCell accessory provides accurate measurements using 0.7-5 µl of solution. Evolution 60 is available in PC and local control configurations, and offers optional software enabling 21 CFR Part 11 compliance.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 06, 2007 Specifically designed for industrial environments, multi-function Model USB-4716 provides 16x single-ended analog inputs, 2x 16-bit analog outputs, 8x digital inputs, 8x digital outputs, and one 32-bit event counter. Module comes with WaveScan trending and data logging software as well as Windows API's, Active X controls, and LabView(TM) drivers. Powered by USB port, device includes USB connector with screw fasteners and DIN-rail mounting kit.

Mitsubishi Forklift Trucks    Houston, TX 77043
Mar 06, 2007 With capacities from 3,000-4,000 lb, electric counterbalanced FBC15NS-FBC20NS Series features transistorized ac drive and hydraulic control systems, as well as electric power steering, 500 hr service intervals, and display-based diagnostics. Side stance operating position allows operators to adjust to various travel requirements. Trucks are suited for applications requiring extensive shuttling, frequent entries and exits of trailers, and tight turns in narrow spaces.

Sauer-Danfoss    Ames, IA 50010
Mar 06, 2007 With PLUS+1(TM) Compliance, users can quickly develop integrated systems for intelligent machines. PLUS+1 Compliant components, including pumps, motors, valves, joysticks, and graphical display terminals, are available for work, propel, and control functions in mobile off-road machinery. Using PLUS+1 GUIDE, programmers drag components' software icons from library, drop them on computer screen workspace, and connect them together, saving hundreds of hours of programming and testing.

Macro Sensors    Pennsauken, NJ 08110 1334
Mar 06, 2007 Suited for applications utilizing ac and dc operated LVDT inputs, microprocessor-based, dual-channel Series DMC provides digital position indication and cross-channel math and control functions for monitoring, measuring, and control requirements. Units offer programmable input averaging, digital filtering, and HI/LO limit detection. GUI enables operators to calibrate and set up sensors, retrieve or send programs, and view and collect data remotely through RS-232 or Ethernet.

Omega Engineering, Inc.    Stamford, CT 06907

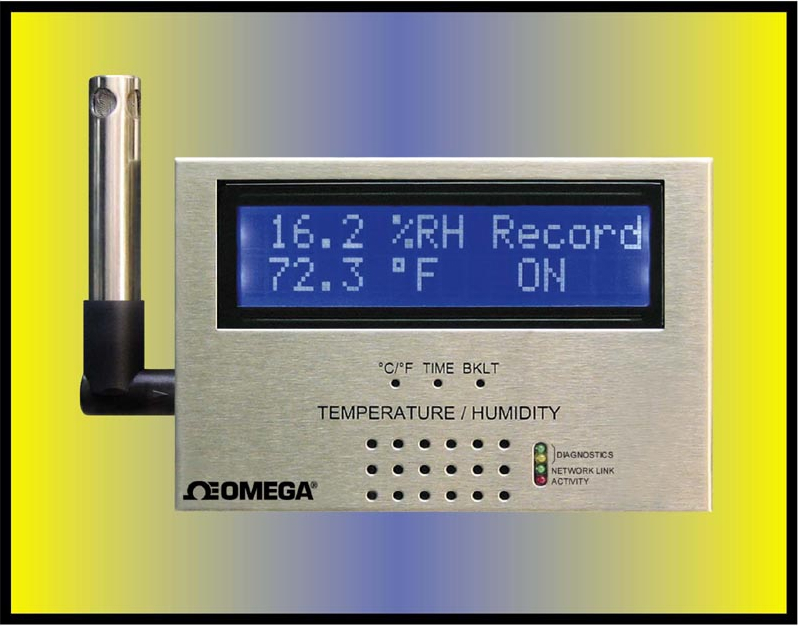

Mar 06, 2007 OMEGA® iSE environmental monitor provides web-based monitoring of temperature from -40 to 124°C, RH from 0-100%, and dew point, all over Ethernet network. It also allows monitoring of physical threats via burglar alarms and can be triggered in case of power failure. Readings can be displayed via charts on web page, on spreadsheet, or through DAQ program. Device comes with 2 MB flash memory card, 2 relay alarms, and is powered by 110-230 Vac supply.

STAMA America    Itasca, IL 60143

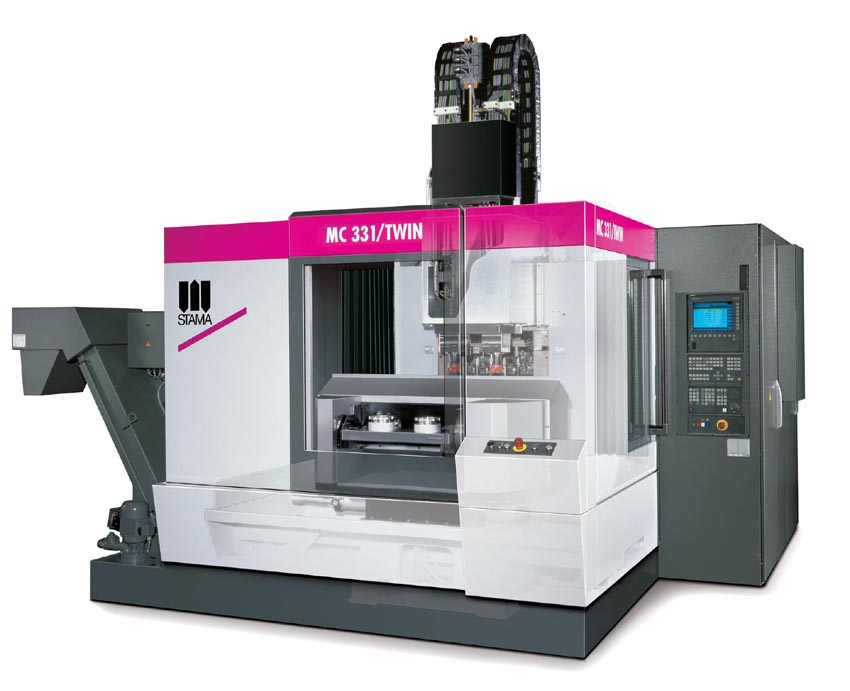

Mar 06, 2007 System 3 CNC vertical machining centers include 180° swivel work table with 2 separated clamping surfaces that allows simultaneous machining operations as well as loading/unloading of workpieces weighing up to 1,115 lb. Working ranges for X/Y/Z axes are offered up to 27.56 x 19.68 x 15.75 in., with spindle speeds up to 20,000 rpm and torques to 200 Nm. Spindle cartridges are direct drive, and toolchangers with 42 positions are standard with up to 120 optional.

Aspectrics, Inc.    Pleasanton, CA 94566
Mar 06, 2007 Designed for scientists working in process industry, MultiComponent(TM) 2750 Encoded Photometric Infrared (EP-IR) analyzer is used to measure water percentage in ethanol. This determination is of importance during purification process of ethanol when percentage of water needs to be minimized for ethanol to be as absolute as possible. Solution works when coupled to external halogen NIR source and extended range 2 mm pathlength process transmission multimode fiber probe.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707

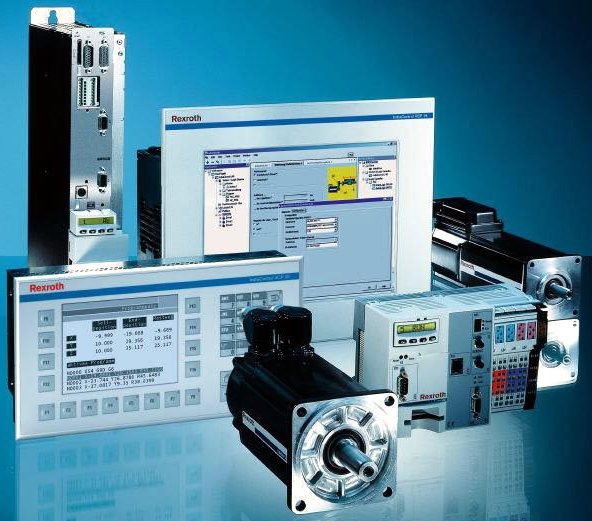

Mar 06, 2007 IndraMotion for Metal Forming contains all pre-defined, user-activated functions needed for specific applications such as roll feed and flying cut off. While offered in 3 versions, all are built on IEC 61131-3 compliant PLC running in IndraDrive and use open interface technology for discrete I/O and standard fieldbus protocols. Each version also lets users utilize technology functions offered by IndraDrive intelligent digital drives, including EN-954-1 Category 3 safety functions.

Measurement Specialties, Inc.    Hampton, VA 23666

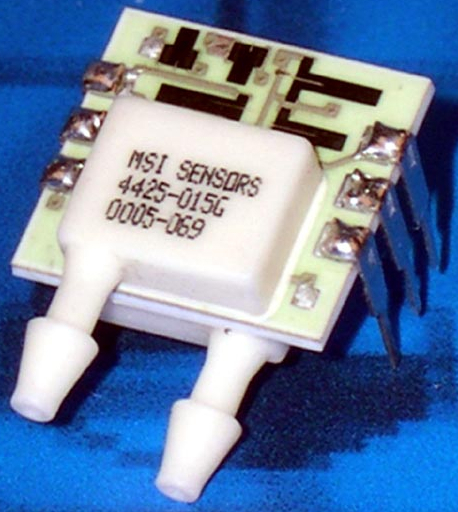

Mar 06, 2007 Packaged in dual-in-line configurations, Models 4425 and 4426 are temperature compensated, piezoresistive silicon pressure sensors available in ranges from 0-1 to 0-100 psi. Model 4425 has dual pressure ports on side and offers differential or absolute pressure measurement; tubes are parallel to PCB to allow clearance above sensor. Model 4426 has one, top-mounted vertical pressure port and offers gage or absolute pressure measurement.

Advance Div. of Philips Electronics North America    Rosemont, IL 60018
Mar 06, 2007 Designed for use with 24 W T5 High Output and 24 W Long Twin Tube fluorescent lamp applications, Mark 10® Powerline measures 16.7 x 1.18 x 1 in. and features IntelliVolt® technology for operation at 120-277 V, 50/60 Hz. Ballast delivers 100-5% continuous dimming capability and takes dimming signal directly from power line to eliminate need for additional control wiring. Operation above 40 kHz minimizes risk of interference problems, and THD is less than 10%.

TDK-Lambda Americas Inc.    San Diego, CA 92154

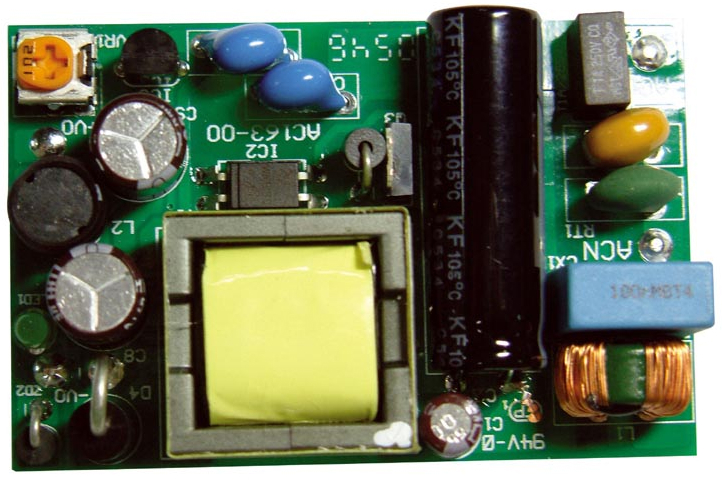

Mar 06, 2007 Offered in 3 power levels, single-output KPS series are RoHS-compliant Class II devices that do not require ground connection. Package sizes vary from 1.38 x 2.17 x 0.79 in. (5 W) to 1.89 x 2.75 x 0.91 in. (15 W), and are rated for operation in convection-cooled environment from 0 to +70ºC. Commonly used output voltages from 3.3-24 V are also offered, with typ efficiency of 82% (24 V models). All configurations accept inputs from 90-264 Vac, 47-440 Hz or 110-370 Vdc.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828

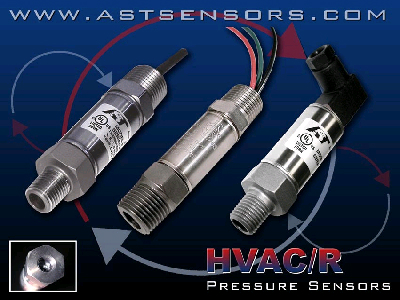

Mar 06, 2007 Designed for integration into HVAC and refrigeration equipment, HVAC/R Pressure Sensors incorporate 1-piece, stainless steel design that contains no internal seals or gaskets, eliminating chance of permeation, system contamination, and freezing. Thermal Flash Protection(TM) minimizes effects of thermal flash transients when media is ammonia. Providing more than 100 million full cycles with linear output through zero, each sensor ensures EMI/RFI protection and RoHS compliance.

Proceq USA, Inc.    Aliquippa, PA 15001
Mar 06, 2007 EQUOTIP® 3 offers menus, soft function keys, and control structure to facilitate operation, while graphic display has adjustable contrast and backlight to promote viewing of test results, statistics, and all relevant test parameters. Along with automatic/manual impact direction, unit features test result conversion, data storage (up to 100,000+ readings), and communications interfaces. User profiles allow instrument setup to be configured for individuals and password protected.

Futek    Irvine, CA 92618
Mar 06, 2007 Scaleable to 5 digits, IPM500 Panel Mount Signal Conditioner with Digital Display supports sensors with TEDS ID recognition option per IEEE1451.4. TEDS option features auto-configuration, which minimizes error due to setup and re-installation. In addition to providing stable and regulated excitation voltage to sensor, unit also provides 0-10 Vdc and 4-20 mA analog output as well as RS232/RS485 and USB interface to be used with PLC, DAQ card, or computer.

BEA Lasers    Elk Grove Village, IL 60007
Mar 06, 2007 Available with choice of 60 mm ID adjustable ringlight or 18 in. dual chrome goosenecks with spot lens, stackable Model BEA-150 provides consistently adjustable illumination in laboratory or inspection environments. Cold light source, compatible with existing illuminators and microscopes, incorporates switching 115/220 Vac power supply as well as on/off switch separate from rheostat intensity control. Removable front panel assembly facilitates lamp and filter replacement.

Moore Industries International, Inc.    North Hills, CA 91343
Mar 06, 2007 BIMETAL Dual-Mode Remote Thermometer offers on-site indication of process temperature conditions while simultaneously providing mV or ohm signal proportional to temperature for input to another device. Solution requires no power supply at point of measurement and includes thermowell probe assembly, which contains RTD or thermocouple sensor and analog display that are NIST-traceable and can be calibrated in-field. Dials are available to indicate 0 to +250°F and 0 to +500°F ranges.

Hilti Inc.    Tulsa, OK 74121
Mar 06, 2007 Manufactured with ergonomic design, TE 7-A is designed for drilling in concrete and masonry as well as light chiseling. Product has 5/16 to ¾ in. dia optimum drilling range and supports use of optional TE DRS-M Dust Removal System. Tool utilizes 36 V lithium-ion batteries, which can charge up to 50% capacity in 18 min or 100% in 36 min.
