Milacron Inc.    Cincinnati, OH 45206
Jul 05, 2006 Offering 15-300 tons of clamp force, Magna V vertical-insert injection molding machines combine digital positioning and overlapping functions with open-access, tiebar-less C-frame design. Features include XTREEM® PC-based control system; digital hydraulics; and stationary, shuttle, or rotary tables. Suited for process-specific situations, ergonomic units offer injection sizes from 0.5-54 oz. Multi-component configurations are available, as are hybrid and all-electric designs.

Creform Corp.    Greer, SC 29652-0830
Jul 05, 2006 Heavy-duty workstation is created with Creform System, which consists of resin-coated steel pipe, joints, and hardware accessories that facilitate design, fabrication, and assembly of adaptive and ergonomic structures. Featuring 42 mm diameter pipe, it holds up to 1,000 lb and offers powered height adjustment work surface for ergonomic positioning. Available pipe selections include general-purpose, ESD antistatic, and yellow w/black spiral high-visibility type.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Jul 05, 2006 With measuring range of 800 MHz to 2.2 GHz and ±0.5 dB accuracy, YellowFrog(TM) connects directly to Gator(TM), Dragon(TM), Lizard, or any CW transmitter with type N out for instant verification of power levels in dBm or Watts. Handheld unit weighs under 2 lb and has USB port for power and PC communication. Provided with LCD display, product operates continuously on 2 AAA Ni-MH batteries for 8+ hr and comes with PC controller/monitoring software.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
Jul 05, 2006 Using stainless steel mesh as isolating medium, V10Z27 Series includes 3 base-mounted vibration and shock isolators that can withstand compression loads up to 10x their rated static loads. Free standing height of these 3¼ in.² units is 1 61/64 in., which compresses under static load to 1 53/64 in. Rated for temperatures from -94 to +347°F, products exhibit natural frequency from 14-22 Hz, and static load ranges are 70-400, 300-800, and 600-1,600 lb.

Astrodyne Corp.    Mansfield, MA 02048
Jul 05, 2006 PowerBlock micro-miniature, modular power supplies include PWB and AFC product lines, which are supplied in respective 1 x 2 x 0.6 or 0.9 in. packages with 0.40 in. dia connection pins designed for PCB mounting. Both types include 5 models with single outputs of 3.3-24 Vdc and 3,000 Vac input to output isolation. Accepting universal input from 85-265 Vac, 47-440 Hz, fully encapsulated products are over voltage (clamp type) and short circuit (continuous) protected.

Fixtureworks    Fraser, MI 48026
Jul 05, 2006 Offered in standard force line and heavy-duty models, Imao® One-Touch Swing Clamp series is manufactured from heat-treated alloy steel with black oxide finish. Standard range includes 2 sizes with 170 or 260 lb clamping force, 32 or 45 mm min clamping height, and 25 or 32 mm arm length. For heavy-duty models, clamping force is rated to 786 or 1,348 lb, arm length is 42 or 48 mm, and variable clamping height ranges from 70-80 mm or 80-90 mm.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

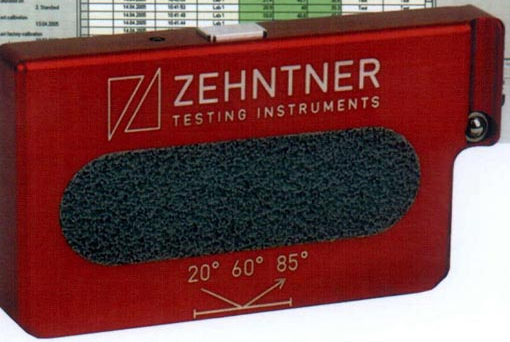

Jul 05, 2006 Able to measure confined areas as well as curved and non-uniform surfaces, ZGM 1120 series includes single-, dual-, and triple-angle versions that allow for simultaneous operation of several geometries and measuring heads. Product is capable of performing single measurements; multiple measurements; user-specified automated series of measurements; and continuous measurements. Product can connect to PC or laptop via USB interface and includes GlossTools software.

LEDtronics, Inc.    Torrance, CA 90505

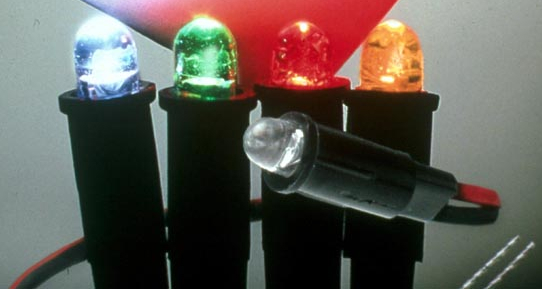

Jul 05, 2006 Visible in any lighting situation, PP156 Series 5/32 in. Dome LEDs have solid-state design and exhibit average life span of 100,000+ hr. Waterclear versions come in 660 nm Ultra Red, 595 nm Super Yellow, 8,000K Super White, 525 nm Super Green, and 470 nm Super Blue colors. They give off 125-400 MCD, depending on color and supply voltage, and have 30° viewing angle. Diffused dome lens models offer same daytime visibility but 45° viewing angle and frosted lens style.

Maguire Products, Inc.    Aston, PA 19014
Jul 05, 2006 MicroPlus(TM) blender has 4 four removable hoppers for natural resin, regrind, color, and additive. While dispensing systems in 3 hoppers are pneumatic vertical valves, regrind hopper features corner valve for enhanced flow of bulk ingredients that have large or variable particle sizes. For configurations involving use of loaders mounted atop blender, optional pneumatic system automatically lifts hopper lids on which loaders are mounted, easing access to hoppers and bottom of loaders.

NKK Switches    Scottsdale, AZ 85260-3420
Jul 05, 2006 Rated at 50 mA @ 24 Vdc, JL series illuminated switches are 22 mm square with black housing to frame 19 mm square polycarbonate actuator. Housing and case are constructed of glass fiber reinforced polyamide and terminals are brass with silver plating. PC terminals are crimped to provide spring type action that ensures secure mounting and prevents dislodging during soldering process. LEDs are offered in red, green or amber, while actuators are available in white, red, amber, and green.

Rockwell Automation    Milwaukee, WI 53204

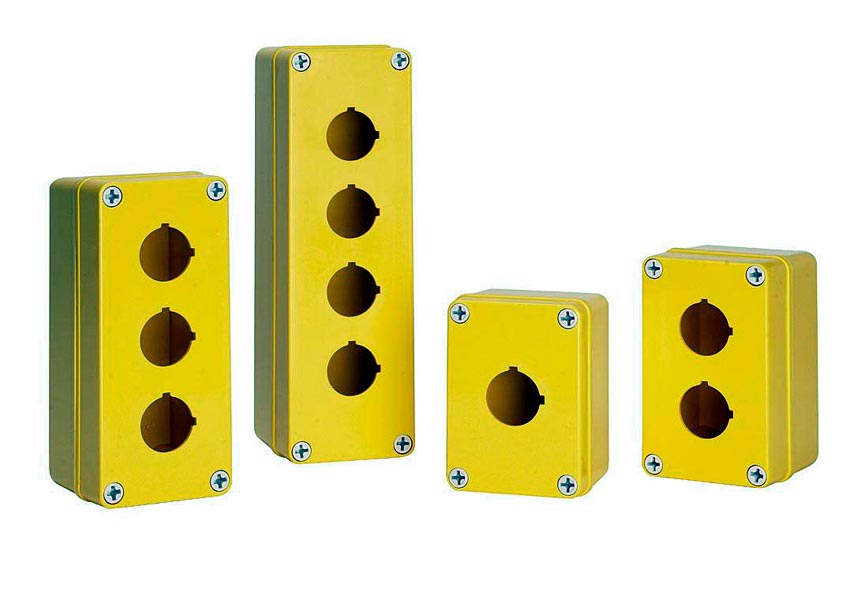

Jul 05, 2006 Series 800H pushbutton plastic enclosures are designed for applications requiring e-stop with yellow background or those requiring increased visibility of pushbutton station. UL and CSA rated, enclosures have thermoplastic polyester blend construction that provides impact resistance and are available with 1-, 2-, 3- and 4-hold configurations in cover-to-base orientation. Enclosures are designed for commercial, OEM, and light industrial applications.

EAO Switch Corp.    Milford, CT 06460
Jul 05, 2006 Low profile, flush mount, illuminated Series 84 pushbuttons are available with aluminum or plastic bezels in standard 22.5 mm cutout. IP67 rated pushbuttons can be connected by 300 mm ribbon cable or plug-in terminals. Double-blade, slow make switching system ensures pleasing tactile operation and promotes reliable switching, even of very light loads. With a maximum rating of 42 Vac/dc, 100 mA, switches are suited for PLC level signals.

Transducers USA    Elk Grove Village, IL 60007
Jul 05, 2006 Able to handle extremely difficult off road conditions, Model TRIP-86515W Audio Alert is specified with temperature range of -40 to +75°C and operating voltage span of 3-25 Vdc at 25 mA max. Sound output is 100 dBA min with resonant frequency of 2,900 ±500 Hz. Sealed, panel mounted alert is offered in 29.0 x 32.8 mm leaded and connector versions in standard black color.

Linear Technology Corp.    Milpitas, CA 95035
Jul 05, 2006 Operating with or without host microcontroller, LTC4101 smart battery charger controller is optimized for 3-5.5 V charging voltages and is suitable for 1-cell Li-Ion and 3- to 4-cell nickel-chemistry batteries. Synchronous switching operation provides charging from 6-28 V input supply and IC is capable of charging up to 4 A with 0.8% voltage accuracy and 4% current accuracy. LTC4101 is housed in 24-pin SSOP package and operates from -40°C to 85°C.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jul 05, 2006 Equipped with internal cooling fan, Loctite® 7700-HD LED Light Source portable curing system offers output of 1.0-1.5 W/cm² at peak wavelength of 405 nm and provides effective continuous duty cycle use. Powered from ac power adapter, hand-held or stationary mount system features extended tip for use on small adhesive joints. Sized at 9 x 1.4 x 2 in. and weighing 0.75 lb, unit may be actuated using foot switch, PLC interface cable, or timer.

InduKey Keyboard Production GmbH & Co. KG    D-08233 Treuen (Vogtland)   Germany
Jul 05, 2006 Available as keyboard only or with integrated capacitive touchpad, InduStyle(TM) has wear- and chemical-resistant polyester frontsheet sealed against base to IP65 standards. Keys and PCB are mounted in solid aluminum base, while gold-on-gold dome switches promote optimal tactile feedback and have lifetime of over 2 million operations per key. Measuring 15.5 mm thick, product is offered with PS/2 or USB interface options and fully customizable frontsheet.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
Jul 05, 2006 Suited for laundry, housekeeping, and food/beverage staff in hotels, restaurants, and healthcare facilities, bulk linen and laundry carts feature recess for RFID tags or bar codes on side of rotationally molded carts near roofline. Positioning allows ergonomic access for hand scanners while also ensuring smooth tag reading as cart rolls through automatic scanners. Recess also serves as protective niche that helps guard tags against collisions with walls, trucks, and other carts.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403
Jul 05, 2006 PowerFLO(TM) 5850-101 Series is constructed with Viton valves, polypropylene housings, Santoprene diaphragms, and stainless steel fasteners. Driven by 12 Vdc motor, these 5-chamber, positive displacement pumps are self-priming and can run dry without damage. They operate in demand mode, offer 5.0 gpm output at open flow, and handle fluid temperatures up to 140ºF. Brackets are included for mounting flexibility.

seepex, Inc.    Enon, OH 45323
Jul 05, 2006 Portable MDF progressive cavity Drum Pumps are available with titanium internals, PTFE housing, and explosionproof motors. Positive pressure on suction side simplifies transfer of fluids, and pumping elements are introduced directly into fluid to lift it without need to pull prime. Designed to empty open and closed drums, totes, and tanks, pump handles corrosive and abrasive compounds of varying viscosities and solids content as well as liquids with high vapor pressures.

Engis Corp.    Wheeling, IL 60090 6038
Jul 05, 2006 Manufactured for optimal balance and weight, Di-Pro polishing/finishing system is suitable for extended use with variety of drive systems, including integrated air motor, flexible shaft (slip-joint or ball-joint), integrated micro-motor, and connections for micro-motors. Product, which weighs 0.9 kg, exhibits maximum performance when used with Diprofil diamond tools and offers max speed of 10,000 rpm at 0-6 mm stroke length.
