Micrel Semiconductor Inc.    San Jose, CA 95131
Mar 20, 2007 Offered in 10-pin MSOP package with current consumption of +10 dBm output, 3 V, 6.7 mA, and ASK=CW, Model MICRF112 requires only 9 components, including antenna, for implementation. It features operating voltage range of 1.8-3.6 V, operating temperature range of -40 to +125°C, and standby current of 50 nA (typ), prolonging battery life. Applications include telemetry, wireless sensing, consumer entertainment remotes, remote actuation, and lighting control.

Spotfire Inc.    Cambridge, MA 02139
Mar 20, 2007 Built DXP(TM) enterprise analytics platform, Spotfire Asset Management helps financial asset managers identify trends and capture arbitrage opportunities in large amounts of constantly changing financial data. It provides interactive visual analysis of investment data from disparate sources, enables collaboration of investment process across enterprise, allows ad-hoc querying, and includes library of discipline-specific analytics applications.

Sensoray    Tigard, OR 97223

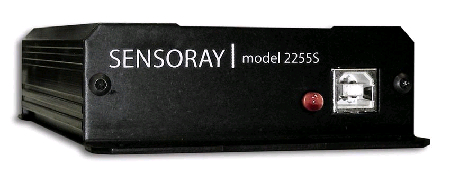

Mar 19, 2007 Powered through USB 2.0 connection on PC, multichannel Model 2255 allows for simultaneous video capture of up to 4 composite NTSC or PAL video sources at 15 fps or 2 channels at full 30 fps. Full frame rate capture is possible across all channels simultaneously using monochrome or scaled down modes. Supported output formats include RGB packed, YCrCB packed, YCrCb planar, and Y8.

Binder-USA    Camarillo, CA 93012

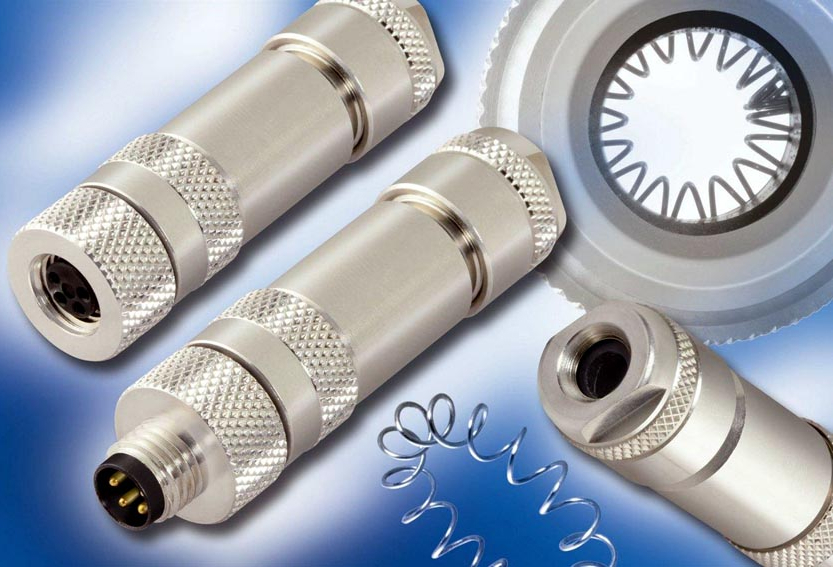

Mar 19, 2007 Available with 3 or 4 contacts, field-attachable 768 series includes iris-shaped shielding ring that ensures 360° protection. Screw termination for conductors facilitates connector assembly and ensures EMI protection. Terminals accept conductors with max cross section of 0.5 mm², and connector's cable exit supports cable ODs from 3.5-5.5 mm. Conductors are terminated to screw terminals and fixed in place using included allen wrench. When fully mated, connector is sealed to IP67.

Anver Corp. - Anver.Com    Hudson, MA 01749

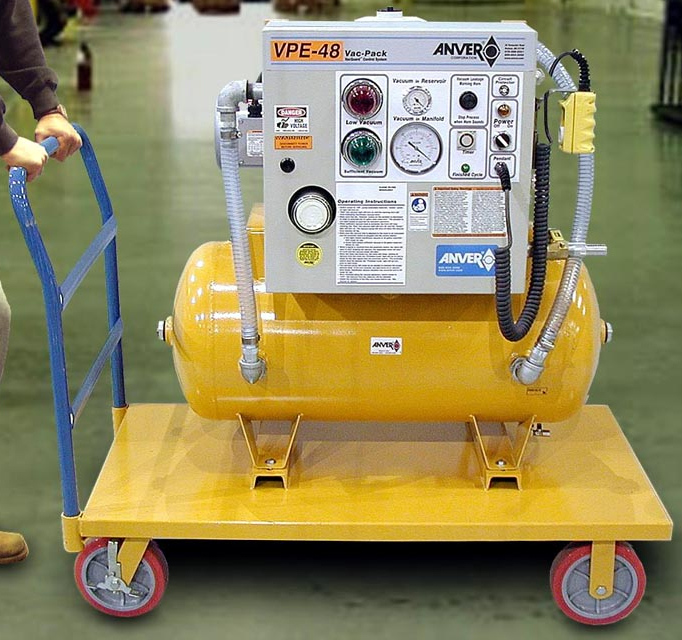

Mar 19, 2007 Anver Portable Vacuum Station features VPE-48 Electric Vac-Pack(TM); dry, oil-free vacuum pump; and reservoir integrated and mounted on steel cart with heavy-duty wheels and casters and push handle. Equipped with 1.5, 3, or 5 hp motor, this self-contained, heavy-duty, portable vacuum station will, respectively, pull 24 in. Hg vacuum with 24, 50, or 75 scfm. Energy saver circuitry, also included, performs automatic pump shut-off when proper vacuum is achieved.

ControlAir Inc.    Amherst, NH 03031 2315

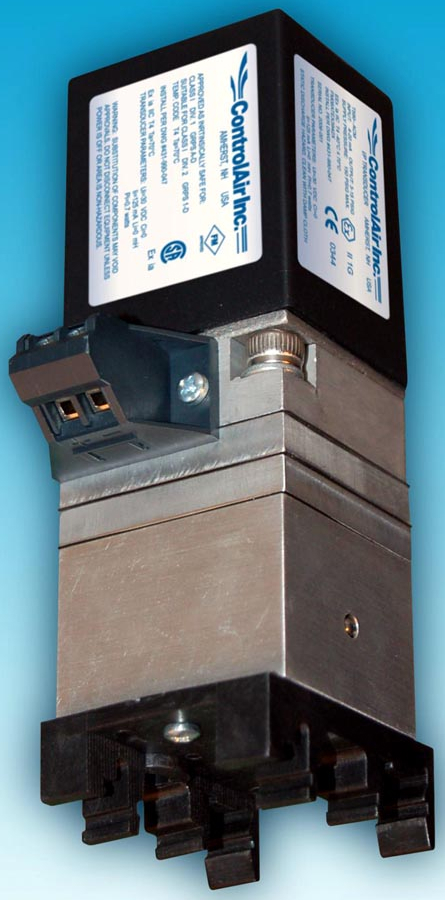

Mar 19, 2007 Able to be mounted in any position, intrinsically safe Type-590X I/P Transducer converts variable electrical signal to linearly proportional pneumatic output. Conversion technology, utilizing open loop control and low-mass magnet, produces accurate pressure control. Resistant to position change and impervious to RFI/EMI interference, current-to-pressure transducer accepts 4-20 mA input signal and offers output ranges of 3-15, 3-27, 6-30 psig.

Rex-Cut Products, Inc.    Fall River, MA 02720

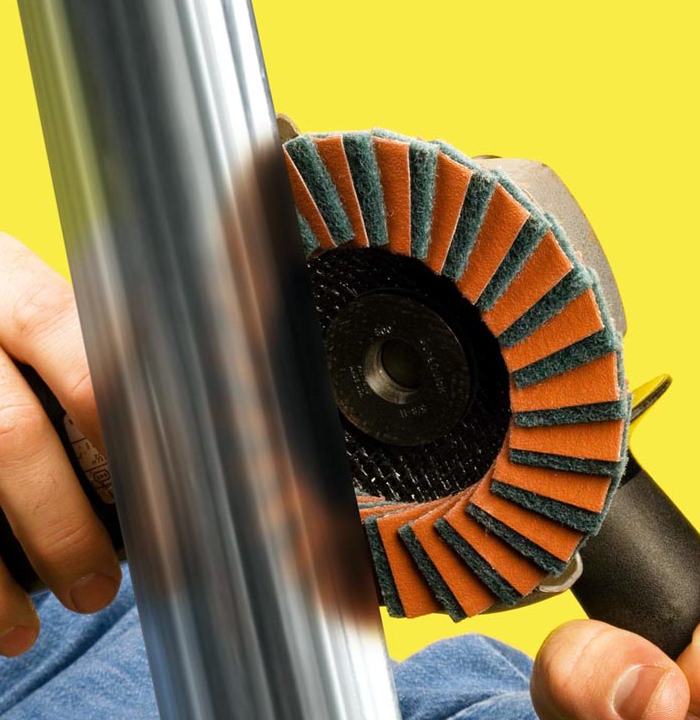

Mar 19, 2007 Rex-Cut® FUSION(TM) Flap Disc features interleaf construction that combines coated abrasive layer and surface conditioning layer. Design constantly reveals fresh abrasives to remove welds, light burs, and surface roughness, leaving smooth finish on stainless steel structures in one operation using right-angle grinder. Disc is offered with coarse, medium, and very fine grits in 4½ and 5 in. dia sizes to promote material removal and smooth operation.

Phihong USA    Fremont, CA 94539
Mar 19, 2007 Measuring 7.8 x 8.9 x 1.75 in., 8-port midspan is fully compliant with IEEE802.3af standard in detection, disconnect, and voltage control. This Gigabit-compatible PoE midspan provides full power to all its ports, delivering backup power to phones and security cameras in entire office using one UPS. Stacked on switch or rack-mounted, unit features connection and diagnostic indicators and supports Cisco legacy IP phones and access points.

CAT PUMPS    Minneapolis, MN 55449

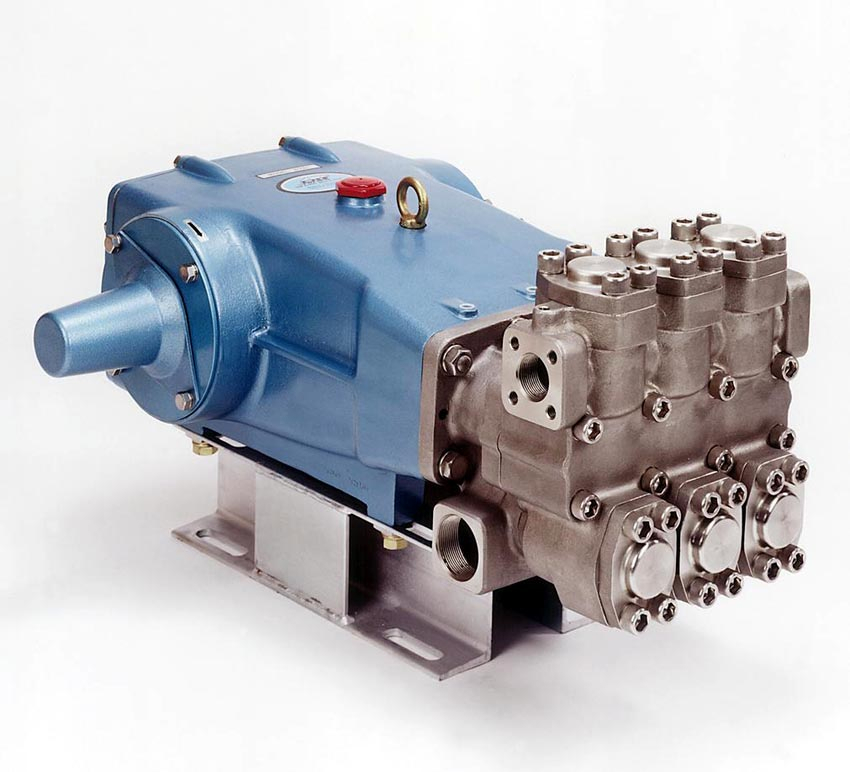

Mar 19, 2007 Also suited for chemical injection, Model 6762 Triplex Reciprocating Positive Displacement Plunger Pump features Duplex SS head and valve assemblies. Pump includes concentric, solid ceramic plunger, corrosion-resistant liquid end, and heavy-duty drive end. Operating at up to 50 hp, it handles up to 60 gpm with speed up to 520 rpm, and pressure up to 1,200 psi.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245
Mar 19, 2007 Pre-assembled and ready for installation, Field Junction Boxes facilitate mounting of Segment Protector and Field Barrier fieldbus wiring components, terminators, spur connectors, and surge protection devices. Standard and custom designs are available, suited for Zone2/Division 2, Zone 1/Division 1 intrinsically safe, and Zone 1 increased safety applications. Products come with all necessary components installed, wired, and tested. Polyester and steel enclosures are available.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom

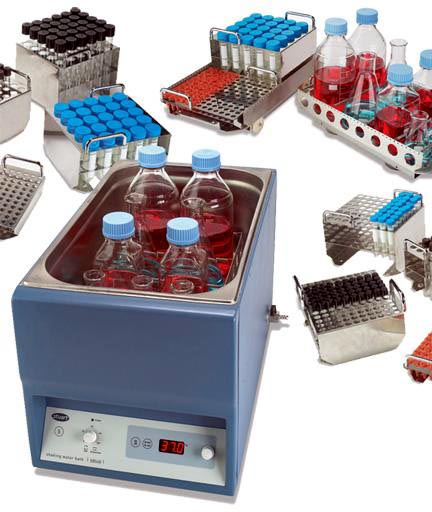

Mar 19, 2007 Available with linear or orbital shaking action, Stuart SBS40 Shaking Water Bath features low level water sensor, drain, and digital LED display with selection of temperature from 5-100°C. Stainless steel platform accommodates 8 x 250, 6 x 500, or 4 x 1,000 ml Erlenmeyer flasks, and vessels are held in place by high-tension springs. Powered by 120 V, 60 Hz electrical supply, bath offers shaking speed of 20-200 rpm, and shaking orbit/amplitude of 20 mm.

Cliplight Manufacturing Company    Toronto M3J2J1  Canada
Mar 19, 2007 Featuring mechanical analog display, TIGAR Mic(TM) connects directly to refrigeration system's low-side pressure valve, eliminating hoses that can skew measurement accuracy. Isolation ball valve prevents gauge damage in event of recovering refrigerant accidentally before obtaining vacuum. Measuring 2½ in. diameter, gauge features 30,000 micron dial with 200 micron increments. Vacuum readings are displayed progressively and cannot be skewed by moisture/oil contamination.

Greenheck    Schofield, WI 54476 0410
Mar 19, 2007 Hinged base assembly includes factory-assembled hinge, hold-open restraint cables, and curb seals mounted to base that slides directly over standard curb. It is available on Model CUE and CUBE spun aluminum fans sizes 200 and smaller.

Value Engineering Alliance, The    Cambridge, MA 02139-4772

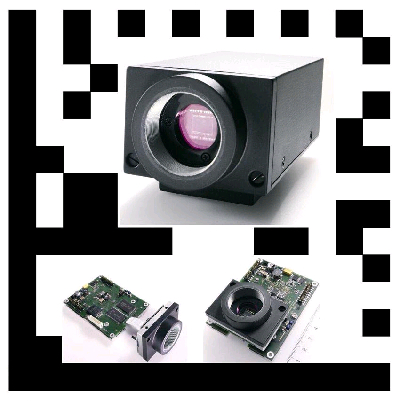

Mar 19, 2007 Compatible with PIATI(TM) ECC200 data matrix decoding solutions, PIATI(TM)_SWO serves as automatic identification component in vision application development and implementation environments. Software deciphers ECC200 data matrix codes and provides optimal results in practical situations, including when codes are imaged using poor lighting, when codes are marked on textured or treated surfaces, and when codes exhibit challenging degrees of degradation.

Northwire, Inc.    Osceola, WI 54020

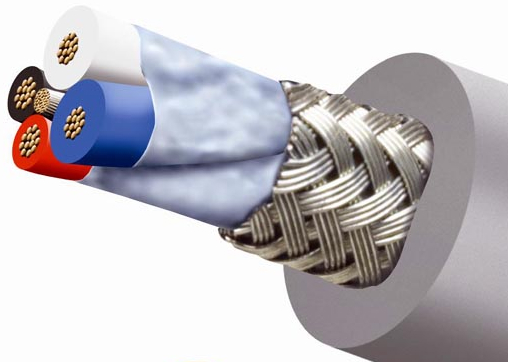

Mar 19, 2007 Engineered for environments utilizing networked discrete automation and control, ODVA(TM) DeviceNet(TM) DataCELL® FIELD cable has PVC jacket resistant to oil, light, and water. Product is available in ODVA-compliant thick (600 V rated), which exceeds CL2 and CL3 per NEC 725.61; thin (300 V rated); and special PLTC thin, designed with 22 AWG data pair and PLTC-rated (Power Limited Tray Cable), which exceeds CL2 and CL3 per NEC 725.61. Standard and custom colors are available.

Ultra Motion    Cutchogue, NY 11935

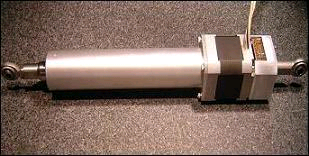

Mar 19, 2007 Available with many options, Digit Linear Actuator is equipped with 2 inline zero-backlash end mounts, standard NEMA 17 high-torque stepper motor, and precision leadscrew with anti-backlash nut. Its 3-channel optical encoder provides resolution as high as 4,096 quadrature counts per revolution.

Elmo Motion Control, Inc.    Westford, MA 01886

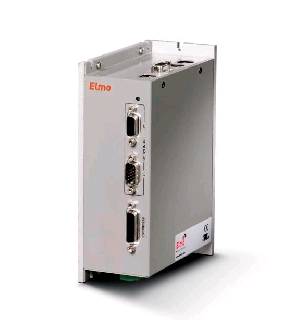

Mar 19, 2007 Available in 3 models, Didge Servo Drive provides up to 12 A peak power in metal, non-ventilated industrial assembly. It operates in current, velocity, position, or advanced position modes for ac/dc brushless or brush motors, linear motors, or voice coils. Drive can also operate in trapezoidal or sinusoidal commutation with vector control as stand-alone unit or as part of distributed multi-axis system in real-time network.

SKF USA, Inc.    Lansdale, PA 19446
Mar 19, 2007 Offering corrosion resistance, stainless steel Speedi-Sleeves® exhibit surface roughness of 0.25-0.51 mm. Units mount by pressing them over damaged shaft surface and do not require power tools or heating. Shafts up to 8.000 in. dia can be equipped with standard models, while shafts with diameters up to 45.000 in. can use LDSLV chrome-plated, carbon steel sleeves. Speedi-Sleeve Gold version features coating that minimizes rate of abrasive wear in contaminated conditions.

Cole-Parmer Instrument Co.    Vernon Hills, IL 60061

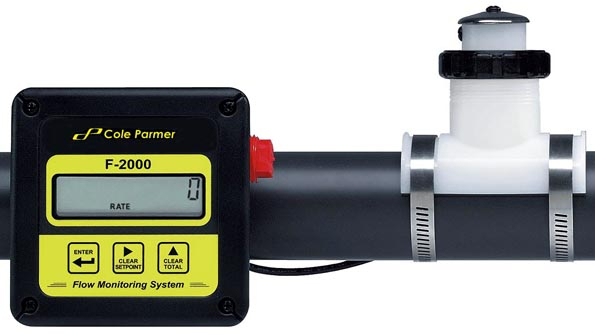

Mar 19, 2007 Featuring analog output, flow meters facilitate facilities' proportional feed and batch processing capabilities. Included 8-digit LCD can be mounted directly to pipe or into ¼-DIN panel opening. To accommodate range of pipe sizes, meters are offered with in-line polypropylene or saddle-mount PVDF pipe fittings. Applications include water/wastewater treatment, chemical systems, and agricultural systems with water-like fluids containing less than 1% solids.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 19, 2007 Rated up to 35 kV, UTILUX copper compression terminals and splices install with industry-standard tooling and are color-coded. They are made from seamless ETP copper and precision heat-treat tempered. Available in 1- and 2-hole versions, terminals are compatible with cable from 6 AWG to 1,000 MCM and accommodate termination with compact, compressed, or stranded copper conductors. Splices have same range and accommodate concentric, compact, or stranded copper conductors.
