Motorola, Inc.    Schaumburg, IL 60196 4041
Jul 19, 2006 Featuring EDGE technology, RoHS-compliant quad-band G24 Module enables transfer of information and commands between automobiles, meters, vending machines, handheld devices, and other machines. It features RX sensitivity of 4 dBm, enabling stable connectivity, even in locations with low coverage for applications such as home security systems installed in basements.

Sensaphone    Aston, PA 19014
Jul 19, 2006 Designed to protect industrial plants and chemical manufacturing facilities, Sensaphone® 1800 monitors critical fluid storage, flow meters, water levels, timers, temperature, power failure, and alarms. When problem is detected, system automatically issues alarm notifications to as many as 8 recipients via voice phone or text messages to alphanumeric pagers and cell phones. Features include alarm history reviews, data logging, Web-based interface, and remote control capabilities.

Bomar Interconnect Products    Ledgewood, NJ 07852
Jul 18, 2006 Suited for studio broadcast equipment, 75 ohm BNC Connectors feature extremely low 1.032 VSWR and return loss of -36 dB at 4.5 GHz. Miniature quick connect/disconnect RF devices are engineered to meet or exceed professional broadcast sector's mechanical, electrical, and environmental standards. Made of precision-machined brass with gold-plated contacts and black nickel-plated body, connectors can be used to terminate RG-6 and RG-59 coaxial cables.

vps ID Systeme GmbH (formerly vps Video Print Systeme GmbH)    Ettlingen D-76275  Germany
Jul 18, 2006 Designed to manage chip-based identity documents, Identity and Card Management System meets needs of governments issuing biometric-enabled electronic passports. Web-based system can be securely accessed remotely via browser by authorized government officials to create new passports or manage document's lifecycle. Featuring open architecture, program interfaces with hardware systems used for biometric data capture and serves as information hub for passport-related operations.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089
Jul 18, 2006 Measuring 67.5 x 31.5 x 18.5 mm, FTP-628MCL701 can be mounted vertically or horizontally and has frame width that accommodates compact designs. It features built-in detection functions, has 48 mm effective printing area, and accommodates 58 mm wide thermal papers from 60-100 µm thick. Battery-driven unit is RoHS-compliant and permits drop-in paper loading. Operating from 4.2 Vdc to 8.5 V, product offers print speeds to 80 mm/sec with resolution of 8 dots/mm.

Allegro MicroSystems Inc.    Worcester, MA 01615

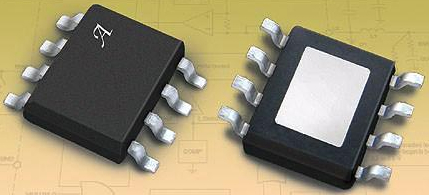

Jul 18, 2006 Supplied in eSOIC-8L package, general-purpose A8498 is 3 A fixed off-time, current-mode-controlled, buck-switching regulator that operates in continuous and discontinuous modes. Off time is determined by external resistor, and internal blanking circuit filters out transients due to reverse recovery of external clamp diode. With 200 nsec blanking time and adjustable 0.8-24 V output voltage, regulator requires external clamping diode, inductor, and filter capacitor.

LitePoint Corporation    Sunnyvale, CA 94085
Jul 18, 2006 TrueChannel Emulator reproduces multipath environments for testing up to 4X4 multiple input/multiple output or single input/single output wireless solutions. It provides end-to-end RF connectivity with ability to measure Device Under Test's (DUT) response to standardized or user-defined channel. Once set up via GUI, system runs automatically, supported through either C++ or MATLAB compatible API. Through these interfaces, user defines channel model characteristics.

SpaceAge Control, Inc.    Palmdale, CA 93550
Jul 18, 2006 Offered with fixed or adjustable mounting features, Series M provides choice of analog (voltage divider or rheostat) or digital (quadrature) sensors. General-capability products utilize spring rated for 100,000 full-stroke cycles (min) and low-inertia drum. Reduced displacement cable fleet angle optimizes repeatability and minimizes cable overlap. Compatible with self-tapping or washer/nut screws, series offers free-release-tolerant displacement cable termination.

Creform Corp.    Greer, SC 29652-0830
Jul 18, 2006 Equipped with white nylon swivel casters or black rubber wheel swivel casters, GN-400 dolly features polypropylene platform for moving part loads up to 445 lb around facilities. Design includes molded tabs and corresponding slots that fit together, allowing individual platform modules to be coupled to form cart with larger base. Standard product measures 26 ¾ x 15 ¾ x 4 ½ in. and does not require any tools for assembly/disassembly.

Delcam Plc    Birmingham Hampshir B10 0HJ  United Kingdom
Jul 18, 2006 Suited for designers working with complex shapes, PowerSHAPE 7 hybrid CAD Modeler includes Smart Surfacing feature, which automatically chooses method for best possible surface. As additional lines or points are inserted, program will review chosen surfacing method and regenerate surface if alternative solution has become more appropriate. Flexibox Morphing allows user to push, pull, twist, or bend any standard geometry into complex design.

austriamicrosystems AG    Premstatten   Austria

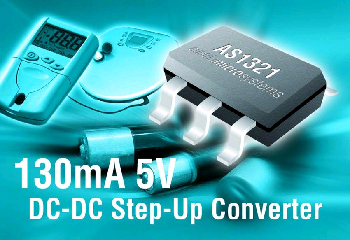

Jul 18, 2006 With supply voltage of 1.5-5.0 V, step-up Model AS1321 is capable of delivering 130 mA output current at 2 V input voltage. Unit has efficiency of 96%, making it suited for battery-powered, portable applications. In shutdown mode, unit draws less than 1 µA, and battery is connected directly to output to enable direct battery feed-through. To ensure stable operation, power on reset circuitry enables AS1321 to reset any type of microprocessor after power up.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Jul 18, 2006 With header set back 60-72 in. from front of opening, Roll-Top Barrier Door is designed for overhead loading of heavy parts into robotic cells and workstations via crane or forklift. Available in widths of 12 ft and heights of 12 in., door comes with category 4 safety interlocks and steel guides with rolling barrier bars. Roll-Top offers fume containment from welding process with vertical and horizontal screen protection.

Norgren    Littleton, CO 80120
Jul 18, 2006 Utilized in pneumatic and hydraulic environments, Herion 33D Series is available in ranges from vacuum to 10,000 psi and is fully programmable for NO, NC, or window mode operation. Switching status is indicated by backlit real-time LED display and features selectable pressure units for global use. Designed with stainless steel wetted parts, switches include programmable delays, LED status indication, tamper protection, and IP65-rated M12 connector.

A and A Mfg. Company, Inc.    New Berlin, WI 53151
Jul 18, 2006 Designed for field retrofit on existing machinery, NT Automatic Door Openers protect operators of automatic machining equipment from crushing and repetitive motion injuries. Self-calibrating units open single or double doors, have unlimited travel distances, and automatically reverse when objects are detected in their path. Fully electric operation requires no shop air, and they operate without extra limit switches, light curtains, pressure switches, or photo eyes.

Simrit, A Div. Of Freudenberg-NOK    Plymouth, MI 48170
Jul 18, 2006 Produced using ultra-thin metal plate welding technology, nesting-type Welded Metal Bellows offer cleanliness and corrosion resistance, as well as pressure and heat resistance. Units can be compressed to full contact position and operate in range of low and high temperatures. Suited for high vacuum applications, bellows are utilized in accumulators, couplings, mechanical seals, pressure sensors, switches and transducers, rod seals, and temperature sensors.

Simrit, A Div. Of Freudenberg-NOK    Plymouth, MI 48170
Jul 18, 2006 Utilizing magnetic force to maintain magnetic fluid in specific position around shaft, Magnetic Fluid Vacuum Seals provide liquid sealing barrier to fluids and gases. Low friction hermetic seal allows minimal contamination. Effective in temperatures up to 200°C, seals offer peripheral velocity up to 1.0 m/sec, as well as thermal and high vacuum resistance. Semiconductor applications include deposition, ashing, plasma etch, metallization, and ion implant.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
Jul 18, 2006 Suited for multiple users, SSL3 Labscale Gyratory Rockers feature max platform dimensions of 14 x 14 in. with speed range of 5-70 rpm and max load of 22 lb. Angle of tilt is adjustable by hand from 7-12°. Supplied with non-slip mat, units operate in temperatures up to 40°C and humidity up to 80%. Providing digital selection of speed and time, rockers are suited for low foaming agitation, DNA extractions, staining and de-staining procedures.

STMicroelectronics    Lexington, MA 02421
Jul 18, 2006 Address-Data Multiplexed I/O Devices offer pin sharing between data and addresses, and include standalone and subsystem solutions based on 1-bit and 2-bit-per-cell technology. Units offer Burst Mode and Multiple Bank architectures, and are available in 8 x 10 LFBGA88, 8 x 11 LFBGA107, or 7.5 x 5 mm VFBGA44 packages. Standalone memories range from 16-64 Mbit densities in 1 bit-per-cell technology, and from 128-256 Mbit densities in 2 bit-per-cell technology.

Nu-Con Equipment    Chanhassen, MN 55317

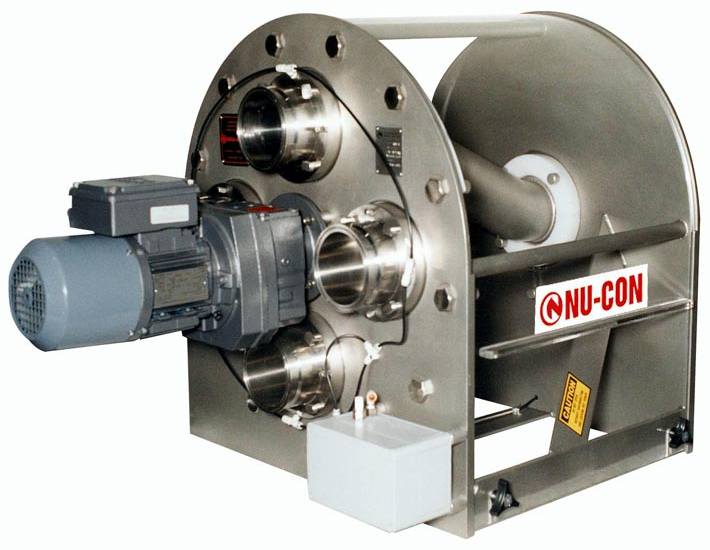

Jul 18, 2006 Rotary tube selector valve diverts liquids or powders in one line up to any of 16 lines or vice versa. Able to handle pressure to 75 psig (powder) and 60 psig (liquid), product is available with 2-16 ports and 2-16 in. dia tubes. Valve, fabricated from No. 316 stainless steel, has self-contained PLC and sanitary ferrule process connections. Able to work with vacuum or pressure systems, models feature inflatable seals on all ports to ensure leak-proof conveying.

STMicroelectronics    Lexington, MA 02421
Jul 18, 2006 Featuring 128-832 KB of embedded Flash memory and 68 KB RAM, ST10F27x series enables single-chip MCU (microcontroller) approach to real-time industrial applications. Total linear address space for code and data is 16 MB. With clock speed up to 64 MHz, 16-bit CPU offers single cycle context switching and interrupt controller with 16 priorities and 56 sources. Other features include offers 4-channel PWM, DSP-MAC accelerator, I2C interface, DIO, and 10-bit ADC.
