CombiScale Inc.    Elk Grove Village, IL Elk Grove Villa

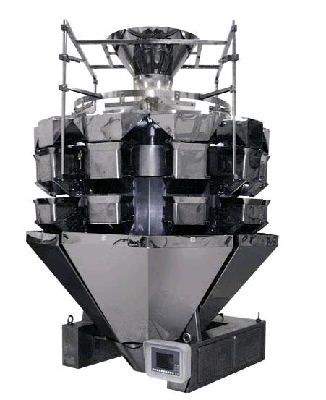

Mar 20, 2007 Using load cell technology, 10-head Big Bucket Model CS-10 weighs then chooses best combination of buckets to achieve predetermined weight. Combination scale is accurate within 0.04 oz and operates at speeds up to 75 bags/min. Stainless steel construction and tool-less disassembly facilitate wash down while minimizing product build-up and contamination. Operated via touch screen control, CS-10 features vibratory cone, digital control logic, and memory for recipe storage.

Advantech Co. Ltd    Irvine, CA 92618
Mar 20, 2007 With form factor of 95 x 125 mm, SOM-5782 embedded PCI Express SOM (System On Module) incorporates heat spreader design which provides flat conductive surface for thermal contact with heat sink or chassis. Utilizing plug-in CPU module on application-specific solution board, I/O capabilities include 10/100/1,000 Base-T Ethernet, 2 x SATA, 1 x EIDE, 8 x USB 2.0 ports, and HD audio.

BlockMaster Electronics, Inc.    Elk Grove Village, IL 60007

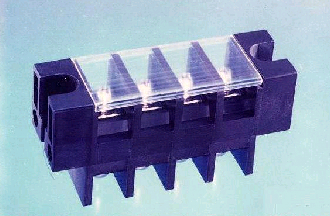

Mar 20, 2007 Providing current carrying capacity of 60 A at 600 V, Series OTB-358 accepts wires from 3-10 AWG and includes snap cover for safety. Terminals are nickel-plated brass and housing is black PBT plastic. Offering 2-15 positions with 16 mm spacing, terminal blocks are suitable for motion control, power supply, and power distribution design applications.

Hermle Machine Company    Franklin, WI 53132

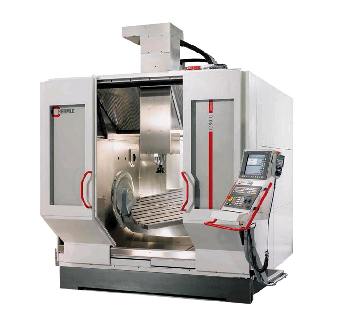

Mar 20, 2007 With X, Y, and Z axis travels of 1,000, 1,100, and 700 mm respectively, C 50 U Dynamic carries max workpiece weight of 2,000 kg. Linear rapid traverse rate is 60 m/min in X and Y axes and 55 m/min in Z axis. Available with NC swiveling rotary table with clamping surface of Ø700 mm or optional Ø1,150 x 900 mm, machining center is suitable for simultaneous 5-axis and/or 5-sided machining of automotive parts, aircraft parts, or molds with max dia of 1,000 mm and max height of 810 mm.

Sola/Hevi-Duty, EGS Electrical Group    Rosemont, IL 60018

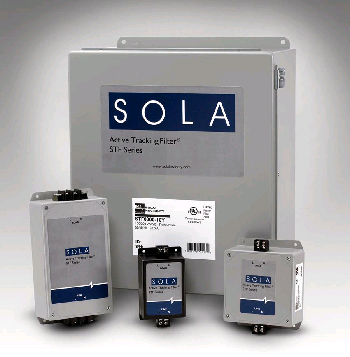

Mar 20, 2007 Designed to safeguard equipment against damaging low-energy voltage transients and high-frequency noise, STF Series of Active Tracking® Filters continuously track input ac power line at all locations on sinewave and instantaneously counter noise. By reducing normal mode transients to ±5 V and absorbing large bandwidths of noise, they recreate well-regulated sinusoidal waveform. Units come in 1- and 3-phase configurations with input voltage of 120, 240, and 480 Vac at 50/60 Hz.

ASM Sensors, Inc.    Elmhurst, IL 60126

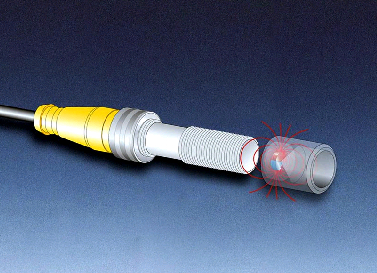

Mar 20, 2007 Measuring ½ in. dia with overall length of less than 2 in., Model PRAS1 uses position magnet to provide contact-free and wear-free angular measurements. Unit has typical resolution of 0.1° and yields analog signal through use of D/A converter. Featuring M12 industrial housing rated up to IP68, sensor produces 4-20 mA, 0.5-4.5 V, and 0.5-10 V analog outputs. It is suited for use in factory automation equipment, variable valve controls, and mobile working machines.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404
Mar 20, 2007 Sigma Frequency Control compressor model SFC 18S combines proprietary Sigma Profile airend, Sigma Control Basic system, and variable speed drive technology to offer 21-114 scfm in pressures to 217 psig. Drive technology offers precise pressure control to ±2 psig and operates from 100% down to ~28% load. While wide-opening access doors permit frontal access to all major components, overall size and use of split-cooling air flow design facilitate ducting.

NOTIFIER Fire Systems    Northford, CT 06472
Mar 20, 2007 Suited for large-scale applications, NFS2-3030 supports up to 10 signaling line circuits for max capacity of 3,180 intelligent devices. Modular system offers built-in notification appliance circuits synchronization protocol for System Sensor, Wheelock, and Gentex horns, strobes, and horn/strobes. Expandable via NOTIoFIREoNET(TM) intelligent fire alarm network, system features FlashScan® intelligent device polling protocol and offers optional digital voice evacuation system.

Ideal Industries, Inc.    Sycamore, IL 60178

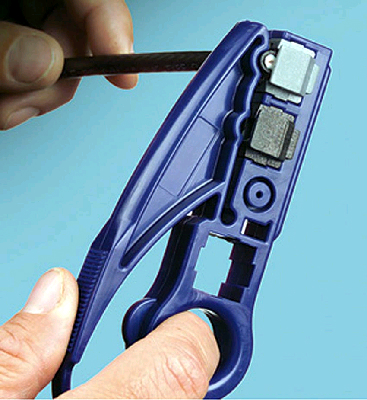

Mar 20, 2007 Able to strip RG-59, RG-6, and RG-6Q coaxial cable without nicks, Coax/UTP Combo Stripper is equally effective on unshielded twisted pair cable, including CAT 3, CAT 5e, and CAT 6. Users do not have to remove and replace stripping cartridges when moving from one cable type to another. Pre-measured stop eliminates measuring and trimming, while Push-in Ring prevents sharp coax conductor from injuring user's hand while terminating cable with push-on style connector.

EGS ELECTRICAL GROUP ? APPLETON    Rosemont, IL 60018

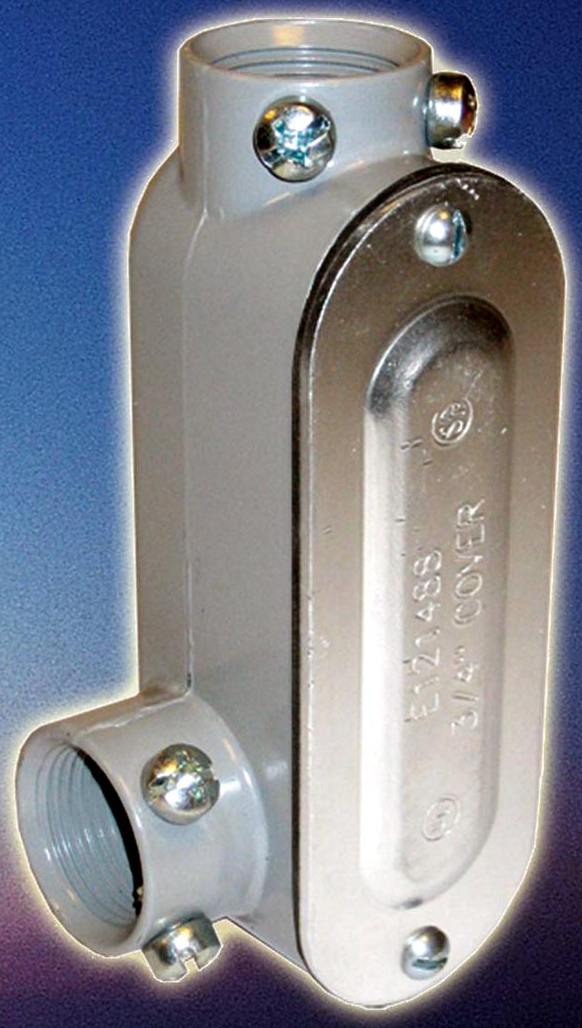

Mar 20, 2007 Ready for out-of-the-box installation, ALL-IN-ONE(TM) conduit bodies meet needs of electricians in industrial and commercial construction. Threaded hub model works with rigid conduit and IMC, while Multi-Hub(TM) threaded and set screw design works with rigid conduit, IMC, and EMT. Both versions, constructed of 100% copper-free aluminum, have neoprene gasket and stamped aluminum cover. Configurations are available for connecting straight conduit runs, branch conduit runs, and 90° bends.

Adept Technology, Inc.    Livermore, CA 94551
Mar 20, 2007 Running on SmartController(TM) CX controls and software platform, Adept Viper(TM) s650 and Adept Viper(TM) s850 bring precision motion and 6-axis dexterity to clean room assembly, handling, testing, and packaging applications. With integrated vision and embedded networking, robots target customers in solar, disk drive, LCD, semiconductor, and life sciences markets.

Spartan Scientific Inc.    Boardman, OH 44512
Mar 20, 2007 Model CRDV/S combines electronic sensor with solid-state integrated logic analysis circuit to determine exact amount of time necessary to empty condensate from pneumatic system. Unit allows only necessary amount of compressed air needed to purge excess fluid, minimizing compressor cycling and wear and tear on components. Housed in environment-resistant package, valve includes indicator lights for power and purge cycle.

Wera Tools Inc.    Stoney Creek, ON L8E-5S7  Canada

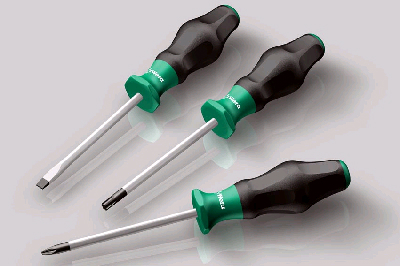

Mar 20, 2007 Designed to form to hand and allow efficient fastening with little effort, Kraftform® Comfort Screwdrivers feature markings on end of handle that indicate profile and size. Handle's soft black zone has varying roughness to help stop tool from slipping in hand. Blades are made from high-grade steel and go through hardening process, while black point tip snuggly fits into screw and prevents wear and damage caused by poor screwdriver tip fitting.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Mar 20, 2007 Models BXE-100/200/300 feature continuous, smooth, nonmetallic side walls that completely enclose devices, creating insulating barrier between them and their respective metal boxes. Extender does not interfere with wiring, so no trimming is required. Mounted completely flush with wall, products fit most metallic or nonmetallic electrical boxes and accommodate GFCIs. While BXE-100 and BXE-200 correct up to 1 in. setbacks, BXE-300 corrects up to 5/8 in. setbacks.

Thermo Fisher Scientific    Waltham, MA 02454

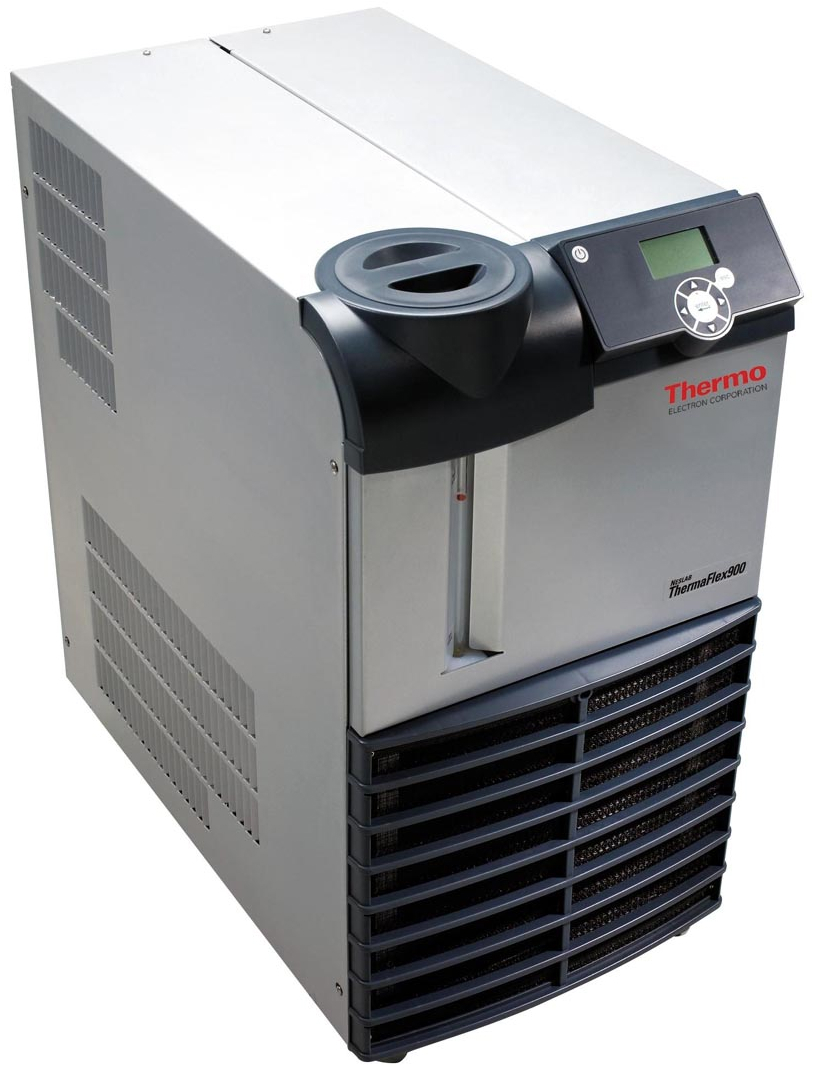

Mar 20, 2007 Able to maintain temperatures from 5-40°C, ThermoFlex(TM) 900 and 1400 respectively deliver up to 900 and 1,400 W of continuous cooling capacity. Recirculation system features integrated funnel, full flow filtration, and visual fluid level indication. Air and fluid filters can be changed during operation, and integrated intelligence enables issues to be detected before impacting processes. Systems offer pumping capacities to 4.1 gpm and adjustable pressure to 100 psi.

Midwest Motion Products    Watertown, MN 55388

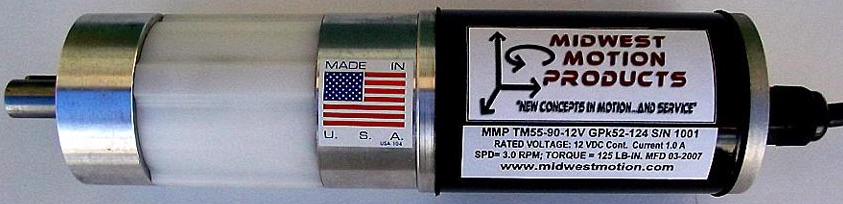

Mar 20, 2007 Able to accept any 12 Vdc source, Model MMP-TM55-90-12V GPk52-124 has 2.14 in. dia, measures 7.7 in. long, and has keyed output shaft of 12 mm dia x 25 mm long. Mounting is accomplished with 4 face-mount M5 threaded holes. Peak output of reversible gearmotor is 178 lb-in., and it only requires 1.0 A @ 12 Vdc to generate its full load torque. Motor windings for 24, 36, and 90 V are available, and design is rated IP54 for operation in harsh environments.

Proquis, Inc.    Des Plaines, IL 60018
Mar 20, 2007 Streamlining electronic document management, allCLEAR v7.10 can integrate complex files and translate them into diagrams that are suited for any type of presentation. It includes drag-and-drop option that lets users build multi-layer diagrams. With software, users can contact all members of organization by creating links to documents or website.

Hytrol Conveyor Co., Inc.    Jonesboro, AR 72401
Mar 20, 2007 ProSort SRT (Smart Roller Transfer) Conveyor is designed with multiple narrow belts to handle and transfer products as small as 4 x 4 in. or as large as 24 in. long and up to 20 lb. Equipped with right-angle pop-up rollers, unit is designed for 2-sided transfer of items to other right-angle conveyors, workstations, packing operations, ticketing stations, shipping departments, or similar operations. It handles up to 100 sorts/min, depending on product size.

VisiPak    Arnold, MO 63010
Mar 20, 2007 Available in PVC, PET, and PP, VisiPak Clamshell Packaging ranges in thickness from .007-.047 in. and is designed to protect product while displaying most precise details. Each thermoformed package nests to facilitate shipping and storage, and can be customized, offering design flexibility.

Van Putten Instruments BV      Netherlands
Mar 20, 2007 Utilizing 300, 400, or 600 mm long probe, VPFlowScope simultaneously measures mass flow from 80-150 mn/s, temperature up to 60°C, and pressure from 0-16 bar. Blue LCD display provides real-time information on all 3 parameters, while built-in datalogger enables user to store data. Mounted in pipe via 0.5 in. compression fitting, instrument provides 4-20 mA and RS485 outputs with accuracy of 2% of reading.
