FCI    Etters, PA 17319
Mar 15, 2007 Minitek(TM) 2 mm headers feature high-temperature plastic molded housings with design optimized for solder paste flow. Standoffs raise housing body above board surface to provide clearance for paste to be deposited and allow molten paste to flow freely from printed position into board through-hole and around each pin. Options include shrouded and unshrouded headers in straight, right-angle, or stacking versions to support custom board spacing.

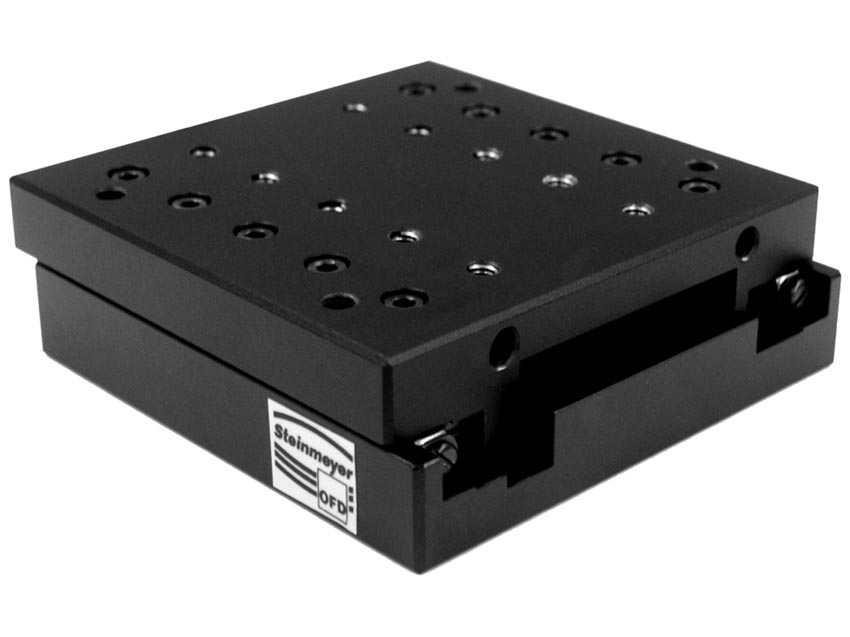

Steinmeyer Inc.    Bedford, MA 01730
Mar 15, 2007 High precision linear stage model MT 84-25-PM features overall width of 27.5 mm and length of 84 mm, and is manufactured from high-strength anodized aluminum. Weighing 600 g, it offers resolutions down to 5 nm and repeatability of ±10 nm. Table includes piezo linear motor with incremental linear encoder and preloaded cross roller bearings, and can be designed for cleanroom, high vacuum, and nonmagnetic applications.

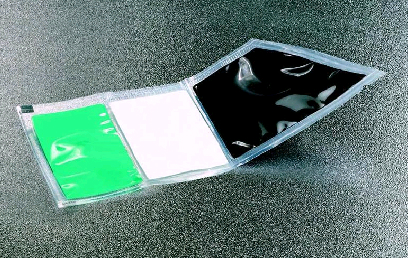

Adhesive Packaging Specialties, Inc.    Peabody, MA 01960
Mar 15, 2007 Allowing for pre-measured amounts of unmixed resin and catalyst, disposable 3-PAK(TM) Component Packaging is capable of holding 3 liquids or 1 powder and 2 liquids. Materials can be packaged in any ratio, eliminating waste and messy cleanup. Packaging covers wide range of applications, including aerospace, automotive, medical devices, fiber optics, potting, point of use bonding, and marine.

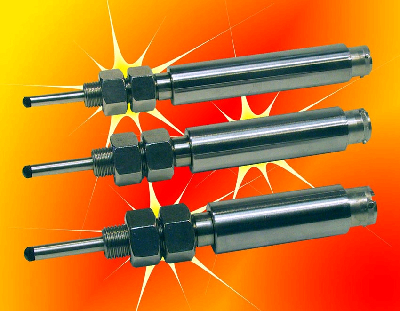

Macro Sensors    Pennsauken, NJ 08110 1334
Mar 15, 2007 Available in ranges of 0.100-4.00 in., GHSE/GHSER 750 Series offers max linearity error of +0.10% of FS output. Units consist of spring-loaded sleeve bearing that results in measurement repeatability of 0.000025 in. Electrical termination of GHSE 750 is made through sealed axial connector, while electrical termination for GHSER 750 is through radially mounted sealed connector. Operating from 15-25 Vdc input, sensors generate pre-calibrated 0-10 Vdc output.

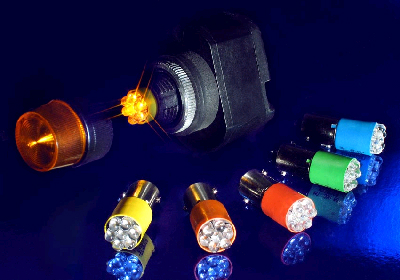

LEDtronics, Inc.    Torrance, CA 90505
Mar 15, 2007 Designed to replace 9 mm bayonet-based incandescent lamps, B3127 Series 7-LED Lamps incorporate optical-grade epoxy and single-contact bayonet bases. Light emitting angle is 50°, but custom viewing angles are available. Drawing 8-75 mA of power, lamps are available in voltages of 6, 24, and 28 Vdc as well as 120 and 130 Vac. Colors include 660 nm Ultra Red, 635 nm High-Efficiency Red, 590 nm Ultra Yellow, 585 High-Efficiency Yellow, and 565 nm High-Efficiency Green.

Linear Technology Corp.    Milpitas, CA 95035
Mar 15, 2007 Models LT3478 and LT3478-1 are 40 V, 4.5 A converters that can drive up to six 700 mA LEDs in series from 12 V input. Model LT3478-1 uses internal current sense resistor, limiting output current to 1 A, whereas Model LT3478 uses external sense resistor to extend max LED current to 4.5 A. True Color PWM(TM) dimming delivers constant LED color with dimming ranges up to 3,000:1. Housed in thermally enhanced package, both parts deliver efficiencies up to 90% in boost mode.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Mar 15, 2007 Featuring .36 x .36 in. footprint, miniature Model 3023AH features integral electronics (IEPE) and has 2-10,000 Hz frequency range. Unit is engineered to perform over -60 to +325°F range, making it suited for automotive NVH applications on engines and HASS/HAST chambers or critical flight test applications. Fully welded and hermetically sealed, accelerometer weighs 3 g, has sensitivity of 10 mV/g, and features ¼-28 4-pin connector.

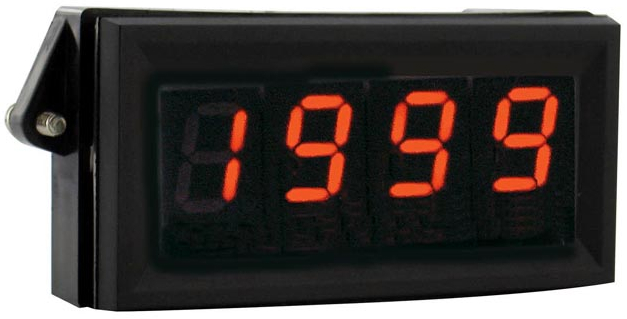

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 15, 2007 Series DPMA-4 offers user-selectable engineering units on 3½-digit LCD, which offers choice of red, amber, or green segments to facilitate viewing over extended distances. Decimal point position is also field-selectable, and Span and Zero can be adjusted via trim pots located on rear of unit. With snap-in panel mounting that facilitates installation, meter accepts 4-20 mA input signal from temperature, flow, level, and pressure transmitters.

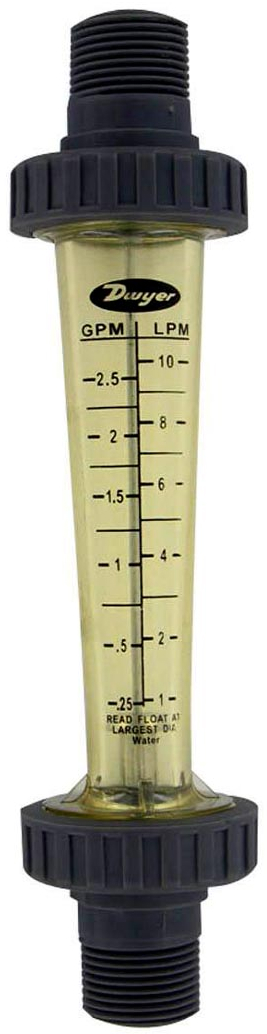

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 15, 2007 Offered in panel-mount or in-line configurations, Series LFM flowmeters are molded from various plastic materials. Sizes vary from 2 in. scale units with ranges down to 5 gpm of water up to 5.5 in. scale models with ranges up to 70 gpm of water. Dual scales in GPM and LPM are visible on clear molded plastic body, which is enhanced by textured background. Included 316 stainless steel floats offer accuracies of ±5% across all models.

PDC International Corp.    South Norwalk, CT 06854
Mar 15, 2007 Able to operate continuously with zero downtime, 75 Series Shrinksealers apply tamper-evident banding and labeling at up to 400 containers/min and can incorporate tear tab blades or slit tab blades. Multiple-use system also applies full-height bodysleeve labels at up to 300 cpm. For tamper evident body sleeves, sleeve label encapsulates cap and features horizontal perforation. Features include motorized height adjustment and tool-less changeover.

Sloan Valve Co.    Franklin Park, IL 60131
Mar 15, 2007 Flush-valve cartridge requires less than 1.5 lb of actuation force to flush, minimizing handle kickback and promoting assembly life. Equipped with high-contrast, black actuator cap, assembly minimizes overall operational noise with its fluid actuation. Solution has passed testing processes that include component durability, accelerated life cycle, abusive chemicals, and variant water pressure.

Transducers USA    Elk Grove Village, IL 60007
Mar 15, 2007 Model TRIP-1424SR, with board height of 14 mm, provides sound pressure level of 85 dB at resonant frequency of 4,000 ±500 Hz within its rated operating voltage of 1.5-16 Vdc @ 8 mA. Case material is black polycarbonate. Right angle terminal mounting complies with tight height considerations, making it useful in automotive instruments, office equipment, as well as medical, alarm, and detection devices.

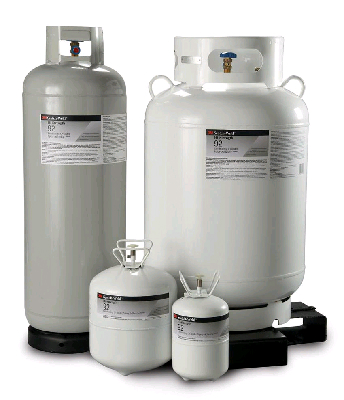

3M    St. Paul, MN 55144
Mar 15, 2007 Available in pressurized cylinders, Scotch-Weld(TM) Adhesives come in choice of formulations to meet variety of regulatory requirements, including post-formable, non-flammable, no HAPS, low VOCs, no ozone depleting chemicals, and SCAQMD. Pressurized application ensures optimal use of adhesive contents with little product waste. Offering spray widths from 1-12 in., adjustable-tip spray gun provides multiple spray patterns with choice of drying speed and bonding strength.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Mar 15, 2007 Featuring 2-lead, 6 x 6 mm design, Model TL1140 provides 100,000,000 cycle operating life. RoHS-compliant unit has contact rating of 30 Vdc, 50 mA and is suited for handheld instrumentation, laptop computers and peripherals, and other electronic devices.

Envirosight LLC, Video Pipeline Inspection    Randolph, NJ 07869
Mar 15, 2007 With camera lift accessory, ROVVER 125 operators can maintain center view in pipelines as large as 36 in. Made of lightweight aluminum, accessory raises height of camera centerline by 1/3-4 in. in .5 in. increments while keeping crawler's center of gravity as low as possible. Spring latch holds height setting and allows manual adjustments. Accessory is compatible with all existing ROVVER 125 crawlers and axial, pan/tilt, zoom, and Digisewer cameras.

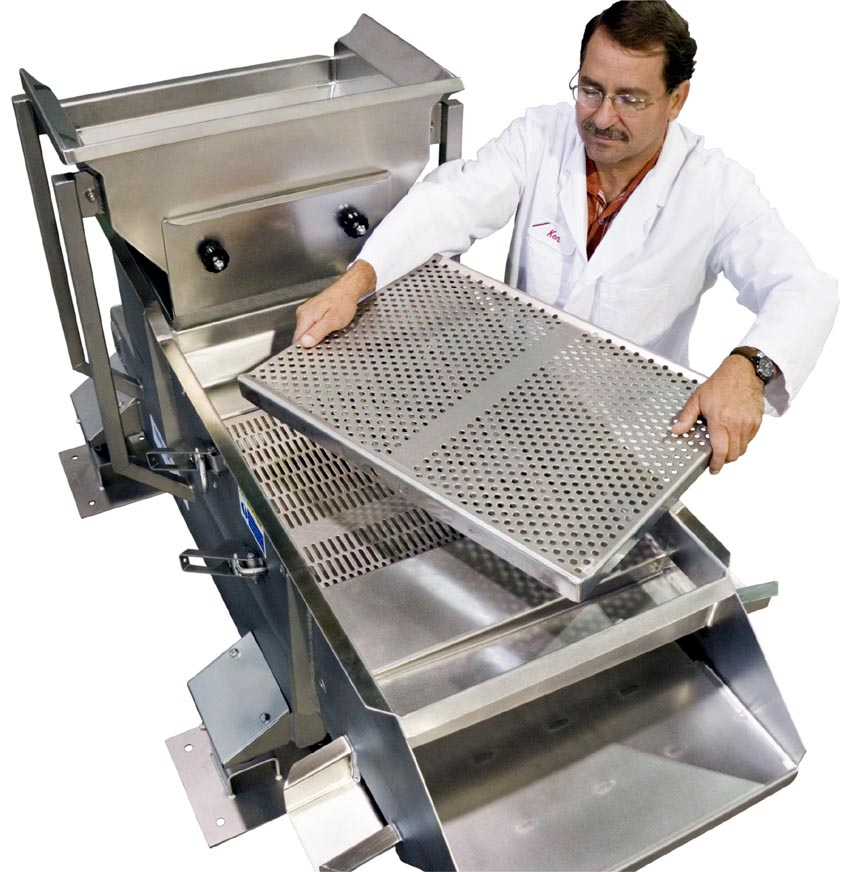

SYMETIX    Walla Walla, WA 99362
Mar 15, 2007 Targeting pharmaceutical and nutraceutical manufacturers, Impulse/P(TM) Size Grader achieves throughput of up to 1,000,000 doses/hr depending on size of tablets or capsules. It can be used as stand-alone size grader which can be used after drying, or integrated with Optyx®/SG optical inspection system for softgels. Available with 2 or 3 grading decks to achieve 2- or 3-way size separation, unit removes twins, clusters, empties, under/over diameter foreign capsules, and coating flakes.

Universal Laser Systems, Inc.    Scottsdale, AZ 85260
Mar 15, 2007 PLS line of CO₂ laser cutting, marking, and engraving systems feature materials-based print driver that gives users choice between automatic or manual control over power, speed, and other system settings. All 4 models feature industrial design with built-in storage space and keypad/display interface. Units are also available with optional HPDFO(TM) optics which allows for direct marking onto uncoated metals such as steel, chrome, iron, and titanium.

IBASE Technology Inc.    Taipei   Taiwan
Mar 15, 2007 Designed for multimedia, POS, automation, and digital signage applications, fanless ET500 ETX CPU Module features onboard 500 MHz AMD Geode LX800 and 433 MHz AMD Geode LX700 processors. Integrated graphics accelerator supports CRT VGA and 18-bit single channel LVDS interface, while Realtek RTL8100CL Ethernet controller provides 10/100 Ethernet functionality. Other features include 4 USB ports, 2 serial ports, AC-97 audio, hardware monitoring, slim FDD, and PCI-to-ISA bridge.

NovaTracker    Cranford, NJ 07016
Mar 15, 2007 Maya(TM) installs and integrates with existing web-enabled routing and scheduling applications to promote fleet management, routing, tracking, and dispatching by providing route verification, real-time vehicle tracking, and in-vehicle communications. Engineered for fleet-tracking industry, customizable solution transmits user-specified information with up to 16 variables. GPS-equipped, GSM-capable data hub provides range of data types: location reporting, vehicle status, and event codes.

IDEAL Scanners & Systems, Inc.    Rockville, MD 20852
Mar 15, 2007 Employing one tri-color print head, IDEAL/Contex ZPrinter 450 outputs 450 dpi color 3D models for architectural, engineering, and construction applications. It offers printer-ready preparation of 3D CAD files and can convert 2D CAD files or paper files to printer-ready 3D CAD files. Along with automation capabilities and on-printer controls, unit features active dust-control, zero liquid waste, and closed-loop automated powder loading, handling, and recycling.
