TRACO Electronic AG    Zurich CH - 8002  Switzerland
Mar 22, 2007 Featuring 1 x 2 x 0.4 in. footprint, 20 W Series TEN20WIN consists of 14 models offering 9-36 Vdc or 18-75 Vdc input ranges and single or dual outputs ranging from 3.3-15 Vdc. Efficiencies up to 86% enable extended operating temperature of -40 to +85°C. Housed in low-profile, shielded metal package, RoHS-compliant converters include short circuit protection, EN55022 Class A input filter, remote on/off control, voltage trim, and I/O isolation of 1,500 Vdc.

TMI International, LLC    Pittsburgh, PA 15205
Mar 21, 2007 Available with 8 different surface finishes and 4 specialty options, Service-Pro Swinging Doors include 2 series of Impact Doors designed to separate customers from sights, sounds, and heat of busy kitchens. Finishes include anodized aluminum, stainless steel, wood laminates, and solid color laminates. Impact kick plates are optional.

BEI Sensors (BEI Industrial Encoders)    Goleta, CA 93117
Mar 21, 2007 Offering range of functional options, Model M58 is 58 mm dia, industrial-grade metric incremental encoder available with 10 or 6 mm shaft. IP65 environmental protection is standard, and IP67 is available with sealing flange. Built to industrial standards, M58 is resistant to shock and vibration and provides resolutions up to 80,000 cycles per turn. It can serve as replacement encoder for metric equipment used in machine control, printing, and factory automation.

CyberResearch, Inc.    Branford, CT 06405 2932
Mar 21, 2007 Offered in over 1,000 different models, CyRAQ® monitors are available with choice of screen size, brightness, resolution, and mounting. Optional enhancements include touchscreens, AR-Bonding(TM), and panel PCs. COTS and MOTS monitor systems, also available, offer options such as vandal-resistant enclosures, display enhancements for sunlight-readable and night-vision viewing, and dim-to-dark display controls. Cooling or heating options and EMI shielding are also available.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Mar 21, 2007 Offered as ac- or dc-powered units, Series 685B responds to acceleration, velocity, or displacement and offers 2 set points with individual alert and alarm levels. Variable time delays prevent false relay trips due to machine startup or temporary upset conditions. Along with 2 solid-state or form C relays, electronic switch includes raw vibration output signal for spectrum analysis, 4-20 mA output signal for vibration trending, and 4-20 mA calibration feature for threshold setup.

Century Systems, Inc.    Dayton, OH 45404
Mar 21, 2007 Made of industrial strength steel, Falcon 8 thermal printer can perform in industrial and harsh environments. Snap-in printhead, capable of producing barcodes, text, and graphic images, can be replaced without tools, while self-centering paper media guide automatically adjusts to desired label size. Capable of print speeds from 2-4 ips, product measures 15.1 x 7.1 x 9.6 in. for space-conscious applications and operates with any host system using TPCL language.

LM-76 Linear Bearings    East Longmeadow, MA 01028
Mar 21, 2007 Providing linear stroke up to 136 in. and standard repeatability within ±.002 in., SEAL Slides are FDA/USDA compliant and feature FDA/USDA compliant linear bearings with PTFE self lube liners. Teflon® rotary seals prevent material from entering ball screw/journal area. Suitable for caustic washdown, slides have pass through design that minimizes debris collection areas or inclusion points. Polymatrix nut, integral with carriage, has no mechanical components.

Intralox, Inc.    Harahan, LA 70123-5395
Mar 21, 2007 Designed to meet hygiene and sanitation requirements in food industries, Series 1650 SeamFree(TM) Minimum Hinge Flat Top Belt consists of 18 in. modules that create smooth upper surface with fully flush edges and recessed rods. Flume design and drive bar mechanism effectively channel water and debris to belt edges, preventing sprockets from pressing debris into hinges. Belt enables transfers as tight as 1.5 in.

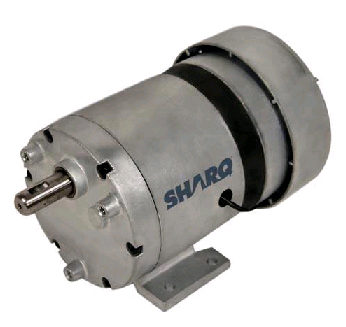

Sharq Motion    West Chicago, IL 60185
Mar 21, 2007 Powered by 1/20 hp AC motors, parallel shaft Sharq 207 Series offers direct drop-in replacement for many OEM applications. Four standard models offer torque ratings from 42-113 lb-in. with 2-29 rpm output speeds at full load current of 1.3 A. Rated at 115 V/60 Hz, units employ shaded pole electric motors, with clockwise rotation as standard. Sharq 207 Series is also available with 1/10 hp open motors with 9 models ranging from 59-113 lb-in. at speeds from 2-56 rpm.

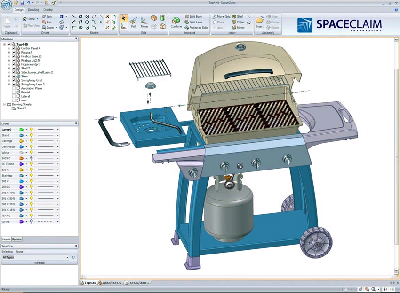

SpaceClaim Corporation    Concord, MA 01742
Mar 21, 2007 Featuring open XML data format for full access to product definitions, SpaceClaim Professional 2007 enables extended team to work directly with 3D model to fully investigate impact of each idea and validate geometry of change requests before sharing them with design team. Flexible modeling technology provides adaptive design environment that supports unanticipated design directions, while Geometric Inferencing works unobtrusively and in real-time to highlight design similarities.

Rockwell Automation / Allen-Bradley/Industrial Automation Sy    Mayfield Heights, OH 44124
Mar 21, 2007 Designed for those who want access to machine diagnostics and system data, EWEB module for CompactLogix PAC provides network connectivity and Web capabilities for remote data monitoring, data sharing, and troubleshooting in control systems with under 2,000 I/O nodes. It promotes visibility into production processes, enabling users to view plant-floor data via Web pages, receive alarm notifications via e-mail, and share system data with external applications using XML data.

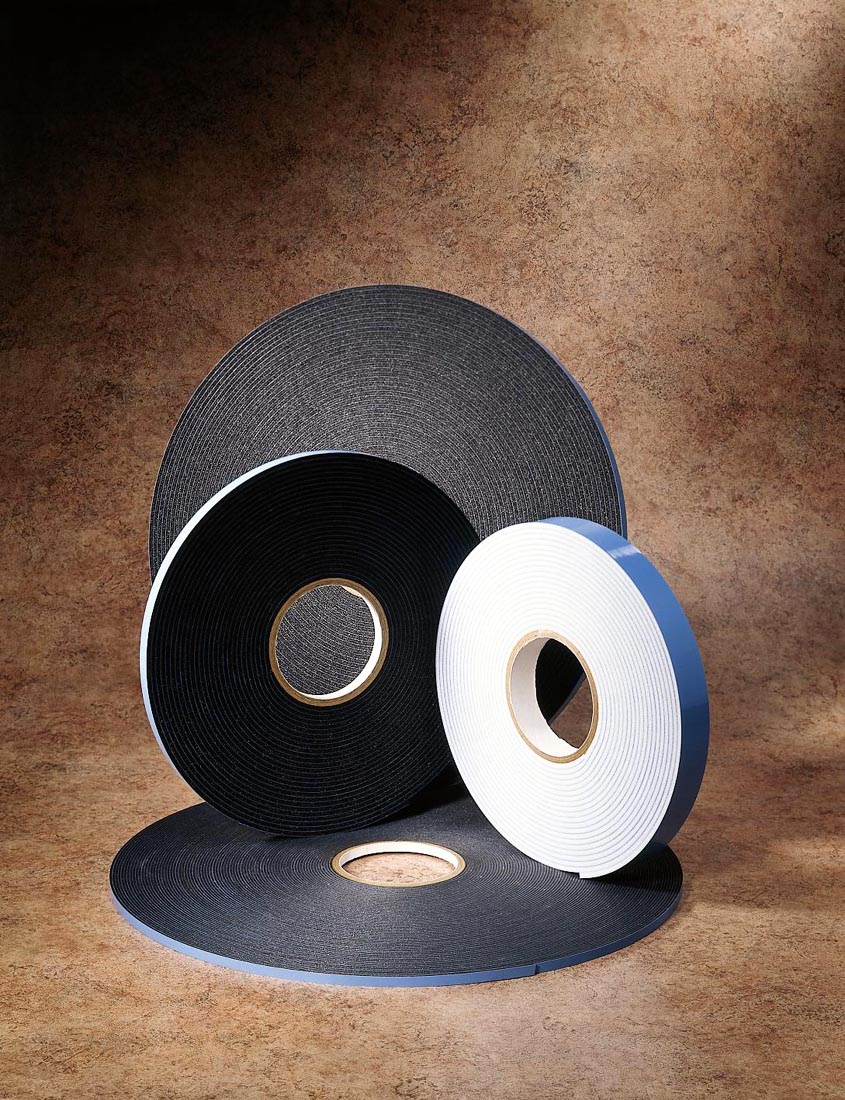

Adchem Corp.    Riverhead, NY 11901
Mar 21, 2007 HF series hybrid glazing tape provides high-strength, UV-resistant acrylic adhesive bond to glass and rubber-based adhesive bond to vinyl lineal coated on cross-linked closed cell polyolefin foam. Foam has 338% modulus of elasticity and less than .4% water absorption, creating impermeable moisture barrier. Also offered with blue polyethylene release liner, AAMA-approved tape is available in 1/16th white and black in 72 yd long rolls to 60 in. wide.

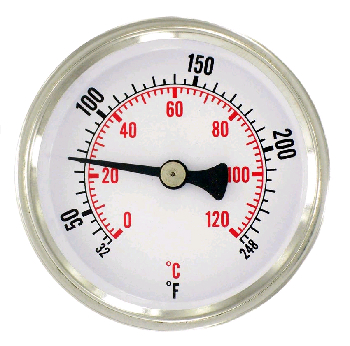

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 21, 2007 Featuring dual scales in °F and °C, Model HWT250 is suited for hot water applications and is accurate within ±5°F or ±2°C. Adjustment screw on stem enables calibration. Typical applications include heating coils, hydronic radiant in-floor systems, and outdoor wood furnaces.

Birch Street Systems, Inc.    Newport beach, CA 92660
Mar 21, 2007 Delivered over Internet as Software as a Service (SaaS) model, Capital Projects Management Suite facilitates management of multi-property hotel renovation projects. Hosted application manages renovation timelines and purchase order scheduling; tracks furniture, fixture, and equipment budget; enforces brand standards; and monitors compliance with renovation schedule. Solution integrates complex project management features with procurement capabilities.

YuMe Networks    Redwood City, CA 94065
Mar 21, 2007 YuMe utilizes video sensor technology(TM) to locate online video content, and then categorizes it into customizable channels like auto, finance, entertainment, and family friendly. Advertisers can select video channels that most closely match brands, products, and messaging in their advertising, and YuMe attaches advertising to selected content for delivery to any device, whether downloaded or streamed. Immediate reporting on campaigns is also provided.

Alibre Inc.    Richardson, TX 75081
Mar 21, 2007 Combining parametric solid modeler with method for 3D surface creation, Alibre Design Expert and FreeDimension allow users to create virtually any organic shape. Curved 3D surfaces from FreeDimension can then be passed to Alibre's solid modeling environment. Surface creations may be directly combined with solid mechanical parts and assemblies, plotted as detailed 2D drawings, rendered with 3D effects, or exported to common manufacturing and document formats.

Quantum3D Inc.    San Jose, CA 95119
Mar 21, 2007 Thermite TVC-2.0 2D/3D Tactical Visual Computers include model 6300, which operates in conjunction with Vehicle Mounting Dock and is suited for use in ground vehicles, aircraft, and naval vessels. Model 3500 is optimized for embedded training, UAV/UGV and weapon system control, and 2D/3D-augmented reality-based maintenance deployed applications. Weighing 0.75 kg, Model TL is PC compatible and features mobile graphics and extended-environment packaging.

SKF USA, Inc.    Lansdale, PA 19446
Mar 21, 2007 Featuring double-row bearing design and contact angle of 40°, 3300 DNR Series is suited for pump applications characterized by high axial loads, high operating temperatures, and vibration. Machined brass cage helps optimize performance in heavy-duty and poorly lubricated conditions. Standard axial and internal clearance ranges promote load-sharing between 2 rows of balls for cooler operation, reduced lubricant degradation, and minimized risk of skidding in inactive row.

STMicroelectronics    Lexington, MA 02421
Mar 21, 2007 Manufactured in 90 nm process technology, dual-core SPEAr Plus600 and single-core SPEAr Head600 enable printer, fax, and POS equipment manufacturers to develop complex digital engines. Units are equipped with ARM926 processor cores with 16k (data) and 16k (instruction) cache memory running at 333 MHz. They include 600,000 gates of embedded configurable logic, 136 Kbyte SRAM, 32 Kbyte ROM, and XGA LCD controller supporting up to 1,024 x 768 pixel resolution in true color.

Techstar Plastics, Inc.    Port Perry L9L 1L8  Canada
Mar 21, 2007 Able to move loads up to 500 lb, Model PC3048 features body roto-molded from LLDPE that will not rust, dent, crack, or splinter. Its 1.25 in. dia, powder-coated steel handle promotes grip, while molded-in pockets can hold various items. Weighing 59 lb, truck dimensions include 48 x 30 x 12 in. deck height, with overall height to top of handle of 48 in. Smooth-contoured deck design enables loads to slide on and off but does not permit shifting during transport.
