Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

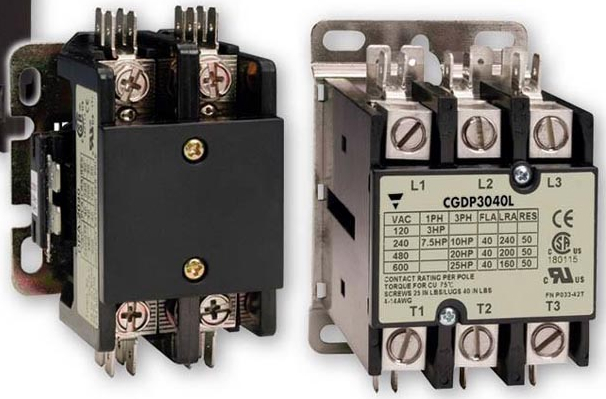

Mar 22, 2007 Rated up to 50 A for resistive loads, RoHS-compliant CGDP Series is available in 1-pole, 1-pole plus shunt, 2-pole, and 3-pole configurations. Optional single and dual auxiliary contacts are available for 3-pole contactors, and it is possible to configure 3-pole version as reversing contactor. Features include 24, 120, 208/240, 277, 480, and 575 Vac 50/60 Hz coils. Switching of 20, 25, 30, and 40 A FLA (30, 35, 40, 50 A resistive) loads is possible up to 600 Vac.

Advanced Motion Controls, Inc.    Camarillo, CA 93012
Mar 22, 2007 Via selection of feedback choices and input command sources, DigiFlex® Performance(TM) series can drive permanent magnet brushed or brushless motors, voice coil actuators, and closed-loop ac induction motors. Flexible I/O and event control assignments permit drive configuration without having to reconfigure system. While built for configurability, series also offers power range scalability and drive package flexibility.

Bear Power Supplies    Phelps, NY 14532

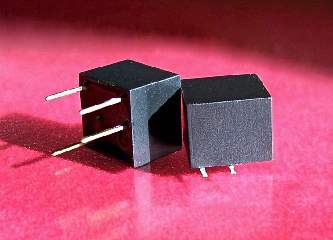

Mar 22, 2007 Housed in ultra-miniature encapsulated package measuring 0.5 x 0.5 x 0.4 in., BPS Series features single input voltage configurable from 3-12 Vdc and single output voltage configurable from 50-220 Vdc. Units operate from -55 to +85° with no heat sink or electrical derating. Available in through-hole and SMT versions, 1.5 W converters are suited for powering PIN diodes and APDs in RF transceivers, programmable filters, and industrial and scientific instruments.

Parker Hannifin Corp.    Oxford, MI 48371
Mar 22, 2007 With acceleration at 20 m/s² and speeds up to 8 m/s, LCB Series includes external sliding guide with dry-film lubricant and changeable, low-friction sliding blocks. Along with high static load capacity to endure pressing forces at standstill, programmable devices offer short/medium/long carriages for optimized moment-load capacity. R/L drive orientation, single or double drive shaft type, and free drive shaft or coupling kit options are available.

Diba Industries    Danbury, CT 06810
Mar 22, 2007 Featuring ¼-28 threads, Click-N-Seal(TM) reusable fittings provide objective feedback that required torque for proper seal has been achieved. Installer can feel and hear click that indicates fitting is properly seated, and fitting physically prevents any tightening beyond that point. When paired with Flared Tubing Assemblies, fittings produce continuous, fully swept fluoropolymer fluid path with consistent internal tubing diameter in sample, reagent, wash, and waste lines.

Alpha Wire Corp.    Elizabeth, NJ 07207 0711

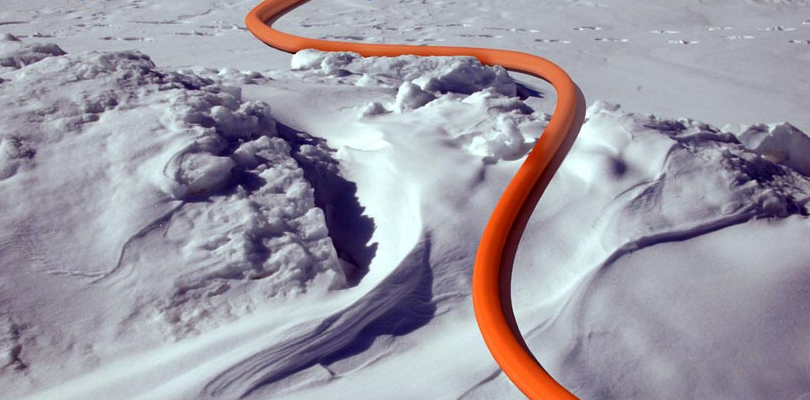

Mar 22, 2007 Flexible at temperatures from -50 to +125°C, XTRA-GUARD® 4 cables are resistant to abrasion, cut-through, ultraviolet light, water, and most chemicals. Applications include factory process control, industrial equipment, construction equipment, and they also withstand use in large scale environmental test chambers. Cold temperature resistance also makes them suitable for frozen food industry.

Doringer Cold Saws, Inc.    Gardena, CA 90248
Mar 22, 2007 Featuring factory set programmable controls, 14 in. Model D-350 FA makes trim cut to insure accuracy, then follows programmed instructions until completed and automatically turns off. Controller can be linked to communication port or interfaced with other controllers. Material feeder system uses servomotor with absolute feedback and ball-screw linear module. Offering 0.002 in. accuracy/ft of travel, system feeds at 12 ips and has unlimited multi-strokes.

NextCom, LLC    Nashua, NH 03060
Mar 22, 2007 Featuring RAID off-load capabilities and multiple disk configurations, NextDimension Evo Series lets users transfer multiple simultaneous data streams. Powered by up to 2 dual core AMD Opteron(TM) processors, Evo and Evo HD incorporate up to 4 PCI or PCIe slots, 2 hot swappable HDDs, up to twelve 2.5 in. SATA drives, and up to 5 additional 2.5 in. drives if NextPak option is added. Small size enables flextop computers to be used as portable studios, sniffers, traffic generators, or recorders.

Omron Scientific Technologies Inc.    Fremont, CA 94555
Mar 22, 2007 Available in solid or hollow shaft versions, hinge-operated HP2008 Series measures 0.98 x 3.37 in. while HP2011 Series measures 0.98 x 4.55 in. Both can be mounted on 1 in. wide square tubing. Units provide force guided contacts with tamper-resistant operation. NEMA 6 enclosure enables them to withstand water washdown cleaning while providing minimum of 4 million actuations. Each features 360° rotating head that rotates in 90° increments to give 4 possible shaft operating positions.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005

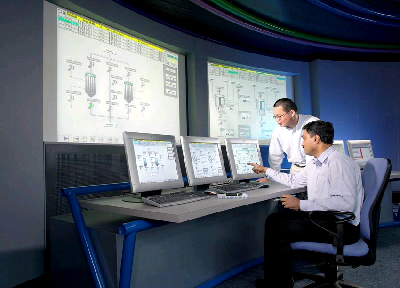

Mar 22, 2007 Integrating new and existing automation systems, SIMATIC® PCS 7 Process Automation System v7 provides common tools for engineering, visualization, and plant-wide asset and maintenance management. Alarm management tools such as state-based alarming and alarm shelving help minimize unplanned downtime. Security and Access control, Version Trail, Version Management, and Change Logging help minimize project risk, maximize traceability, and comply with FDA 21 CFR Part 11.

Apollo Display Technologies LLC    Ronkonkoma, NY 11779
Mar 22, 2007 Featuring analog control, PRISMA II Series of RGB/DVI/Video Converter Boards connect TFT LCDs to standard graphics and/or video interfaces. Input signals such as analog RGB, analog video, or DVI are converted into TTL or LVDS signals accepted by TFT displays. Boards support TFT displays from 6.4-82 in. diagonal with 6-bit and 8-bit color depth. Dynamic on-screen menu enables user to make adjustments to brightness, contrast, color, and auto adjust.

Rockwell Automation    Milwaukee, WI 53204

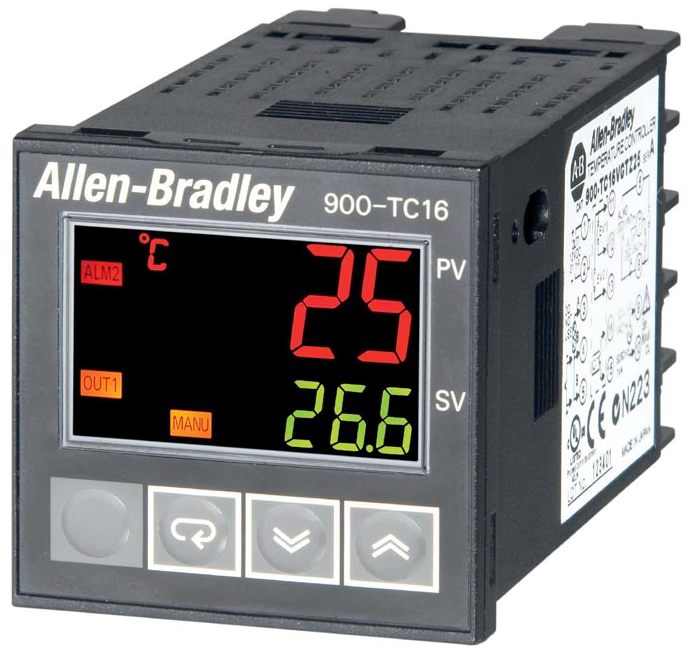

Mar 22, 2007 Able to satisfy all temperature applications with one unit, Bulletin 900-TC16 and 900-TC8 Single-Loop Temperature/Process Controllers combine thermocouple and RTD sensing capability with either ON/OFF or analog outputs into one global temperature controller. Both controllers are also available with analog input and On/Off or analog output capability. Auto-tuning PID control technology with analog outputs promotes system efficiency while smoothly managing process.

Advanced Power Solutions    Pleasanton, CA 94588

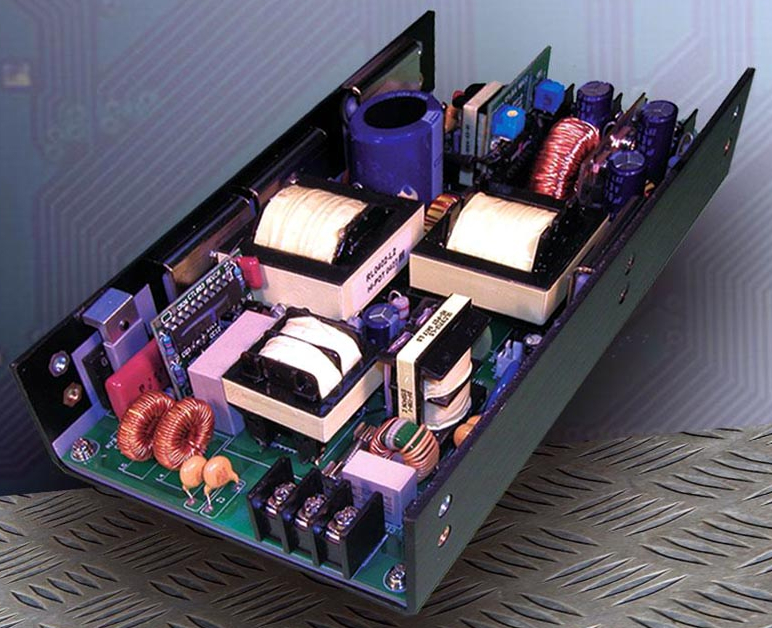

Mar 22, 2007 Measuring 8.00 x 5.00 x 1.60 in., 1U-high APS400Mx switching power supply series features universal ac input with active PFC and single outputs from 2.5-58 Vdc. Features include single wire parallel, remote sense, remote voltage margining (50-100% of rated Vdc), current monitor, remote on/off, and power fail signals with auxiliary fan output. It offers up to 400 W of output and will satisfy peak loads up to 700 W required from systems during start-up.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

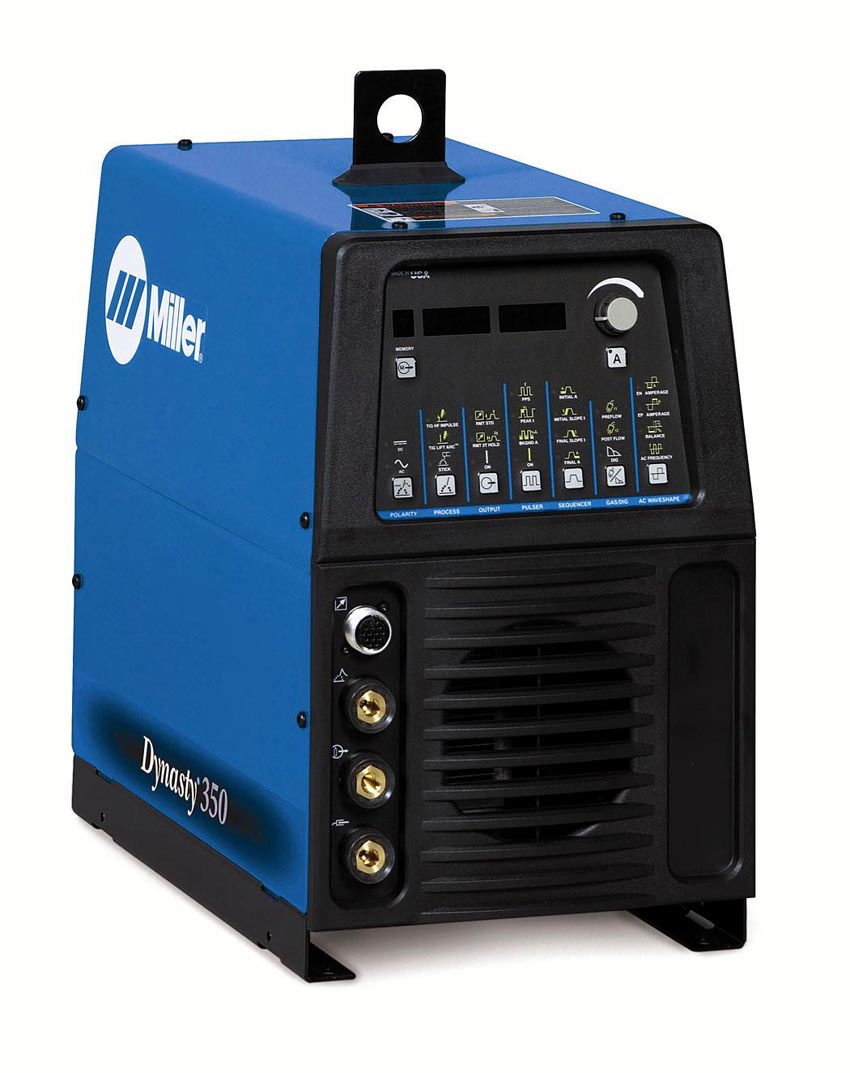

Mar 22, 2007 Featuring independent AC amplitude/amperage control, Dynasty® 350 AC/DC TIG inverter delivers 5-350 A and runs from 208-575 V, 1- or 3-phase input power source. In DC TIG mode, it permits pulsing at frequencies of 0.1-5,000 pulses/sec, while in AC TIG mode, frequency control of 20-400 Hz at 0.1-500 pulses/sec is allowed, with 4 options for optimizing arc characteristics. Device includes built-in sequence control and memory for storing 4 welding programs.

ALECO    Muscle Shoals, AL 35661
Mar 22, 2007 Max Bullet® Truck Mount Strip Door System features MaxBullet aluminum mounting bar with 2 L-brackets for installation, and Hi-Viz® fluorescent safety rings for locking strips in place. Scratch-resistant Clear-Flex II® Scratch-Guard ribbed PVC strip material hangs straight without warping, even in extreme low temperatures, and will not stick to shrink wrap or boxes. System may be used with conventional roll-up or swing doors.

dtSearch Corp.    Bethesda, MD 20816
Mar 22, 2007 Supporting MS Vista XMP Metadata and MS XML Paper Specification, dtSearch v7.4 searches terabytes of text across desktop, network, Internet, or Intranet. It provides over 24 indexed, unindexed, full-text, and fielded data search options. Program displays HTML, XML, and PDF files with highlighted hits, and with embedded images, links, and formatting intact. HTML converters enable browser display of non-Web-ready content-database, word processor, spreadsheet, and other file types.

Brooks Internet Software, Inc.    Idaho Falls, ID 83404-6400
Mar 22, 2007 Used in news media sector, INTELLIscribe v4.0 facilitates document distribution and printer management. Broadcast print feature enables simultaneous printing of same document on multiple networked printers. Version 4.0 brings broadcast, destination balancing, and round robin printing features to Windows Vista and Windows cluster environments.

Minnetonka Audio Software    Minnetonka,, MN 55345
Mar 22, 2007 Based on structured AudioTools(TM) Work Flow architecture, Audio Tools(TM) Consult(TM) consists of workflow assessment, custom engineering, and software development service. It helps users manage digital audio assets through editing, processing, versioning, collaboration, distribution, and archiving. Providing assessments and evaluations of existing workflow scenarios, user-definable service is suited for audio production organizations needing better control over audio assets.

STMicroelectronics    Lexington, MA 02421
Mar 22, 2007 Suited for sensor signal conditioning and battery-powered applications, Series TSV911/2/4 offers 8 MHz gain-bandwidth and is unity-gain stable for capacitive loads up to 200 pF, while Series TSV991/2/4 offers 20 MHz gain-bandwidth for gain up to 3 or above. Rail-to-rail units operate from 2.5-5.5 V and include ultra-low input bias current of 1 pA. To minimize handling and fabrication risks, op-amps feature 5 kV internal protection against ESD.

PolyPhaser Corp.    Minden, NV 89423 9000
Mar 22, 2007 In addition to facilitating communication between non-AISG legacy tower-mounted equipment and AISG-compatible basestations, AirSmart(TM) surge protection products act as bias-tee lightning protectors. Units provide monitoring functions through high-speed RS485 data interface.
