Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
May 04, 2007 Built around MB91F267N 32-bit MCU, MotorKit-91F267-MC offers development platform for automotive and industrial motor control applications. It includes integrated 24 V/15 A 3-phase power stage with different currents available depending on shunt resistors, current and voltage measurements with ADC, over-current and over-voltage comparator, and isolated RS232 and CAN interfaces. Starter kit also includes connectors for external power stage, Hall sensors, encoder, and LCD.

Sciemetric Instruments Inc.    Ontario K2K 2P5  Canada
May 04, 2007 SigPOD NVH (noise, vibration and harshness) and SigPOD Torque testers are driven by process signature verification technology that captures and analyzes entire waveforms and transforms raw data into actionable information. QualityWorX manufacturing intelligence software utilizes acquired data to report on quality and to enable continuous process improvement by detecting and analyzing root causes of defects and solving problems in production processes.

Tendril    Boulder, CO 80301
May 04, 2007 Leveraging open standards, Tendril Network Operating Platform(TM) provides an open, extensible, scalable software platform that enables manufacturers and integrators to build ZigBee applications, deploy them in field, and manage them when operational. Tendril Monitor(TM) automates process of diagnostics and monitoring of quality, reliability, and day-to-day operations of ZigBee networks as well as applications built on those networks.

Dialogic Corp.    Montreal H4M 2V9  Canada
May 04, 2007 With software selectable T1/E1 connectivity in single, dual, and quad span densities, DM/V-B line of Dialogic® DMV300BTEPEQ, DMV600BTEPEQ, and DMV1200BTEPEQ combined media boards for PCI Express slots provide universal port solution. They come with media feature set that includes simultaneous voice processing, speech recognition, fax, and conferencing capabilities. Other features include ability to mix select protocols and variety of conferencing media loads.

GE Fanuc Embedded Systems    Huntsville, AL 35803
May 04, 2007 Available in 5 air- and conduction-cooled ruggedization levels, Model IMPCC2 CompactPCI SBC features two 10/100 BaseT Ethernet ports, 2 USB 2.0 ports, 4 high speed serial channels, optional VGA video, and up to 2 GB of solid state storage. IMPCC2 can be optionally configured as standalone or peripheral PowerPC processor using embedded 266 MHz 603e core in its PowerQUICC (8270) communications processor.

SUI    Princeton, NJ 08540
May 04, 2007 Model SU640KTSX-1.7RT shortwave IR video camera can be integrated into unmanned ground/aerial vehicles and robotic systems. InGaAs camera delivers real-time video imaging in variety of lighting conditions and features room temperature operation, onboard AGC, image enhancement, and built-in NUCs. Working in 0.9-1.7 mm spectrum range with 640 x 512 pixel format on 25 mm pitch, unit suits passive surveillance and use with imaging lasers.

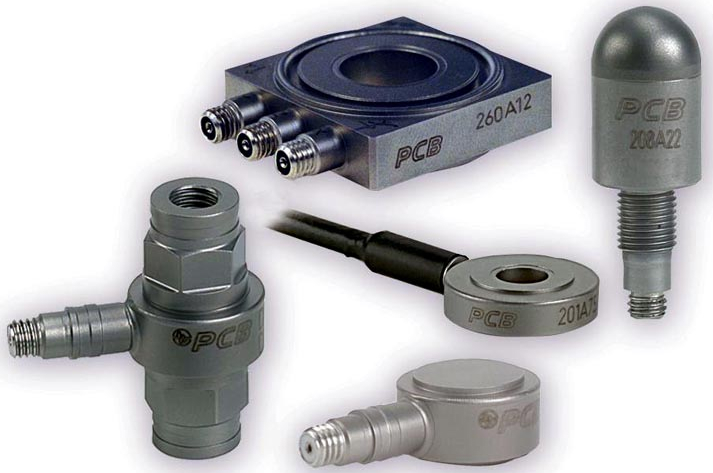

PCB Piezotronics Inc.    Depew, NY 14043 2495
May 03, 2007 Dynamic quartz force sensors exhibit rigidity that promotes repeatability and over-range protection required for automotive and component testing. ICP® and charge output sensors measure compression, tension, and impacts encountered in Life-Cycle, Durability and Fatigue, Impact, Drop and Crash, and Structural and Modal Testing as well as Penetration and Fracture Analysis. Configurations include ring, 3-component ring, link, impact, penetration, and strain styles.

Endicott Research Group, Inc.    Endicott, NY 13761
May 03, 2007 Combining up to 12 W of output power with vacuum-encapsulated design, E220 Series DC/AC inverter ensures reliable CCF lamp ignition for LCDs used in outside or low-temperature environments. It operates at typ efficiencies approaching 80% and delivers starting voltages to 2,300 Vrms in PCB-mountable package for 5.7-15 in. diagonal LCDs. Measuring 1.56 x 1.2 x 0.60 in., product is specified over -4 to +158ºF range and resistant to shock, vibration, and humidity.

H2W Technologies, Inc.    Santa Clarita, CA 91350
May 03, 2007 Moving magnet voice coil linear actuators, supplied with bearings and shaft, can have power-off magnetic brakes for one or both ends of stroke. Offered with strokes from 0.15-3.00 in., continuous force to 25.0 lb, and peak force to 75.0 lb, products offer acceleration up to 20g, resolution to 0.0001 in./ft, and repeatability to 0.0002 in. For closed-loop operation, actuators require linear encoder, linear servo amp, and programmable motion controller.

NVision, Inc.    Southlake, TX 76092
May 03, 2007 Able to inspect radii of less than 0.2 mm, MAXOS utilizes optical non-contact probe that uses singular point of white light. Probe allows continuous collection of individual points at rate of 70/sec along its path, without pausing, and can scan mirror, freshly machined, and polished surfaces without requiring them to be sprayed with coating. With 7 axes of operation, machine ensures smooth movement around all points to be measured and offers accuracies to ±2 µm.

Integrated Electronic Solutions    South Australia, Port Adelaide 5014  Australia
May 03, 2007 RoHS-compliant IES5501 extends and expands bus load limit of 2-wire bus systems - I2C, SMBus, PMBus, and IPMB - by buffering clock and data lines. Using analog IC design principles for digital bus, product features input-output offset voltages that permit use in cascade, multidrop bus, or daisy chain configurations. Fully I2C-compliant IC does not impose additional restrictions on bus logic levels, and analog design facilitates level shifting of bus voltages from 1.8-15 V.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607
May 03, 2007 Cement-housed, vertical-mount power resistors come in wirewound (CVW) and film (CVF) versions, both of which have specifications suited for high-volume applications in temperatures from -55 to +275°C. While CVW Series features resistance values from 0.1-910 W, CVF Series has 28-200,000 W range. Standard tolerances for both commercial-grade series are to ±5% and ±10%, with TCRs of ±400 ppm/°C at less than 20 W and ±350 ppm/°C at 20 W and above.

NLB Corporation    Wixom, MI 48393 2824
May 03, 2007 Bi-Mode(TM) valve, NLB 8488, is designed for use with rotating ultra-high-pressure (UHP) water jet lances. Rated at up to 40,000 psi, product minimizes downtime with 2 disposable cartridges that can be replaced within 60 sec. It facilitates use of rotating lance at UHP and lets users operate 2 lances (with 2 valves) simultaneously from one UHP pump unit. Dual-lance operation requires nozzle change, and rounded frame facilitates carrying.

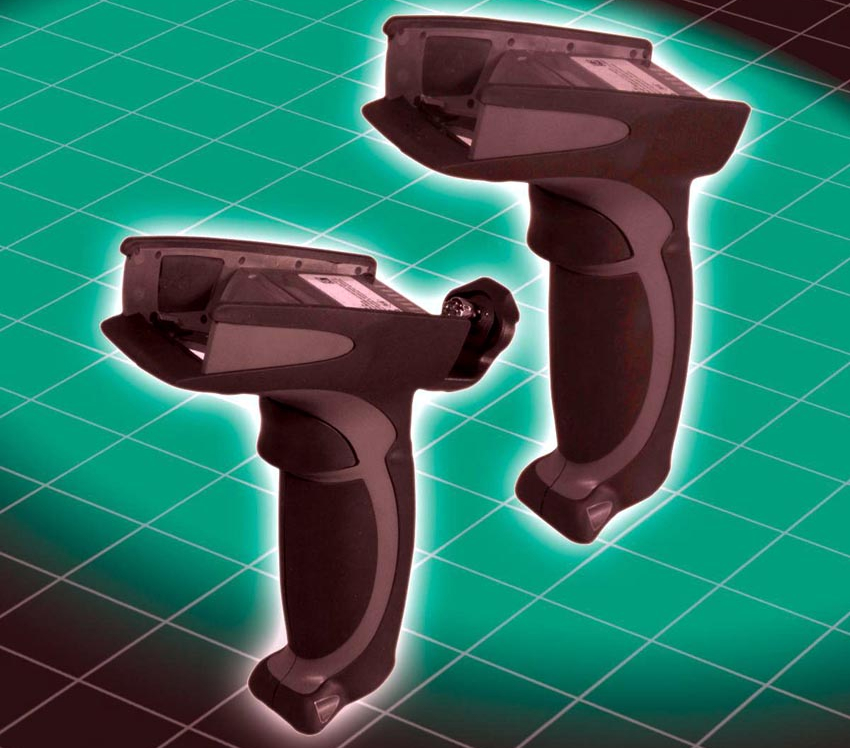

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
May 03, 2007 GRIP Family barcode reader handles for MAH200 and MAH300 Series barcode readers feature ergonomic design, protected reader window, illumination LED's, and elastomer overmold for drop-shock survivability. GRIP1 is designed for rugged, cabled operations. Battery handle GRIP2 comes with standard capacity battery, while GRIP3 is offered with high-capacity Li-Ion battery system.

Dell Marking Systems, Inc.    Ferndale, MI 48220 2657
May 03, 2007 Built around DS-20 Macro Mini Marker, DelFlo Closed-Loop Recirculating Marking System features disposable ink cartridges and quick-change connectors. Ink is circulated continually through system during operation, maintaining its original viscosity and eliminating pigment separation or clogging. Used as stand-alone machine or retrofitted to existing Dell Marking systems, DelFlo System is offered with white, blue, green, yellow, red, pink, and orange ink.

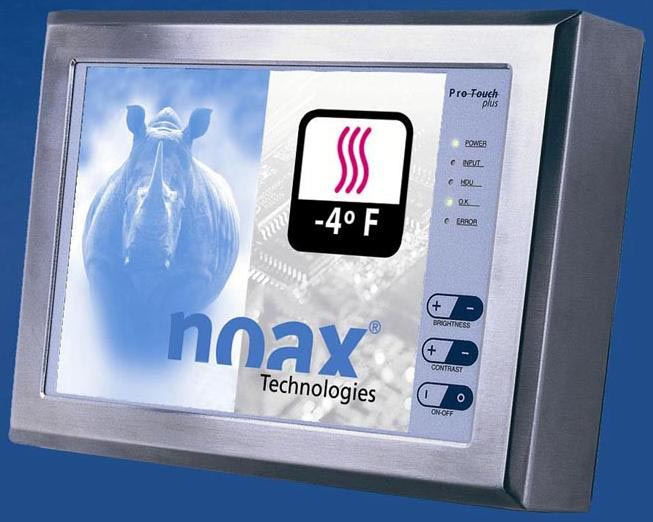

noax Technologies Corp.    Huntersville, NC 28078
May 03, 2007 Suited for harsh environments where hygiene is crucial, fully sealed noax S12 is constructed to IP65 standards, has polished 304 stainless steel enclosure, and features 12 in. TFT display with SVGA/XGA resolution. Integrated resistive touch panel with hardened plastic surface facilitates operation, and electronically controlled heating system enables use in sub-zero temperatures. System can be augmented with Intel Celeron 1.0 GHz or Pentium M 1.4 GHz processors.

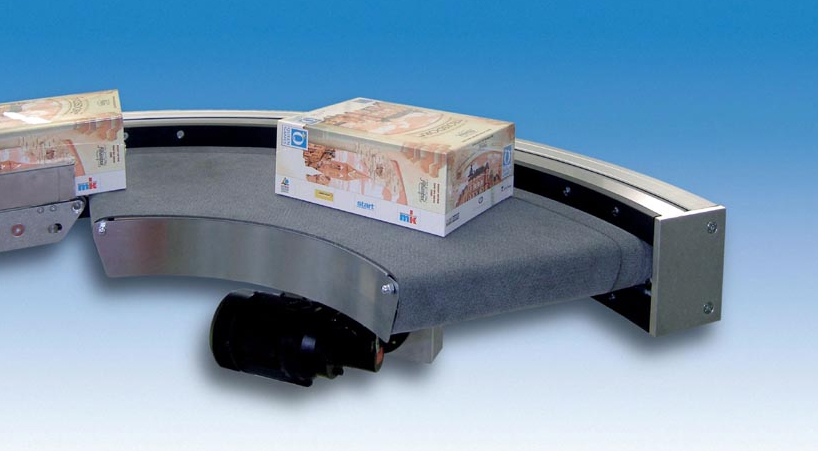

MK Automation Engineering Inc.    Bloomfield, CT 06002
May 03, 2007 Compatible with all other mk® conveyor systems, Model KGF-P 2040 belt curve conveyor features 10 mm T-slotted aluminum construction allowing for direct mounting of side rails, sensors, and accessories. It features 20 mm rolling knife edge, automatic belt tensioning, stainless steel slider bed, and choice of 90° or 180° belt curve. Anti-static, FDA-suitable transilon belts of urethane, polyester, and PVC are available with smooth woven and velvety surfaces.

Perfect Fit Glove, A Bacou-Dalloz Company    Buffalo, NY 14227
May 03, 2007 Tuff-Coat(TM) line of palm-dipped gloves include lightweight stretchy nylon liner that provides dexterity combined with durable latex coating for resistance to cuts, punctures, and abrasion. Line also includes 2 cut-resistant styles made with DuPont(TM) Kevlar® brand fiber shells, 2 general purpose styles made with cotton/polyester blend shells, and high visibility acrylic-dipped glove with thermal protection for use in high activity/low light settings.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
May 03, 2007 Custom Dual Drum Lift and Dump Discharging System elevates 2 drums of chemical powders from floor level to hopper 37 ft 2 in. above floor level and includes MTS Lift & Seal System(TM) that seals drums to pour cone for dust-tight operation. System features Control Link(TM) rotation for 180° rotation and 48 in. reach, along with stainless steel product contact surfaces, heavy-duty tubular construction, sealed cam rollers, and MTS 2-speed hydraulic circuit.

Leadis Technology, Inc.    Sunnyvale, CA 94085-4117
May 03, 2007 LDS194 65K color and LDS195 262K color STN LCD driver ICs incorporate controller, display RAM, on-chip oscillator, and temperature compensation for adjustment of VLCD and frame frequency to provide fine tuning of screen for optical visual performance. LDS195 supports 128 x 160 resolution displays, while LDS194 supports 98 x 70 and 98 x 64 resolution displays. Both devices implement mixed Pulse Width Modulation/Frame Rate Control architecture to facilitate video rendering.
