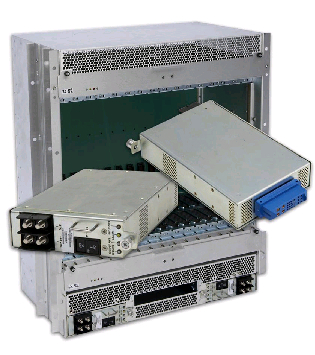

Spectrum Control, Inc.    Fairview, PA 16415
May 14, 2007 Delivering up to 3.24 kW of uninterrupted, EMI filtered power, Power Entry Module provides 48 Vdc power and circuit protection at equipment interface of ATCA300 optical transport rack. It offers provisions for hold-up of 4.0 mSec and in-rush current of 5.0 A max. Device is reverse-polarity protected with voltage range of -38 to -75 Vdc, current rating of 60 A max, power output of 2.6 kW, and 40 W power dissipation. Multicolored LEDs on front panel indicate operating status.

Forrest Manufacturing Co., Inc.    Clifton, NJ 07014
May 14, 2007 Engineered with corrosion-resistant C-4 micrograin carbide and proprietary grinding techniques, No-Melt blades feature tooth style and side clearances that produce cool, melt-free cuts on extruded profiles and plastic sheets - even when stacked. Blades have 5 in. face rake; 60, 80, 100, or 120 teeth; and 5/8 or 1 in. center hole, depending on diameter selection from 7¼-16 in. Perimeter concentricity and side runout of ±.001 in. also lend to chip- and melt-free cuts.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 14, 2007 Featuring capacitance values from 100 pF to 0.27 µF and voltage ratings from 250-1,000 Vdc, models VJ1206, VJ1210, VJ1808, VJ1812 HVArc Guard® multilayer ceramic chip capacitors (MLCCs) have internal design structure that prevents surface arc-over at elevated voltages. Use of these devices promotes device miniaturization and eliminates need for conformal coating. They can also serve as replacements for wire leaded through-hole capacitors.

Ideal Industries, Inc.    Sycamore, IL 60178
May 14, 2007 WireMan(TM) pliers are available with ergonomic SmartGrip(TM) handles to eliminate fatigue placed on fingers, wrist, and forearm during operation. Handles consist of hardened Santoprene® layer that promotes comfort with curved form factor, and soft/textured Santoprene layer that promotes grip even when wet. While knife-to-knife precision blades provide control and strength when cutting various wire types, cross-hatched jaws prevent slippage while pulling even heavily lubed wires.

Alltec Corporation    Canton, NC 28716
May 14, 2007 Designed to monitor for the incidence of direct lightning strikes, ASC-6X Lightning Strike Counter consists of circuitry containing rectifier, capacitor, and electronic switching system that is connected to mechanical counting relay. Unit is packaged into completely sealed, injection molded case that is waterproof for interior or exterior usage. It has 2 mounting tabs for installing with screws or bolts, and sealed, clear view window allows easy reading of 6 digit counter.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
May 14, 2007 Designed to amplify photodiode signals from fiber optic cables in ONET, Model LOG114 operates on single +5 or ±5 V dual supply over temperature range of -5 to +75°C. DC precision product features 1 µsec rise and fall time, and can handle 8 decades of dynamic range (equivalent to 27 bits, 100 pA to 10 mA input) that suits laser control systems. Available in 4 x 4 mm QFN-16 package, unit can be used for industrial/medical optical density/absorbance measurements.

LSI Logic Corporation    Milpitas, CA 95035
May 14, 2007 Capable of transcoding HD or multiple SD video streams in real-time, LSI DX-1710 gives satellite TV and IPTV service providers way to convert MPEG-2 content into H.264 content for delivery over bandwidth-constrained delivery networks. Single-chip, multi-format unit is based on LSI Domino X(TM) media processor architecture and performs 250 billion operations per second.

TAPFLO (UK) LTD    HANTS SO21 1TW  United Kingdom
May 14, 2007 Available in 3 versions with capacities from 4.5-10 m³/hr, magnet-powered Model CTM features entirely closed design, eliminating leakage risk and making pump suitable for handling toxic, corrosive, or other hazardous liquids. Unit is built for continuous running and can be run dry without damage for short periods. Made of glass fiber reinforced polypropylene, pump employs fixed and rotating bushings and can distribute liquids with temperatures up to 70°C.

Linear Technology Corp.    Milpitas, CA 95035
May 14, 2007 Communicating via 2-wire I2C-compatible serial interface, delta-sigma 24-bit Model LTC2493 measures 4 single-ended or 2 differential analog inputs while consuming 300 µA. Easy Drive(TM) architecture results in zero average differential input current, allowing measurements of high impedance input sources without internal buffer. Offering 1/30°C resolution and 2°C absolute accuracy, internal temperature sensor enables temperature compensation of external sensors.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
May 14, 2007 Handheld Yellowjacket® branded 802.11 spectrum/packet analyzer demodulates and analyzes 802.11b (2.4 GHz), 802.11g (2.4 GHz) and 802.11a (5 GHz) packets. Yellowjacket® B/A/G is accurate to within +1 dB and measures RF energy enabling it to broadly read 2.4 and 5 GHz network WISPs and hotpsots. Unit features SNR, Multipath, Delay Spread, Channel Frequency Response, SSID, and RSSI for Wi-Fi analysis.

Carlton Industries    La Grange, TX 78945
May 14, 2007 Measuring 3 3/8 x ¾ in., High Security Snapper(TM) Bolt Seal is made of steel and has pull strength of 4,000 lb for C-TPAT and ISO 17712 compliance. This 2-piece seal enables both bolt and body to be consecutively numbered to provide optimal security and tamper resistance. Featuring bright yellow plastic coating, seal is suited for container door latches and trailer doors requiring extra security.

Schreiner ProTech, a business unit of Schreiner Group LP    Blauvelt, NY 10913
May 14, 2007 Self-adhesive and non-adhesive Pressure Compensation Seals (PCS) are available with air-permeable and waterproof PTFE membrane that enables air molecules to pass through seals while restricting passage of water, oil, and dirt particles. Made from microporous-membrane material that ensures pressure equalization, customizable PCS seals are suited for ventilation of equipment housings. They provide chemical and thermal resistance and can withstand steam cleaning.

ALGOR, Inc.    Pittsburgh, PA 15238
May 14, 2007 PipePak v10 features bi-directional associativity between its spreadsheet and graphical display window including immediate display of pipes entered via spreadsheet. Piping design and analysis software allows users to perform structural analysis in compliance with industry-standard piping codes. It also features local zoom capability and ability to select/divide pipe segments (by number of divisions or specified length) within graphical display window.

Teseq, Inc.    Edison, NJ 08837
May 14, 2007 Supporting IEC 61000-4-3 field uniformity calibration requirements, Compliance 3 v4.0 offers emission and immunity testing solution. Automated process helps users verify that power amplifier is operating in its linear region at calibrated level, and harmonics in field are at least 6 dB below fundamental. Open architecture enables users to incorporate hardware configurations, define custom test sequences, write device drivers for instruments, and create report formats.

ClearStory Systems    Westborough, MA 01581
May 14, 2007 Designed for software developers and SaaS providers, Enterprise Media Server(TM) (EMS) OEM Edition facilitates development of digital media applications. Users can embed digital asset management services into their applications such as taxonomy management, cataloging and rendition management, media processing and transformation services, delivery services, and repository management. Embeddable digital media services engine features layered architecture and open standards framework.

RightNow Technologies, Inc.    Bozeman,, MT 59718-9300
May 14, 2007 Designed to help federal agencies provide high level of service and support to citizens and residents, RightNow Federal Government combines CRM software and federal best practices. It incorporates reports/recommendations developed by Citizen Service Levels Interagency Committee (CSLIC) including customized CSLIC reporting tools and CSLIC surveys. Features include government-specific terminology, pre-configured workflow processes, government profiles, and Freedom of Information Act interface.

Streamlight, Inc.    Eagleville, PA 19403
May 11, 2007 Combining deep-dish parabolic reflector with 35 W HID lamp, HID LiteBox® provides 3,350 lumens typical and up to 1 million peak beam candlepower. Fully articulating head allows light to be placed precisely where it is needed, while integrated elastomer bumper ring protects lens and lamp from impact-related damage. Light uses 12 V, 7.2 Amp/hr sealed lead acid battery that can be recharged up to 500 times and operates HID lamp for up to 1.75 hr per charge.

Aremco Products, Inc.    Valley Cottage, NY 10989
May 11, 2007 With operating temperatures up to 400°F, single-part Corr-Paint(TM) CP2000 dries and cures at room temperature to hard, non-porous, abrasion-resistant surface. Polymeric coating is resistant to hydrochloric, nitric, ethylene chloride, and sulfuric acids. Supplied with viscosity of 200-240 cps, product is applied in 4.0 mil wet film thickness that dries to approximately 2.0 mils. Application methods include brush, roller, or pneumatic spray equipment.

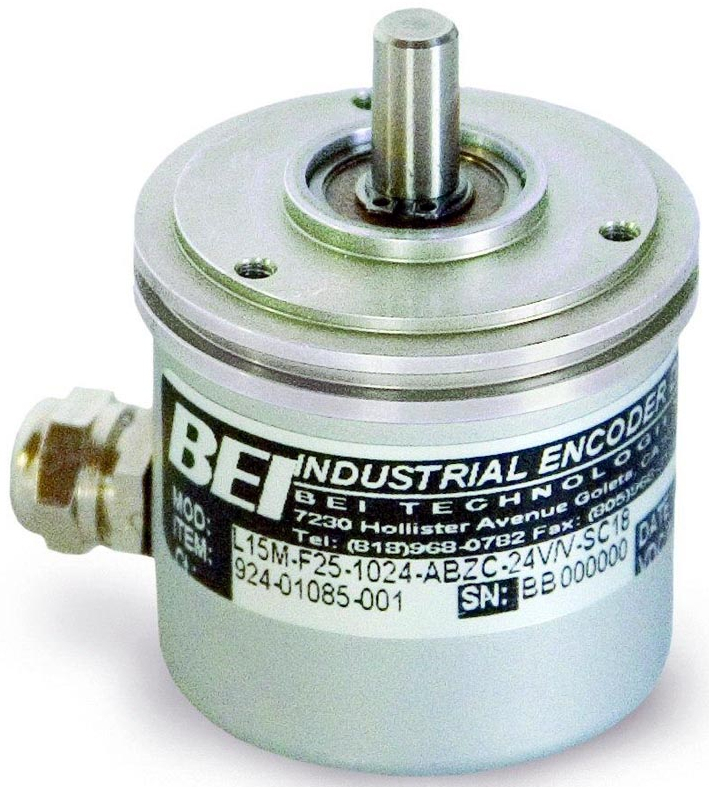

BEI Sensors (BEI Industrial Encoders)    Goleta, CA 93117
May 11, 2007 Engineered with interpolative electronics, 1.5 in. dia L15 can lend design flexibility of up to 40,640 cycles/turn to control systems. Internal electronic multiplication boosts output resolution up to 16 times with no degradation of overall encoder accuracy. Featuring standard quadrature detection option, product comes in size 15 servo mount style package with ¼ in. dia stainless steel shaft and accommodates up to 5 lb radial or axial load.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
May 11, 2007 Designed with GearGuard(TM) multi-point locking system, job site storage solutions include 4 types of heavy-duty storage chests (DWJB 1332/2448/2460/3048), slant-top (DWJB 3660) and flat-top (DWJB 4860) boxes, as well as storage cabinet (DWJB 5660L). Each product features reinforced, 3 in. thick lid for durability and skyhooks that promote safe lifting. Also included, electrical access port lets users recharge batteries while they are securely locked inside case.
