MAG Fadal    Chatsworth,, CA 91311
Apr 30, 2007 Featuring GE Fanuc 0i-MC control with software for programming, operation, and troubleshooting, Model 4020FX 4-axis vertical machining center offers 8,000 rpm maximum spindle speed and 1,000 ipm rapid traverse rate. With XYZ axis travel of 40 x 20 x 20 in., unit also features rigid box-way construction with integral flame-hardened ways and Steinmeyer ETA+ dual-mounted ballscrews. Optional AI contour control helps optimize acceleration and deceleration of cutting speed.

ProVent, LLC    Harbor Springs, MI 49740
Apr 30, 2007 ProScrub, constructed of 12 gauge sheet steel or stainless steel, uses current technology to scrub dust laden air stream with water. Unit comes with direct connected, C-face integral motor and fan assembly, NEMA 1 start/stop motor controls with overload protection, automatic water level control, lexan window and water fill line, and sludge monitoring and final stage mist eliminator filtration pack. It has no internal filtration mechanisms or additional pump hardware.

Kin-Tek Laboratories    LaMarque, TX 77568 4202

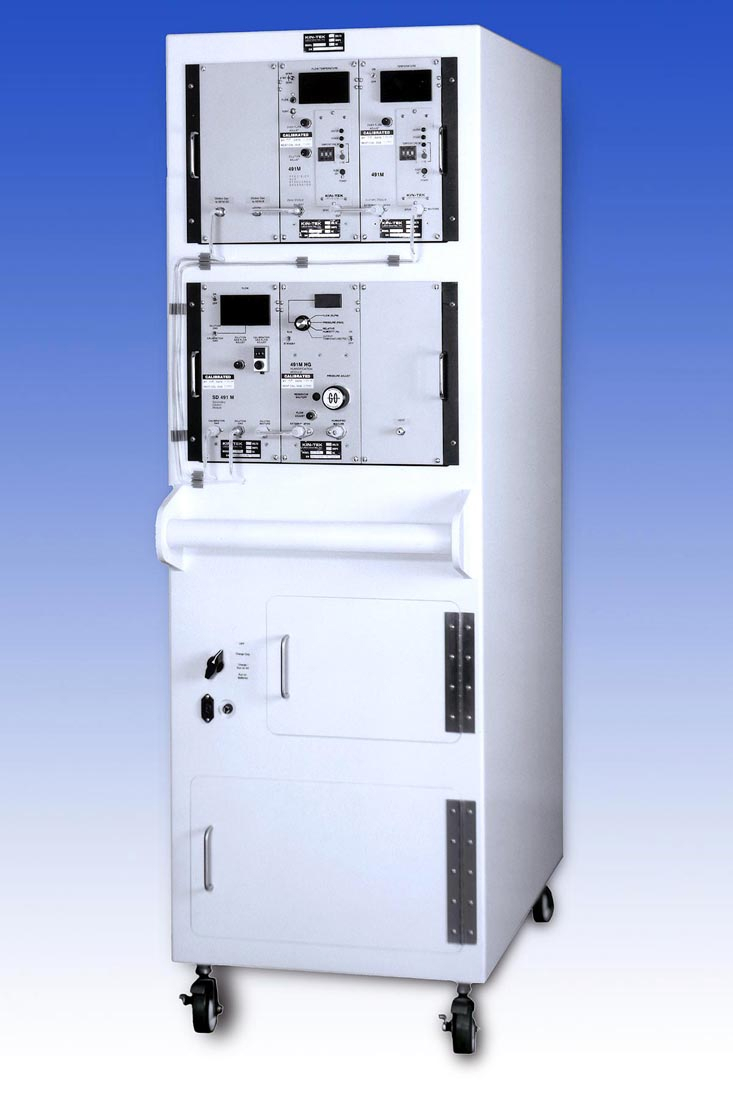

Apr 27, 2007 Span Lab(TM) Cal Cart generates calibration standards for cleanroom airborne molecular contamination (AMC) monitors to allow facility wide synchronization of AMC data with traceability to NIST. Concentrations from less than 1 ppb to greater than 10 ppm can be produced, while mixtures can be delivered dry or humidified at 20-90% RH. Portable system has 4 independently-controlled channels for delivering standards of multiple analytes and can be operated remotely.

Phaseda LLC    Beaverton, OR 97005

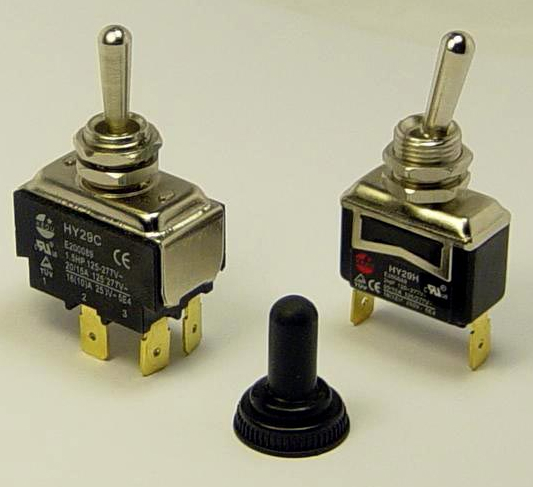

Apr 27, 2007 Suited for industrial control applications, HY29 series toggle switch features UL/cUL rating at 20 A, 125 Vac and 2.0 hp rating. Device includes dust and water proof rubber boot and nameplate, as well as standard 0.250 quick connect or solder lug terminals. TUV-approved switch is available in single- and double-pole versions, including On-Off, On-On, On-Off-On, and (On)-Off.

Helical Products Co., Inc.    Santa Maria, CA 93456 1069

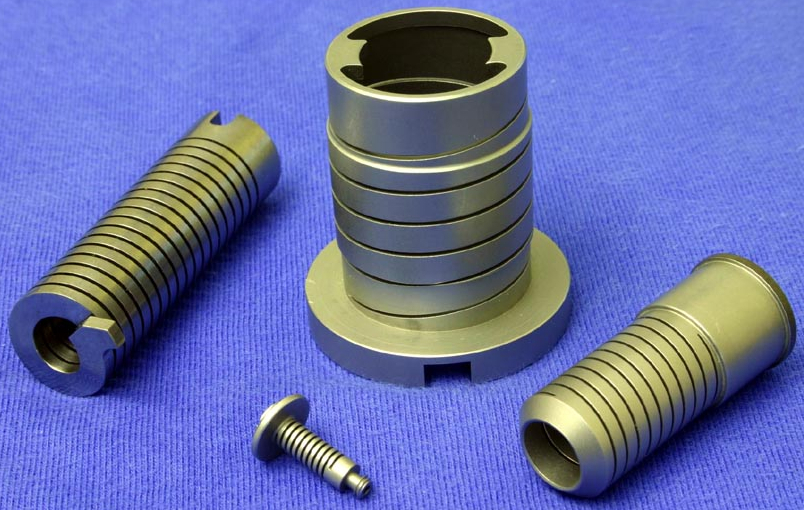

Apr 27, 2007 HELI-CAL® Flexure technology enables customer-specified end attachments - tangs, clamps, flanges, or threaded ends - to be integrated into multi-functional springs. Useful in design and production of springs that require close tolerances and optimal performance characteristics, system can enhance springs to facilitate assembly jobs, minimize maintenance, as well as promote predictability and repeatability of performance.

Elco Enterprises, Inc.    Jackson, MI 49201

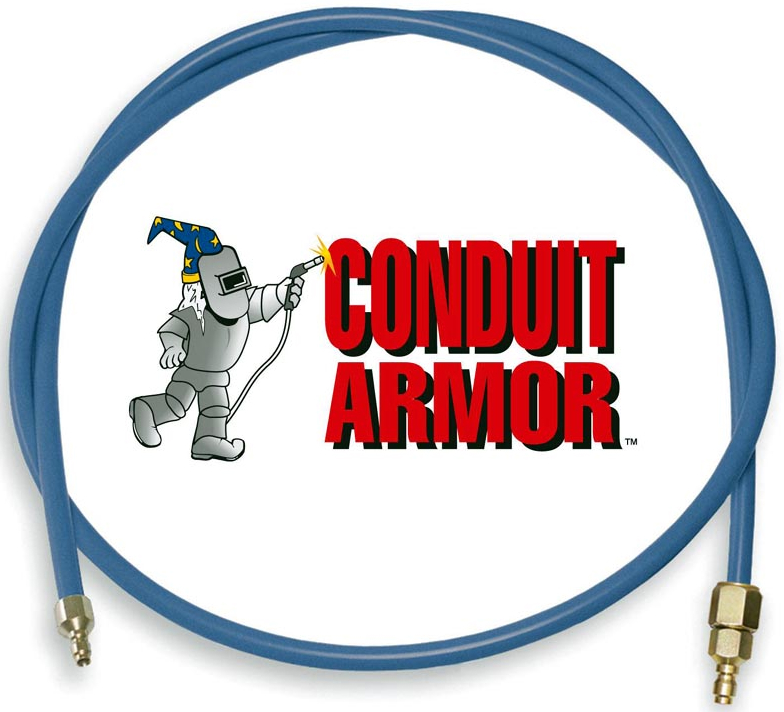

Apr 27, 2007 Conduit Armor(TM) is coated to prevent melting in high-temperature and high-spatter areas in or near weld cell. Able to reduce pull on feed motor by up to 4 lb, this UL-94-VO compliant product is available as option on blue polymer conduit and comes standard on extra flexible conduit in bulk or pre-cut lengths.

Envirosight LLC, Video Pipeline Inspection    Randolph, NJ 07869
Apr 27, 2007 ROVVER 125/225 Series are available with BackEye(TM) auxiliary camera option that enables operators to see behind crawler in order to steer around obstacles and prevent cable tangles during reverse travel. Along with 0.005 lux sensitivity, monochrome camera also includes 3 forward-facing narrow-beam LED lamps to enhance forward viewing. It uses compact IR illumination and consumes 0.8 W of power. Camera's ¼ in. CCD imager measures 765 x 582 pixels.

Kin-Tek Laboratories    LaMarque, TX 77568 4202

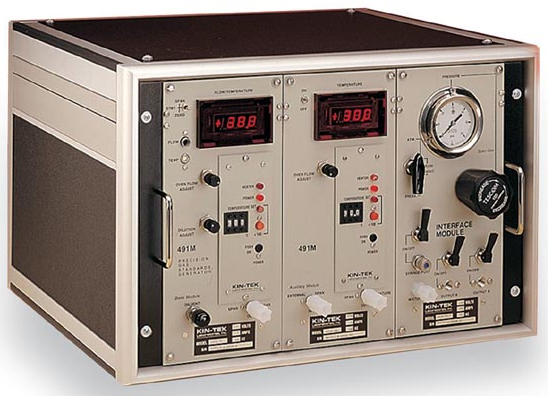

Apr 27, 2007 Modular gas standards generator 491M/B/SD dynamically blends precisely known VOC/TOC gas standards with parts-per-billion and parts-per-trillion analyte concentrations. In first stage, 491M/B combines analyte flow from Trace Source(TM) permeation tubes with precisely controlled flow of pure dilution gas to form parts-per-billion concentration mixture. Second stage, 491M/SD, further dilutes aliquot of ppb mixture to form part-per-trillion mixture.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

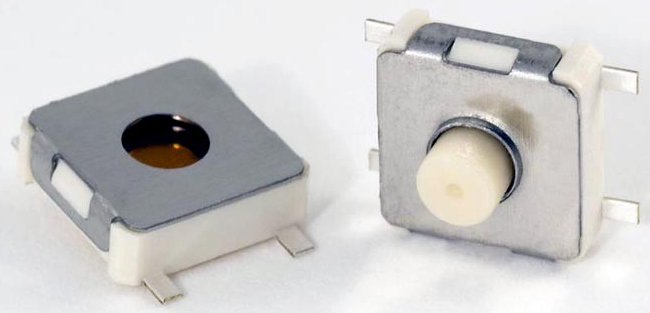

Apr 27, 2007 With contact rating of 20 mA @ 30 Vdc, TL3350 low-current tact switch comes with or without actuator and is sealed for protection against exposure to elements. Surface-mount, low-profile product, available in tape and reel for auto insertion, is RoHS-compliant and has typical operating life of 10,000 cycles. Applications include telecommunications, computers, servers, peripherals, test and instrumentation, medical, and other electronic devices.

Danaher Motion/Portescap    Radford, VA 24141

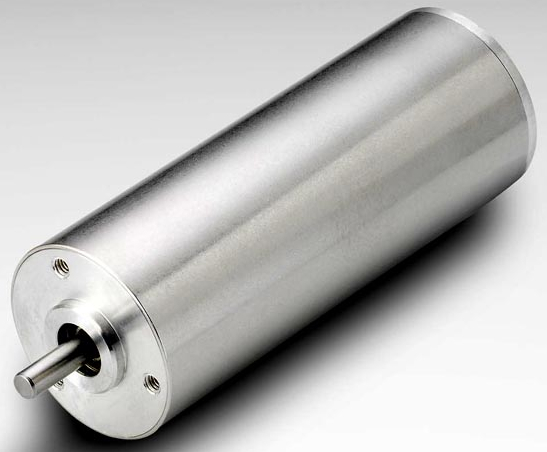

Apr 27, 2007 Weighing 33 g, 16 mm Brushless Motors provide 50 W of power at up to 60,000 rpm from 16 mm housing. Motion control solutions operate at 39 dB and are designed to produce minimal vibration, promoting patient comfort with concern to compact respiratory support equipment.

Advantech Automation Corp.    Cincinnati, OH 45240

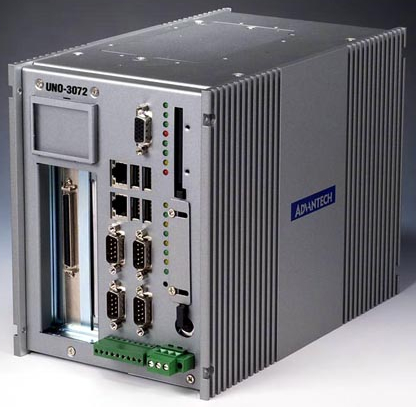

Apr 27, 2007 Powered by Celeron M or 1 GHz Pentium M processor, fanless UNO-3072 is resistant to vibration as well as elevated temperatures and runs Windows or Linux. It is expandable via 2 PCI v2.2 slots and features dual power input and 512 KB battery back-up SRAM. There are also 4 serial ports, 2 RS-232/422/485 serial communication ports with RS-485 automatic flow control, 2 RS-232 communication ports, and two 10/100 Ethernet ports. USB ports and 4-channel isolated DIO are also included.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110

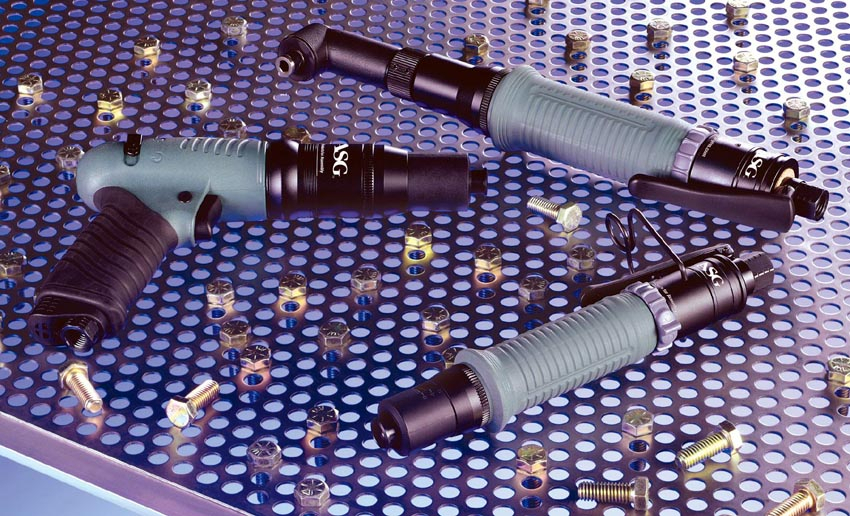

Apr 27, 2007 Torq2(TM) drivers work with torque ranges from .5-156 lbf-in. and feature clutch design that automatically stops tool when designated torque is achieved, eliminating both over-and under-tightening. Torques can be adjusted by authorized personnel via torque nut, and tamper-proof covers are provided to prevent operators from changing adjustment. Available in push-to-start, lever start, pistol grip, and right angle styles, most drivers come standard to accept ¼ in. hex bits.

Bryant Electric    Milford, CT 06460 2465

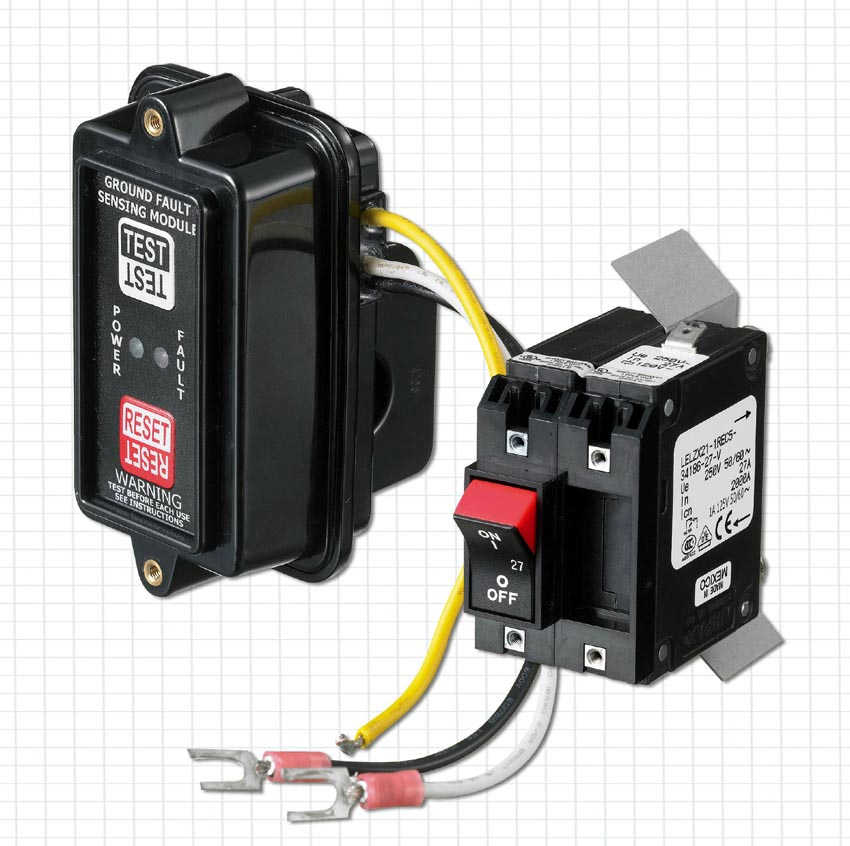

Apr 27, 2007 Functioning interdependently with magnetic branch circuit breaker, GFCI module monitors electrical circuit by use of external differential current transformer. No direct load is present at module, and in case of ground fault, load is interrupted by way of circuit breaker utilizing shunt trip coil. Available with automatic or manual safe start reset feature, unit is rated from 1-15 A and is suited for circuit-carrying conductors from 1-3 poles.

Linear Technology Corp.    Milpitas, CA 95035
Apr 27, 2007 Designed to minimize size and complexity of Flyback, Boost, and SEPIC power supplies, current mode Model LTC3873 is suited for wide input voltage range applications where input can vary from 9-75 V during start-up. Unit will sustain operation from 4-75 V after start-up, enabling users to have one power supply for 48, 24, and 12 V nominal input systems. Device can regulate output voltages as low as 0.8 V and has integrated soft-start function that limits inrush current.

ASM Sensors, Inc.    Elmhurst, IL 60126

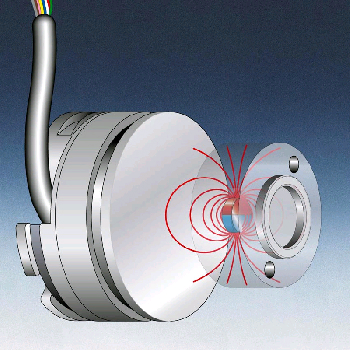

Apr 27, 2007 Utilizing external permanent magnet, contact-free POSIROT® PRAS2 measures complete angular position from 0-360° with typical resolution of 0.1°. It is available with 3 analog outputs of 4-20 mA, 0.5-4.5 V, and 0.5-10 V. Angle measurement circuitry is shielded from external environment. Featuring IP68 stainless steel housing, wear-free sensor is shock- and vibration-resistant, making it suited for steering and tilt angle measurement on mobile construction equipment.

Hypertherm, Inc.    Hanover, NH 03755 0010

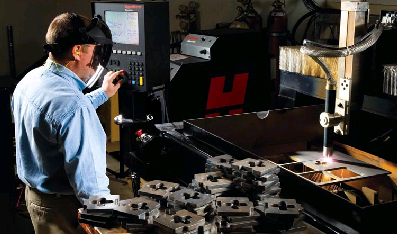

Apr 27, 2007 Suited for small to medium sized companies, Hyspeed Plasma HSD130 cuts dross-free at 5/8 in. on mild steel, and features production pierce capability of 1 in. with max cutting at 1½ in. Machine includes LongLife® technology and 100% duty cycle. Before release, system is subjected to rigorous and exhaustive life testing procedures equivalent to over 10 years of use in operating environments from 14-104°F.

Corning Cable Systems    Hickory, NC 28603-0489

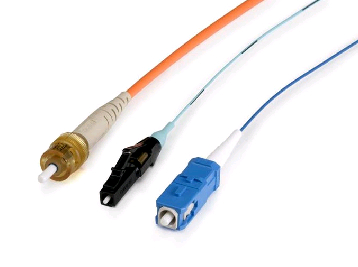

Apr 27, 2007 Installed with no-consumables tool kit, UniCam Pretium(TM)-Performance Multi-Mode Connectors feature max insertion loss of 0.5 dB and will meet TIA-EIA-568 B.3 specs, which allow outdoor use when enclosed in environmentally protected hardware. Single-mode models offer 0.2 dB typical and 0.5 dB max insertion loss, as well as operating temperature of -40 to +75°C. No-epoxy, no-polish connectors are available with ceramic ferrule in LC, SC, and ST® compatible connector styles.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

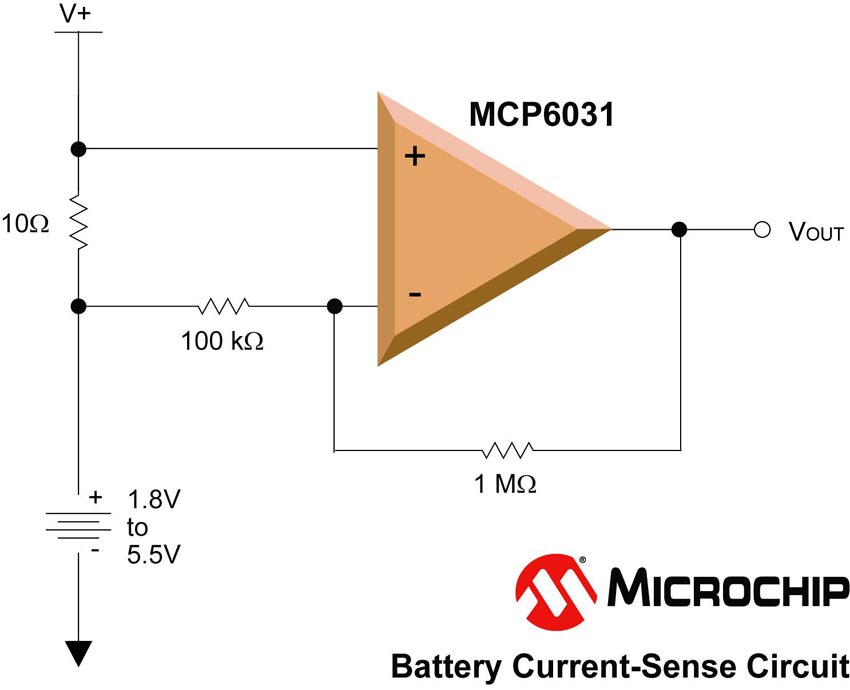

Apr 27, 2007 Utilizing low-power CMOS technology and non-volatile memory for in-package trimming, MCP603X Series features 10 kHz bandwidth and max voltage offset of 150 µV at 25°C. Operating voltage range of 1.8-5.5 V enables amplifiers to run off two 1.5 V battery cells under full battery utilization. Featuring rail-to-rail input/output structure, op amps are suited for handheld, portable electronic devices used in medical, industrial, and consumer markets.

Mettler Toledo, Inc.    Columbus, OH 43240
Apr 27, 2007 With OIML approved accuracy of ±0.75 in., CSN840 Pallet(TM) automatically collects dimensions, weight, and identification of large goods. Unit processes about 200 pallets/hr and features overhead, non-intrusive design that can be floor, wall, or ceiling-mounted. Graphical interface provides clear overview of measuring process and historical measurement statistics. Communication with host computer or warehouse management system is achieved via Ethernet or serial communication.

Akron Coating & Adhesives, Inc.    Akron, OH 44301

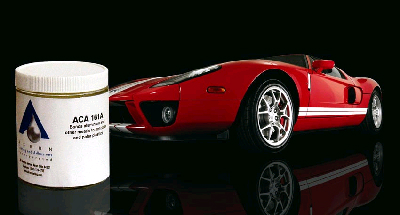

Apr 27, 2007 Offering peel values up to 32 lb-in., ACA 161A is designed to bond polypropylene and other engineering plastics to metals such as aluminum. It can be applied directly to materials surface, eliminating assembly time required for primers. Adhesive may be applied to metal foil by gravure printing, reverse roll, or wire wound bar coating methods. If necessary, it can also be applied with brush, paint roller, or by spray coating.
