Linear Technology Corp.    Milpitas, CA 95035
Apr 27, 2007 Designed to minimize size and complexity of Flyback, Boost, and SEPIC power supplies, current mode Model LTC3873 is suited for wide input voltage range applications where input can vary from 9-75 V during start-up. Unit will sustain operation from 4-75 V after start-up, enabling users to have one power supply for 48, 24, and 12 V nominal input systems. Device can regulate output voltages as low as 0.8 V and has integrated soft-start function that limits inrush current.

ASM Sensors, Inc.    Elmhurst, IL 60126
Apr 27, 2007 Utilizing external permanent magnet, contact-free POSIROT® PRAS2 measures complete angular position from 0-360° with typical resolution of 0.1°. It is available with 3 analog outputs of 4-20 mA, 0.5-4.5 V, and 0.5-10 V. Angle measurement circuitry is shielded from external environment. Featuring IP68 stainless steel housing, wear-free sensor is shock- and vibration-resistant, making it suited for steering and tilt angle measurement on mobile construction equipment.

Hypertherm, Inc.    Hanover, NH 03755 0010
Apr 27, 2007 Suited for small to medium sized companies, Hyspeed Plasma HSD130 cuts dross-free at 5/8 in. on mild steel, and features production pierce capability of 1 in. with max cutting at 1½ in. Machine includes LongLife® technology and 100% duty cycle. Before release, system is subjected to rigorous and exhaustive life testing procedures equivalent to over 10 years of use in operating environments from 14-104°F.

Corning Cable Systems    Hickory, NC 28603-0489
Apr 27, 2007 Installed with no-consumables tool kit, UniCam Pretium(TM)-Performance Multi-Mode Connectors feature max insertion loss of 0.5 dB and will meet TIA-EIA-568 B.3 specs, which allow outdoor use when enclosed in environmentally protected hardware. Single-mode models offer 0.2 dB typical and 0.5 dB max insertion loss, as well as operating temperature of -40 to +75°C. No-epoxy, no-polish connectors are available with ceramic ferrule in LC, SC, and ST® compatible connector styles.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Apr 27, 2007 Utilizing low-power CMOS technology and non-volatile memory for in-package trimming, MCP603X Series features 10 kHz bandwidth and max voltage offset of 150 µV at 25°C. Operating voltage range of 1.8-5.5 V enables amplifiers to run off two 1.5 V battery cells under full battery utilization. Featuring rail-to-rail input/output structure, op amps are suited for handheld, portable electronic devices used in medical, industrial, and consumer markets.

Mettler Toledo, Inc.    Columbus, OH 43240
Apr 27, 2007 With OIML approved accuracy of ±0.75 in., CSN840 Pallet(TM) automatically collects dimensions, weight, and identification of large goods. Unit processes about 200 pallets/hr and features overhead, non-intrusive design that can be floor, wall, or ceiling-mounted. Graphical interface provides clear overview of measuring process and historical measurement statistics. Communication with host computer or warehouse management system is achieved via Ethernet or serial communication.

Akron Coating & Adhesives, Inc.    Akron, OH 44301
Apr 27, 2007 Offering peel values up to 32 lb-in., ACA 161A is designed to bond polypropylene and other engineering plastics to metals such as aluminum. It can be applied directly to materials surface, eliminating assembly time required for primers. Adhesive may be applied to metal foil by gravure printing, reverse roll, or wire wound bar coating methods. If necessary, it can also be applied with brush, paint roller, or by spray coating.

Control Co.    Houston, TX 77258 8307
Apr 27, 2007 Stainless-Steel Labtool II(TM) Model 3326 features 14 tools including ruler, 3 knives, and needle; it weighs 7 oz and measures 3½ in. when closed. With 13 tools including scissors, file, and key chain, Stainless-Steel Mini-Labtool(TM) Model 3327 weighs 3 oz and measures 2½ in. when closed. Both include aluminum handle along with bottle opener, pliers/gripper, wire stripper, wire cutter, knives, and flat-head and Phillips(TM) screwdrivers.

C.M. Mockbee Co., Inc.    Cincinnati, OH 45223
Apr 27, 2007 Capable of static and dynamic testing, Mockbee 20 ton test stand can be operated in vertical or horizontal applications via its 2-stage, hydraulic hand pump. It is designed for testing hoisting equipment as well as other related lifting equipment after repair or inspections are performed as required by ASME Code B30.16. Stand also tests function of overload devices. Components include reinforced steel frame, fine-adjustment pressure valve, and 4.0 in. dia pressure gauge.

LoggerHead Tools LLC    Chicago, IL 60604-1003

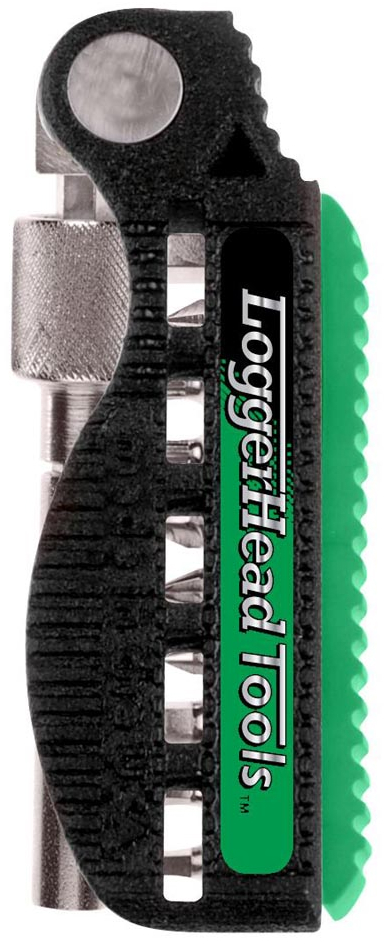

Apr 27, 2007 Measuring 4 in. long when folded, Bit Dr.(TM) packs functionality of 21-piece screwdriver set in one tool. Singular solution provides 21 driver heads, 6 driving positions, 3 length adjustments, ratcheting function, and fingertip control. Removable bit carriage stows 10 double-sided Xtra-Bits(TM) bits and also acts as cushioned rubber handle. During use, Xtra-Bits fit into magnetized bit driver at end of shaft, ratcheting mechanism, or pivoting head.

Greenerd Press & Machine Co., Inc.    Nashua, NH 03061

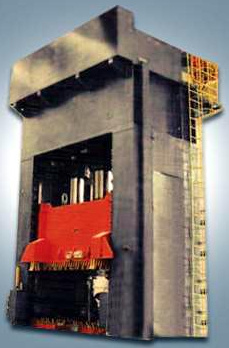

Apr 27, 2007 Featuring capabilities to 10,000 tons and bed sizes exceeding 240 in., compression molding press series is constructed with 4 post design that minimizes deflection and lean back while promoting consistent die alignment. Gib-guided slide withstands demands of dies that require off-center loading, and de-gassing cycle evacuates gasses from mold while part is curing. ANSI B11R.2-1995 R-2000 compliant series also features 4-corner leveling and touchscreen operator panel.

Landa Water Cleaning Systems    Camas, WA 98607

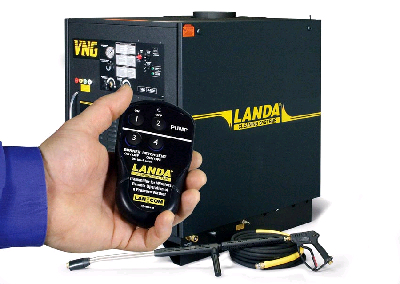

Apr 27, 2007 Available on VHG, PHWS, VNG, EHW, and SEA Series pressure washers, LanCom wireless remote option can control pump, burner, and detergent injection operations from up to 300 ft away. Signal travels through building walls allowing pressure washer to be controlled from another room or outside building, saving energy by shutting down unit when not in use.

Lasit, USA    Branford, CT 06405
Apr 27, 2007 RotoTab® desktop rotary-dial table fiber laser marking system features glavo scan head, computer, and FlyX® and FlyCad® software that supports vector and raster engraving on plastics and metals. Fully-enclosed, Class 1 device also includes rotary system with 2-marking position pneumatic index table with 400 mm plate, joystick, and 255 mm SS cable that jackets the fiber cables, eliminating risk of breakage. Fiber, Vanadate, CO₂ and green laser options are available.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
Apr 27, 2007 Available with two 5 A, 250 Vac contact relays, Model BAR Bargraph Process Meter fits into 1/8 DIN panel meter cutout. It provides bar graph display of industrial process signals such as 4-20, 0-20, and 0-10 mA, and 1-5 or 0-10 V. Bar graph consists of 30 LED elements which are offered in either red or green. Designed for industrial environments, unit is immune to EMI, and features environmentally sealed to NEMA-12 (IP54) front panel.

ADLINK Technology Inc.    Irvine, CA 92618
Apr 27, 2007 With WDM driver for C/C++, VB, Delphi, C++ Builder, and .NET programming languages and full device drivers for MATLAB® and LabVIEW®, Model PCI-9221 multi-function, 16-bit resolution DAQ card targets test and measurement system integrators and laboratories. Unit features single-button auto-calibration, programmable I/O supporting digital I/O (TTL), general-purpose timer/counters, motor encoder inputs, and PWM (pulse width modulation) outputs for motion control.

IBASE Technology Inc.    Taipei   Taiwan
Apr 27, 2007 Model MB886 features up to 2.13 GHz, 533/800/1066 MHz system bus, and Intel® GMA 950 graphics core that is equipped with high speed I/O connectivity provided by SATA II (3.0 GBps), USB 2.0, and PCI Express Gigabit Ethernet. Intel® 945G Express Chipset based motherboard includes dual-channel DDR2-667 memory sockets that support up to 4 GB memory and 64-bit computing. Expansion slots include 4 PCI slots, 1 PCI Express x16 and 2 PCI Express x1 slots, and 1 ISA slot.

SICK STEGMANN, INC.    Dayton, OH 45413
Apr 27, 2007 Allowing users to freely program width of zero pulse and number of lines from 1-8,192, Model DRS26 CoreTech® Incremental Encoder can be programmed at any time, in any location, for any application. Offered in 2.5 in. housing, it features opto-ASIC with chip-on-board technology and automatic light regulation. Square flange, servo flange, and face mount versions are available with 0.25 and 0.375 in., and 10 mm solid shafts.

Edmund Optics    Barrington, NJ 08007
Apr 27, 2007 Available in 4 resolution and speed combinations ranging from 752 x 480 pixels at 87 fps to 2,560 x 1,920 pixels at 6 fps, EO Series cameras feature progressive-scan CMOS sensor, software-based exposure control, and C-mount lens fittings. Lower resolution cameras are available in monochrome or color versions while higher resolution cameras are color-only. All cameras have 34 x 32 x 27.4 mm dimensions, allowing them to be interchanged without system modifications.

FCI/Burndy Products    Manchester, NH 03108
Apr 27, 2007 With flip-top style head, Models Y81KFT, Y81KFTMBH, and PATY81KFT-18V 4-POINT(TM) dieless hydraulic crimpers are suited for use on copper, aluminum, compressed, compact, stranded, solid, and flex conductors. Weighing 12 lb, hand-operated Model Y81KFT's head rotates 360º relative to handles, while remote-operated Model Y81KFTMBH functions on 10,000 psi hydraulic pressure. Featuring 360º head rotation, Model PAT81KFT is designed for use in any position.

JP Sercel Associates, Inc.    Manchester, NH 03102
Apr 27, 2007 IX-200 Chromadice(TM) DPSS UV laser wafer singulation system can process 4 x 100 mm sapphire wafers/hr and is also suitable for wafer trimming and scribing. Providing 360° rotation, high-accuracy Z-theta capable air bearing stages enable continuous or limited travel, and include cog-free motor, zero gear backlash, and low wobble and bearing run-out. Unit achieves cuts down to 2.5 microns wide, and is available in 266 or 355 nm UVDPSS laser wavelengths.
