Green Valley Inc.    Mount Zion, IL 62549
Jun 06, 2007 Titan 2327 enables safe, efficient transfer of palletized steel coils to coil cart. Load deck rotates 90° to invert coil as well as facilitate extraction from manipulator and placement onto mandrel of coil feed system. Via pushbutton controls, operator turns on manipulator to pivot deck and bring coil to upright position. During process, palletized coil slides on flat deck until settling in tapered cradle lining. Coil cart then drives under tapered cradle and extracts coil.

Harwil Corp.    Oxnard, CA 93030
Jun 06, 2007 Available for medium slurries, particulate, and corrosive chemical solutions, adaptable L-30 switches mount horizontally or vertically and can control pumps, alarms, or solenoid valves. Products can be made from Noryl (L-30N) for mildly corrosive slurries and Fortron (L-30CR) for use with more caustic chemicals. Flexible, elastomeric seals prevent particle contamination, and Filter Boot can be added for extra protection. Switching capacity is 15 A, 120/240 Vac.

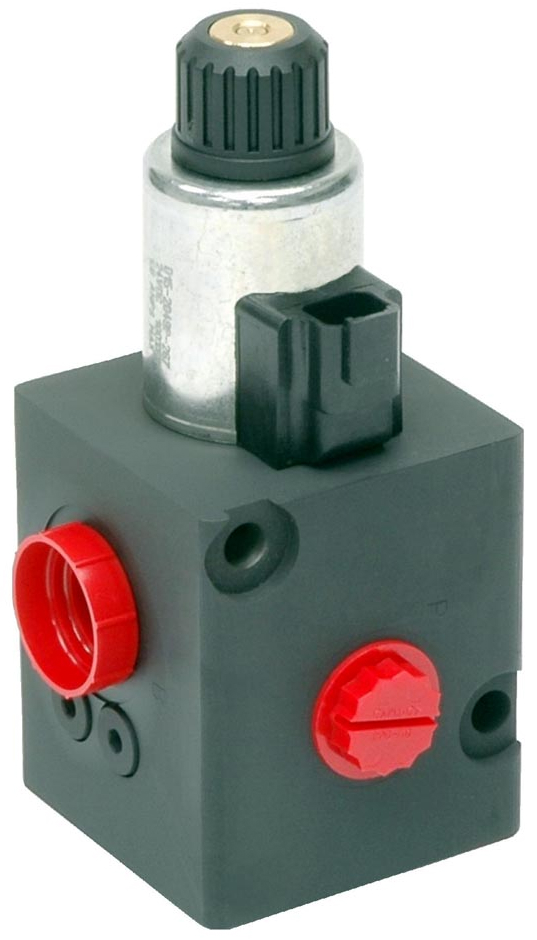

MICO, Inc.    North Mankato, MN 56002
Jun 06, 2007 Offering cross-hole metering set-up, S12 Series brake valve uses auto-relieving feature to optimize travel and flow capacity of proportional solenoid valve. Solenoid, combined with precision fit spool and housing, maximizes contaminant resistance and minimizes leakage. Spool length allows for incorporation of second flow path that runs parallel to standard path and optimizes flow capacity from brake to tank. Product is designed for spring-applied, hydraulic release brake applications.

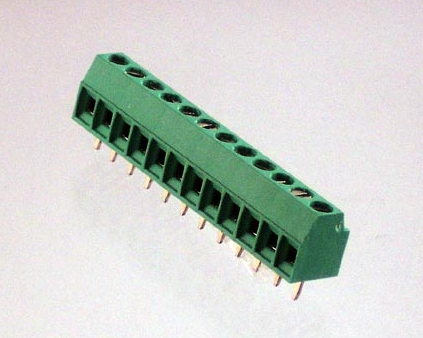

Blockmaster Electronics, Inc.    Elk Grove Village, IL 60007
Jun 06, 2007 With profile height of 8.5 mm and 55° angle of wire entry, MTB Series is furnished with double captive screws of nickel plated copper alloy with accessible testing points and housed in PA6-6 polyamide. Series is offered in configurations from 2-18 poles at 3.5 mm pitch, accepting wire size range of up to 16 AWG. Rated voltage is at 300 V with current rating up to 17.5 A, depending on utilized wire size.

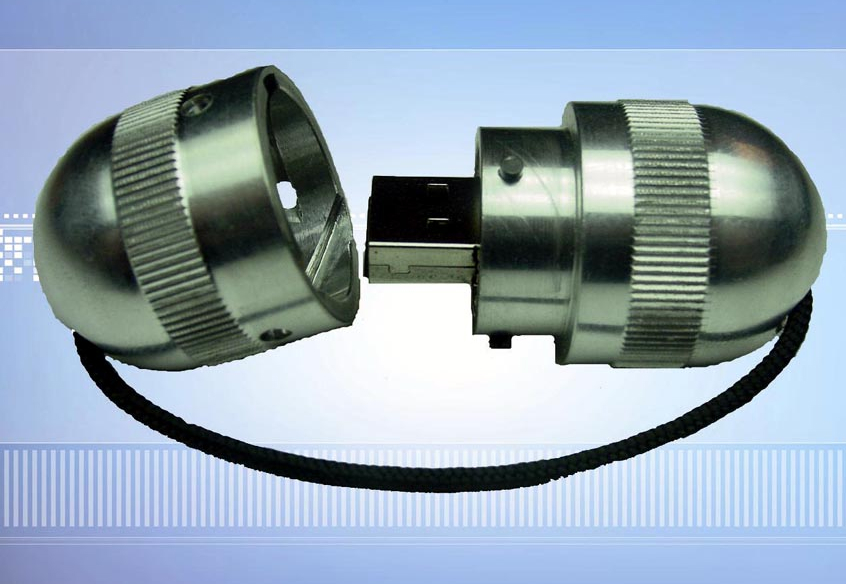

Amphenol Socapex    74300 Thyez   France
Jun 06, 2007 Sealed IP67 USB key is shock and vibration resistant and is suited for applications such as process control, machine tool, military, oil and gas, aeronautics, and event recorders. It features metal casing and is available in nickel, olive green, and black surface coatings. Offered in 256 MB, 512 MB, 1,024 MB, 2 GB, and 4 GB capacities, key can also include coupling nut to have sealed and secure connection with USBF TV receptacles.

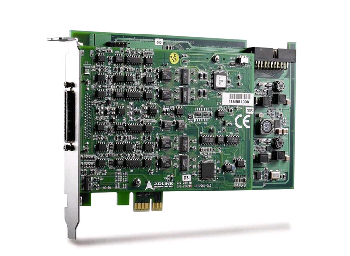

ADLINK Technology Inc.    Irvine, CA 92618
Jun 06, 2007 Based on PCI Express® bus, multi-function DAQe-2500 Series can update up to 8-CH, 12-bit analog outputs simultaneously at sustained rate of 1 MS/s. System synchronization interface bus allows up to 4 cards to be synchronized for expansion of testing capabilities, while auto-calibration adjusts gain and offset to ensure accuracy. Scatter-gather bus mastering allows acquisition of large amount of data at high speed by transferring data directly to and from memory through DMA controller.

International Rectifier Corp.    El Segundo, CA 90245
Jun 06, 2007 Featuring 6-bit voltage programming, XPhase® IR3500 Control IC and IR3505 Phase IC Chipset provides flexible way to implement complete Intel® or AMD® CPU power solution. It incorporates IRF6622 and IRF6628 DirectFET® power MOSFETs for optimal efficiency. Additional features include programmable dynamic voltage identification slew rate, programmable VID offset and load line output impedance, hiccup over-current protection with delay to prevent false triggering, and power good output.

FCI    Etters, PA 17319
Jun 06, 2007 Enabling -48 or -60 Vdc input connection, D-Subminiature 7W2 Connectors suit power modules used in MicroTCA shelves. Each power contact provides 24 A current carrying capacity. Shielded connectors fit power module faceplate on front side in accordance with MicroTCA specification. Available in single-port or dual-stacked configuration for redundant input feeds, board-mount connectors include through-mount options suitable for wave soldering or pin-in-paste reflow soldering.

Greenlee Textron, Inc.    Rockford, IL 61109
Jun 06, 2007 Made with precision-machined black phosphate tips, Screw and Nut Drivers feature slip-resistant cushion grip, and all handle ends are marked for identification of size, type, and length. Screwdrivers include heavy-duty keystone, cabinet, and Phillips tip, as well as stubby models. They come in 5- and 7-piece sets as well as 6-in-1 multi-tool. Available in 7-piece set, nut drivers range from 3/16-½ in. Square recess tip drivers range from No. 0-4 in 4-piece set or individually.

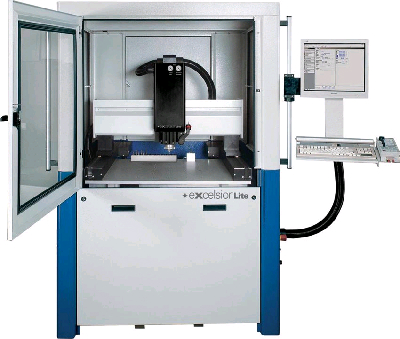

Datron Dynamics, Inc.    Milford, NH 03055
Jun 06, 2007 Made exclusively for ¼ in. tooling and under, excelsior®Lite comes with 1.2 kW, 30,000 rpm spindle; 20 x 20 in. machining area; and 5-tool ATC. It is suited for machining non-ferrous metals such as aluminum, copper, and brass. High rpm rate evacuates chips and heat associated with them from cutting channel. Designed with full enclosure and solid steel base, machine includes 1 GHz C3 PC with 256 MB RAM, 15 in. CRT, keyboard, Ethernet, and Windows-based 3D control software.

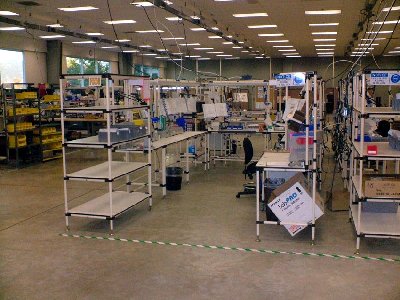

Creform Corp.    Greer, SC 29652-0830
Jun 06, 2007 Configured in L or U shapes, Creform Bench-Style Workstations feature consolidated layout with access for multiple process tasking. Plastic-coated steel pipe sections can be cut to plan lengths, while assembly uses metal joints that tighten onto pipe sections via threaded fastener or plastic joints that are welded to pipes with adhesive. Inherent ergonomic principles minimize reach distances and handling effort, and help eliminate worker fatigue.

Kinetic Systems, Inc.    Boston, MA 02131
Jun 06, 2007 Available in 4 standard configurations, breadboards provide flat, stable surface for mounting or assembling lasers/small optical systems, prototyping, and precise inspections. Each configuration features natural frequency, nominal broadband damping and flatness of ±0.004 in. over 24 x 24 in. area. Depending on series, nonmagnetic and ferromagnetic products feature extruded aluminum or honeycomb structural cores and anodized aluminum or stainless steel skins.

Ashcroft Inc.    Stratford, CT 06614
Jun 06, 2007 Ashcroft® 1200 series (ASME grade 2A) pressure gauges provide distinct capabilities needed to monitor pressures in any type of process. While Type 1259 suits basic applications, Type 1279 Duragauge® pressure gauge is designed for use in presence of harsh pressure media, fire hazard, or extreme cycle volumes. Type 1279 Duragauge® PLUS! offers technology that dampens pointer flutter without need for liquid fill, making it suited for environments with pulsation and vibration.

EGS ELECTRICAL GROUP ? APPLETON    Rosemont, IL 60018
Jun 06, 2007 Available in 7 configurations ranging from ½-4 in. trade sizes, Model FM9(TM) conduit bodies are forged from copper-free aluminum for lightweight mounting and corrosion resistance. Suited for Class I, Division 2 applications, products feature wiring cavity along with domed cover, and use stainless steel pan-head cover screws. They help electricians tackle wide range of jobs encountered when installing conduit runs, from pulling wire to connecting branch runs.

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707
Jun 06, 2007 Suited for drive requirements using 3-phase induction motors, IndraDrive Fc devices can be installed without PC using 2 different operator modules. Standard Model supports parameter-focused operation, while Deluxe model's start-up has 6-language clear text display with no need for documentation. Units operate in linear V/f characteristic curve or sensor-less current vector control modes, and come in 4 different sizes and voltages of 200-230 and 400-480 V with 0-400 Hz output frequency.

Creform Corp.    Greer, SC 29652-0830
Jun 06, 2007 Using Creform® System of pipe sections and joints, rack system consists of 5 level flow rack with each level being 2 lanes wide providing load capacity of 350 lb, totaling combined structure capacity of 1,750 lb. As each end of shelf supports can be adjusted independently, rack levels can be set for height settings and to modify incline angle for each layer to obtain proper material/container flow. It can be built with skatewheel style or full-width roller conveyor track.

Micro Plastics, Inc.    Flippin, AR 72634
Jun 06, 2007 Molded in Nylon 6/6 material, Metric Hex and Hex Tapped Spacers offer resistance to vibration, abrasion, and corrosion. Available in 8 lengths ranging from 6-25 mm, products are non-magnetic and have high strength to weight ratio. Hex Spacers use M4 self-tapping screws, while Hex Tapped Spacers use M4 machine screws.

Torch Wear    Twinsburg, OH 44087
Jun 06, 2007 Featuring 3-layer design that encapsulates armor material to provide protection, X-Treme welding sleeves are suited for harsh applications such as carbon-arc, sub-arc, spray-arc, and heavy-arc welding, as well as pipe and heavy TIG welding and MIG welding. They are made of fire retardant fabric that contains oxidized polyacrylonitrile fiber with Aramid strengthening agent, and does not char or shrink when exposed to heat. Designed to fit everyone, sleeve can be worn over shirt/jacket.

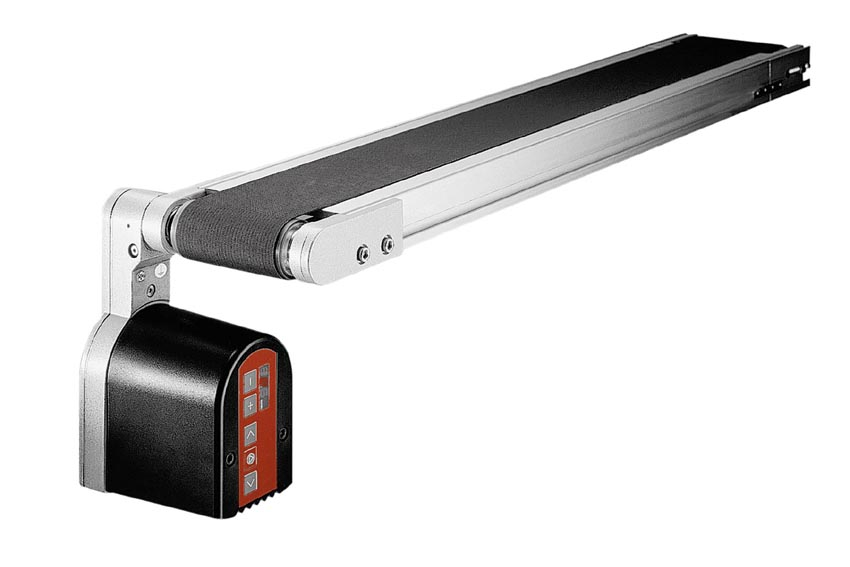

DE-STA-CO Industries    Madison Heights, MI 48071
Jun 06, 2007 DCM series of conveyors are available in light, medium, and heavy duty specifications with pivotal motor mounts for continuous operation and fast belt changes. With compact design and integrated control, light duty conveyor can transport up to 44 lb of parts. Medium duty unit comes with 2.4-9.8 in. chassis widths, while heavy duty unit is available in widths from 7.9-31.5 in. and driven by 230/480 V spur gear motor that permits transportation of up to 275 lb.

Cotta Transmission Co., LLC    Beloit, WI 53511
Jun 06, 2007 Designed for use in extreme conditions, Model PD2266 heavy-duty pump drive can operate wide range of driven applications. It can be designed with 4-8 pump stations, and input horsepower can be divided unequally between stations (maximum 1,800 hp per station), totaling 3,000 hp for unit. Additionally, product's modular approach allows for SAE, DIN, or custom pump interface on any of unit stations.
