Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
May 25, 2007 Hermetically sealed with shear bond strength of 1 kg, surface-mount Model 40366 delivers repeatability of less than 0.035 pF in SMT footprint of 2.05 x 2.90 mm configured as 3-terminal half-bridge. Variable capacitance, silicon MEMS device features frequency response of 40 Hz, linearity of less than 1%, and transverse sensitivity of less than 1%. Over-range stops include provisions to eliminate electrostatic sticking when accelerometer is over ranged.

Rockwell Automation    Milwaukee, WI 53204
May 25, 2007 Suited for new and retrofit applications, PowerFlex 4M AC Drives feature DIN rail mounting and feed-through wiring to facilitate installation. Units offer power ratings from 0.25-15 hp and voltage classes of 120, 240, and 480 V. Available in 3 frame sizes, all drives feature Zero-Stacking, which eliminates space between drives in applications with ambient temperatures up to 40°C. Integral RS485 communications enable use in multidrop network configuration.

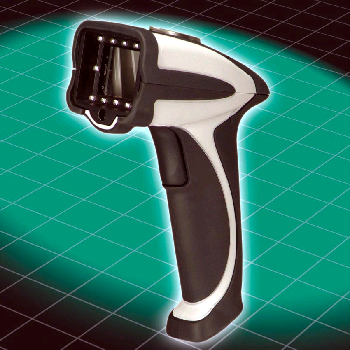

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
May 25, 2007 Built for point-and-shoot operation, handheld Model MAH120 features wide-angle lens that captures and decodes all barcode types and symbologies, including 1D, 2D, Data Matrix, PDF417, UPC/EAN/JAN, RSS, and more than 30 others. Unit can withstand multiple drops of 6 ft onto concrete and operates in temperatures from 32-122°F. It is suited for work-in-process, point-of-sale, inventory management, supply chain functions, and point-to-point logistics.

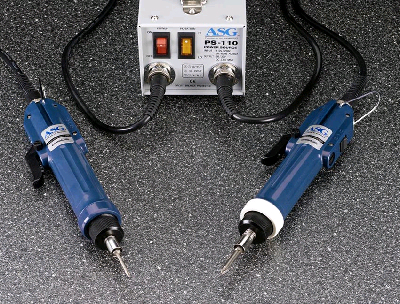

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
May 25, 2007 Suited for workstations with varied torque requirements, Model PS-110 accommodates 2 drivers simultaneously and includes switchable 2-speed output that delivers full 30 Vdc on High setting. Input voltage is switchable to 110 or 230 Vac, and is selected via external switch. Designed for industrial use, Model PS-110 features removable AC power cord that can be replaced if damaged.

Linear Technology Corp.    Milpitas, CA 95035
May 25, 2007 Using constant frequency current mode architecture, 2.25 MHz Model LTC3419/-1 operates from input voltage of 2.5-5.5 V and can generate 2 independent output voltages as low as 0.6 V, enabling it to power low-voltage DSPs and microcontrollers. Version LTC3419-1 is available with fixed outputs of 1.575 and 1.8 V. Housed in 3 x 3 mm DFN package, synchronous buck regulators use internal switches with RDS(ON) of 0.4 W to deliver efficiencies as high as 96%.

IAI America, Inc.    Torrance, CA 90505
May 25, 2007 Available in Rod or Slider types, 24 V RCA Series ROBO Cylinder Actuators are fitted with AQ seals that supply lubricating oil during operation to ensure maintenance-free periods of up to 3,100 miles. Units convert revolutions of electrical motor to linear motion force. They include servo standby modes and automatic servo off modes for energy savings. Cylinders use same mounting brackets as those used on traditional air cylinders, facilitating conversion.

Linear Technology Corp.    Milpitas, CA 95035
May 25, 2007 Housed in 4 x 5 mm QFN package and with input voltage of 3-40 V, Model LT3496 is designed to operate as 3-channel, constant current LED driver. Each channel can drive up to eight 500 mA LEDs in series, enabling converter to drive up to 24 x 500 mA LEDs at efficiencies up to 96%. Fixed frequency, current-mode architecture ensures stable operation over wide range of supply and output voltages, while frequency adjust pin enables user to program frequency between 330 kHz and 2.1 MHz.

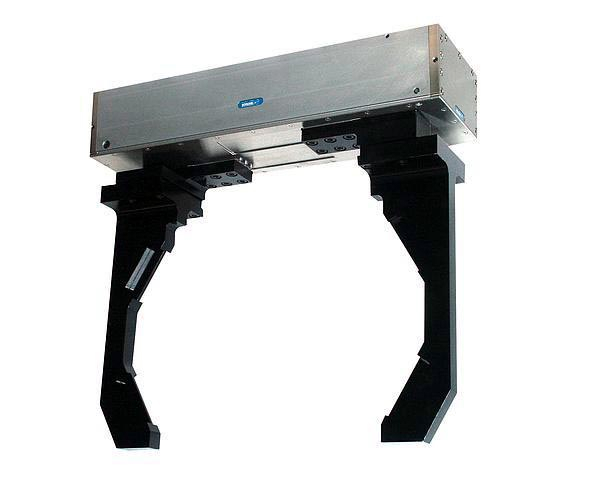

Schunk    Morrisville, NC 27560
May 25, 2007 With total finger stroke of 11.8 in., Model PFH 150 2-finger parallel gripper is designed for handling large and heavy components. It provides finger opening and closing times of 0.8 sec due to end position damping that also ensures quiet return to end position. Air supply can also be connected without hoses, and unit can be attached on 2 sides in 3 screw directions. Product features pneumatic drive that consists of dual-piston system and is synchronized by rack and pinion.

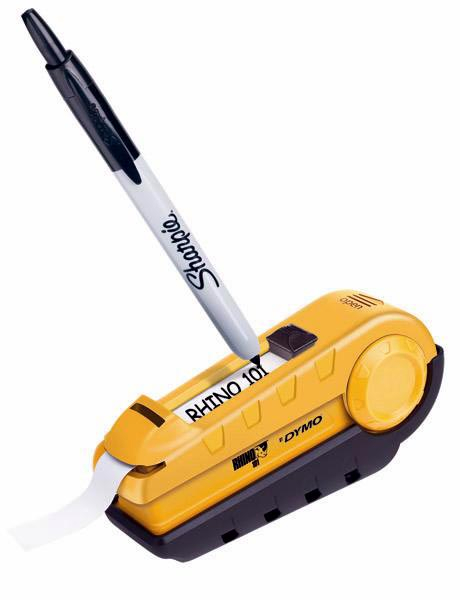

DYMO    Stamford, CT 06902-4561
May 25, 2007 Offering tape, Retractable® permanent marker pen, writing surface, and cutter into one unit, RHINO 101 hand-held labeling tool includes thumb advance for tape dispensing and viewing window to align label prior to cutting. Drop-in cartridge tape consists of split-back RHINO labels with industrial-strength adhesives. Writing surface allows user to write labels anywhere, while built-in cutter, belt clip, and lanyard hook provide mobility.

Mainpine    Wilsonville, OR 97070
May 25, 2007 Measuring 6.60 x 2.5 in., IQ Express(TM) fax board product line features miniature form factor design that allows users to integrate fax hardware into any system including ultra compact and low power designs. Available with 1, 2, or 4 ports, unit comes with robust fax class 1.0, 2.0, and 2.1 support, dedicated DSP and CPU per port, low/standard-profile bracket option, high-speed V.34/Super G3 fax, JBIG data compression, sideband API, and Microsoft Windows Vista support.

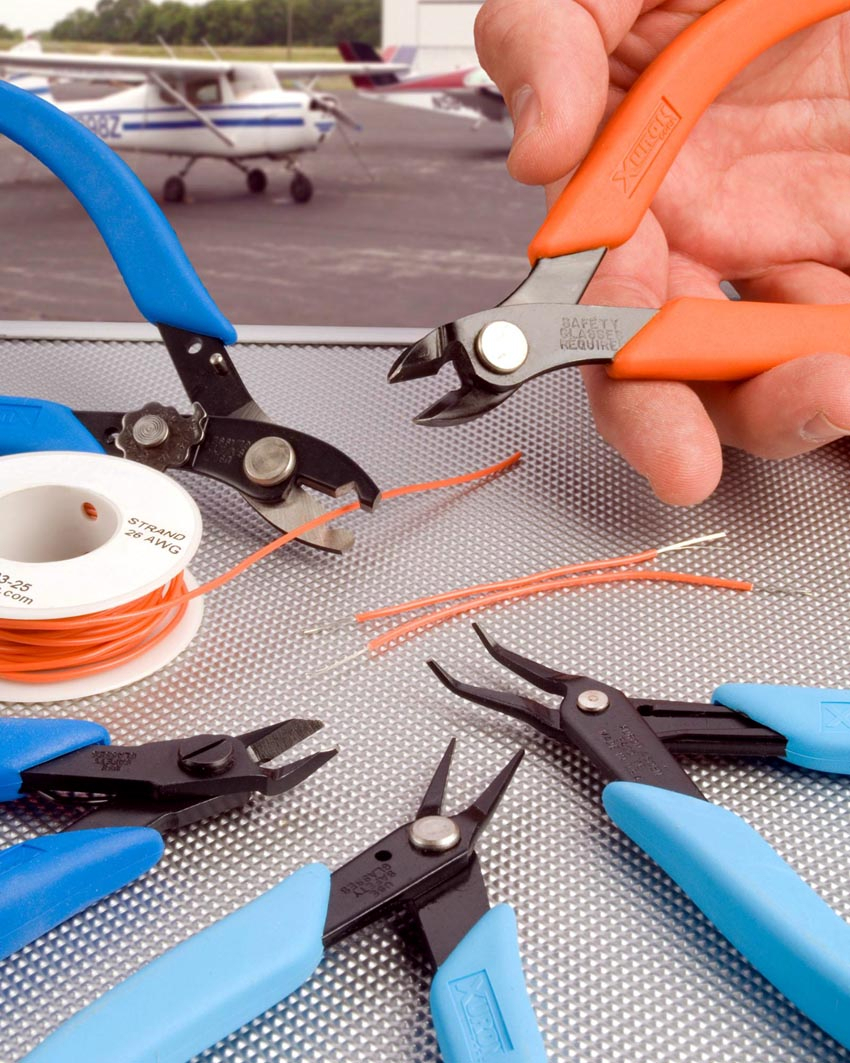

Xuron Corp.    Saco, ME 04072 1840
May 25, 2007 Suited for wide range of avionics, harness making, and repair applications, Suite of Aviation Tools feature Light-Touch(TM) return springs and soft rubber grips. Rigid units include Model 2175 Flush Cutter for cotter keys and safety wire, Model 9200 Micro-Shear® with tapered head for tight spaces, Model 450 needle nose plier, Model 450BN bent nose plier, and Model 505ST adjustable stripper for stranded wire down to 26 gauge without nicked wire strands.

Safeline Metal Detection, Inc.    Tampa, FL 33634 3009
May 25, 2007 Suited for inspection of free-flowing pharmaceutical powders, Pharma GF can identify various types of metal contamination including ferrous, non-ferrous, and all grades of stainless steel. Self check capability continuously monitors sensitivity and sounds alarm if problem occurs, while high speed diverter reject minimizes product loss during contaminant removal. Variety of aperture sizes are available to accommodate volume throughput of up to 2,250 lb per hr.

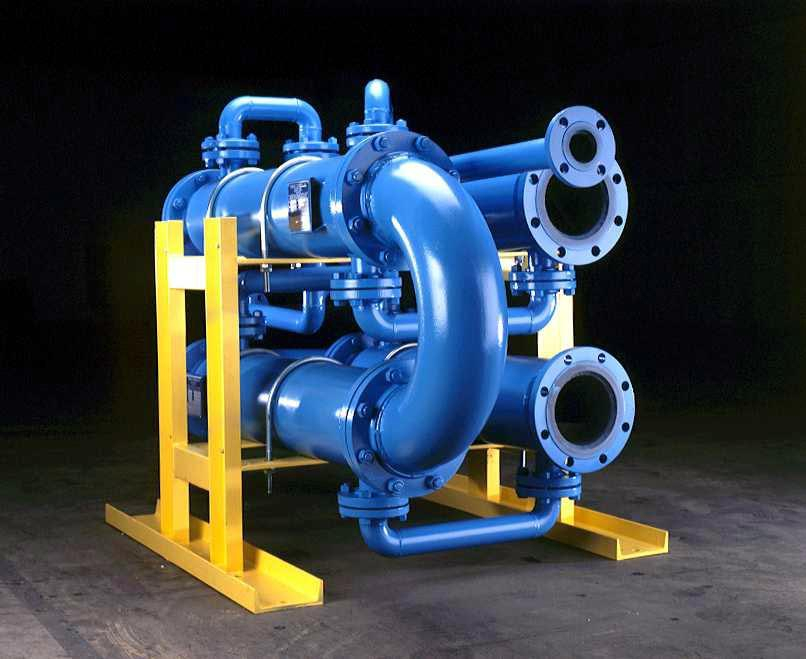

Komax Systems, Inc.    Wilmington, CA 90748 1323
May 25, 2007 Based on Hi-Pass(TM) non-clogging static mixer, Klean-Flow heat exchanger suits wide range of municipal and industrial applications including municipal sludge digesters, biogas recovery, ethanol production, and animal waste heat recovery. Unit comes with contoured elements to maximize heat transfer while eliminating corners that can trap solid or fibrous materials.

Continental    Allentown, PA 18106
May 25, 2007 By scanning up to 10 m in front of vehicle, closing velocity (CV) sensor helps drivers completely avoid or reduce severity of collisions when traveling at speeds under 25 mph. If calculated distance determines imminent collision, system responds by putting brakes on alert mode to ensure sufficient pressure for stopping. System also initiates automatic braking up to 0.5 g if driver takes foot off accelerator, regulates/optimizes braking power, and tightens seat belts.

Apple Computer, Inc.    Cupertino, CA 95014-2084
May 25, 2007 Final Cut Studio® v2 includes Color application to ensure consistent visuals through color grading and finishing. Also included, Final Cut Pro® v6 offers ProRes 422 format for uncompressed HD quality at SD file sizes and supports mixed video formats and frame rates in one timeline. Other components include Soundtrack® Pro v2 for sound editing, mixing, and picture conformance; Compressor v3, with batch encoding for multiple formats; and DVD Studio Pro v4.2 for SD and HD DVD authoring.

Sensata Technologies - Industrial Sensors Group    Attleboro, MA 02703
May 25, 2007 Incorporated into pad mounted under seat cushion, piezoelectric sensor promotes reliability of seat belt alert systems by sensing frequency response of one human and determining his/her relative position. For rear seats, 3-position version is available. Mounted within seat structure in groups of 4, Monocrystalline Silicon Strain Gauge Occupant Weight Sensor measures weight for safe airbag deployment and FMVSS208 compliance. Options lend to design and mounting flexibility.

NVIDIA Corp.    Santa Clara, CA 95051
May 25, 2007 NVIDIA GeForce 8500 GT, 8600 GT, and 8600 GTS graphics processing units (GPUs) feature programmable video processing engine that handles high definition H.264 video decoding. Units enable playback of HD DVD and Blu-ray movies on PC's, and include full support for DirectX 10 unified shader instruction set and Shader Model 4 capabilities. Built for Windows Vista, they are suited for use with NVIDIA nForce® 650i SLI(TM)-based motherboards.

Excel Scientific Inc    Wrightwood, CA 92397
May 25, 2007 Measuring 200 µm thick, AbsorbMax(TM) Adhesive Films are made of light-absorptive black vinyl, shaped to fit either top or bottom of 96-, 384-, or 1,536-well microplates. They are available in either sterile or non-sterile and are recommended for temperatures from -40 to +80°C. Typically used with black microplates, films can protect light-sensitive samples during storage or minimize stray light, reflection, and well-to-well crosstalk in fluorescence assays.

MTS Systems Corp. - Sensor Div.    Cary, NC 27513
May 25, 2007 Designed for cylinders 2 in. in diameter or larger, MH Sensor consists of sensor head with rugged housing and built-in electronics, pressure-proof sensor pipe that protects internal sensing element, and position magnet. Unit provides measuring range of 2-78 in. with 4 position outputs of 0-5 V, 0-20 mA, 4-20 mA, and PWM. Featuring 100 g shock and 25 g vibration rating, sensor is suited for welded and tie-rod cylinders as well as any space-limited cylinder application.

ALECO    Muscle Shoals, AL 35661
May 25, 2007 Impervious to moisture, food stains, and chemicals, FS-250 ImpacDor® is ¼ in. ABS door with one-piece, solid core construction. Consisting of solid wood core and reinforced metal spine, ¾ in. FS-500 ImpacDor can resist palletized loads while still swinging freely in high-volume traffic. Suited for rack, push cart, and pallet jack traffic, RD-175 ImpacDor features insulated panel and full perimeter seal. Clear-Valu® ImpacDor consists of 2 clear flexible PVC panels with center overlap.
