Bete Fog Nozzle Inc.    Greenfield, MA 01302
May 24, 2007 MicroWhirl(TM) nozzles have design that provides atomization with spray characteristics of mist at low pressure and heavy fog at high pressure. Units include 70 micron polypropylene filter and Viton® O-ring seal, and offer cone-shaped fog spray pattern and flow rates of 0.009-0.151 gpm. Suited for turbine cooling, odor and dust control, humidification, scrubbing, and coating, they are available in 303 or 316 SS, with optional safety wire hole.

Morse, M.K., Co., The    Canton, OH 44711

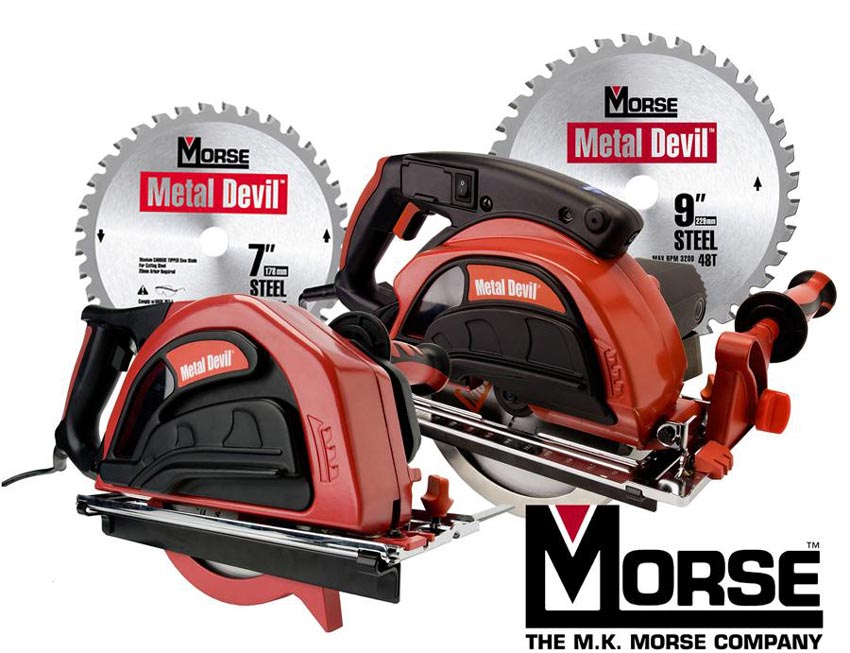

May 24, 2007 Equipped with 15 A motor that delivers 2,500 rpm, 9 in. Metal Devil® provides max cutting depth of 3¼ in. and can cut up to 3 in. square tubing. It includes laser guide, 0-45° bevel cutting, and quick-release chip collection cover. Powered by 9 A motor that provides 3,500 rpm, 7 in. Metal Devil® cuts ¼ in. thick mild steel. It features retractable blade guard, external overload, and quick release chip collection cover.

Thermo Fisher Scientific    Waltham, MA 02454

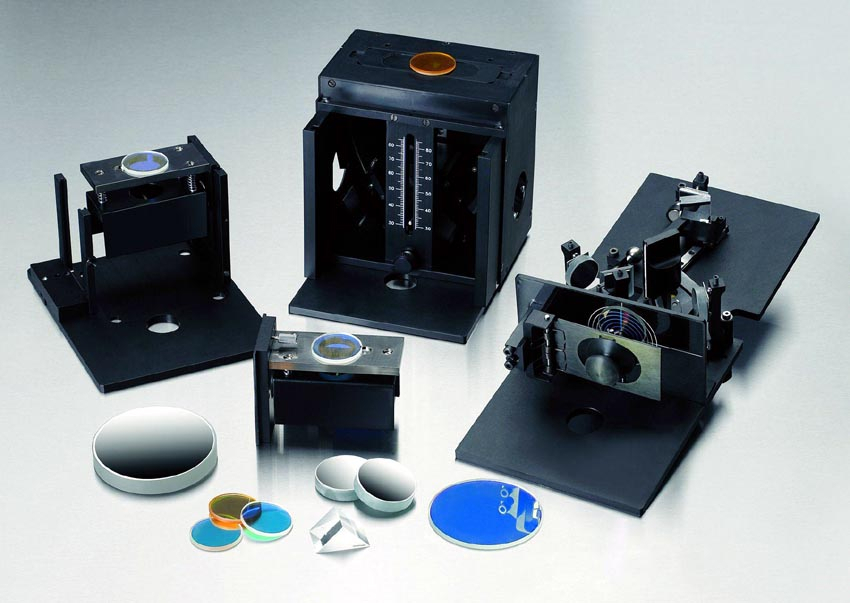

May 24, 2007 Designed for Evolution 300 and 600 spectrophotometers, accessories facilitate measurement of specular reflectance of solid materials with mirror-like or glossy surfaces. VN Absolute Specular Reflectance accessory provides absolute, single-bounce measurements at 10° angle of incidence, while Fixed Angle Specular Reflectance accessories offer 15, 20, 30, 45, and 60° angles of incidence. For routine measurements, Variable Angle Specular Reflectance accessory covers 30-80° range.

Tripp Lite    Chicago, IL 60609
May 24, 2007 Designed to virtually eliminate power-related downtime, 8kVA SmartOnline(TM) Model SU8000RT3U features 200-240 V input and output, while Model SU8000RT3U1TF includes transformer module for additional 120 V output, and Model SU8000RT3UHW features 200-240 V hardwire input and output. PDU manages all input and output power connections and incorporates manual bypass switch. Combined with dynamic internal bypass feature, manual bypass enables system maintenance without power interruption.

Infolytica Corp.    Montreal, QC H2W2P4  Canada
May 24, 2007 Intended for brushless motors, MotorSolve v1.0 accounts for complex geometry of motors and non-linear behavior of materials. Entire model generation and simulation process has been automated, making it possible to get results based on FEA, with no drawing, manual mesh refining, or post-processing. Program determines optimal coil winding layout based on design specifications, and provides several analysis methods for various design stages and devices under study.

Joslyn Hi-Voltage Corp.    Cleveland, OH 44105 4398

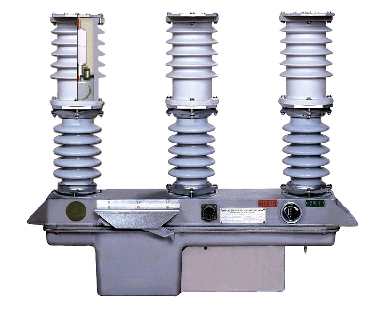

May 24, 2007 Available in VBM capacitor switches, VacStat(TM) continuously monitors vacuum interrupters and if loss of vacuum is detected, unit blocks operation of switch, provides local indication, and actuates relay contact that can be monitored remotely. Using VacStat eliminates off-line routine vacuum interrupter inspection while minimizing risk to employees, customers, and assets.

Laurel Electronics, Inc.    Costa Mesa, CA 92626

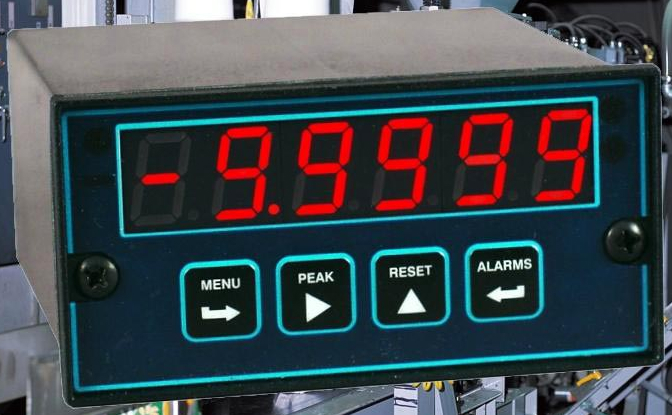

May 24, 2007 Laureate Model SG enables peak value of reading to be automatically captured for display on meter or transmittal to computer as serial data. Suited for testing applications that look for breaking point of materials or structures, UL-listed digital panel meter for strain gauges offers 3 selectable scaling methods and accuracy of 0.01% FS, ±2 counts. Strain gauges with 20 mV output can be scaled to display up to 10,000 counts, while 200 mV output can be scaled to 99,999 counts.

Lock Inspection Systems, Inc.    Fitchburg, MA 01420 6094
May 24, 2007 Measuring only 3 in. thick, MET30+ V3 Waferthin is designed for installation in high-speed packaging systems to detect and reject contaminated particles. Electronics are mounted directly on metal detector search head, and are accessible from remote keypad. Remote control system can be used when unit must fit into hard-to-reach areas. Custom-built to user specifications, detector can be moved for product or package changeovers.

Sensocon, Inc.    Lakeland, FL 33801
May 24, 2007 Featuring optional and digitally scaleable 4-20 mA output, Series A4 can be used to measure positive, negative, and differential pressure as well as air velocity and flow. Products offer digital setpoint control of 2 SPDT relays and other variables, and programming can be done on OLED display, which also shows units of measure, setpoints, or other users-defined variables. Full scale pressure ranges of 0.5-50 in. wc are available with accuracies of 1%, 0.5%, and 0.25%.

CGW-Camel Grinding Wheels    Niles,, IL 60714

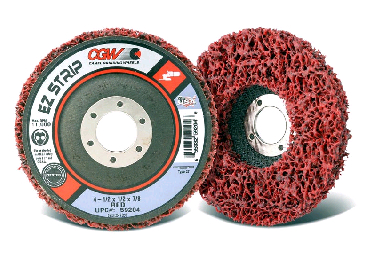

May 24, 2007 Engineered for cleaning of welds and removal of abrasive clogging materials, EZ Strip Non-Woven Wheels come in 4½ and 7 in. diameters with 7/8 or 5/8-11 arbor holes. Red wheels are suited for finishing angled and irregular surfaces, while black wheels are intended for cleaning and satin finishes. All can be used on stainless steel, aluminum, steel, non-ferrous materials, fiberglass, and stone.

Ruland Manufacturing Co., Inc.    Marlborogh, MA 01752

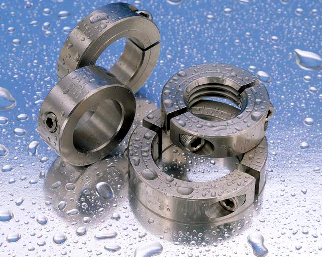

May 24, 2007 Made of 316 SS, Shaft Collars are available in 1- and 2-piece clamp-style designs with bore sizes from 1/8-2 in. and 3-50 mm. All are single point faced to ensure perpendicularity and proper alignment. Collars are suitable for medical, food processing, and pharmaceutical applications where washdown is required and contamination from corrosion must be avoided. Resistance to chloride corrosion makes collars suitable for marine applications as well.

Jerome Industries Corp.    Elizabeth, NJ 07201 2005

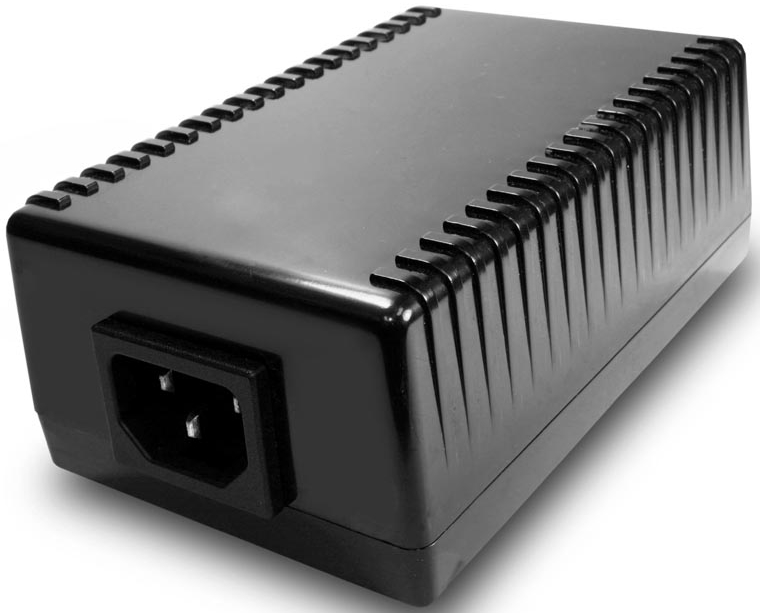

May 24, 2007 Featuring 4.75 x 3.00 x 1.89 in. L-Case models rated 36 or 48 W, and 6.50 x 3.75 x 2.17 in. Z-Case models rated 60 or 80 W, Surge Power series is designed for continuous duty and offers 33% surge overload capability. Desktop units provide universal IEC 320-c14 power inlet and accept universal input voltage from 90-264 Vac, 47-63 Hz. Both L-Case and Z-Case versions are leakage current compliant to IEC60601-1 category B and BF.

Applimotion, Inc.    Loomis, CA 95650
May 24, 2007 Able to achieve speeds to 10,000 rpm, ULT Series is available in sizes down to 27 mm dia with axial length as low as 8 mm and through hole up to 20 mm. Motors operate from choice of controllers, including 3-phase trapezoidal or sinusoidal motor controllers from 12-320 Vdc and sensorless motor controllers. Hall Devices and special cable/connector options are available, and areas of use include optics applications as well as direct drive rotary table systems.

TE Connectivity Ltd.    Berwyn, PA 19312
May 24, 2007 Enabling broadband performance for 0.5-6.0 GHz WiMAX and base station applications, MASW-000822-12770T SP2T common anode, asymmetrical PIN diode switch provides over 8 W power handling coupled with 65 dBm IIP3. In transmit antenna state at 3.8 GHz, switch provides 0.35 dB loss and 27 dB transmit-receive isolation to protect LNA. Design handles 39 dBm CW and 43 dBm peak power at 3 µsec pulse width, with 1% duty cycle.

Dwyer Instruments, Inc.    Michigan City, IN 46361

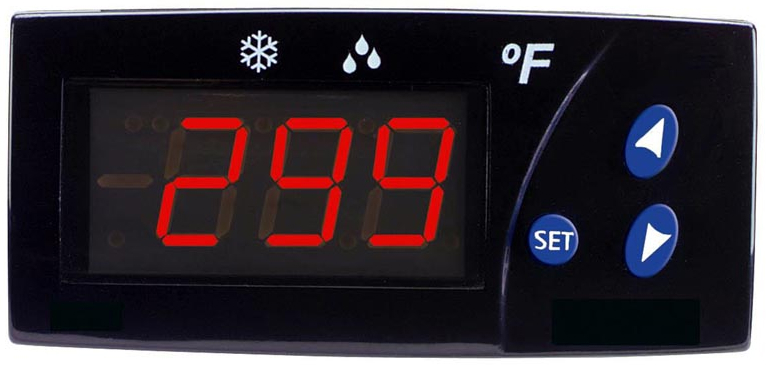

May 24, 2007 Featuring 3-digit red LED display to facilitate viewing at extended distances, dual-stage Series TSS2 accepts up to 2 PTC thermistor temperature sensors to control temperatures from -58 to 302°F. Switch offers 0.1° resolution under 100°, and 1° resolution over 100°. Unit offers 2 independent SPST 8 A relays and can be customized via 34 user-programmable parameters. Voltage supplies, depending on model, include 12 or 24 Vac/dc, 115 Vac, and 230 Vac.

Linear Technology Corp.    Milpitas, CA 95035
May 24, 2007 Supplied in 2 x 2 mm 8-lead DFN package, LT3502/A operates from 3.4-40 V input range and has switching frequency of 1.1 MHz for standard version and 2.2 MHz for A version. Regulator delivers up to 500 mA continuous output current to voltages as low as 0.8 V and utilizes 900 mA, 300 mVCESAT switch with necessary boost diode, oscillator, control, and logic circuitry integrated on-chip. Other features include internal compensation, soft-start, and short circuit protection.

Metabo Corp.    West Chester, PA 19380 4243

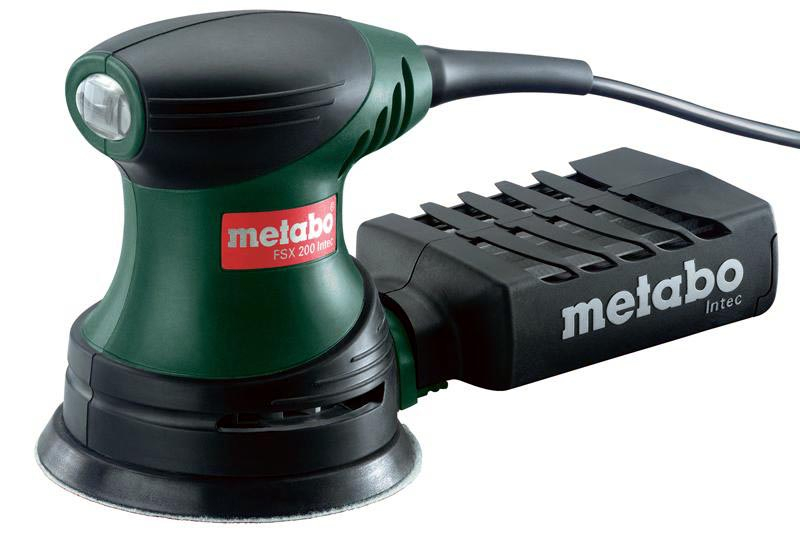

May 24, 2007 Model FSX200 Random Orbit Sander offers 9,500 orbits/min at an orbit size of 1/8" while reducing vibration through its rubber-coated gripping surface. Sander's 5 in. hook and loop pad enables Model FSX200 to be fitted with accessories for paint removal, wood finishing, metal buffing and plastic work. FSX200 weighs 3.4 lb, has 2.2 A of motor power and comes equipped with integral dust collection system featuring washable Intec filters.

SKF USA, Inc.    Lansdale, PA 19446
May 24, 2007 SKF® Heavy-Duty Mechanical Shaft Seals protect bearings against harmful solid and liquid contaminants and prevent loss of lubricant. SKF® Seals fit into conventional, straight bore housings without boring or polishing and can be installed by hand. Bore diameters range from 70-812 mm, operational temperature range is 54-107°C, and permissible velocity at continuous operation is 1.75 m/sec.

Ohaus Corp.    Pine Brook, NJ 07058

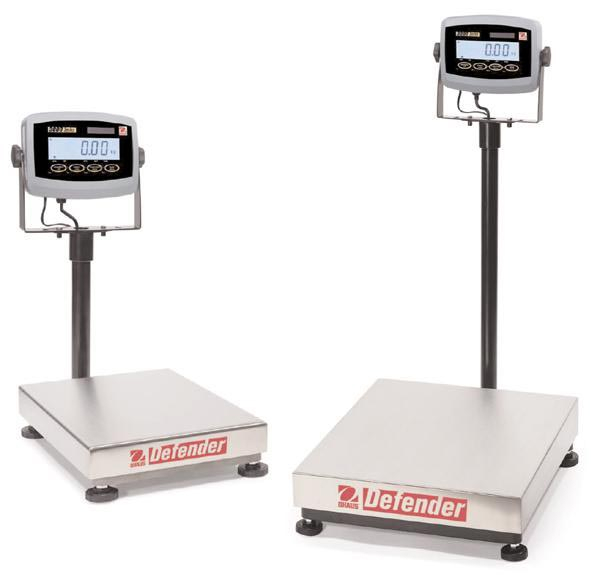

May 24, 2007 Defender(TM) 3000 Series Bench Scales enable industry and laboratory workers to accurately weigh and count containers. 3000 Series includes capacities of 60, 150, 300 and 600 lb, 3 base sizes, backlit LCD screen with 4 buttons, and ability to measure in multiple units. Each scale is powered by rechargeable sealed lead acid battery with 80 h of life and comes with removable steel weighing pan and steel tubular frame.

Universal Lighting Technologies    Nashville, TN 37214
May 24, 2007 Model B232PUS50-A Ballastar® light-level switching ballast for T8 lamps provides light level control by switching from full light to 50% power using standard wall switches or relays allowing for easy compliance with ASHRAE 90.1 and California Title 24 switching requirements. Model B232PUS50-A complies with CEE requirements for high performance T8 lighting, operates 1 or 2 F32T8, F25T8, or F17T8 lamps, and has a light ballast factor of .88.
