Paxton Products, An ITW Co.    Cincinnati, OH 45242
Jun 08, 2007 Designed to remove debris and moisture, PowerDry(TM) System incorporates centrifugal blower that develops air flow and pressure from 3 hp motor. FDA compliant hose carries airflow to 6-nozzle air tube that delivers successive hits of high impact air. As alternative to compressed air, PowerDry eliminates potential contamination from oils and scale in compressed air supply. It features washdown design suited for food, beverage, and packaging operations.

Slater Tools, Inc.    Clinton Township, MI 48038 1554
Jun 08, 2007 Available with .625 in., .750 in., 12 mm, or 22 mm shank, Adjustment Free Rotary Broaching Tool Holder is designed for Swiss type lathe and screw machines. Design lets operator use tool holder without need for centering. It also eliminates interference and clearance problems while facilitating access to grease fitting for maintenance. Product can be used for any type CNC, Swiss, or manual turning, milling, drilling, or screw machine.

Standard-Knapp, Inc.    Portland, CT 06480
Jun 08, 2007 Capable of operating speeds to 100 trays/min, Continuum film wrappers and tray/shrink systems come with direct drive film feed module for applications in food and beverage industries. Module, engineered with servos, consistently feeds, cuts, and delivers clear or printed film to wrapper wand. It also incorporates features to handle static-charged film. Open design provides access to all components, while knife and cutting action deliver precise cuts on thin- or thick-gauge film.

Integra Companies, Inc.    Devens, MA 01432
Jun 08, 2007 Constructed of stainless steel, ergonomic JO DOLLY has greaseless, non-bearing casters and low-profile design that minimizes tip-over potential, even across thresholds and up ramps. Cradle-style base creates low center of gravity for safely carrying 100-140 high-purity liter tanks, and handle is directly connected to dolly base. Custom casters eliminate need to remove tank for autoclave and custom built area in base allows for bottom port on tank.

Bryant Electric    Milford, CT 06460 2465
Jun 08, 2007 Suited for industrial, commercial, and construction environments, 15 A in-line cord sets come in single- and triple-tap configurations and can be used indoors or outdoors. Portable ground fault products feature heavy-duty construction and NEMA-3R rating. LED indicator provides at-a-glance power and fault status, while recessed test and reset buttons help user avoid accidental actuation during handling and use. Products are offered with automatic reset or manual (safe-start) reset.

Pfannenberg    Lancaster, NY 14086
Jun 08, 2007 NEMA Type 12 Filterfans® incorporate louver that provides protection against dust and water mist while facilitating change of filtermats with its hands-free hinge design. Filter mat design lets product maintain air throughput with Type 12 seal, and 4-corner fastening system eliminates need for bolts and screws. UL recognized products use tension clamp technology for wire connections and have flat industrial design that allows for tool-less assembly and maintenance.

Abresist Corp.    Urbana, IN 46990-0038
Jun 08, 2007 Made of hard aggregate material, cement binder, and micro and nano silica, KALCRET features mixing time of 5 min and can be applied overhead. Hard aggregate provides wear protection, while micro and nano silica fill pores between cement portions. Suitable for temperatures up to 2,192°F, KALCRET reaches high strength and wear resistance after 8 hr. It is available in troweled, cast, or sprayed-on versions for lining components with horizontal, vertical, inclined, curved, and flat surfaces.

Bradley Corp.    Menomonee Falls, WI 53051
Jun 08, 2007 Made with 100% recycled glass terrazzo, Classic Washfountain helps conserve energy, water, and space. It is available in 54 in. and 36 in. circular and semi-circular configurations. Both have 9 in. deep bowl with choice of activation types, including foot pedal, infrared, or pushbutton operation. Suited for LEED projects, terrazzo is made of amber, blue, green, clear, and gray recycled bottles. Different shades of glass create 6 distinct color options.

Industrial Test Systems, Inc.    Rock Hill, SC 29730
Jun 08, 2007 Approved for drinking water compliance, EPA-approved Sensafe(TM) Free Chlorine Water Check is suited for field analysis and can be used for reporting purposes. Product does not require any powders, liquids, tablets, or instruments and delivers results in 40 sec. Not subject to indicator bleach-out or monochloramine interference, strip has all reagents needed to perform test embedded in solid state in reaction area of aperture. Detection range covers 0.0-6.0 mg/L.

Ringfeder Power Transmission USA Corporation    Westwood, NJ 07675
Jun 08, 2007 In addition to 15 existing sizes, Arcusaflex® flywheel couplings are offered in AC 4.1, 4.9, 5.1, 6.1, 6.5, 13, and 13D sizes designed specifically for larger engine applications. Sizes cover 1,770-973,580 lb-in. torque range, which corresponds to 6,500 kW at 1,000 rpm. Products are available with standard rubber as well as silicone mixture to provide heat resistance. Rubber disc element is vulcanized to choice of bolt-on sleeve or taper bushing hubs.

Viscotek Corp.    Houston, TX 77060
Jun 08, 2007 Model 802-DLS combines single mode fibre technology and 3-axis, automated platform. High Throughput Dynamic Light Scattering instrument uses Dual Attenuation Technology to control level of light entering sample as well as scattered light going to detector. Researchers are able to work at optimum conditions for laser and detector, regardless of sample type, as product automatically adjusts to optimal setting sample by sample.

Parker Hannifin Corp., Instrumentation Products Div. - UK    Cleveland, OH 44124

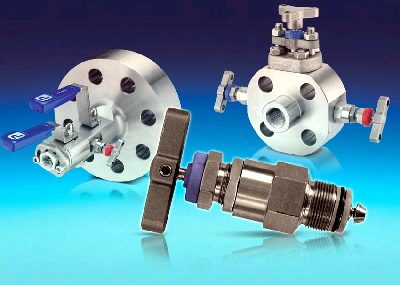

Jun 08, 2007 Available in double-block-and-bleed configurations, Instrumentation Manifolds come in either monoflange or low-profile flange-ended forms. Both feature integrated construction that minimizes potential number of leak paths. Ball and needle valve designs used in manifolds meet highest A classification level specified by ISO 15848 over temperature range of -29 to +180°C. With flange sizes from ½-3 in., manifolds are offered in numerous valve/flow path configurations.

Quantum Devices, Inc.    Barneveld, WI 53507
Jun 08, 2007 Providing feedback in applications typically using modular encoders, QR12 with 1.280 Bolt Circle Mounting Flange features 1.2 in. OD and overall height of over 1 in., and offers stability of bearing encoder design. Outputs consist of quadrature with index pulse and 3-phase commutation. Flexible member enables tail shaft run-out and provides 30° of rotation for commutation timing, providing performance of lightweight assembly.

Linear Technology Corp.    Milpitas, CA 95035
Jun 08, 2007 Housed in 3 x 3 mm DFN package, Model LTC3559 integrates standalone Li-Ion/Polymer battery charger with 2 synchronous buck regulators. Linear battery charger can deliver up to 950 mA charge current from wall adapter supply, or up to 500 mA charge current from USB supply. Final battery float voltage is accurate to ±0.4%. Featuring 100% duty cycle operation, buck regulators deliver output currents up to 400 mA each, with programmable output voltages as low as 0.8 V.

Aculight Corporation    Bothell, WA 98011

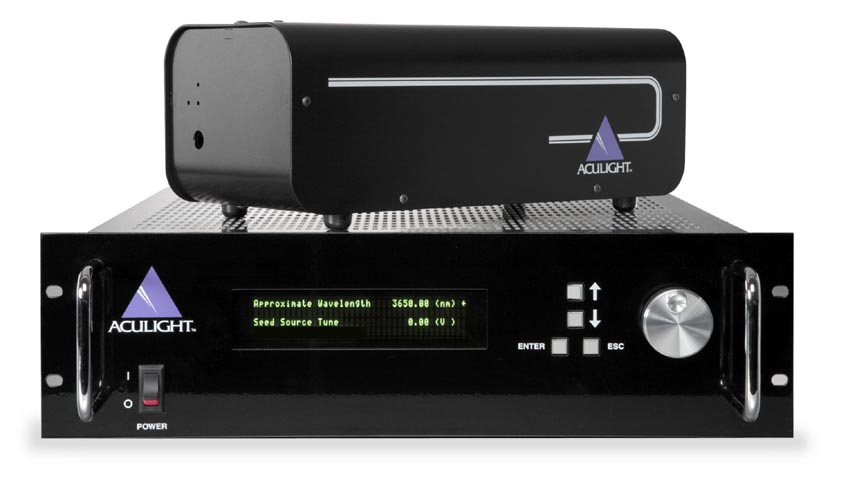

Jun 08, 2007 Argos(TM) single-frequency, continuous-wave optical parametric oscillator (OPO) is capable of continuous tuning from 1.4-2 and 2.4-3.9 microns and linewidth of output has been measured as low as 60 kHz. It operates at room temperature and can produce simultaneous output at 2 wavelengths, with available power between 1-5 W over tuning range. Rugged, fiber-pumped, and compact unit features 5 x 6 x 14 in. OPO head with control unit of 10 x 19 x 19 in.

VX Corporation    Palm Bay, FL 32905
Jun 08, 2007 In addition to filleting engine, VX CAD/CAM v13 incorporates mechanical simulation module with camera controls and AVI output. Multi-viewport options, with dynamic object slicing, enable cross-window construction, control, and analysis. For VX CAM users, Smoothflow(TM) feature ensures optimal machining efficiency while minimizing tool wear.

HSA USA, LLC    Perth Amboy, NJ 08861
Jun 08, 2007 DNP-631 UV and DNP-IR IR Invisible Ink cartridges contain UV or IR dyes respectively, which are visible to the human eye when exposed to UV or IR light or by using laser scanner or camera system. Designed for high-speed, code-based packaging applications, inks assure packages are sent to intended recipients while protecting their privacy and security. Print cartridges can be snapped in and out and include high-capacity bulk ink delivery system.

Banner Engineering Corp.    Minneapolis, MN 55441
Jun 08, 2007 PresencePLUS® ring lights connect directly to PresencePLUS vision sensors or external power supply. Using 3 tiers of bright LEDs, 150 mm lights provide illumination of inspected parts by enhancing contrast of surface features. They include 2 m attached cable with threaded 3-pin Pico-style pigtail quick disconnect for direct connection to P4 sensor. Flying leads are also available to connect lights to 24 Vdc power source.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Jun 08, 2007 Model FLT1020 vial filling system processes vials from 16-52 mm in diameter, 25-95 mm in height, and with 13-22 mm neck finish for pharmaceutical packaging. Requiring no sized parts for different vial diameters, system offers variable tray size options of 8-15 in. width and 12-18 in. length. Other features include maximum throughput of 30 vials/min, linear table top design, and compatibility with feeding systems, isolators, tray on and tray off stations.

Contrinex AG    Old Saybrook, CT 06475
Jun 08, 2007 Series 0507 rectangular sensors narrowly focus light beams to detect objects through holes and gaps, as well as closely lined-up or laterally approaching objects whose distance from the sensor can not be kept constant. Self-contained sensors are 5 x 7 mm with 40 mm housing length. Scratch resistant spherical sapphire lens projects virtually cylindrical 4 mm light beam. Unit operate in 10-30 Vdc voltage range, are vacuum potted, and provide up to 100 mA output current.
