Eaton Hydraulics    Eden Prairie, MN 55344
Jun 14, 2007 Aeroquip GH466-32 hose offers temperature capability up to 250°F. Designed for mobile and stationary applications, 6-spiral hose withstands more than 2 million flex impulse cycles and meets all requirements of EN856/100R15 with Class 0 cool-down leakage in accordance with SAE J1176. Aeroquip Internal Skive Crimp fittings feature internal and external skive design that separates socket into dampening, sealing, and wire trap zones.

Broadcom Corp.    San Jose, CA 95110
Jun 14, 2007 Based on 10 GbE serial PHY technology, Model BCM8071 serial 10GBASE-KR to XAUI backplane transceiver supports IEEE 802.3ap standard for backplane systems, and suits high bandwidth applications. It incorporates digital receive equalizer that supports legacy systems running at 1 GBps or XAUI(TM) data rates and allows to perform signal recovery. Designed in low power, 90 nm CMOS process, DSP-based unit is available in 13 x 13 mm FBGA, RoHS-compliant package.

Marvell Semiconductor Inc.    Santa Clara, CA 95054
Jun 14, 2007 With auto-switching and auto-discovery features, Digital Office Gigabit Ethernet switch suits small-to-medium sized business IP appliances. It enables GbE deployment on desktop by interconnecting and managing wireless access points, VoIP terminals, NAS devices, and IP cameras. Product supports IEEE Lik Layer Discovery Protocol and Link Layer Topology Discovery Protocol for rapid ODM productization and OEM end product differentiation with web interface application tools.

Multi-Tech Systems, Inc.    Mounds View, MN 55444
Jun 14, 2007 Offering 3.3 or 5 V operation, MultiModem® EDGE (Model MTZPC-E) is single-port cellular PCI card designed for developers who need to provide wireless connectivity on PCI-compatible hardware operating Windows® or Linux® operating systems. It incorporates quad-band EDGE (Enhanced Data Rate) for GSM Evolution design with single SKU number. Tested for FCC, PTCRB, and CE compliance, product includes SMA antenna connector and drivers for Windows 2000, 2003, XP, Vista, and Linux operating systems.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 14, 2007 With ability to interface with any dc-dc converter topology, Model LM5073 integrates programmable interface port including hot-swap controller that exceeds standard IEEE 802.3af specifications, allowing designers to operate PoE appliances at power levels of 30 W or more. It supports powered device designs that are compliant with IEEE 802.3af standard and integrates 100 V, 700 mW, N-channel MOSFET as well as PD signature and under-voltage lockout resistors.

NEC Electronics    Santa Clara, CA 95050
Jun 14, 2007 Based on 90 nm process technology, serializer/deserializer (SerDes) core is compatible with serial interconnects including PCI Express® (PCIe) 1.0 and 2.0, Serial ATA, SCSI, XAUI, and CEI. Operating from 1.2-6.4 Gbps, it allows users to capture receiving data waveforms dynamically on their system boards. Unit can also be used with wide range of packages including wire-bonded plastic ball grid array (BGA) and flip-chip BGA (FCBGA).

SonicWALL, Inc.    Sunnyvale, CA 94089-1209
Jun 14, 2007 Featuring multi-core architecture, Network Security Appliance (NSA) E7500 delivers gigabit-scale deep packet inspection throughput with multiple layers of protection. Harnessing power of 16 processing cores, it includes application firewall for data leakage prevention and network traffic control, 4 gigabit Ethernet interfaces, 4 SFP ports, and WLAN functionality. It provides security services such as dynamic threat prevention, content filtering, and application control.

Linear Technology Corp.    Milpitas, CA 95035
Jun 14, 2007 Featuring selectable switching frequency from 100 kHz to 1 MHz, Model LTC3810 synchronous regulator controller steps down voltages from 100 V to output ranging from 0.8 V to 93% of VIN. Single inductor design eliminates need for transformer, while 1 W gate drivers minimize switching transient losses associated with driving MOSFETs at high frequency. Offered in 28-lead SSOP package, it has 0.8 V reference with ±0.75% accuracy over operating temperature range of -40 to +85°C.

ADMET    Norwood, MA 02062
Jun 14, 2007 Featuring peak, average, and slope/rate calculations, WinCOM Live enables real-time collection and viewing of force-extension data on Windows-based PC. Software generates hardcopy printouts, stores and recalls test data, and exports data to common spreadsheet programs for further analysis. Available for use with digital and eP digital controllers that work with full range of ADMET UTMs, it communicates with digital controllers via RS232 serial port.

Anadigm®, Inc.    Tempe, AZ 85284
Jun 14, 2007 SonicMaster2(TM) delivers programmable platform for subwoofer signal conditioning that provides equalization, adjustable filters, and limiters, enabling protection from amplifier clipping and woofer bottoming for active subwoofer designs. Reconfigurable unit also enables addition of all analog AutoEQ processing. Product features 100% analog signal path for Pure Analog Sound, options for push button or rotary controls, LCD display module, factory presets, and end-user adjustments.

Mouser Electronics    Mansfield, TX 76063
Jun 14, 2007 Series SG5, SC2, ST1, and ST2 SD Connectors offer 0.5 A rated current, 500 Vac rms (for 1 min) dielectric withstanding voltage, 100 mW maximum contact resistance, 1,000 mW minimum insulation resistance, -25 to +85°C operating temperature, and 10,000 cycles durability. Series SG5, SC2, and ST2 feature push-push structure, while Series ST1 features push-slide hinge structure. Devices have card insertion detection switch and lock structure to prevent card from falling out.

Walls & Forms Inc.    Dallas, TX 75374
Jun 14, 2007 With ability to attach to walls and windows, EuroSign(TM) DisplayFrames are available in 8½ x 11 and 36 x 48 in. sizes. Standard units are made of plastic/aluminum frame profiles and feature integrated radius corners with backer boards. Contoured frame profiles are factory applied onto Flex-Hinges that allow frame and corner to open and close and hold graphics securely. Frames include clear anti-reflective lenses, mounting holes, double side corner tape, and screws.

Pulse Engineering, Inc.    San Diego, CA 92128
Jun 14, 2007 Measuring 17 x 13 mm, SmartER(TM) series of xDSL, high-density splitter/filter modules can also be used in ADSL and ADSL2+ applications. Model B8841NL complies with ETSI 600 ohm real impedance standard, while Model B8846NL meets ETSI option B and BT (British Telecom) SIN-346 complex impedances. Modules can be mounted on central office DSLAM splitter boards or customer premise equipment as single-line low-pass filter solutions, and can carry frequencies up to 30 MHz.

United Electronic Industries    Canton, MA 02021
Jun 14, 2007 DNA-QUAD-604 4-channel quadrature encoder input board is suited for use with PowerDNA, UEILogger, and UEIPAC DAQ and control Cubes. Providing standard A, B and Z (index) inputs for each channel, it handles quadrature applications with maximum input frequency of 16.5 MHz and 32-bit counters. Digital I/O is compatible with +5 and +3.3 V logic, and digital outputs are rated to supply ±12 mA of drive current. Board also offers 350 V of isolation and 7 kV of ESD protection.

BI Technologies Corp.    Fullerton, CA 92835-1051

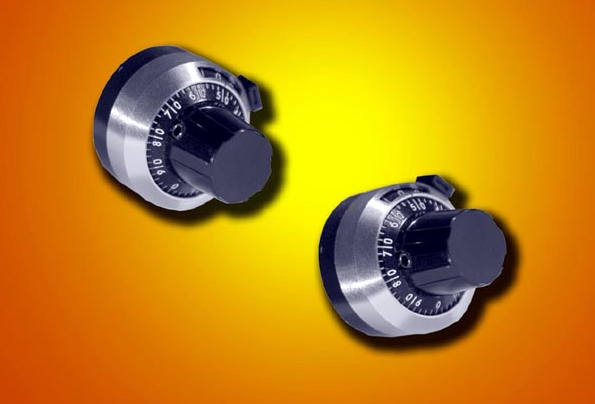

Jun 13, 2007 Suited for industrial and instrumentation applications, 7/8 in. Model 2696/2694 features ¼ in. or 6 mm diameter shaft along with 7/8 in. diameter bushing in satin chrome housing. It includes positive action locking mechanism and optimal turning tightness. With operating temperature of -55 to +71°C, dial is intended for bench-top power supplies, medical electronics, and industrial automation equipment.

Strategic Test Corporation    Woburn, MA 01801-1915

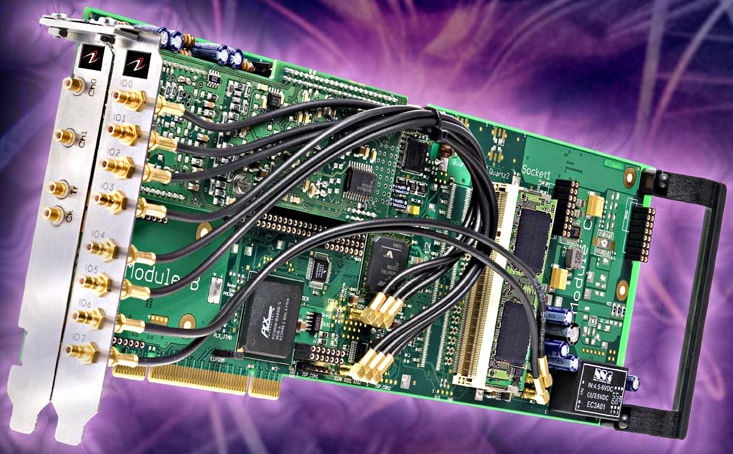

Jun 13, 2007 UltraFast(TM) Oscilloscope and Arbitrary Wafeform Generator (AWG) cards are available with BaseXIO option, which adds 8 asynchronous TTL channels to PCI card. Completely independent of high-speed function of oscilloscope or AWG card, BaseXIO channels can be used to control external equipment, acquire test signals, or read/write status information. Some channels also offer special trigger and reference clock functions. Each group of 4 channels can be set as input or output.

Rubbermaid Commercial Products LLC    Winchester, VA 22601
Jun 13, 2007 With Triple Capacity Cleaning Cart, users can attach up to three 34-gal vinyl waste or recycling bags. Zippered, leak-proof bags come in blue, red, and green with universal recycling symbol, and yellow for general waste. Providing space for 2 bags, Double Capacity Janitor Cart offers removable storage caddies and bins for organization of cleaning supplies. Both are made from structural web plastic and non-rusting aluminum with rubber tool grips for attaching dustpans, brooms, or vacuums.

Semrock Inc.    Rochester, NY 14624
Jun 13, 2007 Made with Ion Beam Sputtering, RazorEdge® Dichroic(TM) Beamsplitters reflect standard laser wavelength incident at 45° while passing broad band of longer Raman-shifted wavelengths. Units guarantee transition from laser line to passband in less than 1% of laser wavelength, regardless of polarization. With dense, hard dielectric optical coating, filters offer high damage threshold and permanent performance, even in harsh, humid environments.

J. W. Winco, Inc.    New Berlin, WI 53151

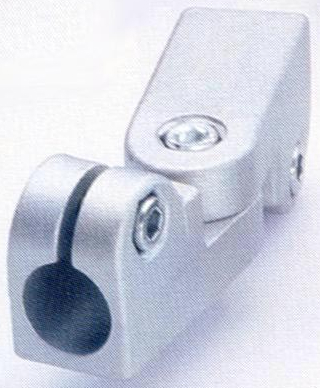

Jun 13, 2007 Offered as assembly of 2 swivel clamp connectors, Swivel Clamp Connector Joints are made of aluminum in black plastic coated finish or matte shot-blasted finish. Joints have machined clamping bores and are available with steel or stainless steel cap screws or hex screws and nuts. They may also be used with adjustable levers in place of screws.

Trico Mfg. Corp.    Pewaukee, WI 53072 3954

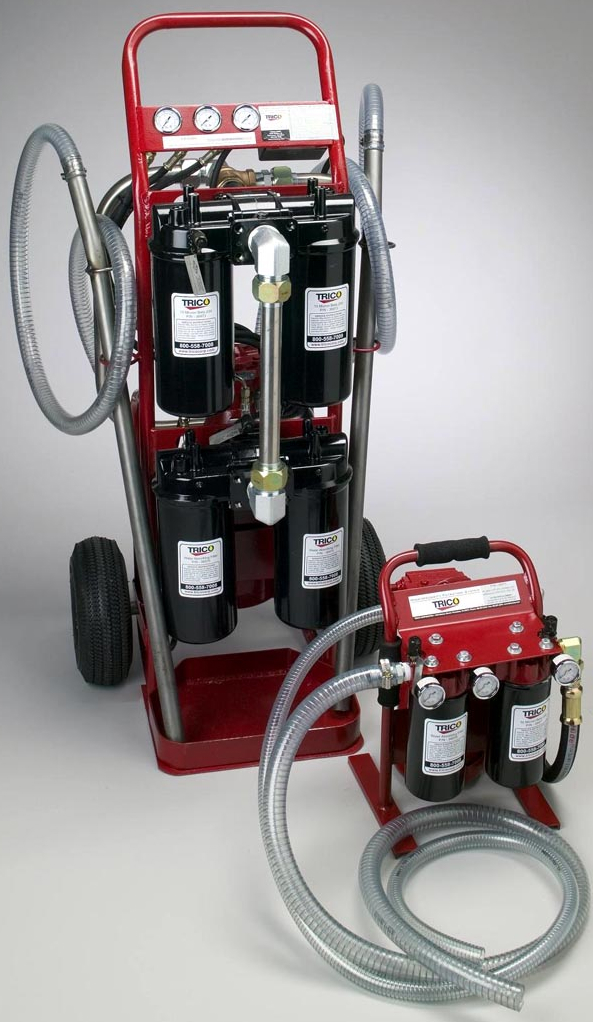

Jun 13, 2007 Designed for industrial filtration, portable Gear and Lube Oil Filtration System offers 4 gpm flow capacity and max viscosity capability of 10,000 SUS @ 100°F. Differential pressure gauges indicate when each filtration element needs to be changed, and 2 sampling ports are included for safely sampling and monitoring oil condition. Featuring multi-stage filtration process, product comes in two versions: Hand-Held System and Portable Cart System.
