American Beauty Soldering Tools    Clawson, MI 48017
Jun 19, 2007 Providing 1,000°F maximum tip temperature, 300 W industrial-duty Model 3178 is suited for running seams with 24-26 gauge sheet metal, copper down spouts, and flashings. It features pre-tinned tip that seats inside heating element, consisting of compression-wound resistive wire around steel spool. Equipped with hardwood handle and heat shield for safety, soldering iron measures 14 3/8 in. overall with 5 5/32 in. long tip and 7/8 in. diameter shank.

Ramtron International Corp.    Colorado Springs, CO 80921
Jun 19, 2007 Based on FRAM technology, Model FM1105 operates from 4.5-5 V at less than 15 µA, while Model FM1106 operates from 2.7-3.6 V at 5 µA. Units store and retain logic state in absence of power and restore outputs automatically upon power-up. Available in SOT23 package, both devices change states continuously at 1 KHz and operate from -40 to +85°C. State savers are suited for switch interfaces, relay drivers, LED drivers, motor on/off control, and tamper indicators.

Bematek Systems, Inc.    Salem, MA 01970
Jun 19, 2007 Process Test Laboratory solves particle size reduction challenges by using wet-mix process systems for high- and low-shear mixing of emulsions and dispersions. Able to be scaled-up to any production requirements, system provides complete product testing for purpose of manufacturing specific products that require precise homogenization. In-line dynamic wet mixers or colloid mills are employed to match application for particle size reduction, deagglomeration, and blending needs.

ETCO Incorporated    Warwick, RI 02888 1501
Jun 19, 2007 Designed with large surface contact area, Flat-Snap(TM) Splice can rapidly mate and unmate without force or performance degradation, and cannot pull apart or vibrate loose under adverse conditions. Unisex design facilitates assembly, inventory, and repairs, and prevents accidental disconnection. Offered in 0.012-0.020 in. thick brass, splice can be modified to OEM requirements as posi-loc terminal and supplied as insulated connector.

ASI    El Cajon, CA 92020

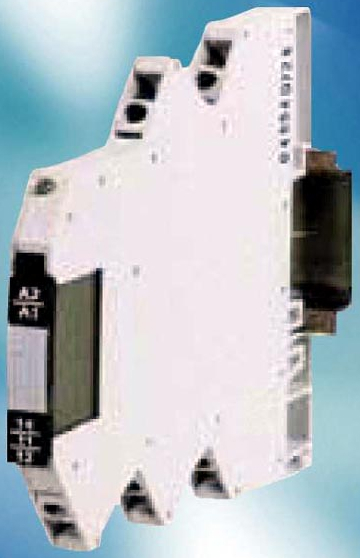

Jun 19, 2007 Comprised of 4 models, CWRE series mounts on DIN rail and features heavy-duty electromechanical relays that are rated AC or DC and suit all types of inductive applications. Series carries voltage rating of 24 Vac/dc, 120 Vac/dc, and 230 Vac. In addition to pluggable jumper that can be used to common inputs and outputs, pluggable bridges are available for parallel coil and contact connections. Other features include status LED display and SPDT configuration.

OceanServer Technology Inc.    Fall River, MA 02723
Jun 19, 2007 Solid state OS3000 Digital Compass is 3-axis, 1.4 x 1.8 in. PCB that includes ASCII interface and 24-bit A/D converter with digital filters. Accurate to 1° azimuth, with 0.1° resolution, tilt-compensation up to ±60°, and 0.1° resolution for roll and pitch, compass components have 50,000 G shock rating. RoHS-compliant device provides programmable update rate from 0.1-20 Hz and hard-iron calibration, and can be embedded into another device.

RNR Plastics, Inc.    Raynham, MA 02767
Jun 19, 2007 Used with Sensormatic® hard dye tag protection systems, self-adhesive Electronic Article Surveillance Security Labels are tamper-evident plastic straps that stick onto price tags to show price. Eliminating shrinkage and need for price checks, rigid PVC labels feature clear adhesive and cannot be separated from hard dye tag. Individual labels are ½ x 4½ in. and supplied on rolls.

Xenon Corp.    Woburn, MA 01801 1057

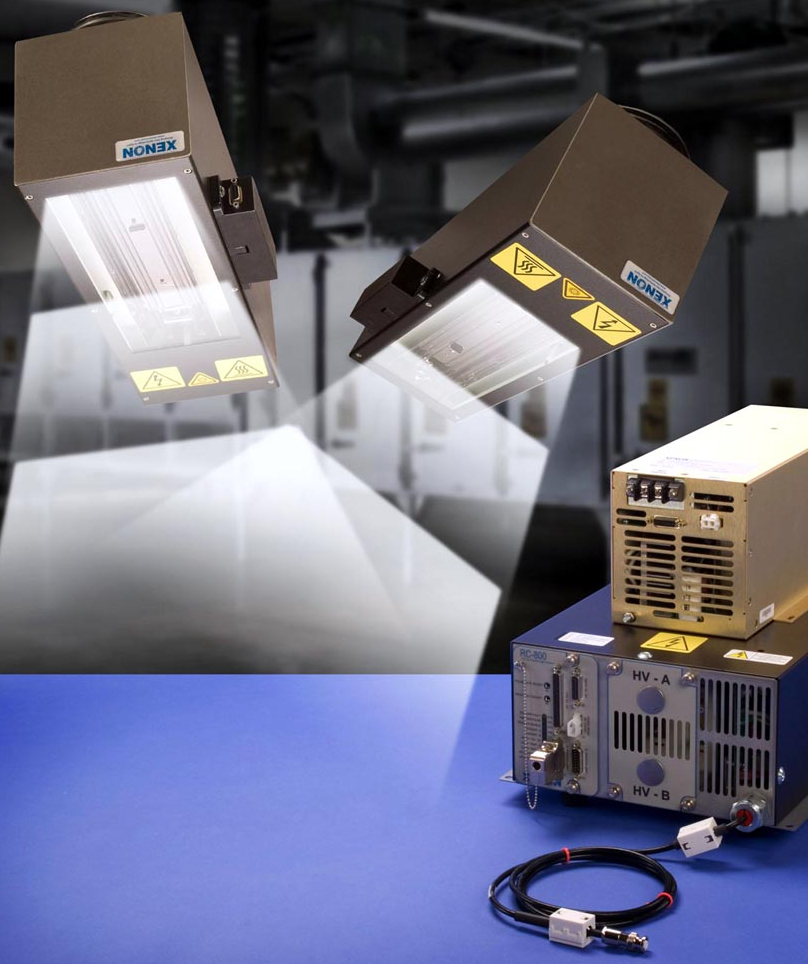

Jun 19, 2007 CoolCureXL® InterWeave(TM) System features 2 UV lamps, 3 kW power supply, and one controller that enables both lamps to be pulsed at same rate to optimize conversion of energy into UV light. Delivering 13 J/pulse at 200 pulses/sec to provide cool curing in continuous processes running at rates to 30 fpm, shape of lamps can be custom-engineered to meet OEM process requirements for coverage and speed. System provides instant on/off control, under 300 µsec pulses, and process flexibility.

SYMETIX    Walla Walla, WA 99362
Jun 19, 2007 Optyx®SG/P is designed for manufacturers of OTC and regulated solid dose pharmaceuticals, with special focus on softgel applications. At production speeds of up to 1,000,000 softgel capsules/hr, FDA 21 CFR part 11-compliant unit automatically inspects each capsule - based on color, size, and shape - to identify and remove defects and foreign capsules. Parallel processor enables operators to monitor images of every object of interest acquired by OptyxSG/P.

Elobau Sensor Technology, Inc.    Lake Bluff, IL 60044
Jun 19, 2007 Series 424Dxxx can be used for mechanical/automotive engineering applications where angles are to be detected under severe environmental conditions. Depending on model, angle measurements can be executed from 20° to complete circle (0-359°). Measurements are made with magnetic field whose rotation is detected with non-contact Hall sensor. Specified over -40 to +85°C, series offers 12-bit resolution, 1.6 kHz signal refresh, and homogeneous signal curve with ±1% max linearity error.

Bradley Corp.    Menomonee Falls, WI 53051
Jun 19, 2007 Lenox(TM) Lockers are constructed of 100% post-consumer recycled high-density polyethylene plastic (HDPE) from reused milk jugs. Lockers are unaffected by moisture, humidity, chlorine, or salt water and withstand dents and impact. Units are available in neutral colors moss, toffee, beige, and charcoal gray. Colors extend through entire locker thickness.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jun 19, 2007 Designed to cure in seconds upon exposure to light in visible spectrum, Loctite® Indigo(TM) 3552 and 3553 feature viscosities of 200 and 3,500 cp, respectively. They are suited for use with UV-blocking clear and select colored substrates including translucent variations of blue, purple, gray, white, and green. Both acrylic adhesives are ISO 10993 biocompatibility tested, offer fluorescence for inspection, and adhere to various plastics including polycarbonate, PVC, and ABS.

Linear Technology Corp.    Milpitas, CA 95035
Jun 19, 2007 Using constant frequency and current mode architecture, 4 MHz Model LTC3568 operates from input voltage of 2.5-5.5 V, making it suited for Li-Ion/Polymer battery inputs as well as 3.3 or 5 V inputs for point-of-load applications. Internal switches with RDS(ON) of 0.11 W enable efficiencies up to 96%. Housed in 3 x 3 mm DFN package, synchronous buck regulator uses Burst Mode® operation to offer 60 µA of no load quiescent current.

A-T Controls, Inc.    Cincinnati, OH 45242
Jun 19, 2007 Available with 30, 60, or 90° notch, TRIAC V Series is available in ½-4 in. 3-piece threaded models, 1-6 in. 150 No. flanged versions, and 316 SS or WCB trim. Control ports are cast and machined into ball for optimized flow. All models feature seat made of 50% stainless steel powder in 50% PTFE matrix, and 45° pyramidal stem seal with Belleville washers and Chevron packing for protection against stem leaks.

ABB Instrumentation    Warminster, PA 18974
Jun 19, 2007 Asset Master can manage up to 500 ABB and non-ABB devices, depending on fieldbus configuration, and supports ABB and 3rd party devices communicating via HART, PROFIBUS, and FOUNDATION Fieldbus. It includes device integration library for configuration and Device Type Managers for parameterization. Informing user of degrading performance through Alarm and Events features, software automatically transmits faults to CMMS to initiate work order process.

Hickory Hardware    Portland, TN 00000
Jun 19, 2007 Faultless Air Cargo and Conveyor Series casters feature wheels made from polypropylene and are designed to provide mobility solutions for ground support equipment, sortation systems, and loading equipment. Rated for loads up to 375 lb, Precision Heavy-Duty models feature precision-bearing swivel, needle-bearing wheels, and fully sealed raceways. Flanged versions add toe-protection flange. Rated for 270-300 lb loads, Standard-Line casters features double ball-bearing raceway.

Raymond Corporation, The    Greene, NY 13778 0130
Jun 19, 2007 Stand-up counterbalanced lift trucks feature quick disconnect couplings for attachments and anti-drip no-leak valves that eliminate hydraulic fluid spills when switching. Single-axis multifunction control handle includes 4-way switch for sideshifting forks and tilting mast. Designed for warehouse systems, Model 4200 handles load capacities from 3,000-5,000 lbs and Model 4100, designed for dock applications, has capacity of 3,000 or 3,500 lbs.

Edmund Optics    Barrington, NJ 08007
Jun 19, 2007 Offered in 3 configurations, MLED modular LED test system provides spectral measurements in compliance with CIE-127 design needs. MLED base system consists of 2,048-element CCD spectrometer, internal calibration lamp with power supply, and set of 3 calibrated neutral density filters. Unit includes built-in USB port, Condition B intensity tube for ILEDB, and 10 cm CIE-compliant measurement of luminous intensity, spectral intensity, and derived colorimetric information.

North Atlantic Industries, Inc.    Bohemia, NY 11716
Jun 19, 2007 Offred in -40 to +85°C and 0-70°C temperature ranges, Model 78C2 cPCI card includes programmable synchro/resolver measurement (4-channels), LVDT measurement (4-channels), A/D (10-channels), D/A (10-channels), function generator (4-channels), discrete I/O (16-channels), TTL I/O (16-channels), transceiver I/O (11-channels), and RTD (6-channels). Ethernet port for data transfer allows board to be used as standalone remote sensor interface.

Autocrib, Inc.    Santa Anna, CA 92704
Jun 19, 2007 AutoCrib v5.2 client/server inventory management software provides enterprise class database stability in large networked AutoCrib environments and secures communications with external information systems. Features include wildcard searches, free-form entry of PO line items, changing bin numbers, external PO field, and Intelligent Reference Manual for page selection for help with currently used module. Database allows for 10 concurrent connections.
