Synopsys, Inc.    Mountain View, CA 94043 4033
Jul 05, 2007 DesignWare® VPXA3 Virtual Platform is used for development of smartphones or hand-held and consumer electronics devices that use Marvell PXA3xx XScale technology application processors. It provides software engineers with pre-silicon software execution environment that allows development of SoC related software before hardware is available. Software combines high-speed processor instruction-set simulators and fully functional transaction-level models of hardware building blocks.

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
Jul 03, 2007 Designed for operation under vacuum to 29.5 in. hg, horizontal Vacuum Paddle Blender features 100 cu-ft working capacity and 110 cu-ft full holding capacity. All wetted parts are 304 SS and polished to 120-grit finish to assist in cleaning between mixes and color changes. Unit includes pneumatically operated, flush-type plug valve that eliminates dead spaces within mix zone.

Magmotor    Worcester, MA 01603

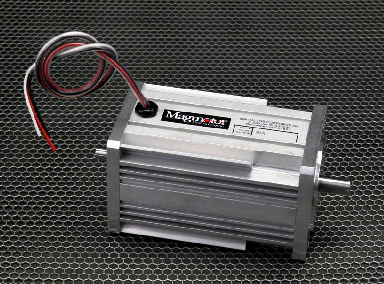

Jul 03, 2007 Providing continuous torque rating of 230 oz-in., 8-pole NEMA 23 Motor is suited for robotic drive systems, medical equipment, and other automation applications where high torque-to-weight ratio is important. Variety of electrical and mechanical options are available including enclosed encoder and sealed design for IP65 wash down requirements. Custom mounting and winding configurations are also possible.

Edwards Vacuum Technology    Wilmington, MA 01887
Jul 03, 2007 Featuring 6-inlet head, combustion-based Spectra-G(TM) is capable of treating all exhaust gases generated by MOCVD production tools and uses exhaust gas itself as primary fuel source. High velocity air flow transports heat and combustion products out of system, completely eliminating need for water and treatment facilities. Oxide particles can be removed from air stream by filtering or central scrubber.

Aeroflex Laboratories    Plainview, NY 11803

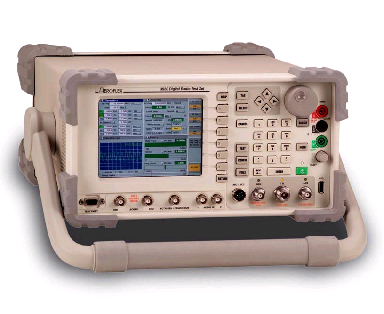

Jul 03, 2007 Providing RF operation from 10 MHz to 1 GHz, Aeroflex 3920 is designed as software-defined radio test system supporting AM and FM analysis as standard. It optionally provides extended test capabilities for digital radio communication systems including TETRA, Project 25, and Motorola's HPD® technologies. Unit measures and analyzes audio signals with extended range inputs of up to 30 Vrms. Optional 3½-digit DMM function includes ability to measure AC and DC voltage, current, and resistance.

FEI Co.    Hillsboro, OR 97124-5830
Jul 03, 2007 Offering circuit edit capabilities, V600CE accelerates semiconductor design validation and performance optimization on 65 nm and below devices. Etching planarity is promoted with NanoChemix(TM) tri-nozzle gas delivery system, which accommodates range of precursors for etching and deposition. Dynamic end-point solution displays live imaging of active pattern as well as both stage current readings and secondary electron intensity for each active pattern.

New Pig Corporation    Tipton, PA 16684 0304
Jul 03, 2007 Conforming to virtually any shape, PIG® Bend n' Shape(TM) Mat helps control condensation, leaks, and drips to protect against slip and fall hazards. Nonpermeable, heavy-duty foil backing creates form-fitting leak barrier for odd shapes and difficult places such as pipes, gear boxes, ductwork, hoses, and HVAC units. Mat can be cut to desired size and shape with scissors. It can also be shaped and used foil-side up to deflect leaks and drips or to funnel liquids away.

FCI    Etters, PA 17319

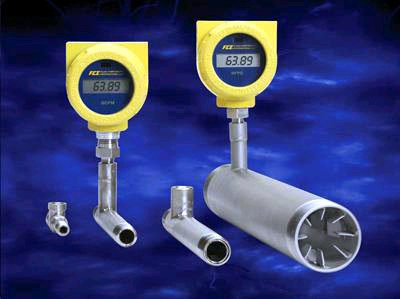

Jul 03, 2007 Combining no-moving parts thermal mass flow sensing with built-in Vortab® flow conditioning, ST75V(TM) Air/Gas Flow Meter achieves ±1% rdg and ±0.5% fs accuracy in line sizes from 0.25-2.0 in. Unit measures process gas or air flows from 0.01-559 scfm and provides 3 outputs of flow rate, totalized flow, and media temperature. Sensor design is all-welded stainless steel with Hastelloy-C tips for extra protection against invasive conditions within pipe.

Kluber Lubrication North America L.P.    Londonderry, NH 03053
Jul 03, 2007 Klüberplex BM 21-322 US is designed for use in slow- to moderate-speed rolling bearing applications. Resistant to aggressive media and water wash-out, lubricating grease offers wear and corrosion protection.

Kinetic Technologies, Inc.    Wickliffe, OH 44092
Jul 03, 2007 Adjustable-height roller conveyor deck cart features welded stand-offs that support floor to top of roller height, from 13-24 in., in any required increment. Available with 49.5 x 49.5 in. or 37.5 x 37.5 in. roller decks, they are rated for 1,500 lb max and are offered with choice of tight or standard roller spacing and full-width, handle-operated load stop bars with positive locking detent. MPP(TM) (modified pivot point) 6-wheel system minimizes manual push/pull forces at full load.

PB Swiss Tools    Gainesville, GA 30501

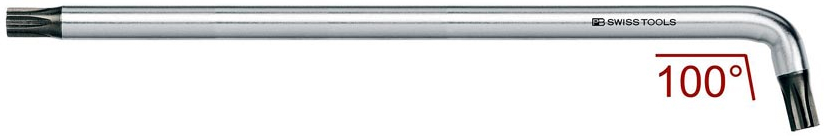

Jul 03, 2007 Suited for assembly and repair work, key L-wrench features elongated handle and short key part with 100° angle to facilitate access to Torx® screws in hard-to-reach situations. Special angle supplies enough free space for gripping and safe handling during normal work, and series covers entire range sizes from T4-T55. Common/frequent measurements, T6-T25, are offered in plastic holders.

Humphrey Products    Kalamazoo, MI 49003

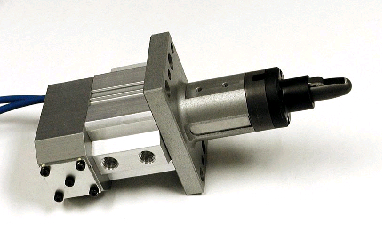

Jul 03, 2007 Featuring vanadium carbide coating on pin for resistance to wear, Pin Clamps are suited for applications where 2 parts must be held together in alignment while assembly is performed. Power Lock cylinder is spring-actuated to close and air-driven to open. Load check mechanism with switch confirms panel is present on actuator, eliminating need for external sensing devices. Various configurations are available with bore sizes from 20-63 mm and pin diameters from 5.5-59.8 mm.

William Laboratories, Inc.    Enfield, CT 06082
Jul 03, 2007 Assuring compliance with 21 CFR 600.15(a), Safe-T-Vue 6 Nonreversible Temperature Indicator provides indication temperature of 6°C. It changes from white to red when compliant temperature of blood or other temperature-sensitive items has been reached or exceeded and is activated upon release from refrigerator's controlled temperature environment. Packaged in boxes of 50 and cases of 200, direct contact indicator is also available in 8 and 10°C models.

Pregis Corp.    Deerfield, IL 60015
Jul 03, 2007 AirSpeed Smart makes clear, inflatable air pillow cushions that serve as alternative to bulky loose fill, paper, foam, and bubble packaging materials. Recyclable and reusable, cushions provide maximum protection while reducing material and shipping costs. Controls let operators produce range of cushions, with lengths and air-fill levels suited to application requirements. Weighing 26 lb, table-top inflatable packaging system is self-contained and portable.

Hardinge Workholding Division    Elmira, NY 14902

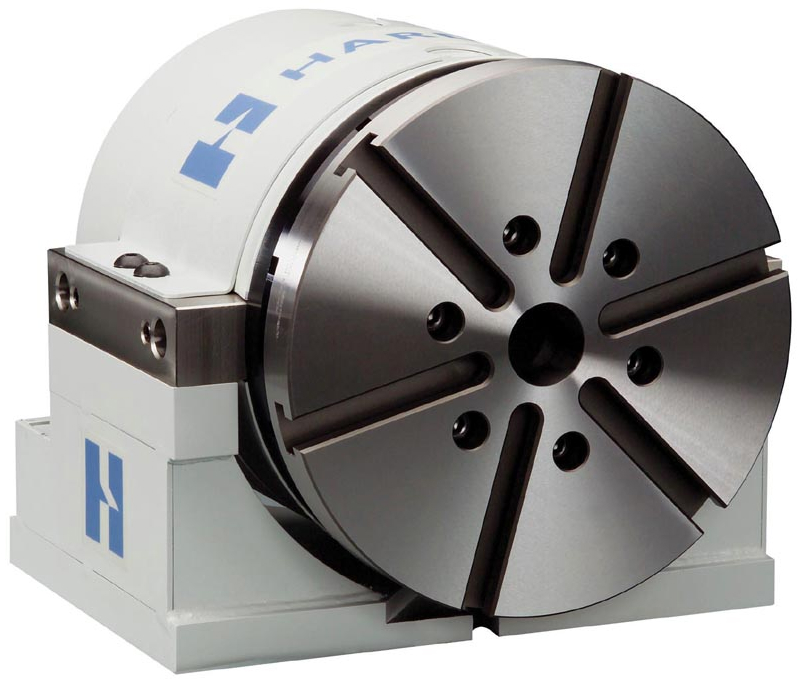

Jul 03, 2007 Featuring 10 in. slotted face plate, DD200 high-speed gearless rotary unit employs direct-drive design that eliminates backlash and provides accurate bidirectional response with repeatability of ±2 arc/sec. Indexing speeds reach 2,100°/sec, and ±.077 arc/sec encoder mounted directly to spindle enables ±3 arc/sec system accuracy. System supports semi-fourth- and fourth-axis integration and incorporates wraparound direct-drive, rare-earth, permanent-magnet torque motor.

Linear Technology Corp.    Milpitas, CA 95035
Jul 03, 2007 Model LTC2953-1 pushbutton controller integrates supervisory voltage monitors and timers for tracking switching regulator's input and output voltages. Device features input and output voltage comparators, pushbutton input, and software interrupt output in 3 x 3 mm DFN-12 package. Drawing 14 µA supply current, unit operates over 2.7-27 V input supply, serving singe- or multi-battery applications, and is able to withstand ESD strikes up to ±10 kV.

Osram Sylvania, Inc.    Danvers, MA 01923
Jul 03, 2007 Featuring digital display temperature control, SKORPION(TM) Process Air Heater provides full closed-loop PID temperature regulation with ±2° accuracy. Device includes serpentine coil design for maximum heat transfer efficiency, blower motor, air intake, and intelligent over-temperature sensing system. All-metal air source ensures operation in dusty environments, and unit also features adjustable air damper for flow control.

Pro-face America, Inc    Saline, MI 48176-1292
Jul 03, 2007 Suited for use on production floors, PS3710A Light-Duty Industrial Computer is powered by 1.6 GHz Intel® Pentium® M processor and features 15 in. display. Aluminum housing offers cut-out dimensions that facilitate HMI removal and replacement for Pro-face and Xycom clients. Along with Remote Access Server functionality, computer offers multiple I/O ports compatible for video, audio, USB, and Ethernet connections; choice of 1 GB or 512 MB RAM; and Windows 2000/XP OS.

Molex Inc.    Lisle, IL 60532-1682
Jul 03, 2007 Based on Molex small media interconnect (SMI), plastic optical fiber data link product offers seamless optical data links compatible with IEEE 802.3u. Surface or through-hole solder mounting options are available, and device offers duplex, push-pull positive latching. Available in active device transceivers, adapters, cables, and field termination tooling, system utilizes Firecomms RCLED-based 650 nm FOT TX/RX transceivers and offers up to 250 Mbps links up to 50 m.

Ramtron International Corp.    Colorado Springs, CO 80921

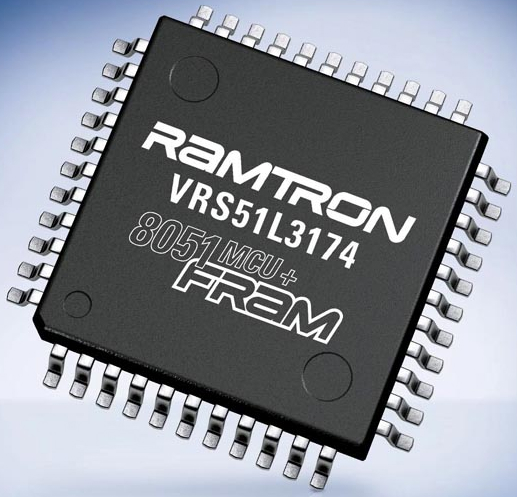

Jul 03, 2007 Data storage/processing system, VRS51L3174, drops into 44-pin QFP sockets to facilitate device migration. This 8051-based microcontroller (MCU) offers 8 KB nonvolatile ferroelectric random access memory (FRAM) memory and operates at 3.3 V over industrial temperature range. SoC DAQ solution combines 40-MIPS, single-cycle 8051 processor; 64 KB Flash with in-system/in-application programming; 4 KB SRAM; DSP extensions; and digital peripheral set.
