Impact Acoustics    Dayton, OH 45404
Jul 11, 2007 Enabling up to 5 HDTV source devices to be plugged in simultaneously and switched between, 5-Port HDMI Selector Switch provides inputs for devices such as DVD, Blu-Ray and HD-DVD players, gaming systems, and high-definition set top boxes. Unit supports 480i, 480p, 720p, 1080i, and 1080p video resolutions as well as DDWG standard for HDMI-compatible monitors. It features front panel LEDs, integrated IR remote control, and built-in IR extender jack.

Numerical Control Computer Sciences (NCCS)    Newport Beach, CA 92660
Jul 11, 2007 NCL multi-axis machining software featuring visual calculator that enables users to access standard functions of scientific calculator along with all other provided numeric and geometric functions. Single interface allows users to compute numeric equations, distances between geometric entities, angles between entities, and length of any entity. While users perform calculations, calculator builds formula that can be edited and saved for later reuse.

Toray Plastics (America)    North Kingstown, RI 02852
Jul 11, 2007 FDA-approved cast polypropylene sealant films include CPP ZK100 film that features low haze, non-whitening, and stress-crack resistance for retort pouch constructions. CPP CF9501 sealant film for retort lidding with secure, easy-to-peel lamination can be used on polypropylene containers. Exhibiting heat seal and impact strength, films withstand sterilization temperatures up to 135°C. Both can be combined with polyester films such as Barrialox aluminum oxide-coated films.

STMicroelectronics    Lexington, MA 02421
Jul 11, 2007 Compliant with specifications of single-phase class 0.5 static meters, Series STPM1x ICs measure energy as pulse frequency output. Designed for electronic meter manufacturers, power-metering chips include hardwired DSP that uses ripple-free computation algorithms to calculate consummated active energy. Offered in TSSOP20 ECOPACK® package, ICs are configured and digitally calibrated through serial port using OTP cells for storing calibration parameters.

ARRIS    Suwanee,, GA 30024
Jul 11, 2007 Designed to support multiple video and DOCSIS-based services, field upgradeable Model D5 Universal Edge QAM (UEQ) accommodates 72 QAMs per 2 RU chassis. Operator can choose between quad bonding ratio of 4 QAM channels per RF port and hex bonding ratio of 6 QAM channels per RF port to mix and match QAM capacity to network configuration needed on channel-by-channel basis. Flexible, multi-service platform can also support VoD, SDV, and broadcast.

Emerson Electric Co.    St. Louis, MO 63136 8506
Jul 11, 2007 Available with universal ac-driven and 24 Vdc power supply options, Model 1056 is offered as single- or dual-input analyzer that measures turbidity, pH/ORP/ISE, conductivity, oxygen, chlorine, and ozone. Line-powered instrument features large high-contrast LCD display, intuitive menu screens, and 7 programmed languages. Four process variables or diagnostic parameters are displayed simultaneously from every screen, giving operators process information at a glance.

Fluensee, Inc.    Englewood, CO 801122
Jul 11, 2007 Fluensee Yard(TM) offers planning, management, and RFID visibility abilities that help companies manage large and complex yard environments. Enhanced user interface provides high visibility into yard and labor productivity and automated way to locate transportation assets and inventory. It features subscription-based alerts, carrier-scheduled appointments, RTLS, gate processing and security, scheduling and task management, and yard planning and modeling.

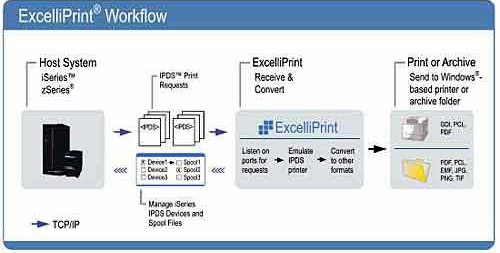

Brooks Internet Software, Inc.    Idaho Falls, ID 83404-6400
Jul 10, 2007 ExcelliPrint® v3.2 software for IPDS printing in mixed IBM and Windows® print environments supports all Windows and PCL printers, and also saves to PDF. Included Windows print server receives IPDS requests from mainframe (zSeries®), midrange (iSeries(TM)), System i, and AS/400® IBM servers. Premium edition features IPDS to PDF and TIFF transfer capability, and includes interface for managing System i IPDS devices and spool files from within browsers.

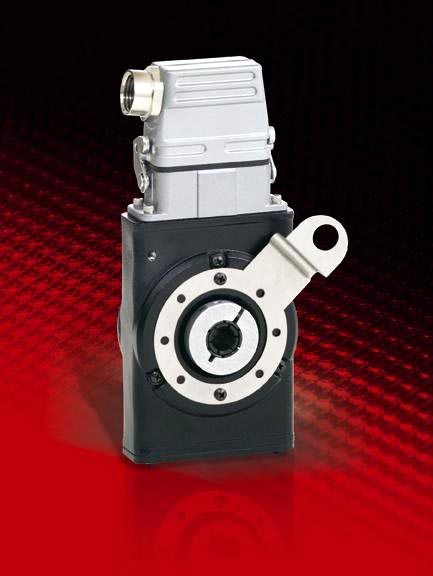

Danaher Industrial Controls    Gurnee, IL 60031
Jul 10, 2007 Model HSD35 Motor-Mount Encoders utilize optical technology coupled with field-serviceable connectors to reduce large motor downtime. Features include, optional dual outputs, ½ in. NPT connection, and stamped metal or swivel ball tether mounting options. Second output is electrically isolated, and backs up first output when not in use. Unit is rated IP65/NEMA 4 and individual seals are rated IP67.

Blow Molded Specialties    Pawtucket, RI 02860
Jul 10, 2007 BMS Custom Molded Bellows are available in sizes from ¼-6 in. dia by up to 16 in. long with 0.015-0.040 in. thick walls, and can be manufactured from wide range of materials for chemical resistance and bio-compatibility. Available convoluted or corrugated, they can incorporate various open- and closed-end finishes. Bellows can also be integrated with straight tubing to simplify alignment or compensate for vibration.

AXIOMTEK    Taipei   Taiwan
Jul 10, 2007 Powered by Intel® Q965+ICH8DO chipset, IMB201 supports LGA775 socket for Intel® Core(TM)2 Duo/Pentium® D/Pentium 4/Celeron® D desktop processor with 533/800/1,066 MHz FSB. Board is designed for computing- and graphics-intensive applications. RoHS-compliant unit features 4 DDR2 DIMM sockets with max memory capacity of 8 GB; VGA function with Intel® GMA 3000 architecture; and max video memory of 256 MB. Other features include 300 MBps SATA ports, RAID 0/1/5 support, and PCI/PCIe slots.

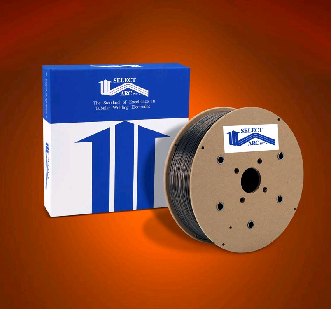

Select-Arc, Inc.    Fort Loramie, OH 45845-0259
Jul 10, 2007 Suitable for multiple pass applications, SelectWear 50 consists of open arc, medium chromium carbide alloy with weld deposit that exhibits resistance to moderate wear and impact. Unit's deposit stress relieves itself by crack checking. Designed to deposit martensitic alloy similar to H12 tool steel, SelectWear 52W is available in gas-shielded or open arc version. It offers resistance to high compressive loads as well abrasion resistance and hardness without stress relief crack checking.

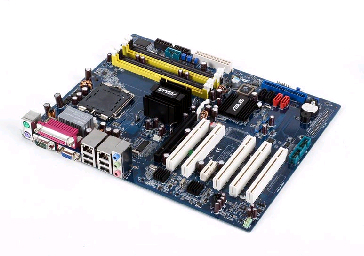

Advantech Automation Corp.    Cincinnati, OH 45240
Jul 10, 2007 Featuring 945G chipset, Model AIMB-763 LGA775 Core 2 Duo Pentium 4/Celeron D processor includes Intel GMA 950 graphics controller with 400 MHz core, 224 MB shared video memory, and DirectX 9 3D hardware acceleration. It offers dual channel DDR2 533/667 SDRAM of up to 4GB and PCIe 16 slot for VGA card, which supports high performance graphic cards that permit connection to display devices such as CRTs and LCDs.

C.M. Mockbee Co., Inc.    Cincinnati, OH 45223
Jul 10, 2007 Portable, hand-operated Mobile Test Stand is designed for testing of hoisting equipment as required by applicable sections of ASME Code B30.16 Overhead Hoists. It can be moved to multiple inspection areas with base mounted wheels or with any lift truck using built-in fork slots. Able to apply test loads up to 15,000 lb at 6,787 psi, it is capable of both static and dynamic testing. Hand-operated hydraulic pump eliminates need for electrical power.

Stanley-Proto Industrial Tools; A Division of The Stanley Works    Conyers, GA 30013
Jul 10, 2007 Featuring 15° head sets that allow quick repositioning, open-end Engineers' Wrenches come in lengths up to 23 13/16 in., extending users' reach into hard-to-access locations. Units are available 13 metric sizes with black oxide finish. Ranging in length from 2-14 in. and offered in 11 metric sizes, Leverage Wrenches feature deep offset box heads and are used with 4 detachable handles up to 33 in. long. Applications include oil, gas, mining, shipyards, and commercial construction.

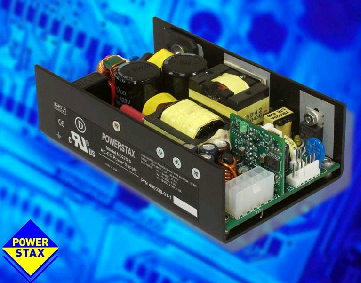

Powerstax plc    Farnborough, Hants GU14 0NR  United Kingdom
Jul 10, 2007 Featuring digital power management, 275 W Series N-0275 delivers 12.22 W/in³ power density at up to 90% efficiency. On-board microcontroller monitors dc voltage on bulk capacitor, output voltage, output current, auxiliary 12 V output voltage, and transformer temperature. It can provide timing accuracies in 1% range and does not suffer from stored charge memory. Optional I²C digital communications interface allows up to 4 power supplies to communicate over same bus using PMBus(TM) protocol.

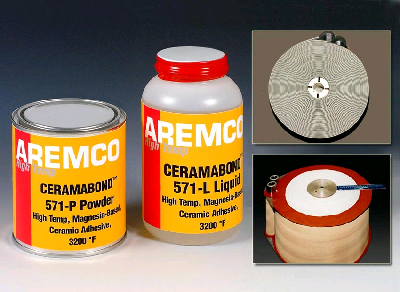

Aremco Products, Inc.    Valley Cottage, NY 10989
Jul 10, 2007 Suited for applications up to 3,200°F, magnesium oxide-based Ceramabond(TM) 571 demonstrates volume resistivity of 109 W-cm, dielectric strength of 255 V/mil, and tensile shear strength of 500 psi. Two-part, water-based product features mixed ratio of 1.5 parts powder to 1.0 parts liquid by weight. Adhesive sets at room temperature and is cured rapidly at 200°F in 1-2 hr. It is completely inorganic with no VOCs and will not outgas in ultra high vacuum.

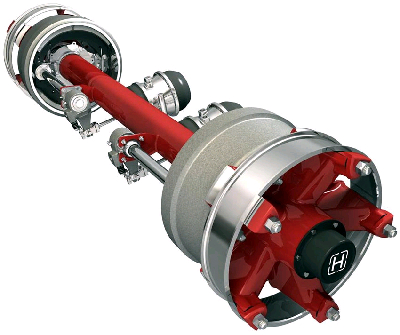

Hendrickson Trailer Suspensions Systems    Canton, OH 44707 2641
Jul 10, 2007 With 22,500 lb capacity, 5 in. round Hendrickson Chassis Axle(TM) features one-piece axle bar with hot-formed spindles and axle filter for internal venting. It has rigid forged steel spiders, and 16.5 x 7 in. brakes. Hardened machined cam heads, journals, and splines, plus oil-impregnated bronze spider bushing provide durability. Axle comes fully dressed with standard package including e-coated brake shoes, 5-spoke hubs, and drums.

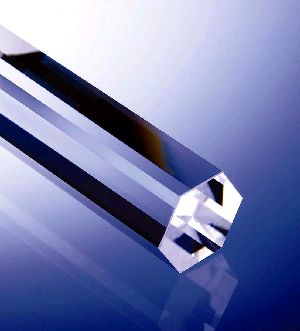

Edmund Optics    Barrington, NJ 08007
Jul 10, 2007 Suited for OEMs, TechSpec(TM) rods use total internal reflection to turn non-uniform light source into uniform illumination and deliver it to target site. Because homogenizing effects of traveling through rod are not wavelength or entry-angle dependent, rods can mix light from multiple sources into uniform beam. This allows OEMs to use rods to combine light from several LEDs to increase illumination intensity or to mix colors for unusual spectral characteristics.

AutomationDirect.com    Cumming, GA 30040-9905
Jul 10, 2007 Comprised of 22 models, SOLO(TM) series is available in 4 standard DIN sizes, each equipped with dual 4-digit, 7-segment display. Dual output control is suited for heating and cooling processes, and output configurations are available in various combinations. Along with built-in autotune function with PID control, features include 4 control modes, universal inputs, and alarms. All controllers support 13 types of temperature inputs and 5 types of analog inputs.
