New Vista Corp.    Baltimore, MD 21205
Jul 12, 2007 Comprised of servomotor, servodrive, and motion programming, all-electric Thread Chasing Unit can clear weld spatter, chips, paint, or burrs from internal or external threads in production parts. Forward torque is adjustable up to 10 lb-ft and reverse torque is 20 lb-ft to assure tool will not stick in threads. Three sizes are available to chase threads from 3-50 mm.

Andax Environmental Corp.    St. Marys, KS 66536

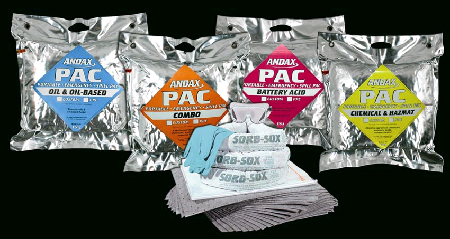

Jul 12, 2007 With Spill Preparedness Control Center, 2 x 4 in. color-coded labels enable user to identify which Spill Pac to use for spill or leak. Each Pac contains spills up to 10 gal and prevents larger spills from spreading. Vacuum-packed in foil-laminated bag, Pacs are tamper-evident and suited for cleaning up chemical/hazmat leaks and spills, battery acid and other caustic liquids, as well as oil and oil-based fluids. Portable Pacs are designed to hang on wall-mounted Pac Rac(TM).

Chloride Systems    Burgaw, NC 28425
Jul 12, 2007 Wet/damp location listed Tuff-Act operates from -40 to +113°F, and includes Intelli-Charge diagnostics to monitor all critical functions. Energy Star rated unit features high-brightness LEDs and provides 120 min emergency power with sealed NiCad battery. Available in AC Only and Self-Powered models, unit features aluminum housing with impact-resistant, injection-molded polycarbonate covers and vandal-resistant and anti-corrosion coated hardware.

Viscotek Corp.    Houston, TX 77060

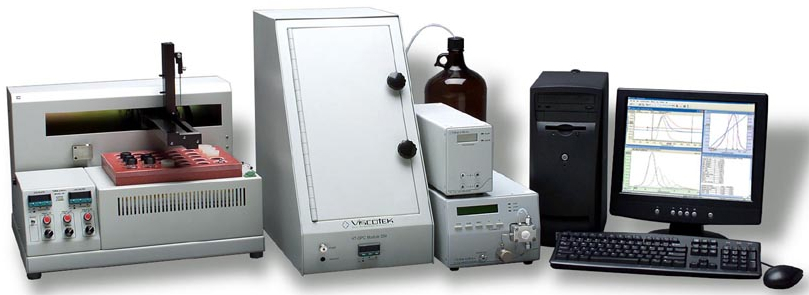

Jul 12, 2007 Designed in a modular component format, Model 350 HTGPC features automated sample preparation and delivery; self-cleaning, in-line sample filtration; and detector module that can be removed from high-temperature (175°F) environment for maintenance. When configured with Refractive Index detector and Low Angle/Right Angle Laser Light Scattering (LALS/RALS) detector, solution provides absolute molecular weight, molecular size, and other information critical to application.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
Jul 12, 2007 Housed in 35 mm DIN rail case, Laureate Model TA-FRT is powered by 95-240 Vac ±10% or optionally by low voltage 8-28 Vac or 9-37 Vdc. It produces isolated 4-20 mA or 0-10 V output and includes dual-channel signal conditioner, which is suitable for pulse or ac sources, such as NPN or PNP proximity switches, contact closures, magnetic pickups down to 12 mV, or ac voltages up to 250 Vac. Equipped with RS232 port, transmitter is programmed via external PC and Instrument Setup software.

Binder-USA    Camarillo, CA 93012
Jul 12, 2007 Ensuring correct torque value of 0.6 Nm, Torque Wrench aids in connecting standard M12 field-attachable cable connectors with hex-shaped locking nuts. It also allows connectors to be unmated as it locks when motion is reversed. Featuring comfortable grip and replaceable jaws, wrench helps guarantee IP67-rated connection.

HYTEK Automation, Inc.    Waterloo N2T 2T1  Canada

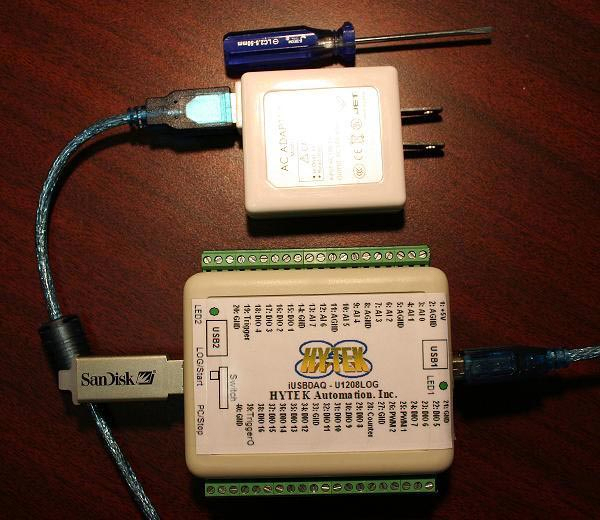

Jul 12, 2007 Model iUSBDAQ-U1208LOG 3-in-1 USB DAQ combines fast speed PC-controlled USB DAQ, stand-alone USB flash drive data logger, and bundled video functions into one unit. Throughput rate can go up to 64 kS/sec in PC control mode, and it has virtually unlimited data storage in data logger mode. Built-in video functions in software enable integration of video into DAQ applications.

Electro Standards Laboratories    Cranston, RI 02921 3403

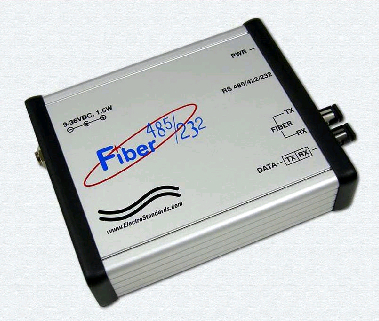

Jul 12, 2007 Featuring ruggedized design, Model 4149 operates at speeds of 1.5 Mbps for RS232-to-fiber conversion and 20 Mbps for RS485/422-to-copper conversion. Power input is protected from transients and features 3 kVdc isolation to prevent system ground loops. Powered from 9-36 Vdc input range, converter operates from -40 to +85°C and includes user-selectable fiber polarity, dual DB9 power connectors, as well as TX, RX, and power indicator LEDs.

Cornell Dubilier    Liberty, SC 29657
Jul 12, 2007 Utilizing high Q alumina silicate (mica) resin/epoxy construction to avoid cracking and delaminating, Type MCH capacitors feature cataloged capacitance values from 10-220 pF at 4,000 Vdc and up to 1,000 pF at 2,500 Vdc. Chips are available in .380 x .380 in. case, and rugged flexibility and high temperature threshold of chips is compatible with FR4 boards and permits wave soldering. MCHN non-magnetic version is also available.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373

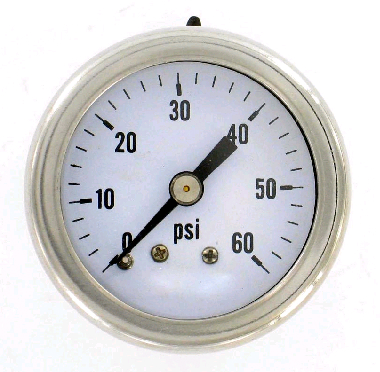

Jul 12, 2007 Featuring stainless steel case and ring, SGA Series is suited for applications where corrosion and vibration are of concern. Gages offer ranges from 15-1,500 psi and are available with lower or back mount connections. Suitable for all media compatible copper alloys, 1.5 and 2 in. units come dry but can be filled in field. Optional U-clamp bracket is available for 1.5 in. dial size model to facilitate panel mounting.

Blockmaster Electronics, Inc.    Elk Grove Village, IL 60007

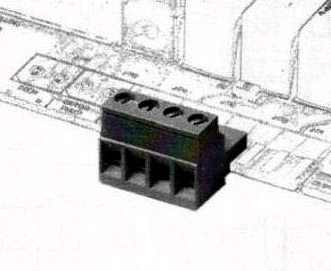

Jul 12, 2007 Available in side stackable and polarized versions, CUF Series Female Connectors directly connect to comb edged male connector built on appropriate circuit board. With pole pitches of 5 and 10 mm, side-stackable units feature 2-16 poles, accommodating wire sizes from 12-30 AWG. Polarized versions come in 5-16 poles for 5 mm pitch and 2-8 poles for 10 mm pitch. Operating voltage for both types is 300 and 750 V at rated current of 10 A.

Equipment Solutions, Inc.    Sunnyvale, CA 94086
Jul 12, 2007 Providing 150 nm positioning resolution, VCS-10H Series offers 10 mm travel and can be used as horizontal or vertical axis. Integrated noncontact optical and/or digital position feedback sensor enables 200 nm repeatability. Measuring 1.3 x 3.0 x 1.25 in., voice coil stages use ±12 Vdc to ±24 Vdc and can be supplied with single-axis DC motor controller and amplifier. Cleanroom compatible, cross roller stages are rated at 1.5 lb continuous force and 3 lb peak for 10 sec.

Omega Engineering, Inc.    Stamford, CT 06907

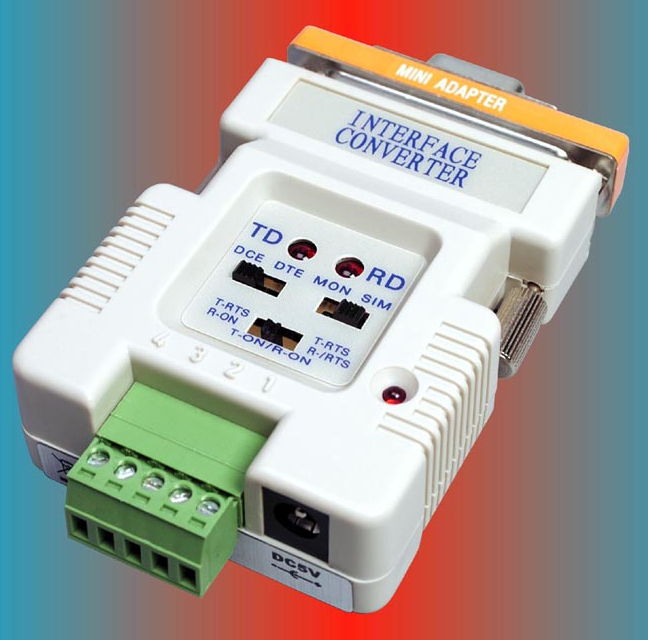

Jul 12, 2007 Available for half/full duplex, IC11A-F & IC11-PLUS intelligent RS-232 to RS-422/485 converters attach on one end to RS-232 device and on the screw terminal end to an RS-422/485 device. Miniature converters allow data transfer rates up to 120 kbps. Power is acquired directly from computer's serial port, or by using included USB-plug cable.

Quantum Devices, Inc.    Barneveld, WI 53507
Jul 12, 2007 Model JR12 provides feedback solution in applications typically using pancake resolvers with same threaded shaft and jam nut mounting. Flexible member enables tail shaft run out and TIR and mounting flange eliminates need for servo mounting clips. Output options consist of quadrature with index pulse and 3-phase commutation.

Eaton Filtration    Iselin, NJ 08830
Jul 12, 2007 Manufactured from investment castings, SIDELINE(TM) Bag Filter Housings feature bead-blasted finish, which, along along with minimum 2 weld design, facilitates cleaning of wetted interior surfaces. Housings come with eye-bolt closure on cover and choice of 2 or 3 in. ANSI flanged piping connections for 01 and 02 sizes and 1½ in. NPT threaded connections for 03 and 04 sizes. Side inlet on housing, coupled with evacuation cover, minimizes spillage of unfiltered process fluid.

Phihong USA    Fremont, CA 94539

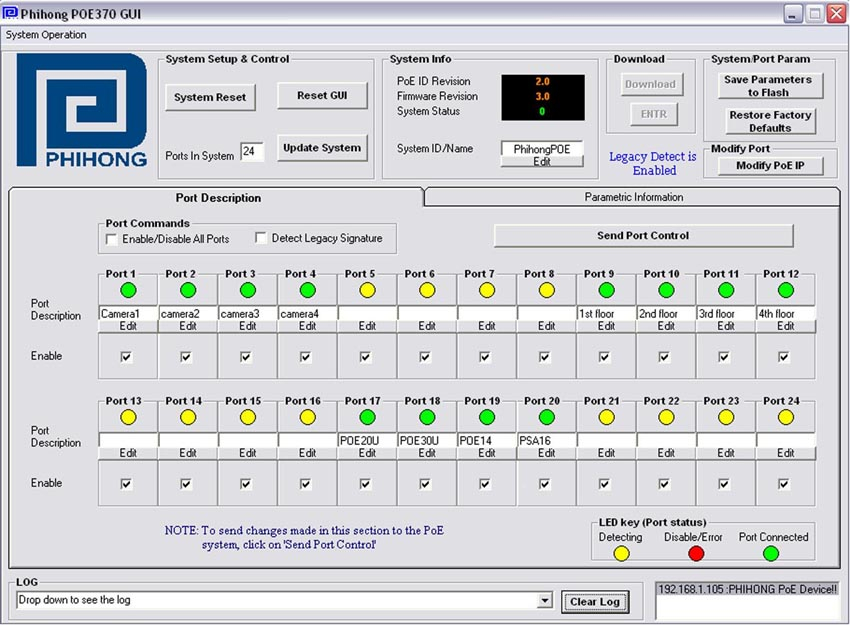

Jul 12, 2007 Suited for use with Simple Network Management Protocol (SNMP)-capable midspans that provide 15.4 W of power per port for VoIP phones, security cameras, and access points, GUI console allows network administrators to remotely monitor and reset devices in any location with internet access.

PDC International Corp.    South Norwalk, CT 06854
Jul 12, 2007 Suited for food and diary product packaging, tamper-evident F-Series Shrinkbanders are fully mechanical and do not use vacuum or pneumatics. They apply tamper-evident bands 1-1.6 in. high to large diameter tubs and containers used for various applications, and accommodate band dia from 2.5-6.75 in. Built to UL standards, fully enclosed, stainless steel systems interface with Smooth Diversion Inspection/Ejection System.

Ingersoll-Rand Co.    Annandale, NJ 08801

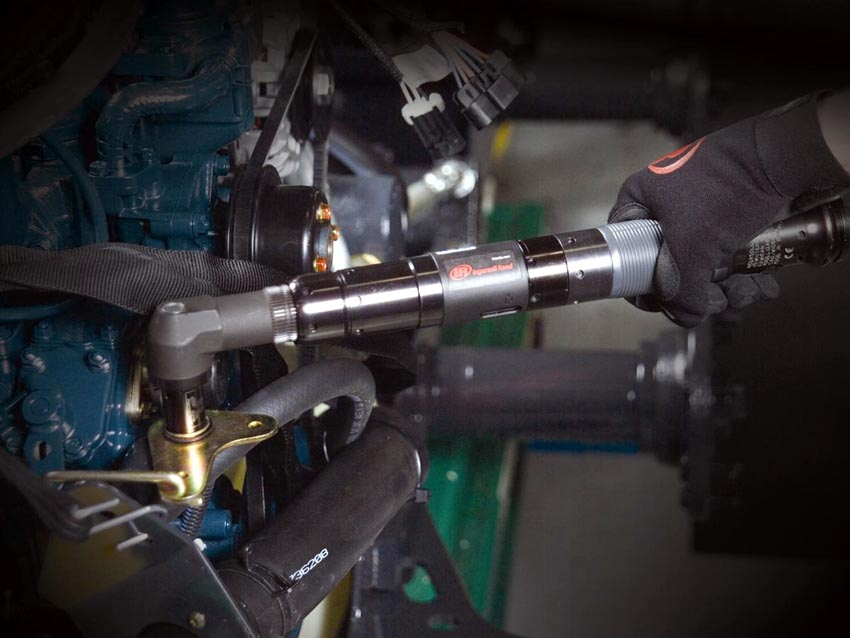

Jul 12, 2007 Engineered for industrial and assembly professionals, Series QA6 nutrunners can be used on hard or soft joints including plastics, composites, or metals, and are suited for fastening applications that require precise torque control. They feature ergonomic grips, externally adjustable shut-off clutches, and conveniently located reverse rings. Units run off lube-free motors and are customizable to operator's application in straight and angle configurations.

Kemet Electronics Corp.    Greenville, SC 29606
Jul 12, 2007 Designed for use in portable electronics, T528 Series KO-CAPs are offered in I-Case (3.2 x 1.6 x 1.0 mm) and M-Case (3.5 x 2.8 x 1.5 mm) sizes. Former delivers values from 100 µF @ 3 V to 33 µF @ 10 V and ESR offerings from 150-200 mW, while latter offers values from 330 µF @ 3 V to 100 µF at 10 V with ESR offerings from 150-200 mW. Both can be used for decoupling and filtering in power management applications where space is limited.

SpreadsheetGear LLC    Lenexa, KS 66220
Jul 12, 2007 Featuring Excel-compatible calculation engine as well as Windows Forms Spreadsheet Controls, SpreadsheetGear for .NET 2007 gives Microsoft .NET developers ability to create, read, modify, view, edit, format, calculate, print, and write Microsoft Excel workbooks without Excel. Program includes conditional formats, grouping and outlining, find and replace, sorting, and Visual Basic version of SpreadsheetGear Explorer Sample Solution.
