Meese Orbitron Dunne Co.    Ashtabula, OH 44004
May 01, 2012 Rotationally molded from HDPE with internal rib design, Poly-Trux® P-405 Heavy Duty Tilt Trucks have powder coated steel support frame and base that safely accommodate up to 1,300 lb of material. Units roll and steer on two 10 in. rear wheels and 2 swiveling front, non-marking casters. Available with optional tow hitches, hinged lids and nylon dust covers, tilt trucks are suited for collection and transfer of bagged refuse, office waste, recyclables, and scrap.

Ergodyne Corp.    St. Paul, MN 55108

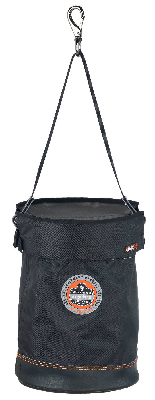

May 01, 2012 Featuring molded plastic top ring and nickel-plated swiveling snap, Arsenal® Synthetic Hoist Buckets remove additional weight from workers by hoisting heavy gear and equipment to jobsites in the sky. Units are constructed with 840D nylon main material, heavy gauge nylon stitching, and PP webbing with leather reinforcement. Models are also available with non-swiveling design, and with safety tops attached.

Newport Corporation    Irvine, CA 92606
May 01, 2012 Offered with SG optical breadboard platforms in sizes from 24 x 24 in. to 36 x 72 in., scientific-grade (SG) series Vision IsoStation(TM) provides features and accessories that facilitate installation and setup while promoting lab-space utilization. SG series breadboards, with 3/16 in. ferromagnetic stainless steel working surface, damping, sealed holes, and surface flatness better than ±0.004 in. over 2 ft, are stable and rigid due to steel, triple-core-interface honeycomb construction.

Goodrich Corp.    Charlotte, NC 28217
May 01, 2012 Consuming 1.5 W, Model GA640C-15A integrates into handheld, helmet, or weapon mounted surveillance devices and unmanned aircraft. Uncooled SWIR detector images in real-time, daylight to low light, through smoke, haze, and fog. Operating from -35 to +71°C, C-platform camera features 640 x 512 pixel resolution with 15 micron pitch and 0.9-1.7 micron spectral range. Camera Link® digital output offers plug-and play, 12-bit imagery for viewing, digital processing, and/or transmission.

Heason Technology Ltd    Horsham   United Kingdom
May 01, 2012 Nanomotion ER15 direct-drive ceramic rotary servo motor provides inherent braking and ability to eliminate servo dither when in static position, even under power-off conditions. Incorporating 4 tiny Edge ceramic linear motor elements in backlash- and hysteresis-free arrangement, rotary piezo motor suits space-restricted rotary motion applications. Max output torque is rated at 10 mNm, and dimensions are 15 mm dia x ~22 mm long.

Kitagawa Div. North Tech Workholding, Inc.    Schaumburg, IL 60173
May 01, 2012 Custom designed for Haas ST-40 turning centers, ST-40 Steady Rest is manufactured to compliment and support extreme rigidity and heavy cutting capabilities of large capacity machines. Unit rests comfortably in bed and allows ample clearance for clamping and turret operations. Supplied as complete kit, ST-40 provides smooth installation and eliminates work-around conditions.

ON Semiconductor, LLC    Phoenix, AZ 85008
May 01, 2012 Incorporating internal power switch and operating at 2 MHz, NCV890100/101/200/130/131/231/201 suit space-constrained EMC sensitive automotive entertainment and infotainment applications. These AEC Q100-qualified and PPAP-capable products, which can convert 18 V input to outputs as low as 3.3 V and 16 V input to outputs as low as 2.5 V, operate from 4.5-36 V, tolerate load dump voltages up to 45 V, and deliver 1.2 or 2 A peak output current (depending on version).

California Eastern Laboratories    Santa Clara, CA 95054
May 01, 2012 Powered by EmberZNet PRO(TM) EM357 ZigBee chip, MeshConnect(TM) EM357 Mini Modules enable monitoring and control in energy management, smart home, LED lighting, and machine-to-machine applications. Low and high output powers of +8 dBm and +20 dBm allow designers to choose radio performance that best suits requirements. EM357 SoC IC combines RF transceiver with baseband modem, hard-wired MAC, and embedded 32-bit ARM® Cortex(TM)-M3 MCU with 12 KB internal RAM and 192 KB flash memory.

Teradata Corporation    Dayton, OH 45342
May 01, 2012 Combining Teradata 700 appliance with software for data exploration, model development, and model deployment, SAS High-Performance Analytics for Teradata helps address business and IT challenges. In-memory analytics distribute complex analytics in parallel across vast pool of memory, giving organizations high-speed tools to tap into patterns and insights hidden in large volumes of data. By compressing analytical modeling lifecycles, system enables users to solve business problems quickly.

Hexagon Metrology Inc.    North Kingstown, RI 02852
May 01, 2012 Pre-configured with touch-probe for multi-sensor measurement, Optiv® Classic 321GL tp is used for inspection of complex, densely populated features of precision parts. Benchtop unit's 6.5x motorized CNC zoom optics deliver accuracy levels approaching 2 microns, while calibrated lighting, hi-resolution color CCD camera, laser locator, and 8-segment LED dual angle ring light are optimized for edge detection. Other features include RGB sensitivity controls and image processing software.

Edmund Optics    Barrington, NJ 08007
May 01, 2012 TECHSPEC compact instrumentation imaging lenses have adjustable locking focus design and feature broadband anti-reflection coating for maximum light transmission. Designed for volume integration, they deliver high image quality with low lens-to-lens variation. Available with wide range of fixed aperture options to allow flexibility of resolution, throughput, and depth of field, lenses are offered in 17 different aperture stop versions, from f/1.4 out to f/8, in 16, 25, and 35 mm focal lengths.

TRU-Vu Monitors, Inc.    Arlington Heights, IL 60004
May 01, 2012 Measuring 21.5 in., Model SRM-21.5Z produces sharp, crystal-clear HD video images that are bright enough to overpower sunlight, or other harsh ambient light. Unit features 1,920 x 1,080 resolution, 178 x 178° viewing angle, anti-reflective coating, and lockable OSD controls as well as VGA, HDMI, DisplayPort, and DVI video input signals. Applications include process monitoring stations, outdoor kiosks, pipeline inspection systems, information boards, offshore drilling rigs, and truck terminals.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
May 01, 2012 Available in black or white, TMW7-5 comes with built-in standard type A USB socket or output cable with mini USB-B connector. Class II power adapter, featuring 90-264 Vac universal input and 5 Vdc output, comes in fixed or interchangeable AC plug configurations. Power supply delivers up to 6 W continuous output power, with standard 5 V/1 A or optional 5 V/1.2 A output; typical efficiency is 75% at full load; and standby power consumption is less than 0.3 W.

KORENIX Technologies    Taipei 231  Taiwan
May 01, 2012 Offering rear Ethernet ports, JetNet 5628G-R IEC 61850-3 substation certified modular managed rackmount switch provides flexible connection possibilities. Only LEDs are displayed on front panel, allowing users to monitor system and port status. Rated -40 to +85°C, fanless switch provides 4 on-board gigabit combo ports for high-speed backbone links and 3 exchangeable modular slots. Various combinations of latter let users form up to 24 copper or 18 fiber connections.

American Industrial Systems, Inc.    Irvine, CA 92614
May 01, 2012 High-performance operator interface terminals are offered in 4.3, 7, 10 and 15 in. versions and are designed to connect automation products to each other, including PLCs, I/O devices, and computers. HMI touch-panels offer wide variety of communication interfaces and protocols to effectively connect plants and machine control systems. Customized solutions offer hardware and software flexibility, comprehensive device management, intelligent functionality, and compliance with environmental regulations.

Inter-Mec Systems Manufacturing, Inc.    Cherry Creek, NY 14723
May 01, 2012 Designed to print small barcodes, text, and images, metal-constructed Model PM43 and compact Model PM43c feature color touchscreen, choice of 10 languages or universal icons, and web-based user interface. Printers can be monitored from anywhere via handheld computer, laptop, smartphone, or tablet using WiFi or Ethernet connection. With smart printing capabilities, users can create stand-alone applications through embedded programming language and directly control other devices through printer.

Accutex EDM    Mason, OH 45040
May 01, 2012 Built with Meehanite cast honeycomb base, ribbed column, and reinforced lower arm for stiffness, 5-axis Model SP-300iA includes MST-II function for optimal part finishes. Machine is equipped with annealing, fully automatic wire threading system with tip disposal unit. X, Y, Z working range is 13.8 x 9.8 x 8.7 in., and U and V axes are both 3.15 in. Driven by closed-loop AC servo motors with 0.000004 in. resolution, axes are controlled by linear glass scale feedback system.

Chromalox    Pittsburgh, PA 15238
May 01, 2012 With profile that optimizes heat transfer, polyimide (Kapton®) flexible heaters come in 24, 28, 115, and 240 V standard configurations and exhibit virtually no outgassing when energized. Various compatible temperature controls are available, including integrated thermistors, thermocouples, resistance temperature detectors, and thermostats. Designed for applications up to 200°C, heaters come in sizes up to 12 x 18 in. and have bend radius of .032 in. minimum.

Intelligent InSites, Inc.    Fargo, ND 58102
May 01, 2012 Available in Apple's App Store, InSites Connect(TM) enables healthcare providers to optimize workflow processes, positively impacting quality of care and optimizing staff satisfaction. Healthcare personnel can view instantly, on iPhone, location and status of medical equipment, as well as patients and staff, eliminating time spent searching facility for equipment or people. Through InSites Connect, staff can also receive time-sensitive alerts, messages, and tasks.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 01, 2012 NOMCA series of dual-in-line thin film resistor networks features low absolute TCR of ±25 ppm/°C, TCR tracking of 5 ppm/°C, ratio tolerances to ±0.05%, and long-term ratio stability of 0.05% after 1,000 hours at +125ºC. For improved ESD and moisture protection, resistor networks are constructed with self-passivating tantalum nitride resistor film on high-purity alumina or ceramic substrate. Featuring 50 mil pitch construction, they offer 7 or 8 isolated resistors in 14 or 16-pin SOIC packages.
