Bel Fuse, Inc.    Jersey City, NJ 07302 4419
Jul 26, 2007 Capable of delivering 40 W of output power at higher voltages, or up to 18 A of output current at 1.2 V, 1/16 brick DC-DC converters operate over 4:1 input range of 18-75 Vdc. They feature fixed frequency synchronous rectification control together with positive/negative remote sense, remote on/off logic, and ±10% output trim. Protection features include input and output over-voltage, over-temperature, current limit, and short circuit protection, and under voltage lockout.

eAutomation Group of Advantech    Cincinnati, OH 45240
Jul 26, 2007 Featuring Intel Pentium M 1.4 GHz/Celeron M 1 GHz processor, Model TPC-1070H SVGA TFT LCD Touch Panel Computer supports Windows operating systems such as 2000 and XP, and embedded operating systems such as CE and XPe. Fanless system includes RS-485 serial port with auto flow control, dual fast Ethernet, and downward facing cable connectors for panel mounting and cable routing. Bezel is solid cast aluminum for heat dissipation and is designed for NEMA 4/IP65 compliant applications.

Impact Acoustics    Dayton, OH 45404
Jul 26, 2007 Compatible with all interlaced or progressive scan analog HD component video signals, 6x2 Component Video Matrix Selector Switch simultaneously routes any of 6 HDTV source devices to 2 separate high definition TVs or monitors, or splits one source to 2 high definition TV/monitors. Switch features video bandwidth of 300 MHz, and contains 6 HD component video inputs, 6 stereo audio inputs, and 6 optical digital audio TOSLINK inputs with 2 outputs for each of these signal types.

JAI, Inc.    San Jose, CA 95134
Jul 26, 2007 With 1.45 megapixel resolution (½ in. SXGA), Models CM-140 MCL and CB-140 MCL operate at 31 fps, while Models CM-200 MCL and CB-200 MCL have 2 megapixel resolution (1/1.8 in. UXGA) and operate at 25 fps. Cameras are suited for range of vision applications such as automotive inspection, pharmaceutical inspection, and food and beverage production. Auto-iris function, which allows cameras to operate in range of light levels, enables cameras to be used in outdoor applications.

California Pacific Lab    Novato, CA 94949
Jul 26, 2007 Manufactured using chemically-resistant HDPE, ECO Funnel Version 3 prevents evaporation of hazardous chemicals from open waste containers in laboratory environment. It features vapor-resistant gasket, solids filter, heavy duty hinge, positive latch, and screw cap. System exceeds EPA, OSHA, and Fire Department Hazardous Materials Regulations and can be incorporated into existing HPLC waste system. Product is available in 2 sizes with variety of screw cap adapters.

COADE, Inc.    Houston, TX 77070
Jul 26, 2007 Offering integration between CADWorx Plant Professional and CADWorx P&ID Professional, CADWorx® Plant Design Suite 2008 lets users see components existing in process or instrumentation diagrams and select and place those components directly into model, automatically linking them. Alternatively, plant designers can also choose to fast track modeling process by linking items at later date. Software produces automatic isometrics by giving access to ISOGEN's current tool set.

SynchroTech    Lincoln, NE 68508
Jul 25, 2007 Suited for use with slotless PC notebooks and Apple MacBooks, MicroU2E USB 2.0 to USB 2.0 Mode ExpressCard 34 | 54 Host Adapter (Part No. USB-EXP-ADP-01) allows use of USB 2.0 Mode ExpressCard devices on USB 2.0 ports. Cross-platform device measures 45.9 x 58.2 x 13.4 mm and accepts USB 2.0-based ExpressCards in either 34 or 54 form factors. It will not work with any ExpressCard using PCI Express (PCIe) portion of ExpressCard standard.

SynchroTech    Lincoln, NE 68508
Jul 25, 2007 Requiring no drivers on supported Macintosh or Windows systems, CFFire800 Pro is capable of utilizing high-speed CompactFlash Cards with throughput to spare for future CF advancement. This FireWire 800 to CompactFlash Drive Read-Writer offers read speeds up to 43 MBps with Lexar UDMA 300X and 39 MBps with SanDisk Extreme IV CompactFlash cards. UDMA Mode 6 (ULTRA ATA/133) device plugs into 9-pin FireWire 800 (1394b) ports and utilizes bus power to promote portability.

Metronics, Inc.    Bedford, NH 03110 6818
Jul 25, 2007 With image archiving, Quadra-Chek 300 enables users to store measured part features, including test data and descriptive text, as JPG images for documenting, testing, and quality inspection purposes. System includes LCD monitor for full color display of parts, 2D measurements, and controls, as well as integrated direct camera input for Live Feed video display. Video edge detection option offers straight crossline, offset crossline, single edge, and multi-edge video tools.

Dynalab Corp.    Rochester, NY 14623

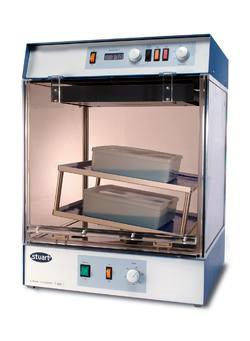

Jul 25, 2007 Model SI70 combined incubator and gyro-rocker provides forced air circulation up to 60°C. Measuring 17.47 x 17.2 x 24 in., device features blue non-slip mat to hold vessels in place. Rocking speed is variable with electronic feed-back control to accurately maintain set speed, and rocking action is automatically halted when door is open for user safety. Angle of rocking platform can be adjusted and choice of 2 tier heights is available.

Kardex Remstar LLC    Westbrook, ME 04092
Jul 25, 2007 QuickPick® Position Indicator (QPi) indicates order picking information for Remstar horizontal carousels directly in front of exact storage tote or container. QPi moves vertically, positions itself above or below shelf level, and indicates correct container by flashing arrows. It shows the operator tote position, as well as the required transaction quantity, resulting in more efficient and accurate order picking.

Baldor Electric Company    Fort Smith, AR 72901
Jul 25, 2007 V*S Drive line consists of Models VS1SP sensorless vector drive and VS1GV closed loop vector drive that include 115 Vac models with up to 3 hp, 230 Vac models with up to 60 hp, and 460 and 575 V models with up to 125 hp. Ranging from ½ to 10 hp, V*S1 microdrives assure consistent motor control through range of voltages, horsepowers, and enclosure types. Suited for pump and fan industry, model VS1PF drive is available from 5-700 hp.

Regal Components, Inc.    Clearwater, FL 33762
Jul 25, 2007 Custom Precision Pins and Punches can be manufactured from various grades of tool steels such as M-2, A-2, A-10, H-13, S-7, PM-M4, PM-10V, and PM-15V for toughness and wear resistance, 420SS and 440SS SS for corrosion resistance, and Moldstar(TM) copper alloys for heat transfer values. Available with tip diameters as small as 0.002 in. and lengths up to 14 in., they can be held to within 0.000050 in. tolerances and surface finishes to 2 rms.

Xilinx, Inc.    San Jose, CA 95124 3400
Jul 25, 2007 Helping users develop and test applications, CoolRunner(TM)-II is suited for prototyping handheld devices, smartphones, and motor control interfaces. Kit includes evaluation board with 8 expansion connectors, ISE(TM) WebPack(TM) design software, and 3 modules, including PS2, 7-segment display, and slide switch. Available in densities from 32-512 macrocells, CoolRunner-II operates up to 323 MHz with pin-to-pin delays as fast as 3.0 ns while providing standby power of less than 33 µW.

Xiotech Corp.    Eden Prairie, MN 55344
Jul 25, 2007 Xiotech® CEMS(TM) captures, classifies, manages, and controls thousands of electronic files organizations generate that can become evidence in legal or compliance action. Once information is captured, software inspects each document and provides policy-based, automated classification, based on retention, destruction, and regulatory compliance requirements. It supports email messages and 390 attachment file types, as well as bulk import of electronic documents.

PINC Solutions    Berkeley, CA 94709
Jul 25, 2007 Yard Hound Product Suite uses passive RFID tags to track location and status of trailers, traces movements of yard trucks, and provides real-time picture of all yard activities via web-based application. It enables automatic yard checks, automatic alerts, and automatic documentation for all yard activities. Optional components include Yard Hound Director to communicate assignments to drivers, Reefer Monitor, and PINC Gate.

CoorsTek    Golden, CO 80403
Jul 25, 2007 Designed to address miniaturization and higher-power applications, DuraStrate consists of fine-grained (1.5-2.0 micron) microstructure material optimized for biaxial flexural strength, consistent thicknesses, camber flatness, and aged adhesion. Ceramic substrate material is designed for optimal performance in very thin (10-15 mil) varieties of thick-film substrates.

MCFIII    Chatsworth, CA 91311
Jul 25, 2007 DIY-Expertbot(TM) offers revenue-generating tools to home improvement industry by providing effective and engaging learning experiences based on real-life needs. To viewers, DIY-Expertbots looks like real humans on standard web cam, helping and communicating with customer. They combine MCF AI technology with video library of numerous shots with live model to create realistic appearance of live, real-time interaction with human expert performing demonstrations.

Corsair Memory    Fremont, CA 94538
Jul 25, 2007 Optimized for current and future Intel platforms, DDR3-1600 DOMINATOR, rated at 1,600 MHz (PC3-12,800), and DOMINATOR memory running at 2,000 MHz (PC3-16,000) range from 1 GB modules running at 2,000+ MHz to 2 GB modules for 64-bit applications. All DDR3 products support Intel® P35 and X38 Express platforms. Dynamic I/O signal termination and on-die dynamic termination reduce reflective signals transmitted to standby RAMs, enabling support for higher memory frequencies.

CoVi Technologies    Austin, TX 78730
Jul 25, 2007 Designed to work within SCAN (Security Camera Area Network) architecture, MultiStream(TM) CVQ-3100 streams HD video seamlessly into IP networks and is capable of capturing video in resolution levels up to 1,280 x 720. MultiStream encoding technology enables simultaneous recording of up to 6 different rates and resolutions of video. Along with wide-format 16:9 ratio (letterbox) picture, camera offers features that remove bandwidth consumption concerns of IT.
