Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Aug 13, 2007 MiniTest FH 7000 Series Thickness Measurement Device utilizes Sensor-integrated digital Signal Processing SIDSP® technology to measure thicknesses in nonferrous materials. Device emits an electromagnetic field, which attracts its target ball to its sensor as you move it around in scan mode over any material, up to 400 mil thick, to be measured. Other features include SPC capabilities and context-sensitive on-line help.

Saelig Co., Inc.    Pittsford, NY 14534
Aug 13, 2007 Zeroplus LAP-16128U PC-based 16-channel logic analyzer utilizes waveform compression technology to increase effective memory capacity beyond its physical 4 Mbit structure. All 16 channels compress at rates up to 255 Mbit, depending on data content. Analyzer can use USB 2.0's full 480 Mbps speed, and is backward compatible to USB 1.1's 12 Mbps connection. Features include 5 nsec glitch capturing capability and 100 Hz to 200 MHz internal sampling frequency.

TE Connectivity Ltd.    Berwyn, PA 19312
Aug 13, 2007 Featuring shock resistant housings, push-pull mating, and self-latching mechanism, CPC - Medical Connectors come in 5, 6, 7, and 10 contact positions with max current ratings of 7, 6, 5, and 3 A, respectively. Wire-to-panel units are sterilizable via autoclave, STERRAD 100 S1, CIDEX +, and EtO. With mating force of 2.5 lb and unmating force of 1 lb, connectors are suited for surgical instruments, RF and ultrasound ablation, and electronic patient monitors.

TE Connectivity Ltd.    Berwyn, PA 19312
Aug 13, 2007 Based on 4.2 x 4.2 mm centerlines, PE Series consists of wire-to-wire, wire-to-board, and wire-to-panel connectors available in even position sizes from 2-24. Contacts are rated for 9 A max and 600 Vac. Using headers, designers can create systems where exact positioning of connectors is aided by funnel lead-in of housing to permit alignment and mating. Applications include power supplies, vending equipment, computer motherboards, and appliances.

Sempermed USA, Inc.    Clearwater, FL 33762
Aug 13, 2007 Suitable for donning with wet or dry hands, multi-layer Polymed® Exam Gloves combine elasticity of latex and strength of copolymers, which protects against cracking and/or peeling in normal usage. Gloves contain 50 µg or less of total water extractable proteins/gram, minimizing potential for allergic reactions. Offering powder-free protection, gloves include micro-rough surface on fingers and palm for safe grip, as well as beaded cuff for strength.

MMD Components    Rancho Santa Margarita, CA 92688
Aug 13, 2007 Available with options for AT, SC, or IT cut crystal design, MOFLP Series OCXOs feature typical power consumption of 120 mA during start-up and under 70 mA in steady-state operation at 25°C for 3.3 Vdc unit. Customers can also specify operating voltage of 5 V, temperature ranges from -40 to +85ºC, and frequencies from 1-125 MHz. Oven-controlled crystal oscillators are offered in 14-pin DIP, gull-wing surface-mount, or SMD configurations.

Schurter, Inc.    Santa Rosa, CA 95403
Aug 13, 2007 Series T9 single pole circuit breakers for overcurrent protection are designed for applications where inrush currents cause nuisance trips or aging of fuse element. Threaded neck version accommodates an IP 65 rated cover for protection against environmental conditions such as jetting water. Snap-in rear mount version supports panel thicknesses ranging from 0.5-3.0 mm. Both models UL standard 1077 for Supplementary Protection, CSA C22.2 235, IEC 60934, and GB17701.

Micro Air Clean Air Systems    Wichita, KS 67205
Aug 13, 2007 Powered by EPACT motor, Model XA46 Extreme Air Downdraft Table offers solution to indoor air pollution problems such as welding smoke and fumes, grinding dust, and process powders. Portable unit features self-contained design that eliminates need for ducting and operates with quiet sound rating that exceeds OSHA standards. Cartridge filters are cleaned by Roto-Pulse(TM) system. Model XA34 is also available with 3 x 4 ft work area.

Liquid Dream Solutions    Battle Ground, WA 98604
Aug 13, 2007 Designed for Lightwave, Maya, Messiah Studio, 3DSmax, and XSI, ButterflyNetRender v4.0 enables 3D graphic artists to set up render farm for managing frame creation in graphic animations. Software can execute post process commands and offers rendernode grouping, scene order priority, custom batch commands, and split frame support. BNR Controller manages and distributes scenes to be rendered, while BNR Client renders scenes as instructed by controller.

Lock Inspection Systems, Inc.    Fitchburg, MA 01420 6094
Aug 13, 2007 Operating at low, medium, and high crystal frequencies, MET 30+ 3f/hf detector features in-built Automatic Frequency Selection facility to choose optimum frequency regardless of product or packaging. It can inspect dry products such as cookies or snack foods at 875 KHz, ensuring sensitivity for nonferrous and stainless steel metals. Unit is available with touchscreen keypad incorporating ADC software, which displays signals from metal detector in graphical format.

ASM Sensors, Inc.    Elmhurst, IL 60126
Aug 13, 2007 Suited for harsh conditions, Model PRAS3 uses internal contact-free permanent magnet, and features measurement ranges of 0-15°, 0-30°, 0-45° up to 0-360°. It comes with servo flange mounting and is equipped with 2 extra strong ball bearings to handle axial and radial loads along unit's 10 mm shaft. Available in 3 analog outputs of 0.5-4.5 V, 0.5-10 V, and 4-20 mA, sensor offers resolution and repeatability up to ±0.03% and linearity of ±0.3% over full scale.

Fujikura Europe Ltd, Fibre Optics Division    Chessington, Surrey KT9 2NY,  United Kingdom
Aug 13, 2007 Capable of splicing standard telecom fiber from 250-900 µm with single-handed action, Universal Mechanical Splice (UMS) system allows engineers to perform essential fiber connections, facilitating rapid deployments. Meeting Telcordia GR-765-CORE Generic Requirements, unit offers maximum insertion loss of 0.5 dB and average return loss of 40 dB. Handheld wedge tool device measures 142 x 57 x 22 mm.

Quantum Devices, Inc.    Barneveld, WI 53507

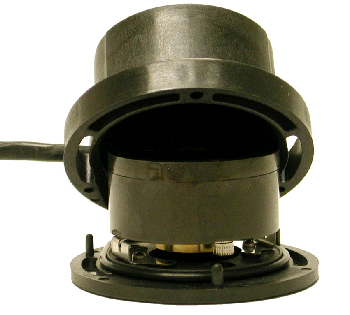

Aug 10, 2007 Equipped with split clamshell-like housing that allows for access to shaft mounting, Series QD145 includes dual O-rings that seal encoders inside housing, and seal housing against encoder mounting surface, providing IP66 seal. Standard 30° rotary adjustment is provided along 1.812 in. bolt circle mount.

Control Co.    Houston, TX 77258 8307

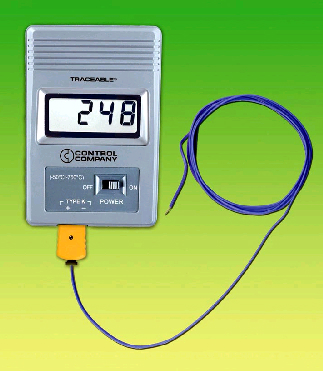

Aug 10, 2007 Suitable for lab, plant, and field use, Traceable® Pocket-Size(TM) Thermometer provides range of -50 to +750°C or -58 to +1,382°F with 1° resolution. Unit operates for 150-200 continuous hours on 9 V battery and comes with Type-K probe with beaded sensor, 4 ft cable, and nylon carrying case. To assure accuracy, individually serial-numbered Traceable® Certificate is provided from ISO 17025 calibration laboratory.

LEDtronics, Inc.    Torrance, CA 90505

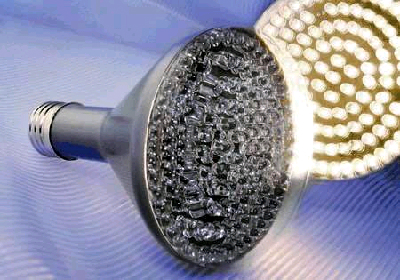

Aug 10, 2007 Combining LED technology with 25 mm Edison bases, R30 LED Reflector Spotlight Bulbs come in 120 Vac and in 5 light emitting angles of 15, 20, 30, 40, and 95°. Colors include 3,000 K Warm White, 5,500 K Pure White, 8,000 K Cool White, 633 nm Red, 592 nm Yellow, 525 nm Aqua Green, and 470 nm Blue. Infrared lamps are offered in wavelengths of 850, 880, and 940 nm. Providing operating lives up to 11 years, LED cluster lamps continue to provide light even if one or more emitter fails.

Ruwac Industrial Vacuums    Holyoke, MA 01041
Aug 10, 2007 Portable GV10 Gasoline Vacuum includes heavy-duty casters, 300 cfm centrifugal turbine, and maintenance-free filtration system with dirt release function. Device has modular housing design allowing for upgrades to electric or air-powered motors or HEPA modules for absolute filtration, and is 99.9% efficient at 0.5 micron with 28 ft² filter. Capacity of 9 gal drop-down dustpan can be increased to 55 gal and inlets are available in 2-4 in. sizes.

Bocada Inc.    Kirkland, WA 98033
Aug 10, 2007 Bocada Enterprise 5 gathers, analyzes, and consolidates information from cross-platform, heterogeneous data protection environments into single point of reference. Along with support for Veritas NetBackup PureDisk(TM), software provides accurate reporting related to success/failure of backup jobs, volume of data backed up, as well as other critical data protection metrics both within and outside of data center.

Breach Security, Inc.    Carlsbad, CA 92011
Aug 10, 2007 ModSecurity Pro M1100 appliance features pre-packaged rule sets that prevent information leakage and assist organizations with compliance efforts, such as those required for Payment Card industry. Rule sets can be applied on per-application basis for customized, platform-specific protection and provide automated detection of malicious activity. Web-based management interface delivers alerting, event analysis, and reporting capabilities.

Alcan, Inc.    Montreal, QC H3A3G2
Aug 10, 2007 Manufactured for global architectural and facade markets, ALUCOBOND® Spectra Colors series change color depending upon material's pigment type and observer's viewing angle. Different wavelengths of light are reflected back to viewer, producing an changing color gradient with iridescent highlights. Panels can be applied to both exteriors and interiors and are available in different finishes.

AltaSens, Inc.    Mountain View, CA 94040
Aug 10, 2007 Series A337x-4T 2.5 megapixel System-on-Chip sensors deliver 1080p video in 1/3 in. optical format. Wide ranging frame rate tolerances, with maximum of 72 fps, allow for special effect, time-lapse, and slow motion recording capabilities. Features include 2,000 x 1,132 pixel resolution, continuously variable progressive frame rate, 20-bit architecture with 12-bit analog-to-digital converter, and HD resolution at light levels below 0.5 lx.
