Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 21, 2007 Designed for industrial process control applications, Series REF50xx 3ppm/°C (max) temperature drift CMOS voltage reference features output current of ±10 mA that provides accurate voltage reference to ADC without additional op amp buffer. It features maximum accuracy of 0.05%, low output voltage noise (7.5 µVpp for 2.5 V output), and supply range of 0.2-18 V. With operating temperature range of -40 to 125°C, series offers 6 output voltages including 2.048, 2.5, 3.0, 4.096, 4.5, and 5 V.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 21, 2007 Operating at 315, 433, 868, and 915 MHz frequency bands, Model CC1101 sub-1 GHz RF transceiver can also be programmed for frequencies in 300-348, 387-464 and 779-928 MHz bands. It provides hardware support for package handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on radio. Using SPI interface, unit controls main operating parameters and 64-byte transmit/receive FIFOs.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 21, 2007 Suited for range of switching applications including audio, video, data, and power, DG451 and DG454 Series have 4 independently selectable 44 V SPST switches, each with typical on resistance of 4 W and typical flatness of 0.2 W. Devices are fully specified with dual supplies at ±5 and ±15 V, and single supply of 12 V. They feature switching speeds of t_ON 80 ns and t_OFF 60 ns. All digital inputs have 0.8 and 2.4 V logic thresholds, ensuring low-voltage TTL/CMOS compatibility.

ADLINK Technology Inc.    Irvine, CA 92618

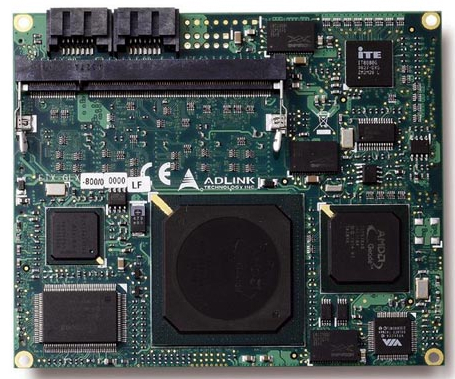

Aug 20, 2007 Based on AMD® Geode(TM) LX 800 processor and CS5536 companion chipset, ETX-GLX supports up to 1 GB DDR400 memory in one SODIMM socket and can optionally be equipped with 128 MB or 256 MB DDR400 memory soldered on module. ETX 3.02-compliant module incorporates 10/100Base-T Ethernet port, PATA EIDE controller, USB 2.0 ports, serial ports, parallel port, PS2 keyboard/mouse interface, AC'97 audio interface, and power management functionality. CRT/LVDS panel support is also included.

Digital Monitoring Products    Springfield, MO 65803

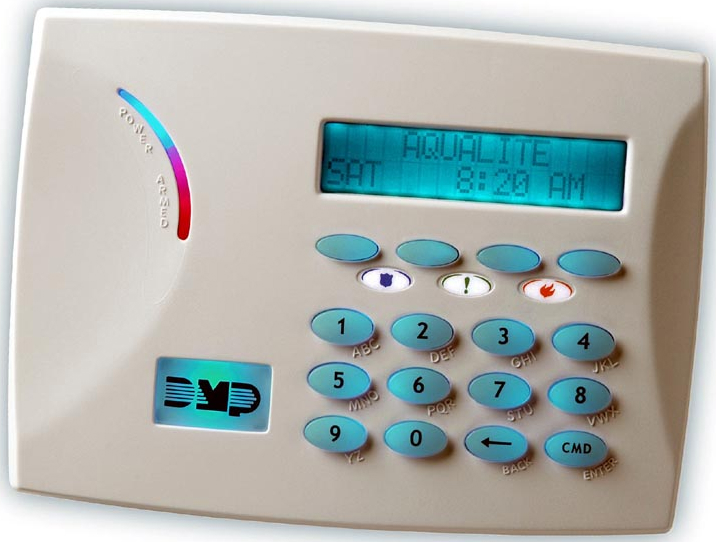

Aug 20, 2007 Equipped with Version 101 Firmware, 780 Keypad Demonstrator Module connects to any DMP 32-character LCD keypad to assist trainees/potential buyers in learning aspects of its operation and alarm system. It demonstrates Cancel/Verify false alarm prevention feature as well as how shortcut keys affect implementation of common arming functions. While simulating real-life situations, module provides access to user menu options such as armed areas, zone monitor, and user codes.

Eaton Filtration    Iselin, NJ 08830
Aug 20, 2007 Designed for piping systems with flow rates to 40,000 gpm, Model 510 Simplex Basket Strainer protects piping system components from damage caused by particulate matter in system flow. Use of 4 strainer baskets per unit provides high dirt removal capability. Baskets feature slanted top design for straight through flow that minimizes pressure drop. Suited for piping systems from 8-36 in., Model 510 is available in iron or bronze with flanged connections.

Contrinex AG    Old Saybrook, CT 06475

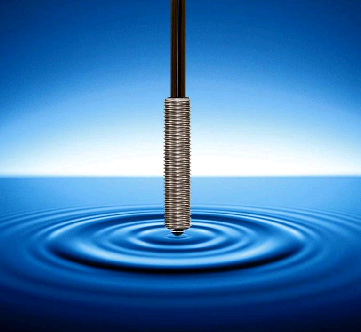

Aug 20, 2007 Intrinsically safe up to amplifier, Contrinex Series 1010 features AISI 303 stainless steel housing, scratch-resistant glass prism, and fully potted optical parts, making it impervious to most harsh liquids. Sensor uses 2 individual fibers with OD of 2.2 mm and fine inner fiber of 0.5 mm dia. Unit has ambient temperature range of -13 to +158°F. Made of PMMA with PE sleeve, fiber offers bending radius of 25 mm.

Coxreels    Tempe, AZ 85283-4323

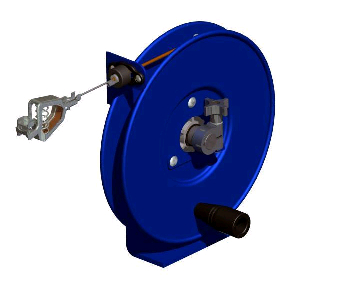

Aug 20, 2007 Suited for combustible environments where static buildup could ignite spark and subsequent explosion, hand crank SDH Series is configured to handle galvanized or stainless steel cable, in 100 or 200 ft lengths of 3/32 in. dia, covered with vinyl coated wire rope, totaling 5/32 in. dia. Integrated drag brake/reel stop prevents free wheeling and cable uncoiling during storage or transport, while FDA compliant C-PEP(TM) composite grommet style cable guide allows even wrapping.

Keytroller Inc.    Tampa, FL 33614

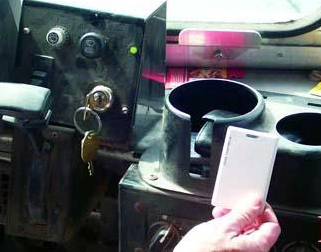

Aug 20, 2007 Keyless Ignition Simple System (KISS) provides 2nd level security to trucks, buses, and equipment by replacing ignition key start-up with lighted start/stop button. Button becomes enabled with company radio frequency identification (RFID) cards. Card Acceptance cause lighted button to become green enabling it to then be pressed to start vehicle. System consists of RFID reader module, PCB module, illuminated button, and relay module.

Innovative Components    Schaumburg, IL 60173

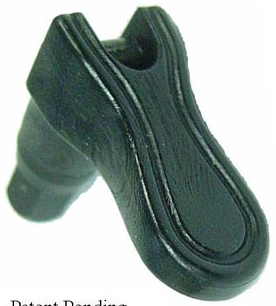

Aug 20, 2007 Suited for use on access panels, quick release swell latch attaches to outer panel via rubber gasket and acorn nut screwed onto die cast zinc threaded actuator shaft. Shaft assembly passes through hole on mating panel. When the latch is actuated, rubber gasket is compressed and swells outward to capture mating panel. This results in secure and vibration-resistant connection. Flip of latch, which is insert molded to be fully reversible, releases outer panel.

Tripp Lite    Chicago, IL 60609
Aug 20, 2007 Built to conserve floor space, SmartOnline(TM) 3-Phase UPS Systems incorporate power and battery components into one compact module. Front-panel battery access facilitates runtime scalability, providing 100% availability for connected equipment. Along with static bypass and manual maintenance bypass that ensure continuous availability, each model features true on-line, double-conversion operation and IGBT technology that provides less than 3% THD.

Rogan Corp.    Northbrook, IL 60062

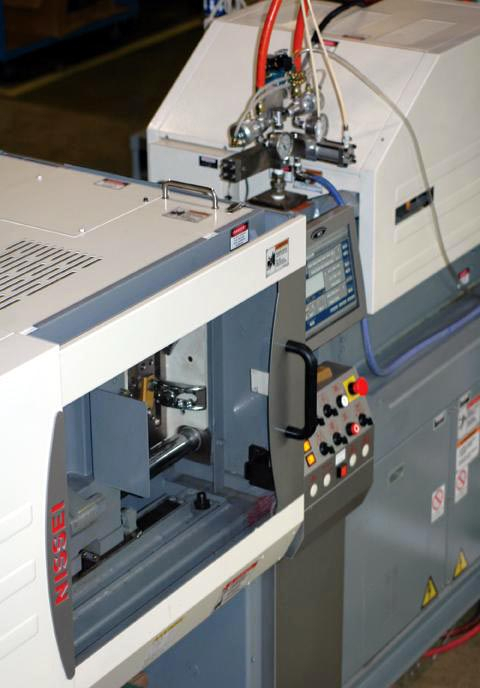

Aug 20, 2007 Liquid silicone rubber (LSR) used in molding service molecularly bonds with thermoplastic substrate parts. To eliminate handling and assembly of individual rubber and plastic components, tooling and overmolding techniques allow consolidation of silicone rubber and plastic into single composite part. Utilizing LSR's heat and chemical resistance, memory, and biological inertness in form of molecular-bondable material lets designers develop components that meet performance requirements.

CS Unitec, Inc.    Norwalk, CT 06850

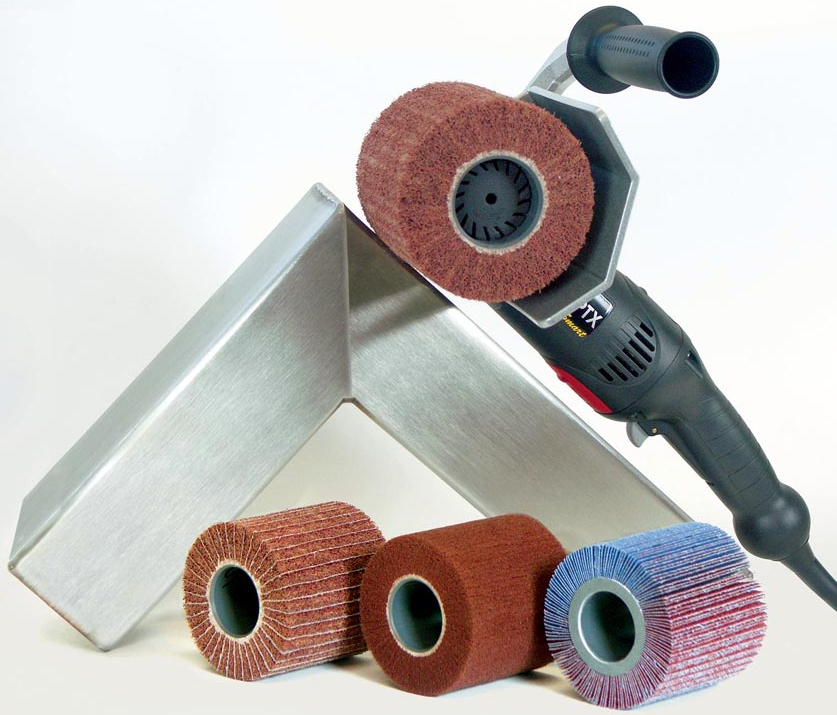

Aug 20, 2007 PTX Eco Smart has finned shaft design for vibration-free operation and 100% concentricity. Grinding and polishing wheels can be changed in seconds, all without tools or hardware. After hollow-core abrasive is slid onto finned, rigid rubber shaft, it is secured automatically when machine turns. Unit features balanced straight line handling and electronic speed control and can produce matte, satin, and other fine surfaces up to mirror finish on various materials.

Air Cylinders Direct    Mt. Pleasant, TN 38474
Aug 20, 2007 Capable of strokes up to 32 in., ESH Series features slide body of hardcoat anodized aluminum and air cylinder with stainless steel body and rod. Guided linear motion device, offered in bore sizes from 5/16-3 in., has steel/stainless steel guide shafts, polyurethane bumpers, and adjustable shaft collars. Alignment coupler offers 360° of float, eliminating side-loading of cylinder, and precision bearings are sealed with self-aligning and self lubricating rod wipers.

North Safety Products, Inc.    Cranston, RI 02920

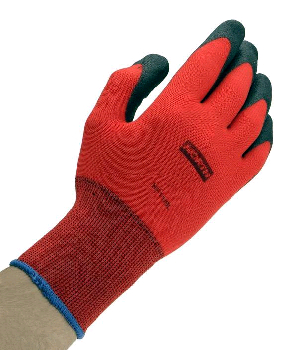

Aug 20, 2007 Featuring red nylon shell coated with flexible, black foamed PVC coating, general-purpose NorthFlex(TM) NF11 offers comfort, dexterity, tactility, abrasion resistance, and grip, even on wet surfaces. Inherently shock and vibration absorbing, glove buffers wearer's hands from demanding tool handling applications.

Wildeck, Inc.    Waukesha, WI 53187

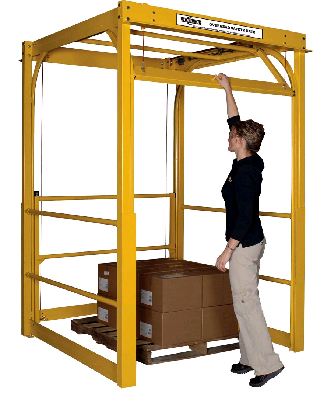

Aug 20, 2007 Designed to meet all industry codes and safety standards, Overhead Safety Gate includes leveling mechanism that resists gate binding. Integral spring assist slows gate descent, avoiding foot injuries, while 4 in. high kickplate keeps material from falling off edge of mezzanine or elevated surface. Painted safety yellow, gate can be incorporated in new and existing structures in warehouses, distribution centers, storerooms, and manufacturing facilities.

Liftomatic Material Handling, Inc.    Buffalo Grove, IL 60089

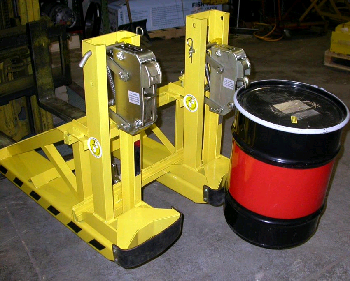

Aug 20, 2007 Manufactured to fit directly to forks of any standard lift truck, Model FTA uses Parrot-Beak® clamping system and cushioned belt cradles to safely engage steel open top and tight head drums weighing up to 1,500 lb. Completely mechanical unit requires no hydraulic or electrical connections to operate. Weather-Beak® coating on Parrot-Beak allows attachment to be used with any weather or climate conditions, while also resisting exposure to chemical and residues.

Pyramid Inc.    Newton, IA 50208
Aug 20, 2007 Utilizing non-destructive method, Diametape provides means for consistent measurement of inside diameter (ID) or inside circumference (IC) of o-ring or endless belt. Product includes instructions to convert this information to centerline circumference (length) measurement. Inspection tool can be used to facilitate process of determining size of replacement belt.

Waterloo Industries, Inc.    Waterloo, IA 50704 2095
Aug 20, 2007 Magnum® Facility Storage Units include floor cabinets, wall cabinets, and workbenches. Along with V-Rib design, floor and wall cabinets have respective load capacities of 4,800 and 1,200 lb. Former has 4 adjustable, 800 lb-capacity shelves with retaining strip to keep contents in place when tilted, while latter has 2 adjustable 300 lb capacity shelves. With adjustable bench height from 36-39 in., 6 ft workbenches handle up to 8,000 lb and have sealed MDF top with T-molding edge band.

Kaman Aerospace, Measuring & Memory Systems    Middletown, CT 06457

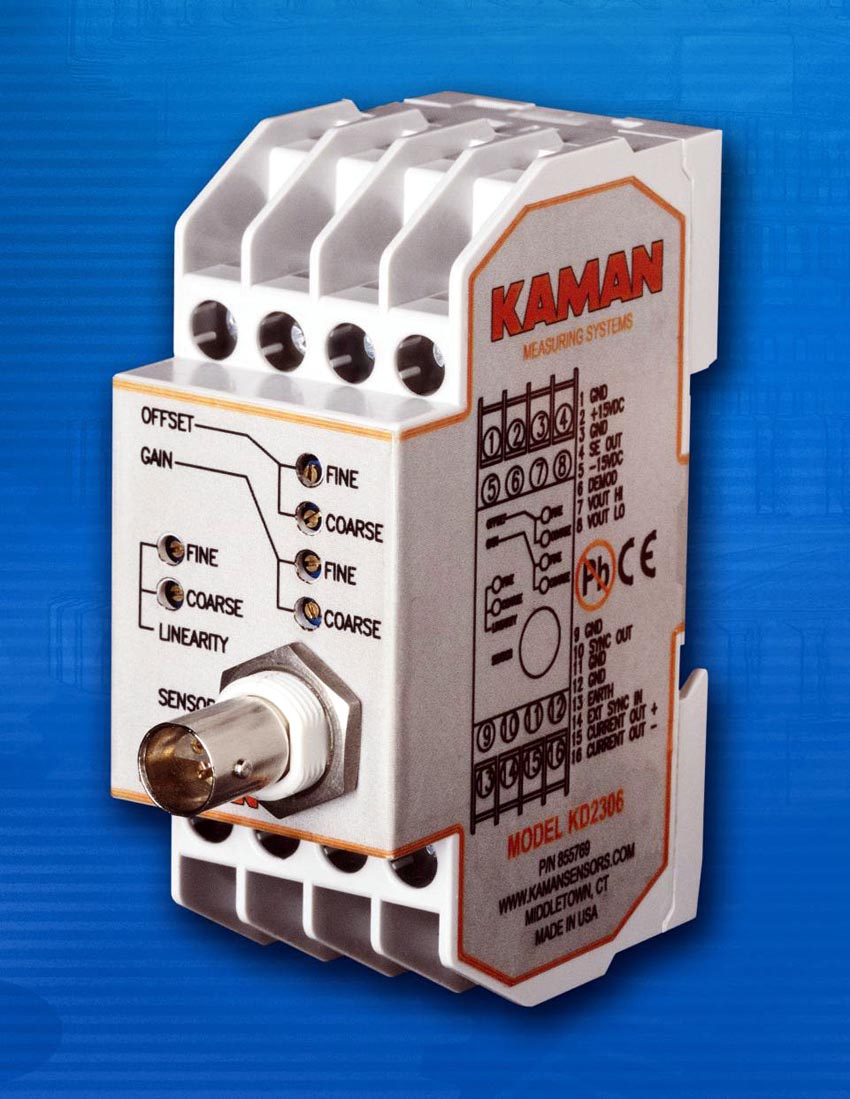

Aug 20, 2007 Model KD-2306 non-contact linear displacement measuring instrument supports ambient, moderate temperature, and cryogenic rated sensors. Instrument senses ferrous and non-ferrous metal targets with sensing range of 0.02-2.4 in. RoHS-compliant unit features DIN rail mount packaging for OEM equipment integration. Terminal I/O are provided to connect 15-30 Vdc input power, optional 0-5 Vdc, 0-10 Vdc ±5 Vdc, 4-20 mA output, and synchronization cables for multi-channel operation.
